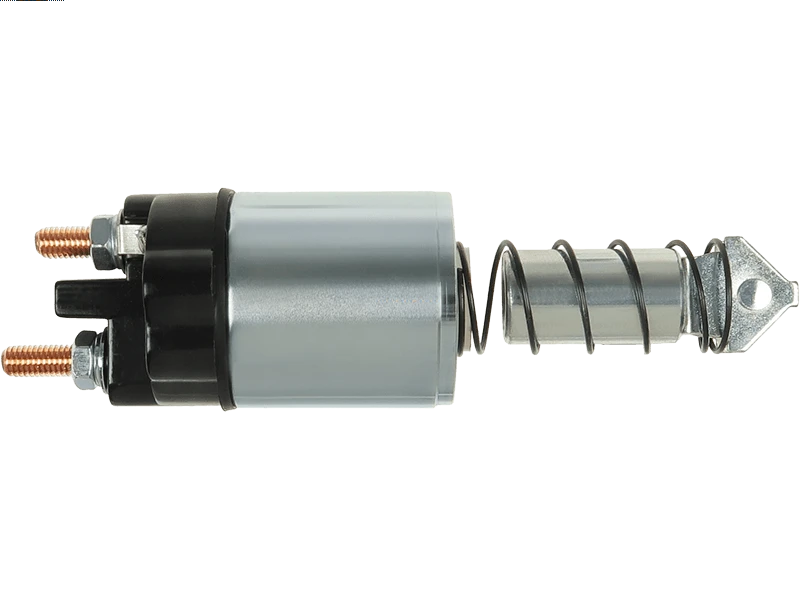

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 90.59 including GST
NZ$ 78.77 excluding GST
or four payments of $22.65
with
Learn More
each
SS4022
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
063222135010 063222136010 063222138010 063222204010 063222206010 63222038 63222040 63222131 63222134 63222135 63222136 63222138 63222204 63222206 063222135010 063222136010 063222138010 063222204010 063222206010 63222038 63222040 63222131 63222134 63222135 63222136 63222138 63222204 63222206Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 20.8 mm |
| Inside Diameter (I.D.1) | 23 mm |
| L.B+ | 24.7 mm |
| Length (L.1) | 81.6 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 51.7 mm |
| Outside Diameter (O.D.2) | 61.8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Reference Information
85540922010 CQ2030514 1012034 85540922 SND12426 66-9306 139104 SOL4149 9944575Video/Publications
063222135010 063222136010 63222206 63222138 63222204 63222038 SS4022 63222040 063222206010 063222204010 63222136 63222135 063222138010 63222134 63222131View your shopping basket or Browse other items in Starter Solenoid.
