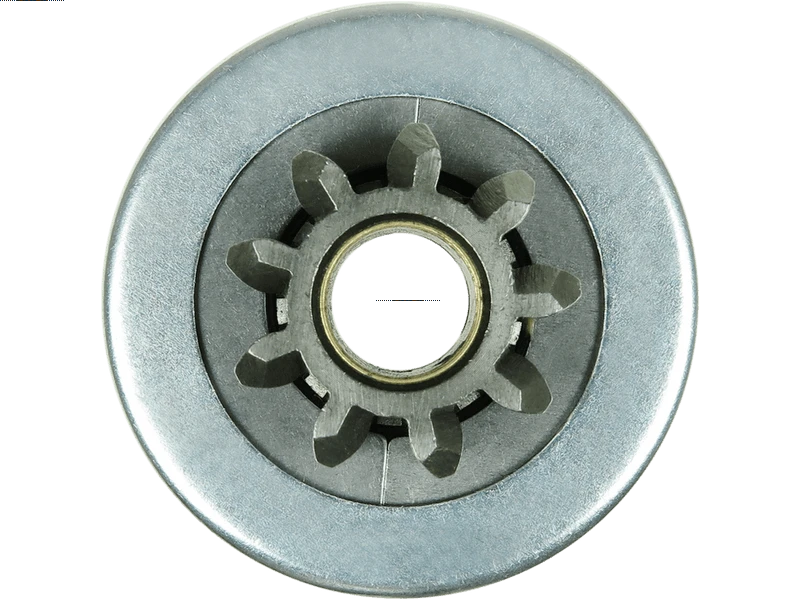

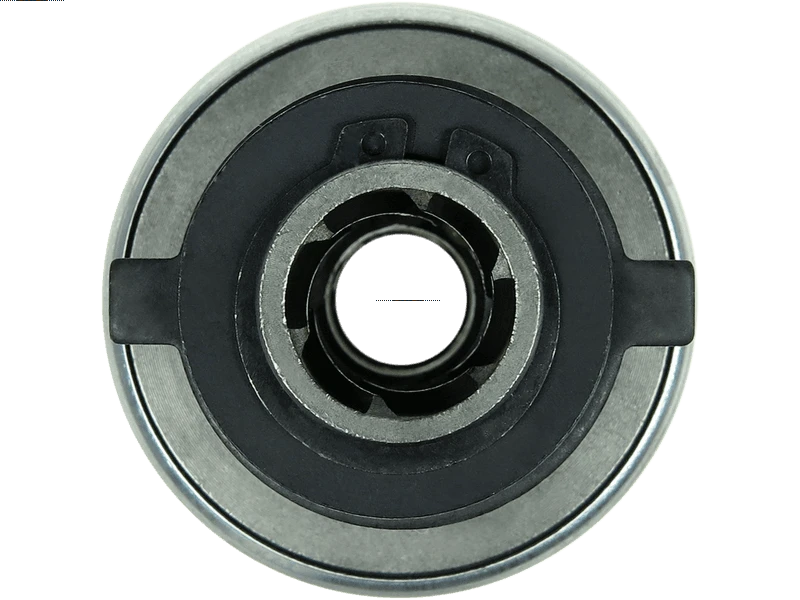

Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 38.92 including GST
NZ$ 33.84 excluding GST
or four payments of $9.73
with
Learn More
each
SD4005
3
Associated Numbers
063216727010 063216740010 063216827010 063216898010 063217118010 063217119010 063217120010 063217125010 063217147010 063217225010 63216703 63216707 63216725 63216726 63216727 63216740 63216800 63216808 63216825 63216826 63216827 63216852 63216873 63216898 63217101 63217104 63217105 63217118 63217119 63217120 63217125 63217147 63217201 63217225 MT62BA MT67A MT67AB MT67C MT67CA MT68A MT68AA MT68AB MT68AC MT68H MT68LA MT68LB MT71A MT71AA MT71D MT71DA MT71E MT71T MT72A MT72AA 20404077 20404081 S4026 063216727010 063216740010 063216827010 063216898010 063217118010 063217119010 063217120010 063217125010 063217147010 063217225010 63216703 63216707 63216725 63216726 63216727 63216740 63216800 63216808 63216825 63216826 63216827 63216852 63216873 63216898 63217101 63217104 63217105 63217118 63217119 63217120 63217125 63217147 63217201 63217225 MT62BA MT67A MT67AB MT67C MT67CA MT68A MT68AA MT68AB MT68AC MT68H MT68LA MT68LB MT71A MT71AA MT71D MT71DA MT71E MT71T MT72A MT72AA 20404077 20404081 S4026Specifications
| Inside Diameter (I.D.1) | 14.2 mm |
| Length (L.1) | 77.2 mm |
| Length (L.2) | 17 mm |
| No./Splines | 6 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 61.7 mm |
| Outside Diameter (O.D.2) | 34.6 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | MAGNETI MARELLI |
Reference Information
79023774 9929081 9936772 72397101 9986112 CQ2010607 SDV3720 131109 21-41-21 72139001 72139001010 3040 SDR30101 72363402 01-41-78 3090 22404101BN DRV9112 CDR30101 9957707 225163 1015736 54-9300 9935731 1.01.0407.0Video/Publications
