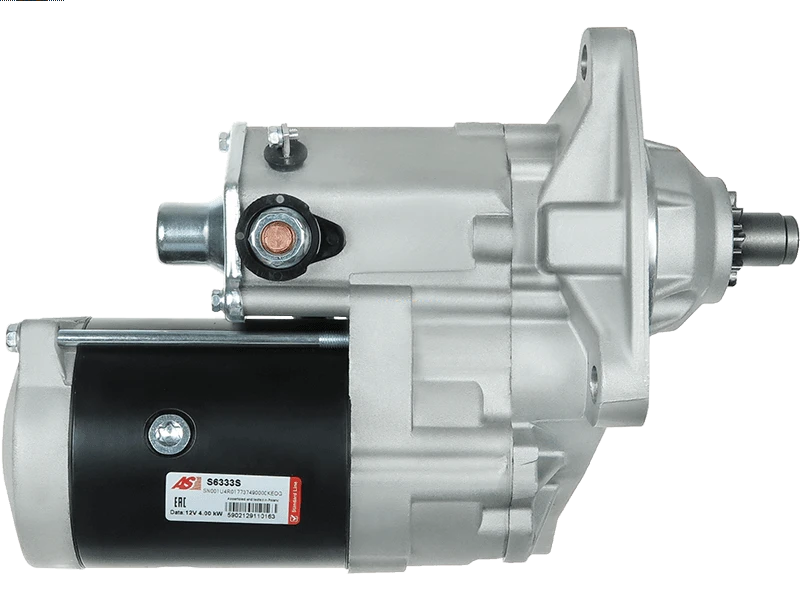

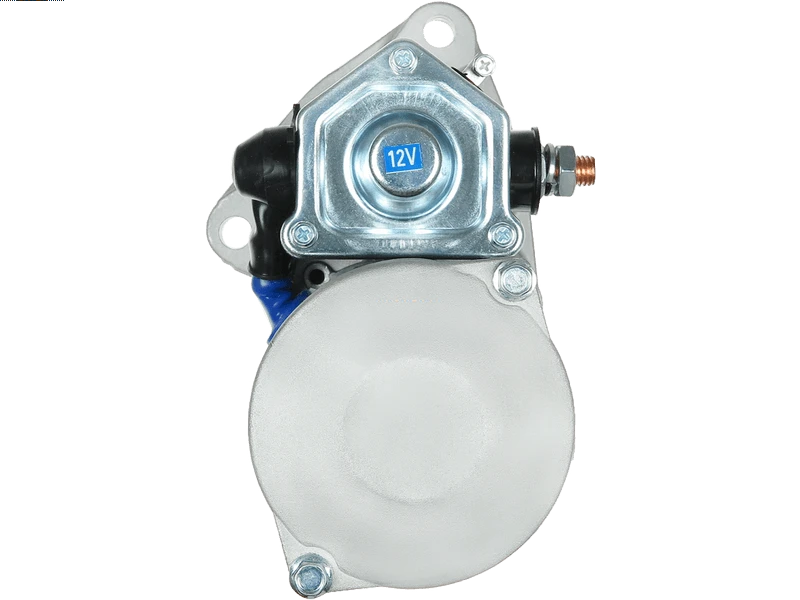

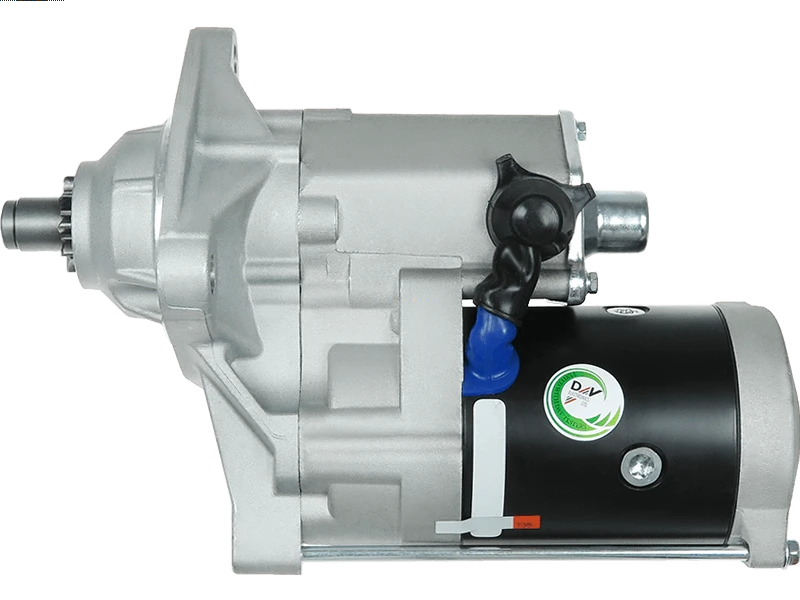

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 518.57 including GST
NZ$ 450.93 excluding GST
or four payments of $129.64
with
Learn More
each
S6095
S6333S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
228000-8510 UD16533S CST40254AS CST40254GS CST40321.AS CST40321.GS 193432A1 193432A2 3283813 3957589 228000-5600 228000-5601 228000-5602 228000-5603 228000-5620 228000-5621 228000-5622 228000-6390 228000-6391 228080-5603 228080-5622 DSN2011 DSN2023 S-8854 246-30118 SG9103á STN8510 254667 87413501 88213771 20432452BN 20432452OE 20432123BN 20432123OE 190-30100 6040254.0 6040254.1 6040321.0 6040321.1 18406N 18406R 91-29-5449N 91-29-5449 STR70340 228080-5620 Denso Starter Motor 9712809-981 STARTER MOTOR 1 UNIT Wilson 91-29-5198 Cummins 12v 4kw 3604661RX 128000-5330 [A187728] 128000-5331 128000-9800 [3920328] 128000-9801 128000-9810 [3921012] 128000-9811 228000-1940 228000-5311 228000-9810 9712809-980 snj251 70-2699 70-8997G 015600 Andre Niermann 10465539 Remy 114646 Cargo 2280005310 2280005311 show 2280005600 2280005900 2280005901 2280005902 2280006510 2280805902 3283815 3957590 4280005440 700521103 PSH 91295486 91295486N DRS0349 DSN2024 STR6150sa Electrolog STR9051 Unipoint ARROWHEAD ND228000-5311 NDTG228000-5311 SND0626 BLUEBIRD 1935477 CASEIH 2509687C91 DENSO 228000-531 228000-5310 280-8002 TG228000-5311 J&N ELECTRICAL PRODUCTS 410-52083 LESTER 18508 THOMAS BUILT BUSES 61230712 ND228000-5622 CUMMINS 228000-562 18343Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| INTERNATIONAL | 1754 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 1954 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 2200 | [DT-466] | 01.1988-12.2002 |
| INTERNATIONAL | 2275 | [DT-466] | 01.1988-12.2002 |
| INTERNATIONAL | 2300 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 2375 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 2554 | [DT-466] | 01.1993-12.2007 |
| INTERNATIONAL | 2564 | [DT-466] | 01.1993-12.2007 |
| INTERNATIONAL | 2574 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 2575 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 2654 | [DT-466] | 01.1993-12.2007 |
| INTERNATIONAL | 2674 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 2675 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 3000 | [DT-466] | 01.1993-12.2007 |
| INTERNATIONAL | 3900 | [DT-466] | 01.1993-12.2007 |
| INTERNATIONAL | 4000 | [DT-466] | 01.1993-12.2007 |
| INTERNATIONAL | 4900 | [DT-466] | 01.1993-12.2000 |
| INTERNATIONAL | 5000 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 5900 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 7100 | [DT-466] | 01.1993-12.2000 |
| INTERNATIONAL | 7700 | [DT-466] | 01.1993-12.2001 |
| INTERNATIONAL | 8100 | [DT-466] | 01.1993-12.2007 |
| INTERNATIONAL | 8600 | [DT-466] | 01.1993-12.2007 |
| INTERNATIONAL | 9100 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | 9900 | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | S | [DT-466] | 01.1988-12.2003 |
| INTERNATIONAL | Transtar | [DT-466] | 01.1988-12.2003 |
Reference Information
228000-5602 228000-5603 UD16533S STN8510 228000-8510 228000-5600 228000-5601 STR6429 S6333S 228080-5622 246-30118 STR70340 87413501 3957590 91-29-5449 CST40321.AS 18406N CST40254AS DSN2023 18406R 6040254 3675245RX STX210082 6040321.1 88213771 3957589 SG9103 CST40254GS 228000-5622 228000-5620 228000-5621 228000-6391 6040321 DSN2011 228000-6390 254667 3283813 3283815 193432A1 193432A2 20432452BN 3920328 CST40321.GS 228080-5603 20432123BN S-8854 3675288RX 6040254.1 91-29-5449N 20432123OE 190-30100 3675246RX 20432452OEVideo/Publications
