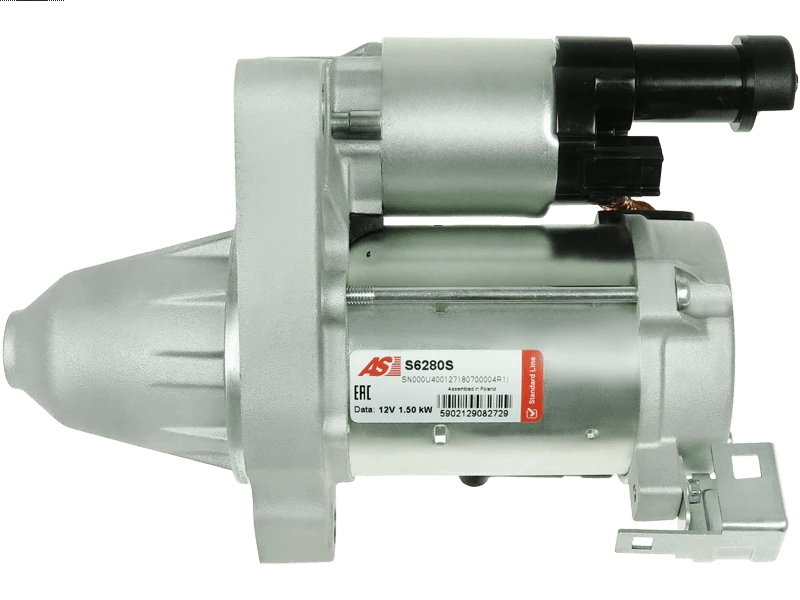

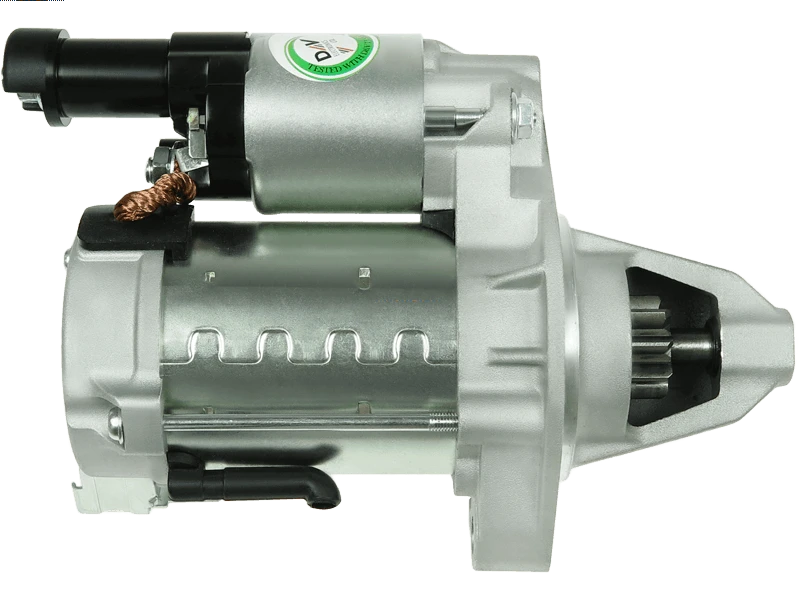

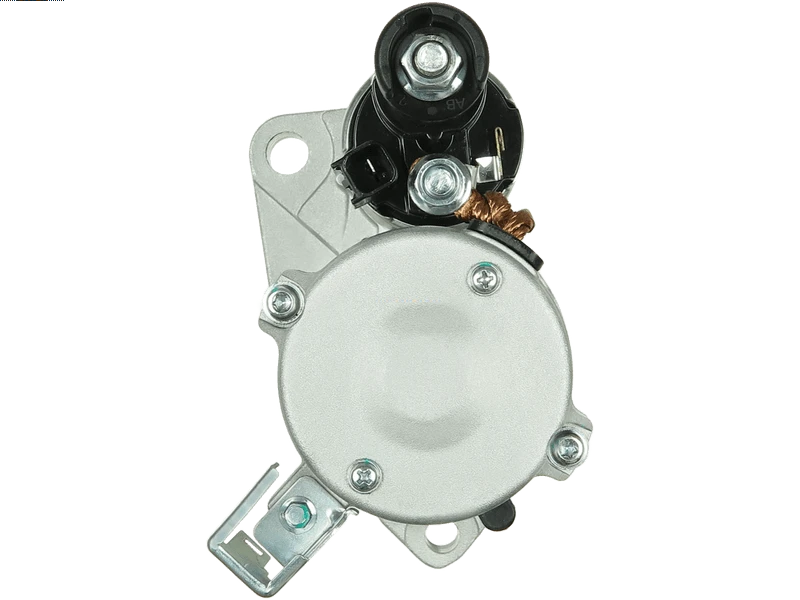

S6280S - Brand new AS-PL Starter motor

Associated Numbers

25-5115 31200-R1A-G51 31200-R1P-H01 428000-8170 AEX1254 LRS03953 STN8170 UD14207S dxs599 70-8880 116426 Cargo 120597092 PSH 255115 Elstock 31200R1AG51 Honda 31200R1PH01 322076092 DRI 3711 CEVAM 4280008170 Denso 50202078 RE-EX DUDRK DUDRL Lucas Autoelectro A/S Denmark Herth Buss J5214063 Lester 30488 Electrical Europe Part # KRAUF STN8170BA STN8170RD STN8170RN STN8170SU STN8170XH STN8170ZD Motorherz STN8170RB ZAUFER 300N11009Z 11040940 EuroTec show 4280808170 6040525 Sando DSN1492 LRS3953 RNL4280008170 RNL

Specifications

Kilowatt	1.4 kW
Length (L.1)	210 mm
Mount Hole Center - Center (O.1)	126 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	33.5 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	75 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HONDA	Civic 1.8 i-VTEC	[R18Z4]	01.2014-
HONDA	Civic 1.8 i-VTEC	[R18Z4]	02.2012-
HONDA	CIVIC 1.8 i-VTEC	[R18Z4]	01.2014-
HONDA	CR-V 2.0	[R20A9]	10.2012-
HONDA	CR-V 2.0 AWD	[R20A9]	10.2012-

Reference Information

63721642610 428080-8170 116426 UD14207S 6040525.0 20432525BN AEX1254 31200-R1P-H01 3711 120.597.092.260 LRS3953 120.597.092.058 31200-R1A-G51 MQS16426 DUDRL DUDRK 88215160 428000-8170 STR6779 CST40525AS 25-5115 LRS03953 30488N PRSE446 DENDSN1492 DSN1492 120.597.092.050 MAV425250A J5214063 STRE446 STN8170

Video/Publications

S6280S
