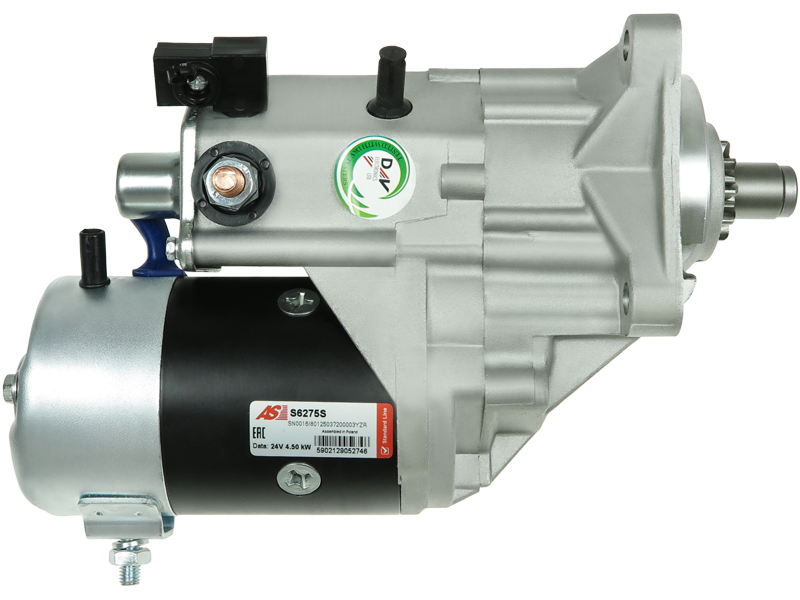

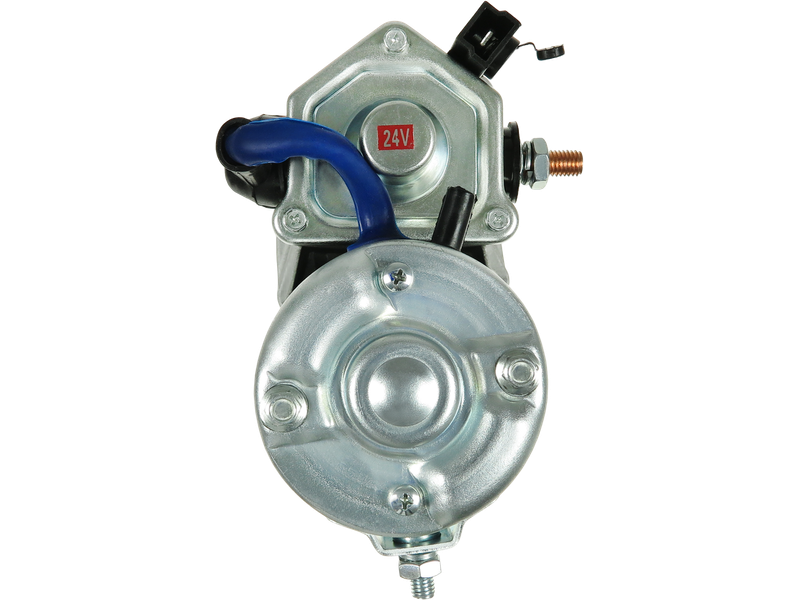

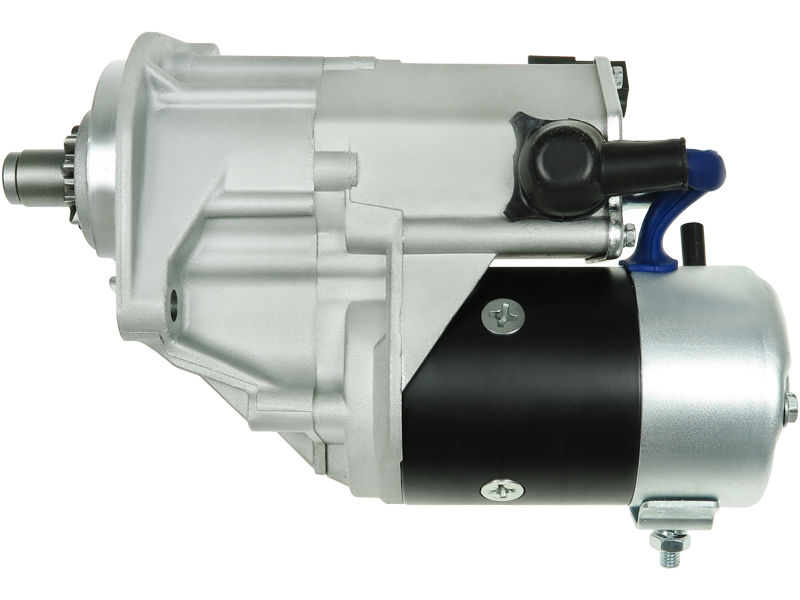

S6275S - Brand new AS-PL Starter motor

Specifications

Kilowatt	4.5 kW
Length (L.1)	300 mm
Mount Hole Center - Center (O.1)	89 mm
Mount Hole Center - Center (O.2)	89 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	30 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	88.8 mm
Unit Type	DENSO
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CATERPILLAR	312D2	[3054C]
CATERPILLAR	312D2L	[3054C]
CATERPILLAR	312DGC	[3054C]
CATERPILLAR	313D2	[3054C]
CATERPILLAR	313D2 LGP	[3054C]
CATERPILLAR	315C	[3054]
CATERPILLAR	315CL	[3054]
CATERPILLAR	315CL	[3054C]
CATERPILLAR	318D2L	[3054C]
CATERPILLAR	420E	[3054E]
CATERPILLAR	564	[3056E]
CATERPILLAR	574B	[3056E]
CATERPILLAR	914G	[3054C]
CATERPILLAR	AP300	[3056E]
CATERPILLAR	AP500E	[C4.4]
CATERPILLAR	AP555E	[C4.4]
CATERPILLAR	AP600	[3056]
CATERPILLAR	AP650B	[3054C]
CATERPILLAR	AP650C	[3054C]
CATERPILLAR	AP800D	[3054C]
CATERPILLAR	BB760	[3056E]
CATERPILLAR	BG225C	[3054C]
CATERPILLAR	BG230D	[3054C]
CATERPILLAR	BG500E	[C4.4]
CATERPILLAR	BG555E	[C4.4]
CATERPILLAR	CP323C	[3054C]
CATERPILLAR	CP433E	[3054C]
CATERPILLAR	CP533E	[3054C]
CATERPILLAR	CS323C	[3054C]
CATERPILLAR	CS423E	[3054C]
CATERPILLAR	CS433E	[3054C]
CATERPILLAR	CS44	[C4.4]	01.2013-12.2016
CATERPILLAR	CS54	[C4.4]	01.2013-12.2016
CATERPILLAR	CS54B	[C4.4]	01.2013-12.2016
CATERPILLAR	CW34	[C4.4]
CATERPILLAR	IT14G	[3054C]
CATERPILLAR	IT14G2	[3054C]
CATERPILLAR	M313C	[3054]
CATERPILLAR	M313C	[3054E]
CATERPILLAR	M313D	[C4.4]
CATERPILLAR	M315C	[3054]
CATERPILLAR	M315C	[3054E]
CATERPILLAR	M315D	[C4.4]
CATERPILLAR	M315D2	[C4.4]
CATERPILLAR	M315E	[3054E]
CATERPILLAR	M316C	[3056]
CATERPILLAR	M316C	[3056E]
CATERPILLAR	M316D	[C6.6]
CATERPILLAR	M316E	[3056E]
CATERPILLAR	M317D2	[C4.4]
CATERPILLAR	M318C	[3056]
CATERPILLAR	M318C	[3056E]
CATERPILLAR	M318CMH	[3056]
CATERPILLAR	M318CMH	[3056E]
CATERPILLAR	M318D	[C6.6]
CATERPILLAR	M318DMH	[C6.6]
CATERPILLAR	M322C	[3056]
CATERPILLAR	M322C	[3056E]
CATERPILLAR	M322D	[C6.6]
CATERPILLAR	M322DMH	[C6.6]
CATERPILLAR	PF300C	[3054C]
CATERPILLAR	PS150C	[3054E]
CATERPILLAR	PS150C	[3054T]
CATERPILLAR	PS300C	[3054C]
CATERPILLAR	PS360C	[3054C]
CATERPILLAR	SC533E	[3054C]

Reference Information

1430541 6040619 1430543 5140094 230-7304 OR4321 1006929 190-25120 225-7304 641.544.103 STR6580 STI4268 STN4268 2873K406 STR70500 114278 246-25252 CST40619 S24DE0011A2 BOM CST40619GS UNIT CST40619ES 0R4321 225-3150 DS1316 S-80285 190-6351 8182 CST40619OS DSN2058 S24DE0011 UD14897S DRS0206 S6275S 428000-1120 CST40619RS CST40619AS MAV426190
