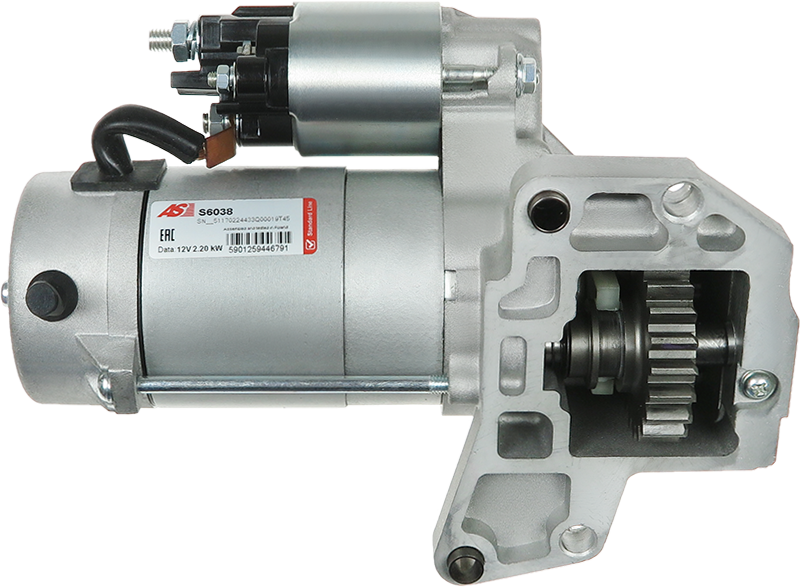

S6038 - Brand new AS-PL Starter motor

Associated Numbers

12080 201368 201368D 20432713BN 20432713OE 25-4014 3109 33336RW 428000-1630 428000-4810 5802AH 5802AJ 5802AX 5802FE 6040317 9649448380 AET1368 CST40317AS CST40317GS DSN942 EAA-121956 JS1368 LRS02342 S6038

Specifications

Kilowatt	2.2 kW
Length (L.1)	239 mm
Mount Hole Center - Center (O.1)	36 mm
Mount Hole Center - Center (O.2)	121 mm
Mount Hole Center - Center (O.3)	37 mm
Mount Hole Center - Center (O.4)	116 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	9 mm
Mount Hole Diameter (C.3)	9 mm
Mount Hole Diameter (C.4)	9 mm
No./Mount holes	4 qty
No./Mount holes with thread	0 qty
No./Teeth	21 qty
No./Teeth (Replaces)	21 qty
OEM Product	No
Pinion at Rest (B)	7 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CITROEN	C5 2.7 HDi	[DT17ED4]	02.2008-
CITROEN	C5 2.7 HDi	[UHZ(DT17BTED4)]	02.2008-
CITROEN	C6 2.7 HDi	[DT17TED4]	09.2005-05.2008
PEUGEOT	407 2.7 HDi	[DT17TED4]	10.2005-07.2008
PEUGEOT	607 2.7 HDi 24V	[DT17TED4]	12.2004-

Reference Information

5802AX 20432713OE JS1368 DSN942 5040569 201368D 20432713BN 5802AP 6040317 5802AH 5802AJ 25-4014 S12DE0345 S6038 428000-1630 RNL1368JS 6040317.1 6040317.0 220801 9649448380 115328 5702FE 12080 201368 3109 33336RW MAV423170A STR6451 LRS02342 S12DE0345A2 33336N CST40317AS STRL297 STX201043 5802FE CST40317GS 9664883081 428000-4810 5802FF 9638525380 9664883080 LRS2342 AET1368
