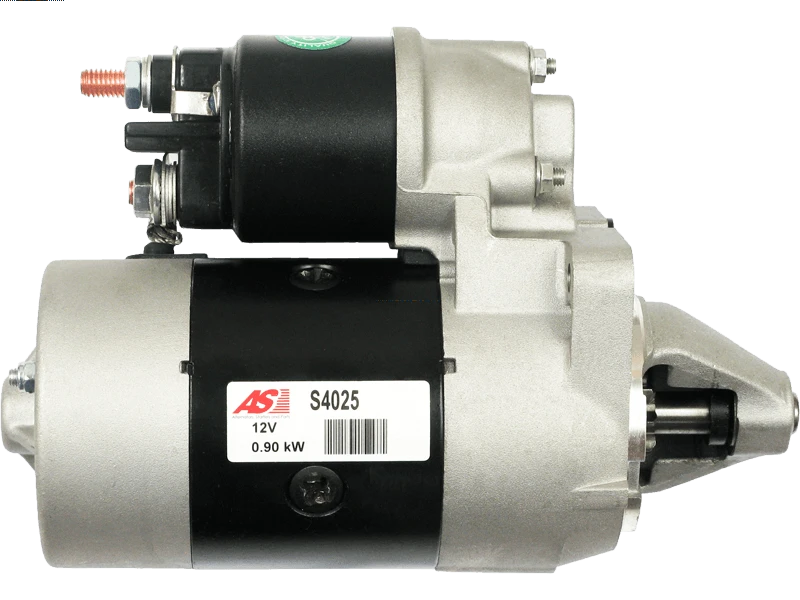

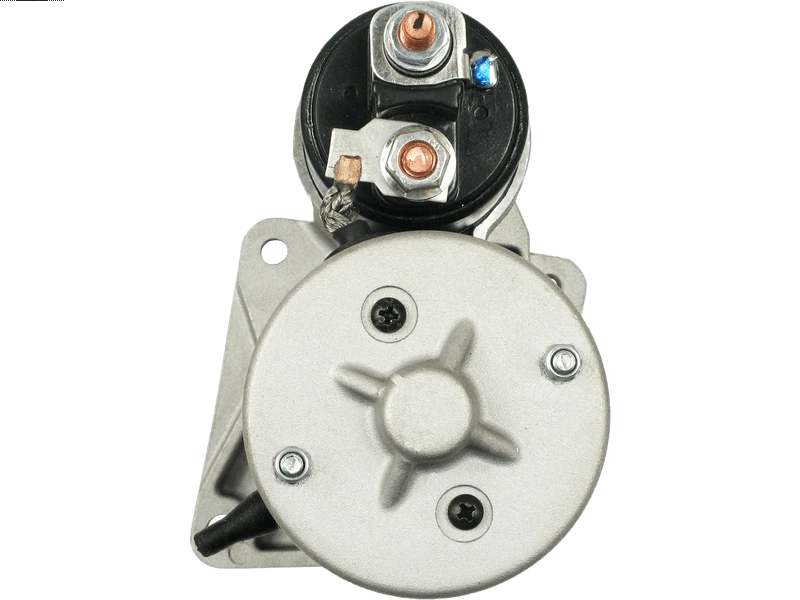

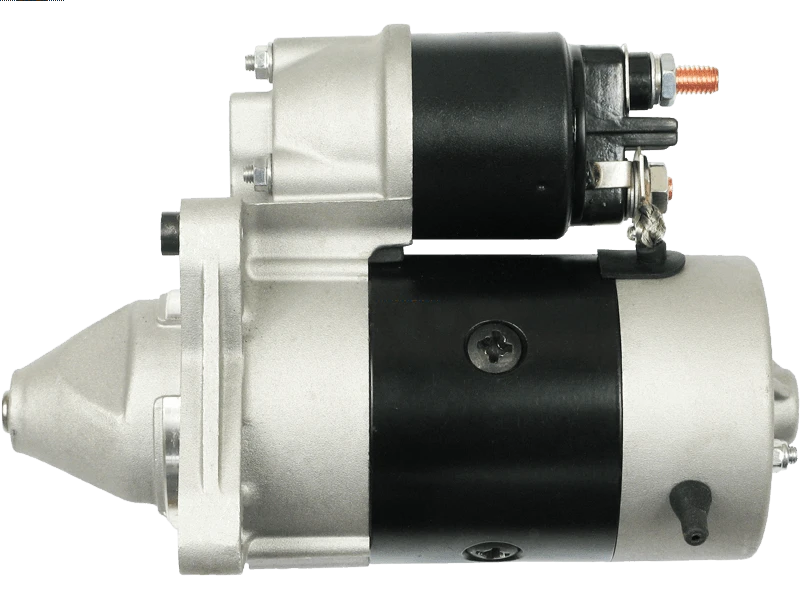

S4025 - Brand new AS-PL Starter motor

Associated Numbers

0986021590 0986022411 101379H 101379K 101379V 10796 10796H 10796V 11969 20401233OE 20404851BN 20445151OE 20445151RE 20445912OE 20479261OE 22.1379 22.1379M 25-3283 3160 32726N 32726R 32727R 438144 458162 46813058 46813064 46816793 46816973 51772325 517723250 51812501 51832950 55193355 55193356 6010332 6015162 6020151 6020219 6030158 63101021 63102022 63103031 63280042 8080202 88212885 8EA012526-471 8EA738258-101 AEY1726 CS1379 CST10332GS CST15162GS CST20151AS CST20151GS CST20151OS CST20219GS CST30158AS CST30158GS D7E52 DRS3887 DRT2411 DSN576 EAA-121124 F000AL0320 LRS01726 RNL63103031 S114-905 S114-906 S114-938 S114-943 S4025 SS025 SS267 SS719 STR52053

Specifications

Kilowatt	0.9 kW
Length (L.1)	207 mm
Mount Hole Center - Center (O.1)	75 mm
Mount Hole Center - Center (O.2)	109 mm
Mount Hole Center - Center (O.3)	75 mm
Mount Hole Diameter (C.1)	6.5 mm
Mount Hole Diameter (C.2)	9 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	1 qty
No./Teeth	8 qty
No./Teeth (Replaces)	8. 9. 10 qty
OEM Product	No
Pinion at Rest (B)	11 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	64 mm
Unit Type	MAGNETI MARELLI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FIAT	500 1.2	[169A4.000]	10.2007-
FIAT	500 1.4	[169A3.000]	10.2007-
FIAT	Bravo 1.4	[182A5.000]	04.2007-
FIAT	Bravo 1.4 T-JET		09.2007-
FIAT	Doblo 1.4	[350A1.000]	10.2005-
FIAT	Grande Punto 1.2	[199A4.4000]	10.2005-
FIAT	Grande Punto 1.4	[350A1.1000]	10.2005-
FIAT	Grande Punto 1.4 16V		10.2005-
FIAT	Grande Punto 1.4 T-Jet		09.2007-
FIAT	Idea 1.2 16V	[188A5.000]	01.2004-
FIAT	Idea 1.4	[350A1.000]	10.2005-
FIAT	Idea 1.4 16V	[843A1.000]	01.2004-
FIAT	Linea 1.4		06.2007-
FIAT	Linea 1.4 T-Jet		09.2007-
FIAT	Panda 1.1	[187A.1000]	09.2003-
FIAT	Panda 1.2	[188A.4000]	09.2003-
FIAT	Panda 1.2 4x4	[188A4.000]	10.2004-
FIAT	Panda 1.4	[169A3.000]	10.2006-
FIAT	Punto 1.4		09.2003-
FIAT	Stilo 1.2 16V	[188A5.000]	10.2001-12.2003
FIAT	Stilo 1.4 16V	[192B2.000]	03.2005-
FIAT	Stilo 1.4 16V	[843A1.000]	01.2004-
LANCIA	Musa 1.4	[350A1.000]	09.2005-
LANCIA	Musa 1.4	[843A1.000]	10.2004-
LANCIA	Ypsilon 1.2	[188A4.000]	06.2003-
LANCIA	Ypsilon 1.2	[188A5.000]	10.2003-
LANCIA	Ypsilon 1.4	[843A1.000]	10.2003-

Reference Information

AC-CBS1379 2-0018 CST30158GS 71782367 71789435 1638122880 71789436 71789437 MAV221510 CS1379 11439832 3122923 IR9381 32727R H5020282 EZ0339 LRS1726 1202291 500.542.093.270 STX200032R 2S0115R 6030158.1 63280042 51832950 71793783 25-3283 517723250 51832952 SKSTR-03330735 51832951 1567033 220904 71784019 71785105 6030158.0 MAV221520 8EA738258-101 255621H 1202503 63102022 S114-943 10438883 STX200032 71794760 S114-947 S114-948 32726N 10020151AV DRS0443 32726R ST01342 V24-12-50001 A77960 88212885 WG2174906 2S0115 S12HT0019 SKSTR-0330114 101379H AZMT-53-010-1479 5015028 95523405 220376 101379R 101379K WG2012919 969ST11 WG2012918 20404851OE 0986021590 STRL089 11969 101379V DRT2411N LRS01726 8EA012526-471 MSN8060 TT16327 318092082 1542468 10020151OV MAV221500 71789526 LES0618 51772325 MRS80202 55201360 S114-965 500.542.093.000 SHI151A 42114905 10439832 71722351 71722352 51890631 51890632 51890634 4721640 71784985 46548653 10796H 46548654 63101021 STM302 3160 51812501 9S51-11000-AA DRS3887 9S51-11000-AB D7E52 5020282 71793620 STA0124R 46813058 438144 S114-943A 63103031 DRT2411 55192483 55192484 106377 136908 113962 220421 F000AL0320 F042200132 F032113962 RE83585N S114-905 S114-906 8080202 11021590 500.542.093.500 458162 011-001-000347R 10796V 101379B 500.542.093.461 STR52064 2S0710 46816793 SHI151 8212885 726079 BS51-11000-CA 944280802020 95523328 71723371 95520336 726879 71789053 331794 STR3219 S114-938 71789051 SG0131 71789052 1726802 SG0136 20404851BN 10796 71796990 PRSL089 CMA-621124 FI9073 55193356 55193355 S12HT0019A2 46813064 46816973 063280060010 95512962 CST30158AS 500.542.093.280 2506908 2506909
