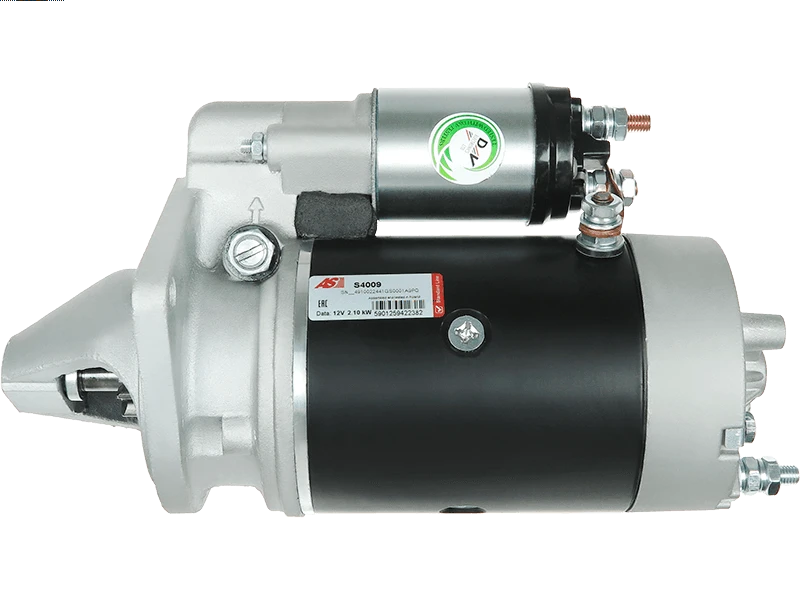

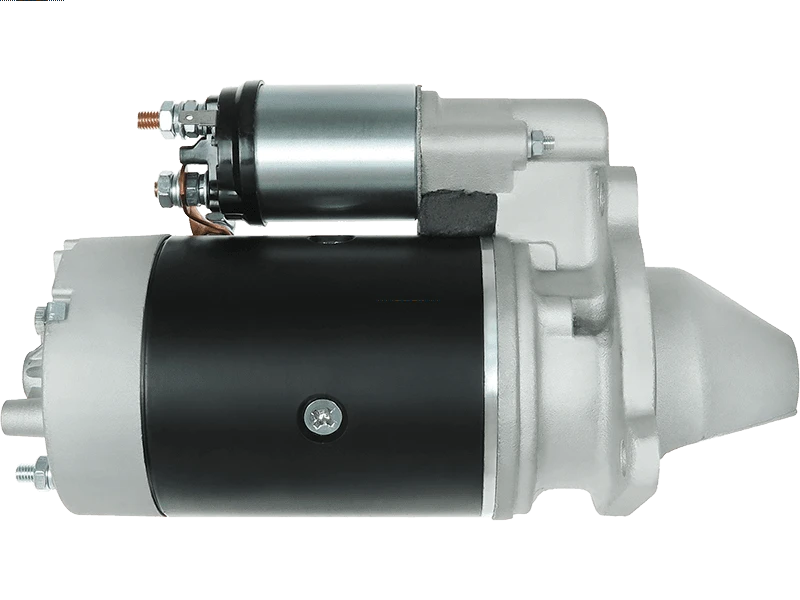

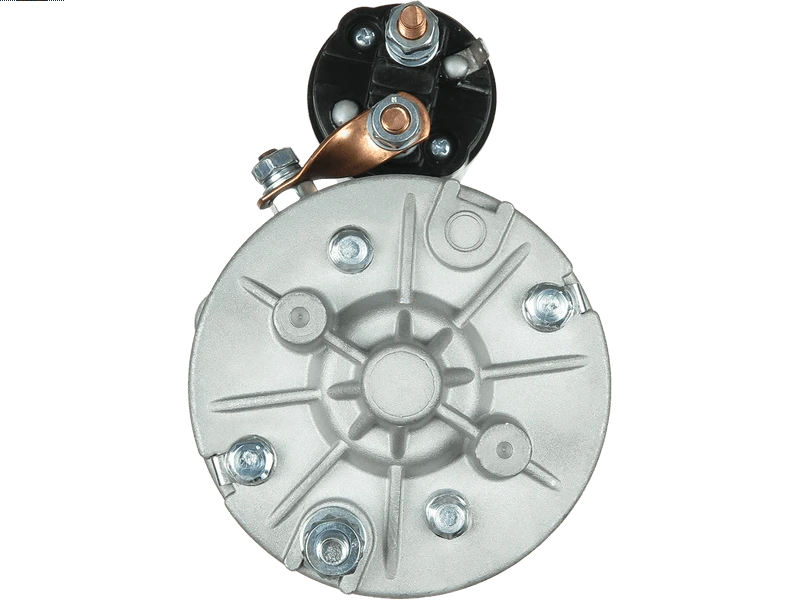

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 579.45 including GST
NZ$ 503.87 excluding GST
or four payments of $144.86
with
Learn More
each
S4009
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
LRS574Associated Numbers
0001218814 0051511501 028000-4001 063227460 0986016210 101201 10590 20405711BN 20405711OE 20500139 20500574 22.0590 22.0997 25024044 25024044A 254093B 26256 26256D 26256E 26321A 26925200A 27425 27425A 27425B 27460 27460A 27460B 33089N 35259400 35259480 3619 450.501.093 6010114 6025117 63227460 8EA012528-191 9000331412 9000331425 9004475107 A0051511501 AES1139 AES5174 BF5T11001AA CST10114 CST10114AS CST10114ES CST10114GS CST10114OS CST10114RS CST25117 CST25117AS CST25117ES CST25117GS CST25117OS CST25117RS DRS3593 EAA-121087 EAA-121837 ERR5009 LRS00574 LRS574 NAD500210 NNN500210 NSB512 PRC3032 RTC5249 SG0144 SS652 SS662 STR56004 UD12409S UNIT BOM 120-5084Specifications
| Kilowatt | 2.1 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 146 mm |
| Mount Hole Center - Center (O.3) | 103 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| Mount Hole Diameter (C.3) | 12.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAND ROVER | 110 2.5 TD 4x4 | [19J] | 09.1986-07.1990 |
| LAND ROVER | 127 2.5 TD 4x4 | [19J] | 09.1986-07.1990 |
| LAND ROVER | Defender 110 2.5 TD 4x4 | [19J] | 09.1986-07.1990 |
| LAND ROVER | Defender 110 2.5 TDi | [23L] | 09.1990-12.1998 |
| LAND ROVER | Defender 2.5 TDi 4x4 | [11L] | 08.1990-11.1998 |
| LAND ROVER | Defender 2.5 TDi 4x4 | [11L] | 08.1990-12.1998 |
| LAND ROVER | Defender 2.5 TDi 4x4 | [16L] | 08.1990-11.1998 |
| LAND ROVER | Defender 2.5 TDi 4x4 | [16L] | 08.1990-12.1998 |
| LAND ROVER | Defender 2.5 TDi 4x4 | [23L] | 08.1990-11.1998 |
| LAND ROVER | Defender 2.5 TDi 4x4 | [23L] | 08.1990-12.1998 |
| LAND ROVER | Defender 2.5 TDi 90 | [23L] | 09.1990-12.2001 |
| LAND ROVER | Defender 2.5 TDi 90, 110 | [23L] | 09.1990-12.2001 |
| LAND ROVER | Defender 90 2.5 TD 4x4 | [19J] | 09.1986-07.1990 |
| LAND ROVER | Defender 90 2.5 TDi | [23L] | 09.1990- |
| LAND ROVER | Discovery 2.5 TDi | ||
| LAND ROVER | Discovery 2.5 TDi 4x4 | [12L] | 10.1989-12.1998 |
| LAND ROVER | Discovery 2.5 TDi 4x4 | [17L] | 10.1989-12.1998 |
| LAND ROVER | Discovery 2.5 TDi 4x4 | [19L] | 10.1989-12.1998 |
| LAND ROVER | Discovery 2.5 TDi 4x4 | [21L] | 10.1989-12.1998 |
| LAND ROVER | Land Rover 2.5 TD | 09.1986-07.1990 | |
| LAND ROVER | Range Rover 2.5 D | [256T] | 07.1994-03.2002 |
Reference Information
RTC5249E 27425B CST25117GS 9000331412 STR4203 25024044A LRS00574 NSB512 063227460 PRSS086 63227460 27425A MAV3760 BOM 22.0590 UNIT 27460B 27460A 20500574 SS662 STRS086 220469 26925200A SG0144 120-5084 CST25117AS DRS3593 10590 UD12409S 331835 8EA012528-191 9004475107 110441 27425 CS590 SS652 27460 26256 PRC3032 3619 028000-4001 9000331425 6025117.1 6025117.0 25024044 20405711BN 26321A 33089N S4009 26256E AES5174 20405711OE 26256D RTC5249 STR56004 ANM15813X LRS574Video/Publications
