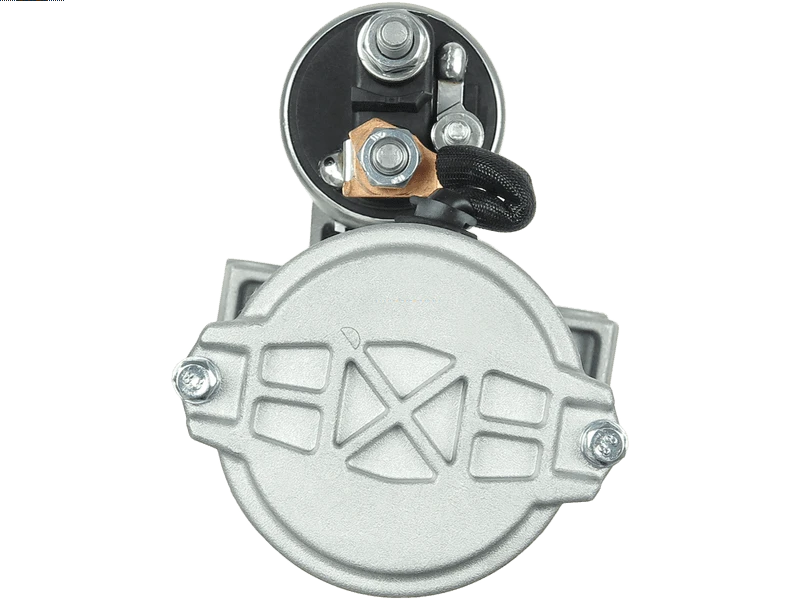

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 324.32 including GST
NZ$ 282.02 excluding GST
or four payments of $81.08
with
Learn More
each
SGV-C12015
S3172S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TS22E28Associated Numbers
150-10400 1912881 25-5124 255248V 255341 255341B 3290 590.906.122 6015274 BK3T-11000-CB BK3T-11000-DB CST15274 CST15274AS CST15274ES CST15274GS CST15274OS CST15274RS DRS1142 DS2252 LRS03962 STR54199 TS22-34 TS22E28 UD14946SSpecifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 34 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumper 2.2 HDi 100 | [4HV(P22DTE)] | 04.2006- |
| CITROEN | Jumper 2.2 HDi 100 | [4HV(P22DTE)] | 04.2006-12.2012 |
| CITROEN | Jumper 2.2 HDi 110 | [4HG(P22DTE)] | 07.2011- |
| CITROEN | Jumper 2.2 HDi 120 | [4HU(P22DTE)] | 04.2006- |
| CITROEN | Jumper 2.2 HDi 130 | [4HH(P22DTE)] | 07.2011- |
| CITROEN | Jumper 2.2 HDi 150 | [4HJ(P22DTE)] | 07.2011- |
| FIAT | Ducato 100 2.2 D Multijet | [4HV] | 07.2006- |
| FIAT | Ducato 100 2.2 D Multijet | [4HV] | 07.2006-05.2011 |
| FORD | Ranger 2.2 TDCi | [ENQJ] | 11.2011- |
| FORD | Ranger 2.2 TDCi | [ENQW] | 04.2011- |
| FORD | Ranger 2.2 TDCi | [GBVAJQJ] | 05.2015- |
| FORD | Ranger 2.2 TDCi | [GBVAJQJ] | 11.2011- |
| FORD | Ranger 2.2 TDCi | [GBVAJQW] | 04.2011- |
| FORD | Ranger 2.2 TDCi | [T22DD0P] | 05.2015- |
| FORD | Ranger 2.2 TDCi 4x4 | [ENQJ] | 04.2011- |
| FORD | Ranger 2.2 TDCi 4x4 | [ENQW] | 04.2011- |
| FORD | Ranger 2.2 TDCi 4x4 | [GBVAJQJ] | 04.2011- |
| FORD | Ranger 2.2 TDCi 4x4 | [GBVAJQJ] | 05.2015- |
| FORD | Ranger 2.2 TDCi 4x4 | [GBVAJQW] | 04.2011- |
| FORD | Ranger 2.2 TDCi 4x4 | [T22DD0P] | 05.2015- |
| FORD | Ranger 3.2 TDCi 4x4 | [ENSA] | 04.2011- |
| FORD | Ranger 3.2 TDCi 4x4 | [SA2R] | 04.2011- |
| FORD | Ranger 3.2 TDCi 4x4 | [SA2S] | 04.2011- |
| FORD | Ranger 3.2 TDCi 4x4 | [SA2W] | 04.2011- |
| FORD | Ranger 3.2 TDCi 4x4 | [SAFA] | 04.2011- |
| FORD | Tourneo 2.2 TDCi | [CVFF] | 04.2012- |
| FORD | Tourneo 2.2 TDCi | [CYF4] | 04.2012- |
| FORD | Tourneo 2.2 TDCi | [CYFF] | 04.2012- |
| FORD | Tourneo 2.2 TDCi | [DRF4] | 04.2012- |
| FORD | Tourneo 2.2 TDCi | [DRFF] | 04.2012- |
| FORD | Tourneo 2.2 TDCi | [DRFG] | 04.2012- |
| FORD | Tourneo Custom V362 2.2 TDCi | [CVFF] | 04.2012-12.2015 |
| FORD | Tourneo Custom V362 2.2 TDCi | [CYF4] | 04.2012-12.2015 |
| FORD | Tourneo Custom V362 2.2 TDCi | [CYFF] | 04.2012-12.2015 |
| FORD | Tourneo Custom V362 2.2 TDCi | [DRF4] | 04.2012-12.2015 |
| FORD | Tourneo Custom V362 2.2 TDCi | [DRFF] | 04.2012-12.2015 |
| FORD | Tourneo Custom V362 2.2 TDCi | [DRFG] | 04.2012-12.2015 |
| FORD | Transit 2.2 TDCi | [CVF5] | 08.2013- |
| FORD | Transit 2.2 TDCi | [CVF5] | 12.2014- |
| FORD | Transit 2.2 TDCi | [CVFF] | 04.2012- |
| FORD | Transit 2.2 TDCi | [CY14] | 08.2013- |
| FORD | Transit 2.2 TDCi | [CYF4] | 04.2012- |
| FORD | Transit 2.2 TDCi | [CYF5] | 08.2013- |
| FORD | Transit 2.2 TDCi | [CYFA] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [CYFB] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [CYFC] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [CYFD] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [CYFF] | 04.2012- |
| FORD | Transit 2.2 TDCi | [CYFG] | 08.2013- |
| FORD | Transit 2.2 TDCi | [DRF4] | 04.2012- |
| FORD | Transit 2.2 TDCi | [DRF5] | 08.2013- |
| FORD | Transit 2.2 TDCi | [DRFA] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [DRFB] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [DRFC] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [DRFD] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [DRFE] | 10.2011-08.2014 |
| FORD | Transit 2.2 TDCi | [DRFF] | 04.2012- |
| FORD | Transit 2.2 TDCi | [DRFF] | 08.2013- |
| FORD | Transit 2.2 TDCi | [DRFG] | 04.2012- |
| FORD | Transit 2.2 TDCi | [DRFG] | 08.2013- |
| FORD | Transit 2.2 TDCi | [P8FA] | 04.2006-08.2014 |
| FORD | Transit 2.2 TDCi | [P8FB] | 04.2006-08.2014 |
| FORD | Transit 2.2 TDCi | [PGFA] | 10.2007-08.2014 |
| FORD | Transit 2.2 TDCi | [PGFA] | 10.2007-09.2011 |
| FORD | Transit 2.2 TDCi | [PGFB] | 10.2007-08.2014 |
| FORD | Transit 2.2 TDCi | [PGFB] | 10.2007-09.2011 |
| FORD | Transit 2.2 TDCi | [QVFA] | 04.2006-08.2014 |
| FORD | Transit 2.2 TDCi | [QWFA] | 04.2006-08.2014 |
| FORD | Transit 2.2 TDCi | [SRFA] | 10.2008-08.2014 |
| FORD | Transit 2.2 TDCi | [SRFB] | 10.2008-08.2014 |
| FORD | Transit 2.2 TDCi | [SRFC] | 10.2008-08.2014 |
| FORD | Transit 2.2 TDCi | [SRFD] | 10.2008-08.2014 |
| FORD | Transit 2.2 TDCi | [SRFE] | 10.2008-08.2014 |
| FORD | Transit 2.2 TDCi | [UHFA] | 10.2007-08.2014 |
| FORD | Transit 2.2 TDCi | [UHFA] | 10.2007-09.2011 |
| FORD | Transit 2.2 TDCi | [UHFB] | 10.2007-08.2014 |
| FORD | Transit 2.2 TDCi | [UHFB] | 10.2007-09.2011 |
| FORD | Transit 2.2 TDCi | [UHFC] | 10.2007-08.2014 |
| FORD | Transit 2.2 TDCi | [UHFC] | 10.2007-09.2011 |
| FORD | Transit 2.2 TDCi | [USF6] | 08.2013- |
| FORD | Transit 2.4 TDCi | [H9FD] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi | [JXFA] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi | [JXFC] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi | [PHFA] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi | [PHFC] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi 4x4 | [H9FB] | 11.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [H9FB] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [H9FD] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [JXFA] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [JXFC] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [PHFA] | 04.2006-08.2014 |
| FORD | Transit 2.4 TDCi RWD | [PHFC] | 04.2006-08.2014 |
| FORD | Transit 3.2 TDCi | [SAFA] | 02.2008-08.2014 |
| FORD | Transit 3.2 TDCi | [SAFB] | 02.2008-08.2014 |
| FORD | Transit 3.2 TDCi RWD | [SAFA] | 09.2007-08.2014 |
| FORD | Transit 3.2 TDCi RWD | [SAFB] | 09.2007-08.2014 |
| FORD | Transit Custom V362 2.2 TDCi | [CVFF] | 04.2012-12.2015 |
| FORD | Transit Custom V362 2.2 TDCi | [CVFF] | 09.2012- |
| FORD | Transit Custom V362 2.2 TDCi | [CYF4] | 04.2012-12.2015 |
| FORD | Transit Custom V362 2.2 TDCi | [CYF4] | 09.2012- |
| FORD | Transit Custom V362 2.2 TDCi | [CYFF] | 04.2012-12.2015 |
| FORD | Transit Custom V362 2.2 TDCi | [CYFF] | 09.2012- |
| FORD | Transit Custom V362 2.2 TDCi | [DRF4] | 04.2012-12.2015 |
| FORD | Transit Custom V362 2.2 TDCi | [DRF4] | 09.2012- |
| FORD | Transit Custom V362 2.2 TDCi | [DRFF] | 04.2012-12.2015 |
| FORD | Transit Custom V362 2.2 TDCi | [DRFF] | 09.2012- |
| FORD | Transit Custom V362 2.2 TDCi | [DRFG] | 04.2012-12.2015 |
| FORD | Transit Custom V362 2.2 TDCi | [DRFG] | 09.2012- |
| FORD | Transit Tourneo 2.2 TDCi | [PGFA] | 10.2007-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [PGFB] | 10.2007-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [QVFA] | 07.2006-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [QWFA] | 07.2006-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFA] | 10.2008-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFB] | 10.2008-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFC] | 10.2008-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFD] | 10.2008-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [SRFE] | 10.2008-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [UHFA] | 10.2007-08.2014 |
| FORD | Transit Tourneo 2.2 TDCi | [UHFB] | 10.2007-08.2014 |
| FORD | Transit V363 2.2 TDCi | [CVF5] | 08.2013-12.2018 |
| FORD | Transit V363 2.2 TDCi | [CY14] | 08.2013-12.2018 |
| FORD | Transit V363 2.2 TDCi | [CYF5] | 08.2013-12.2018 |
| FORD | Transit V363 2.2 TDCi | [CYFG] | 08.2013-12.2018 |
| FORD | Transit V363 2.2 TDCi | [DRF5] | 08.2013-12.2018 |
| FORD | Transit V363 2.2 TDCi | [DRFF] | 08.2013-12.2018 |
| FORD | Transit V363 2.2 TDCi | [DRFG] | 08.2013-12.2018 |
| FORD | Transit V363 2.2 TDCi | [USF6] | 08.2013-12.2018 |
| LAND ROVER | Defender 2.2 TD4 4x4 | [DT224(PUMA)] | 02.2015-02.2016 |
| LAND ROVER | Defender 2.2 TD4 4x4 | [DT224(PUMA)] | 08.2011-02.2016 |
| LAND ROVER | Defender 2.4 TD4 4x4 | [DT244(PUMA)] | 05.2007-02.2016 |
| LAND ROVER | Defender 2.4 TD4 4x4 | [DT244(PUMA)] | 10.2006-02.2016 |
| PEUGEOT | Boxer 2.2 HDi 100 | [4HV(P22DTE)] | 04.2006- |
| PEUGEOT | Boxer 2.2 HDi 110 | [4HG(P22DTE)] | 03.2011- |
| PEUGEOT | Boxer 2.2 HDi 120 | [4HU(P22DTE)] | 04.2006- |
| PEUGEOT | Boxer 2.2 HDi 130 | [4HH(P22DTE)] | 03.2011- |
| PEUGEOT | Boxer 2.2 HDi 130 4x4 | [4HH(P22DTE)] | 03.2011- |
| PEUGEOT | Boxer 2.2 HDi 150 | [4HJ(P22DTE)] | 03.2011- |
Reference Information
RE83712N 458746 STX210323R 1748650 LR010547 FO9100 6C1T-11000-AE 9658144780 6C1T-11000-AF 446ST21 6C1T-11000-AC REBK3T-11000-DB 6C1T-11000-AD 7C19-11000-AB 6C1T-11000-AB F032116247 108380 STX200004/PRZET STV2408 1720325 VAL438320 AB39-11000-AA 150-10400NOE 1385378 LRS03962 ST02087 319200122 1574338 CC1T-11000-AB AEX1376 1720327 CC1T-11000-AA STM1350 STX200004V AC1T-11000-AA DRS1142 STX200863 STX200004R 3290 91-20-3584 UD14946S AB39-11000-BA TS22-57 116247 590.906.122.008 30581N 1669558 LR025840 590.906.122.000 12446 8550504883 150-10400 7H12-11002-AA 1740947 7H12-11002-AB STX210323 1709189 7H12-11002-AC 332207 11090393 2380307 3122985 BK3T-11000-CB S3172S 1606413580 5802-FC 438360 25-5124 1912881 8EA011612-201 ANM24030 95681447 STR54199 STX200004 DS2252 LRS3962 S12VA0286A2 30581-OS TS22-34 TS22E28 ANM24030X 1375378 BK3T-11000-DB 5802-AS 590.906.122.505 BK3T-11000-CC STX200863R STR00326 DSN3051 1372739 CGB-21142 590.906.122.500 IR1108 NAD500270Video/Publications
