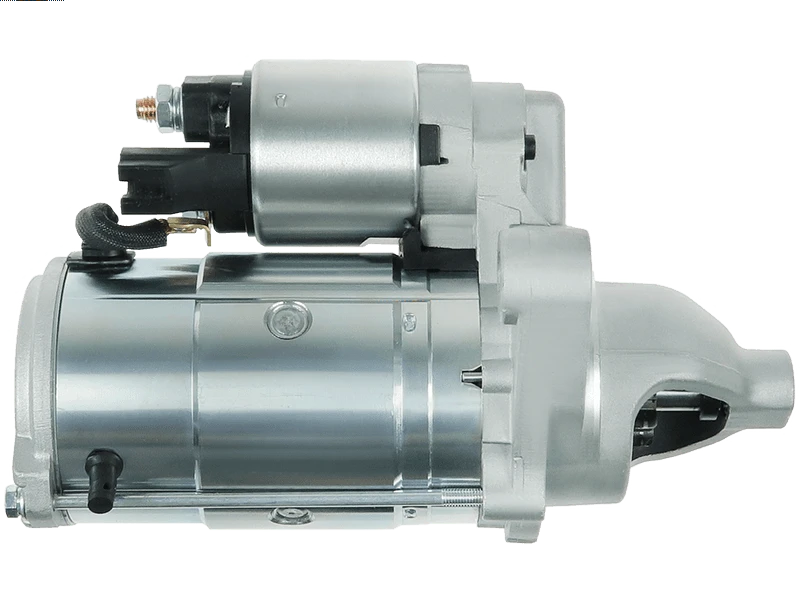

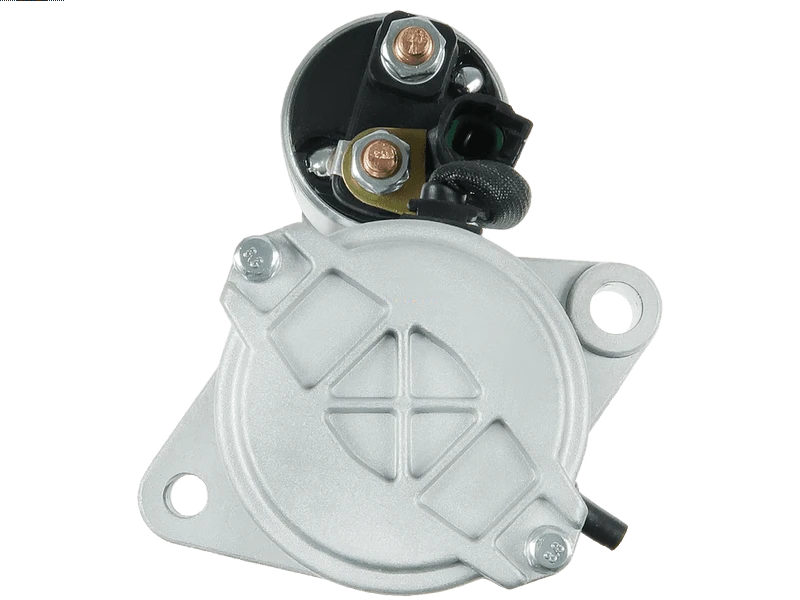

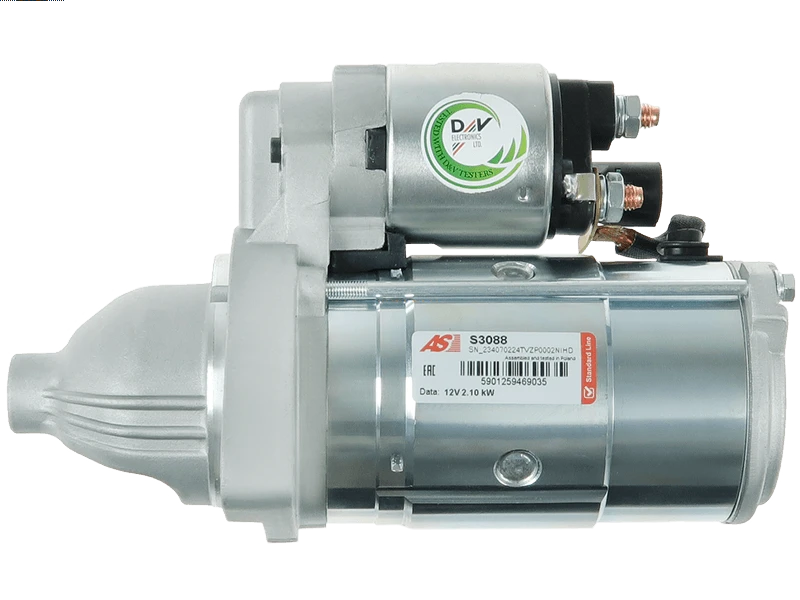

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 385.71 including GST
NZ$ 335.40 excluding GST
or four payments of $96.43
with
Learn More
each
S3088
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
115839 12213 190.587.082 201369 201369V 20479752 220588 25-3436 254441 254441V 28100-0R020 28100-0R021 438220 438271 458373 6015257 88214298 8EA012140-121 9732 AEY2265 CS1542 CST15257 CST15257AS CST15257ES CST15257GS CST15257OS CST15257RS DRS0765 DS1875 EAA-121697 LRS02265 NEY2265 STM1099 TS24E3 TS24E30 VAL438271Specifications
| Kilowatt | 2.1 kW |
| Length (L.1) | 220 mm |
| Mount Hole Center - Center (O.1) | 123 mm |
| Mount Hole Diameter (C.1) | M12x1.25 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 24 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LEXUS | IS 200 2.0 D | [2AD-FTV] | 07.2010-07.2012 |
| LEXUS | IS 220 2.2 D | [2AD-FHV] | 08.2005-07.2012 |
| TOYOTA | Auris 2.0 D-4D | [1AD-FTV] | 10.2006-09.2012 |
| TOYOTA | Auris 2.2 D | [2AD-FHV] | 11.2006-09.2012 |
| TOYOTA | Avensis 2.0 D | [1AD-FTV] | 02.2009- |
| TOYOTA | Avensis 2.0 D-4D | [1AD-FTV] | 03.2006-10.2008 |
| TOYOTA | Avensis 2.0 D-4D | [1AD-FTV] | 03.2006-11.2008 |
| TOYOTA | Avensis 2.0 D-4D | [1AD-FTV] | 11.2008-10.2018 |
| TOYOTA | Avensis 2.0 D-4D | [1AD-FTV] | 11.2011- |
| TOYOTA | Avensis 2.0 D-4D | [1AD-FTV] | 11.2011-10.2018 |
| TOYOTA | Avensis 2.2 D | [2AD-FHV] | 02.2009- |
| TOYOTA | Avensis 2.2 D | [2AD-FTV] | 02.2009- |
| TOYOTA | Avensis 2.2 D-4D | [2AD-FHV] | 11.2008-10.2018 |
| TOYOTA | Avensis 2.2 D-4D | [2AD-FTV] | 10.2005-11.2008 |
| TOYOTA | Avensis 2.2 D-4D | [2AD-FTV] | 11.2008-10.2018 |
| TOYOTA | Avensis 2.2 D-CAT | [2AD-FHV] | 07.2005-11.2008 |
| TOYOTA | Corolla 2.0 D-4D | [1AD-FTV] | 11.2006-07.2014 |
| TOYOTA | Corolla Verso 2.2 D-4D | [2AD-FHV] | 10.2005-03.2009 |
| TOYOTA | Corolla Verso 2.2 D-4D | [2AD-FTV] | 10.2005-03.2009 |
| TOYOTA | RAV4 2.2 D | [2AD-FHV] | 12.2008-06.2013 |
| TOYOTA | RAV4 2.2 D | [2AD-FTV] | 12.2008-06.2013 |
| TOYOTA | RAV4 2.2 D 4WD | [2AD-FHV] | 02.2006-06.2013 |
| TOYOTA | RAV4 2.2 D 4WD | [2AD-FHV] | 12.2008-06.2013 |
| TOYOTA | RAV4 2.2 D 4WD | [2AD-FTV] | 02.2006-12.2012 |
| TOYOTA | RAV4 2.2 D 4WD | [2AD-FTV] | 11.2005-12.2010 |
| TOYOTA | RAV4 2.2 D 4WD | [2AD-FTV] | 12.2008-06.2013 |
| TOYOTA | Verso 2.0 D-4D | [1AD-FTV] | 04.2009- |
| TOYOTA | Verso 2.0 D-4D | [1AD-FTV] | 04.2009-08.2018 |
| TOYOTA | Verso 2.0 D-4D | [1AD-FTV] | 11.2012- |
| TOYOTA | Verso 2.0 D-4D | [1AD-FTV] | 11.2012-08.2018 |
| TOYOTA | Verso 2.2 D-4D | [2AD-FHV] | 04.2009- |
| TOYOTA | Verso 2.2 D-4D | [2AD-FHV] | 04.2009-08.2018 |
| TOYOTA | Verso 2.2 D-CAT | [2AD-FHV] | 04.2009- |
| TOYOTA | Verso 2.2 D-CAT | [2AD-FHV] | 04.2009-08.2018 |
Reference Information
115839 AEY2265 6015 TS24E30 190.587.082.460 EAA-121697 254441V 190.587.082.000 8EA012140-121 TS24E3 438220 254441 CST15257OS S3088 CST15257AS 281000R020C 458373 12213 STM1099 CST15257ES CST15257GS NEY2265 SX DS1875 28100-0R020 9732 88214298 28100-0R021 CST15257RS 220588 STR00150 CS1542 S12VA0588A2 6015257 DRS0765 438271 CST15257 281000R021C VAL438271 RNLTS24E3 STX200731 20479752Video/Publications
