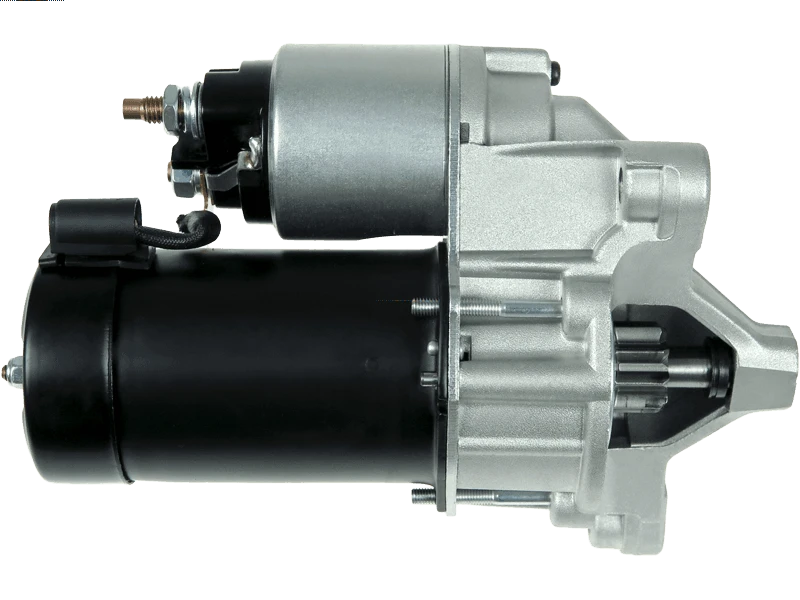

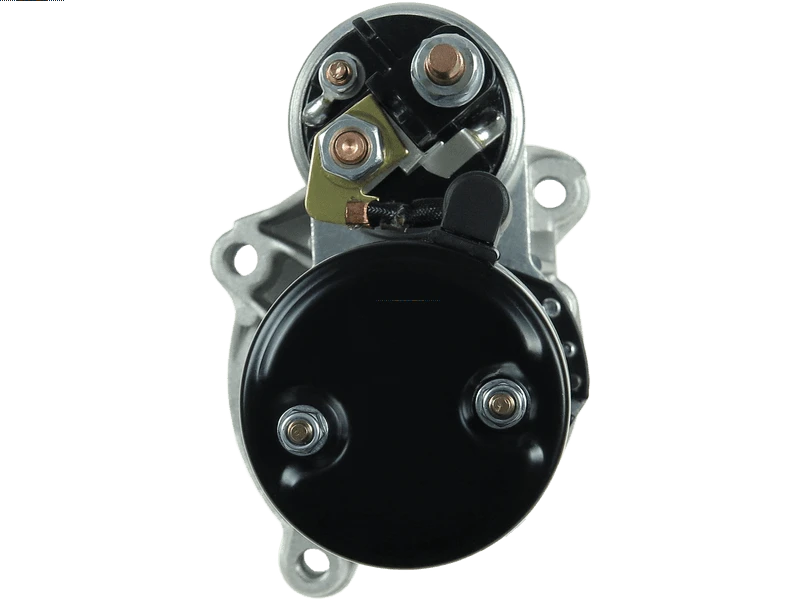

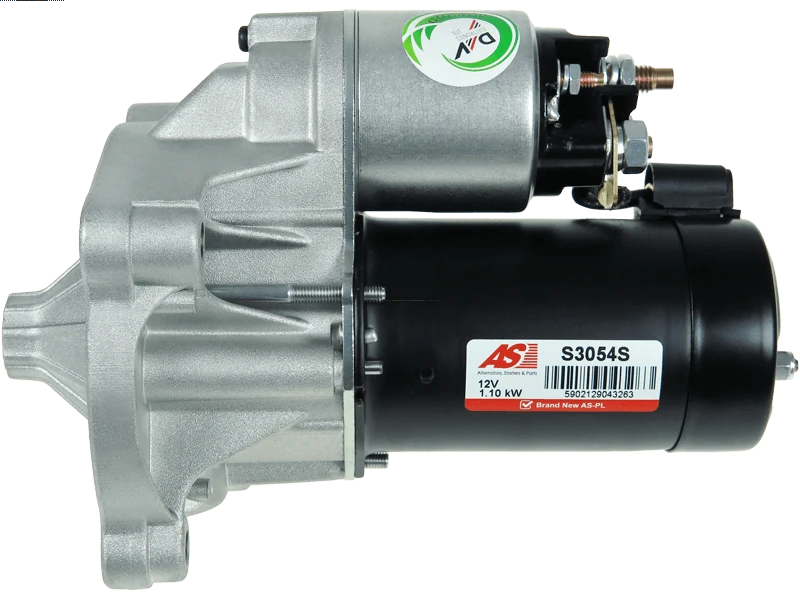

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 164.58 including GST
NZ$ 143.11 excluding GST
or four payments of $41.15
with
Learn More
each
S3054S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986016930 10621 10621R 10621V 10884 10884R 11669 186060 186886 20510128 220.511.103 25-2022 3809 5802CH 5802E6 5802E7 5802F1 5802F1(P) 5802H3 5802M6 6015256 8EA730191-001 95667755 95667755(C) 96079833 96079834 AES1228 CST15256 CST15256AS CST15256ES CST15256GS CST15256OS CST15256RS D6RA51 D6RA511 EAA-141397 EAA-153102 LRT00128 STR54038 UD13022S UNIT BOM 108-343Specifications
| Kilowatt | 1.1 kW |
| Length (L.1) | 213 mm |
| Mount Hole Center - Center (O.1) | 85 mm |
| Mount Hole Center - Center (O.2) | 120 mm |
| Mount Hole Center - Center (O.3) | 85 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | -5 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Xantia 2.0 i 16V | [RFV(XU10J4)] | 06.1995-04.2003 |
| CITROEN | Xantia 2.0 i 16V | [RFY(XU10J4/Z)] | 03.1993-12.1998 |
| CITROEN | ZX 1.8 i 16V | [LFY(XU7JP4)] | 01.1996-02.1998 |
| CITROEN | ZX 2.0 i 16V | [RFS(XU10J4S)] | 05.1996-06.1997 |
| CITROEN | ZX 2.0 i 16V | [RFT(XU10J4/Z)] | 07.1992-10.1997 |
| CITROEN | ZX 2.0 i 16V | [RFY(XU10J4/Z)] | 07.1992-10.1994 |
| PEUGEOT | 306 2.0 | [RFV(XU10J4)] | 03.1997-10.2003 |
| PEUGEOT | 306 2.0 16V | [RFT(XU10J4)] | 06.1994-04.1997 |
| PEUGEOT | 306 2.0 16V | [RFV(XU10J4)] | 03.1997-10.2003 |
| PEUGEOT | 306 2.0 16V | [RFT(XU10J4)] | 06.1994-04.1997 |
| PEUGEOT | 306 2.0 i 16V | [RFS(XU10J4S)] | 07.1996-10.2003 |
| PEUGEOT | 405 2.0 16V | [RFT(XU10J4)] | 06.1994-04.1997 |
Reference Information
STX210274R AES1228 5802H3 5802CN 11669 5802CH 96079834 CST15256AS STR0040 CST15256ES 96079833 BOM UNIT 5.80E+10 STX210274 186886 5.80E+09 25-2022 5802M6 STRS962 3809 8EA730191-001 UD13022S 108-343 D6RA511 20510128 10621 220.511.103 LRT00128 10621R CST15256OS 5802F1 CST15256GS 186060 D6RA51 STR54038 95667755 STX200888 EAA-153102 0986016930 10884R EAA-141397 5802F1(P) CST15256RS 330773 95667755(C) 6015256 10621V 10884 CST15256 STX200533Video/Publications
S3054SView your shopping basket or Browse other items in Starter Motors.
