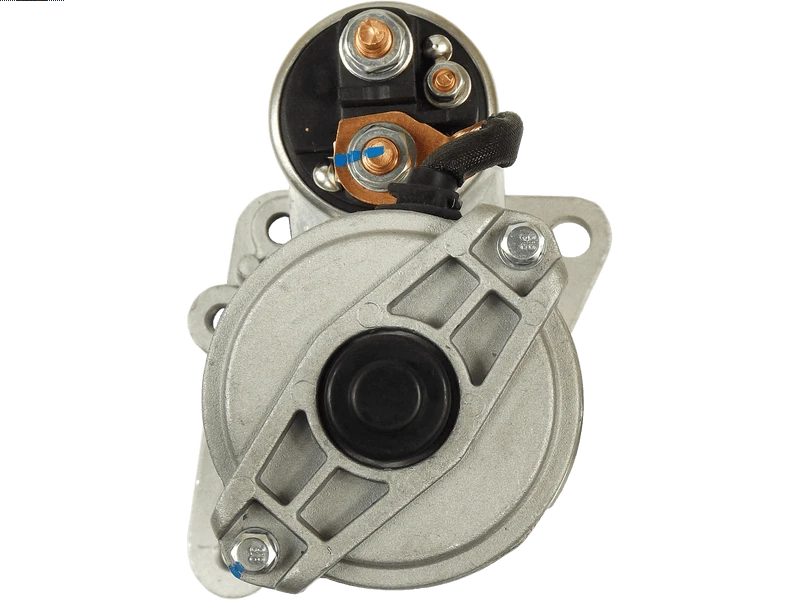

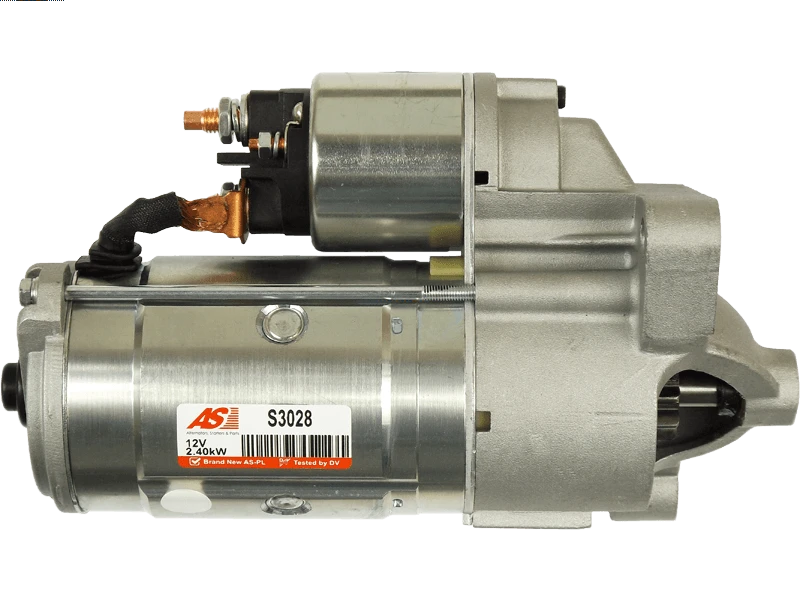

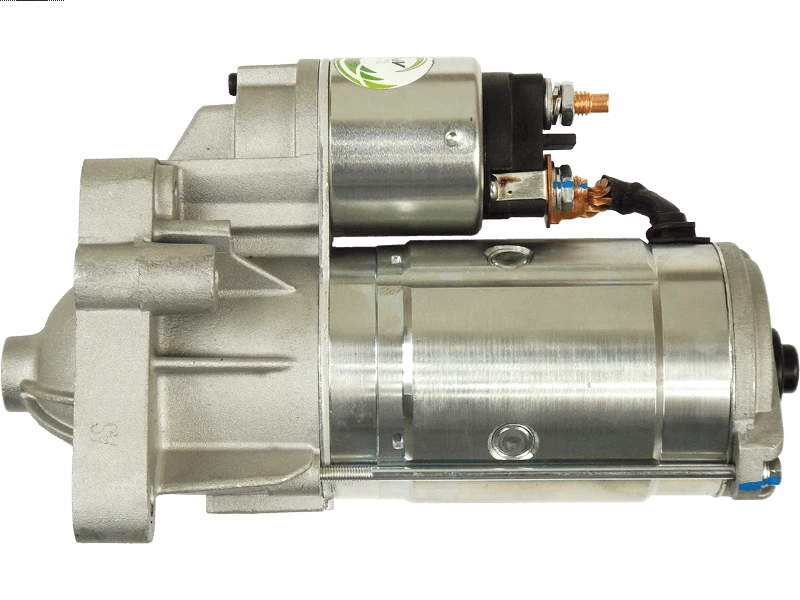

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 342.26 including GST
NZ$ 297.62 excluding GST
or four payments of $85.57
with
Learn More
each
S3028
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986024220 101288 101288V 114161 11926 20479371 220444 25-3297 3011 32738N 42458178 438162 458178 570.550.104 6015173 726144 7711135502 8200237594 8200634604 88212678 8EA012528-091 8EA738127-001 944280802110 AEU1288 CS1288 CST15173 CST15173AS CST15173ES CST15173GS CST15173OS CST15173RS D8R1 D8R1B D8R1C DRS0093 DS1203 EAA-151040 LRS01738 MRS80211 SS451 STR54101 STV1288 VAL438162Specifications
| Kilowatt | 2.4 kW |
| Length (L.1) | 239 mm |
| Mount Hole Center - Center (O.1) | 28 mm |
| Mount Hole Center - Center (O.2) | 62 mm |
| Mount Hole Center - Center (O.3) | 126.5 mm |
| Mount Hole Center - Center (O.4) | 78.5 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| Mount Hole Diameter (C.4) | 11.5 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | -6 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | Espace 2.2 DCi | [G9T645] | 02.2006- |
| RENAULT | Espace 2.2 DCi | [G9T742] | 11.2002- |
| RENAULT | Espace 2.2 DCi | [G9T743] | 11.2002- |
| RENAULT | Laguna 2.2 DCi | [G9T600] | 04.2004-10.2005 |
| RENAULT | Laguna 2.2 DCi | [G9T600] | 05.2005- |
| RENAULT | Laguna 2.2 DCi | [G9T605] | 05.2005- |
| RENAULT | Laguna 2.2 DCi | [G9T700] | 10.2001- |
| RENAULT | Laguna 2.2 DCi | [G9T702] | 10.2001- |
| RENAULT | Laguna 2.2 DCi | [G9T706] | 05.2005- |
| RENAULT | Laguna 2.2 DCi | [G9T707] | 05.2005- |
| RENAULT | Vel Satis 2.2 DCi | [G9T600] | 04.2004- |
| RENAULT | Vel Satis 2.2 DCi | [G9T600] | 09.2004- |
| RENAULT | Vel Satis 2.2 DCi | [G9T600] | 12.2004- |
| RENAULT | Vel Satis 2.2 DCi | [G9T606] | 09.2004- |
| RENAULT | Vel Satis 2.2 DCi | [G9T606] | 09.2005-12.2010 |
| RENAULT | Vel Satis 2.2 DCi | [G9T607] | 09.2004- |
| RENAULT | Vel Satis 2.2 DCi | [G9T700] | 09.2004- |
| RENAULT | Vel Satis 2.2 DCi | [G9T702] | 09.2004- |
Reference Information
S12VA0281A2 8EA012528-091 MRS80211 D8R1 101288V VAL438162 S3028 DRS0093 CST15173ES 3011 CS1288 CST15173AS 32738N 20479371 570.550.104 LRS01738 8200237594 STM1162 STV1288 STRW448 MAV171730 DS1203 9.44281E+11 EAA-151040 SS451 D8R1C 0986024220 438162 11926 8EA738127-001 D8R1B 101288 458178 CST15173RS 88212678 726144 8200634604 CST15173GS AEU1288 6015173 42458178 220444 7711135502 114161 CST15173OS STX200576R CST15173 ANM12313X STR00124 LRS1738 25-3297 STX200576 STR54101Video/Publications
