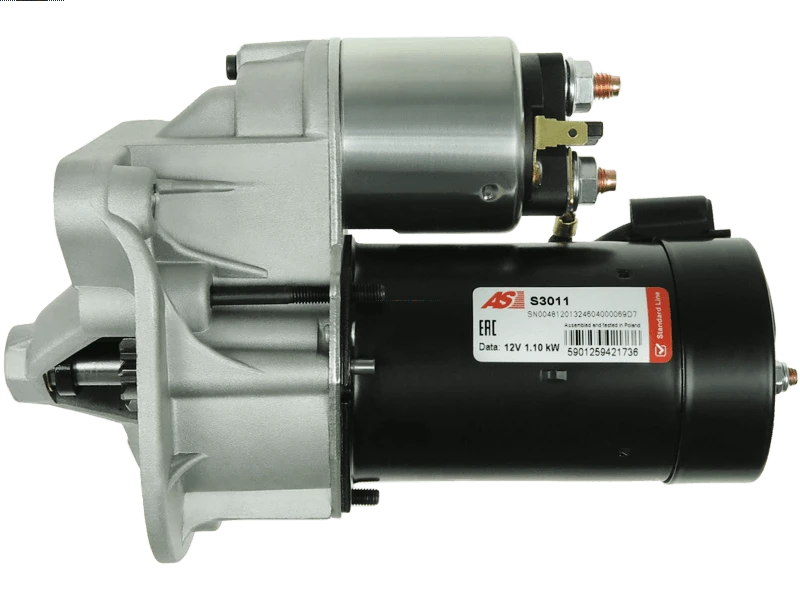

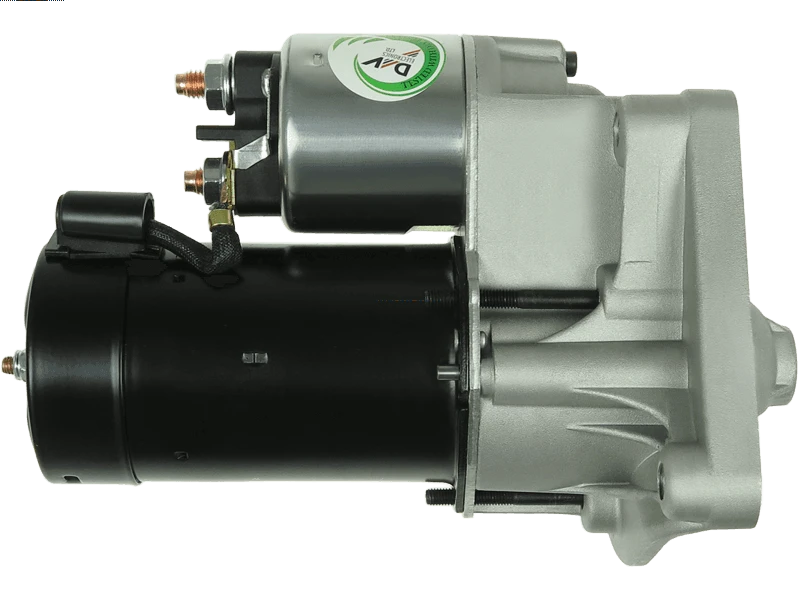

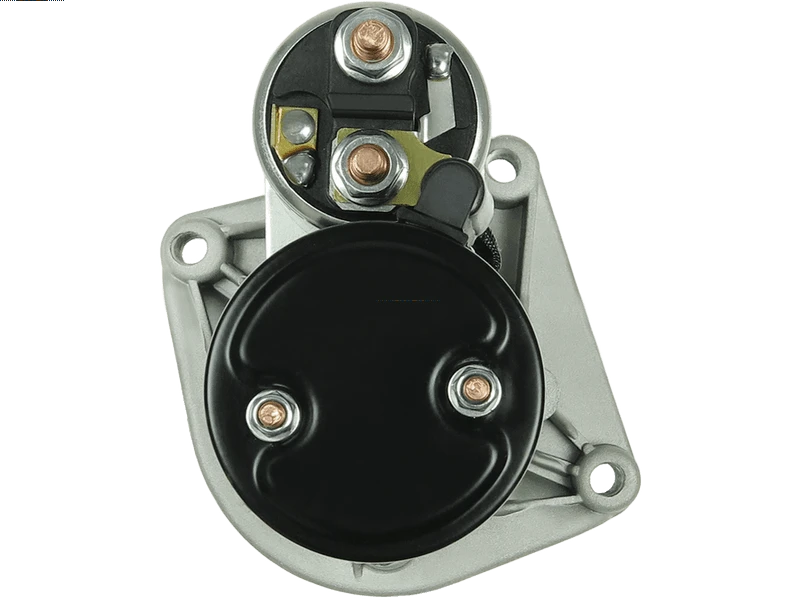

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 188.24 including GST
NZ$ 163.69 excluding GST
or four payments of $47.06
with
Learn More
each
S3011
No stock in NZ
No stock in NZ
Associated Numbers
0986016711 10791 11670 20479411BN 20500999 22.0791 25-2221 30999R 3808 432631 436079 6015114 7700856260 7700867631 7700870951 7701352126 8016711 8111693 8212642 8EA731781-001 AES9199 CS791 CST15114 CST15114AS CST15114ES CST15114GS CST15114OS CST15114RS D6RA141 D6RA41 DRS3187 EAA-121294 LRS00999 ND155 SS168 STR54016 VS324Specifications
| Kilowatt | 1.1 kW |
| Length (L.1) | 207 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 88 mm |
| Mount Hole Center - Center (O.3) | 88 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | -6 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | Master 30 2.2 | [J7T782] | 10.1994-07.1998 |
| RENAULT | Master 30 2.2 | [J7T788] | 10.1994-07.1998 |
| RENAULT | Safrane 2.0 | [J7732] | 04.1992-09.1996 |
| RENAULT | Safrane 2.0 | [J7733] | 04.1992-09.1996 |
| RENAULT | Safrane 2.0 12V | [J7734] | 04.1992-09.1996 |
| RENAULT | Safrane 2.0 12V | [J7735] | 04.1992-09.1996 |
| RENAULT | Safrane 2.2 | [J7T760] | 04.1992-09.1996 |
| RENAULT | Safrane 2.2 | [J7T761] | 04.1992-09.1996 |
| RENAULT | Safrane 2.2 | [J7T762] | 04.1992-09.1996 |
| RENAULT | Safrane 2.2 | [J7T763] | 04.1992-09.1996 |
| RENAULT | Trafic 2.2 | [J7T600] | 06.1994-10.1997 |
| RENAULT | Trafic 2.2 4x4 | [J7T600] | 06.1994-10.1997 |
Reference Information
EAA-121294 8212642 D6RA141 432631 5015887 7701352126 CS791 8016711 1516809R 7700870951 STR00215 20479411BN MAV171140 20500999 8111693 STR54016 10791 LRS00999 310517 CST15114RS 7700867631 STX200868 DRS3187 S12VA0686A2 8EA731781-001 0986016711 7700856260 22.0791 11670 CST15114OS CST15114AS SS168 CST15114ES CST15114GS 30999R ND155 6015114 25-2221 3808 STRS266 LRS999 D6RA41 AES9199 436079 S3011 CST15114 VS324 ANM15407XVideo/Publications
