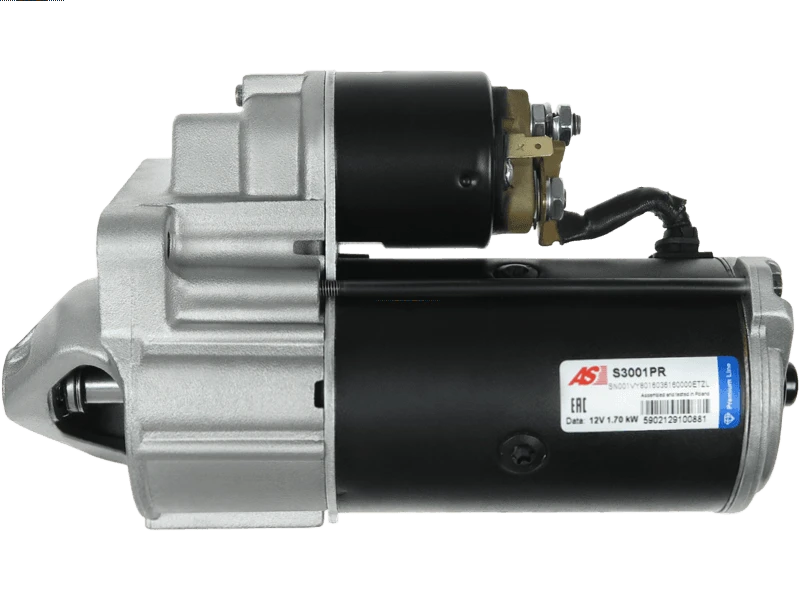

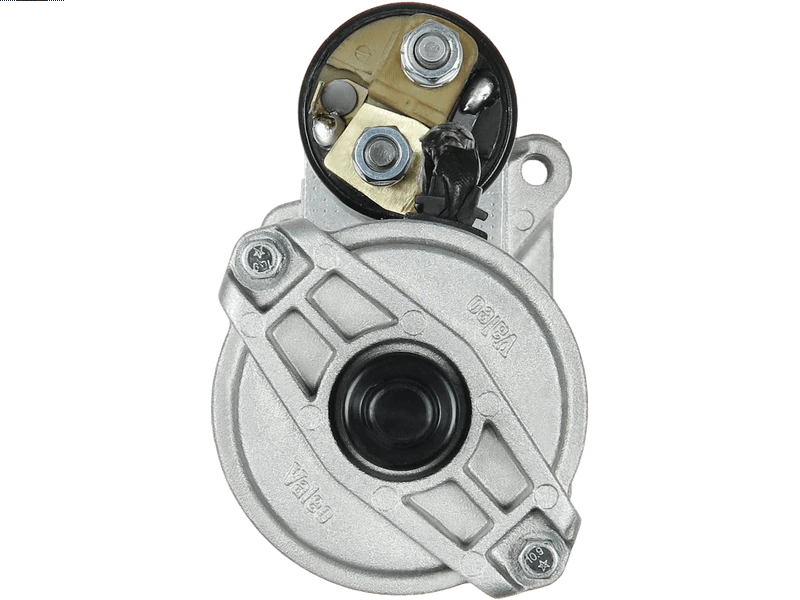

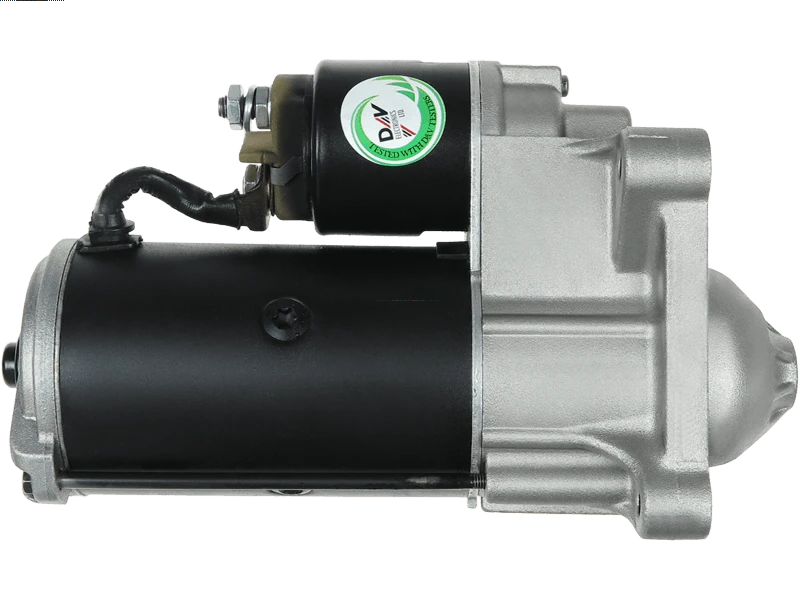

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 251.68 including GST
NZ$ 218.85 excluding GST
or four payments of $62.92
with
Learn More
each
S3001PR
No stock in NZ
No stock in NZ
Associated Numbers
0986013200 0986017391 0986019271 10354 10684 10684K 10684V 10784 10784V 112295 11525 120-10160 25-2045 3009 3475866 436051 455695 570.510.113 6001040105 726014 726052 726852 7700102800 7700106426 7700106763 7700113207 7700700188 7700735712 7700761416 7700777478 7700852853 7700861013 7700865213 7700866505 7701351391 7701351392 7701351794 7701499229 7701499477 7701499601 7702146495 8200466763 88212664 8EA011610-511 8EA730200-001 9031303 91-20-3541 9110411 943253105010 944280173910 AES7135 CS684 D10E922 D7R25 D7R35 D7R5 DRS7391 DS8501 EAA-121139 F042002068 GS432672-A LRS00735 MD329260 MRS17391 MSR5305 SG0335 STB0684Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 238 mm |
| Mount Hole Center - Center (O.1) | 74 mm |
| Mount Hole Center - Center (O.2) | 104.5 mm |
| Mount Hole Center - Center (O.3) | 93 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | -1 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Carisma 1.9 TD | [F8QT] | 10.1996-09.2000 |
| RENAULT | Clio 1.6 | [K7M744] | 09.1998- |
| RENAULT | Clio 1.6 | [K7M745] | 09.1998-05.2005 |
| RENAULT | Clio 1.8 16V | [F7P722] | 01.1991-03.1996 |
| RENAULT | Clio 1.9 D | [F8Q630] | 09.1998-05.2005 |
| RENAULT | Clio 1.9 D | [F8Q678] | 01.1997-09.1998 |
| RENAULT | Clio 1.9 D | [F8Q730] | 01.1991-09.1998 |
| RENAULT | Clio 1.9 D | [F8Q732] | 01.1991-09.1998 |
| RENAULT | Clio 1.9 DTi | [F9Q780] | 02.2000-05.2005 |
| RENAULT | Clio 2.0 16V | [F7R700] | 01.1994-09.1998 |
| RENAULT | Kangoo 1.9 D | [F8Q630] | 08.1997- |
| RENAULT | Kangoo 1.9 D | [F8Q632] | 08.1997- |
| RENAULT | Kangoo 1.9 D | [F8Q662] | 08.1997- |
| RENAULT | Kangoo 1.9 DCi Express | [F9Q790] | 07.2003- |
| RENAULT | Kangoo 1.9 D Express | [F8Q630] | 08.1997- |
| RENAULT | Kangoo 1.9 D Express | [F8Q632] | 08.1997- |
| RENAULT | Kangoo 1.9 D Express | [F8Q662] | 08.1997- |
| RENAULT | Kangoo 1.9 DTi | [F9Q780] | 02.2000- |
| RENAULT | Kangoo 1.9 DTi Express | [F9Q780] | 02.2000- |
| RENAULT | Kangoo 1.9 DTi Express | [F9Q782] | 02.2000- |
| RENAULT | Laguna 1.9 TDi | [F9Q710] | 10.1997-03.2001 |
| RENAULT | Laguna 1.9 TDi | [F9Q716] | 10.1997-03.2001 |
| RENAULT | Laguna 1.9 TDi | [F9Q717] | 10.1997-03.2001 |
| RENAULT | Megane 1.9 D | [F8Q620] | 09.1996-08.2003 |
| RENAULT | Megane 1.9 D | [F8Q624] | 09.1996-08.2003 |
| RENAULT | Megane 1.9 D | [F8Q790] | 03.1997-09.1999 |
| RENAULT | Megane 1.9 D | [F8Q790] | 04.1999-08.2003 |
| RENAULT | Megane 1.9 D Eco | [F8Q624] | 01.1996-08.2003 |
| RENAULT | Megane 1.9 DTi | [F9Q736] | 03.1999-02.2001 |
| RENAULT | Megane 1.9 TD | [F8Q784] | 01.1996-08.2003 |
| RENAULT | Megane 1.9 TD | [F8Q784] | 01.1997-09.1999 |
| RENAULT | Megane 1.9 TD | [F8Q784] | 09.1996-08.2003 |
| RENAULT | Megane 1.9 TD | [F8Q786] | 01.1996-08.2003 |
| RENAULT | Megane 1.9 TD | [F8Q786] | 01.1997-09.1999 |
| RENAULT | Megane 1.9 TD | [F8Q786] | 09.1996-08.2003 |
| RENAULT | Megane 1.9 TDi | [F8Q784] | 09.1996-08.2003 |
| RENAULT | Megane 1.9 TDi | [F9Q730] | 03.1997-02.2001 |
| RENAULT | Megane 1.9 TDi | [F9Q730] | 04.1997-09.1999 |
| RENAULT | Megane 1.9 TDi | [F9Q731] | 03.1997-02.2001 |
| RENAULT | Megane 1.9 TDi | [F9Q734] | 03.1997-02.2001 |
| RENAULT | Megane 1.9 TDi | [F9Q734] | 04.1997-09.1999 |
| RENAULT | Megane 1.9 TDi | [F9Q736] | 03.1997-02.2001 |
| RENAULT | R11 1.6 D | [F8M700] | 08.1983-12.1988 |
| RENAULT | R11 1.6 D | [F8M720] | 08.1983-12.1988 |
| RENAULT | R11 1.6 D | [F8M730] | 08.1983-12.1988 |
| RENAULT | R19 1.7 | [F3N740] | 04.1992-12.1995 |
| RENAULT | R19 1.7 | [F3N740] | 09.1988-04.1992 |
| RENAULT | R19 1.7 | [F3N740] | 10.1989-04.1992 |
| RENAULT | R19 1.7 | [F3N741] | 04.1992-12.1995 |
| RENAULT | R19 1.7 | [F3N741] | 09.1988-04.1992 |
| RENAULT | R19 1.7 | [F3N741] | 10.1989-04.1992 |
| RENAULT | R19 1.7 | [F3N742] | 04.1992-12.1995 |
| RENAULT | R19 1.7 | [F3N742] | 07.1988-04.1992 |
| RENAULT | R19 1.7 | [F3N742] | 07.1991-04.1992 |
| RENAULT | R19 1.7 | [F3N742] | 09.1988-04.1992 |
| RENAULT | R19 1.7 | [F3N743] | 04.1992-12.1995 |
| RENAULT | R19 1.7 | [F3N743] | 07.1988-04.1992 |
| RENAULT | R19 1.7 | [F3N743] | 09.1988-04.1992 |
| RENAULT | R19 1.8 16V | [F7P704] | 04.1992-06.1996 |
| RENAULT | R19 1.8 16V | [F7P704] | 04.1992-12.1995 |
| RENAULT | R19 1.8 16V | [F7P704] | 06.1989-04.1992 |
| RENAULT | R19 1.8 16V | [F7P704] | 07.1991-04.1992 |
| RENAULT | R19 1.8 16V | [F7P704] | 10.1989-04.1992 |
| RENAULT | R19 1.9 D | [F8Q706] | 09.1988-04.1992 |
| RENAULT | R19 1.9 D | [F8Q706] | 10.1989-04.1992 |
| RENAULT | R19 1.9 D | [F8Q742] | 04.1992-12.1995 |
| RENAULT | R19 1.9 D | [F8Q742] | 09.1988-04.1992 |
| RENAULT | R19 1.9 D | [F8Q742] | 10.1989-04.1992 |
| RENAULT | R19 1.9 DT | [F8Q740] | 03.1992-12.1995 |
| RENAULT | R19 1.9 DT | [F8Q740] | 09.1990-04.1992 |
| RENAULT | R19 1.9 DT | [F8Q744] | 04.1992-12.1995 |
| RENAULT | R21 1.7 | [F3N722] | 03.1986-02.1994 |
| RENAULT | R21 1.7 | [F3N722] | 09.1986-02.1994 |
| RENAULT | R21 1.7 | [F3N722] | 09.1989-06.1994 |
| RENAULT | R21 1.7 | [F3N723] | 03.1986-02.1994 |
| RENAULT | R21 1.7 | [F3N723] | 09.1986-02.1994 |
| RENAULT | R21 1.7 | [F3N723] | 09.1989-06.1994 |
| RENAULT | R21 1.9 D | [F8Q710] | 03.1986-08.1994 |
| RENAULT | R21 1.9 D | [F8Q710] | 08.1989-10.1993 |
| RENAULT | R21 1.9 D | [F8Q710] | 09.1989-10.1993 |
| RENAULT | R5 1.6 D | [F8M720] | 08.1985-12.1996 |
| RENAULT | R5 1.6 D | [F8M730] | 08.1985-12.1996 |
| RENAULT | R9 1.6 D | [F8M700] | 10.1982-12.1988 |
| RENAULT | R9 1.6 D | [F8M720] | 10.1982-12.1988 |
| RENAULT | R9 1.6 D | [F8M730] | 10.1982-12.1988 |
| RENAULT | Rapid 1.6 D | [F8M720] | 03.1986-08.1998 |
| RENAULT | Rapid 1.6 D | [F8M730] | 03.1986-08.1998 |
| RENAULT | Rapid 1.6 D | [F8M736] | 03.1986-08.1998 |
| RENAULT | Rapid 1.6 D | [F8M760] | 03.1986-08.1998 |
| RENAULT | Rapid 1.9 D | [F8Q646] | 09.1991-03.1998 |
| RENAULT | Rapid 1.9 D | [F8Q722] | 09.1991-03.1998 |
| RENAULT | Rapid 1.9 D | [F8Q724] | 09.1991-03.1998 |
| RENAULT | Rapid 1.9 D | [F8Q774] | 09.1991-03.1998 |
| RENAULT | Rapid 1.9 D | [F8Q776] | 09.1991-03.1998 |
| RENAULT | Scenic 1.9 DTi | [F9Q731] | 09.1999-08.2003 |
| RENAULT | Scenic 1.9 DTi | [F9Q734] | 06.1997-08.2003 |
| RENAULT | Scenic 1.9 DTi | [F9Q736] | 09.1999- |
| RENAULT | Super 5 1.6 D | [F8M720] | 10.1984-12.1996 |
| RENAULT | Trafic 1.7 | [F1N722] | 06.1986-04.1989 |
| RENAULT | Trafic 1.7 | [F1N724] | 06.1986-04.1989 |
| RENAULT | Trafic 1.9 D | [F8Q606] | 06.1997-03.2001 |
| VOLVO | 340 1.6 D | [D16] | 08.1984-07.1991 |
| VOLVO | 440 1.9 TD | [D19T] | 07.1994-12.1996 |
| VOLVO | 460 1.9 TD | [D19T] | 07.1994-07.1996 |
| VOLVO | S40 1.9 D Di | [D4192T2] | 03.1999-07.2000 |
| VOLVO | S40 1.9 D Di | [D4192T3] | 07.2000-12.2003 |
| VOLVO | S40 1.9 D Di | [D4192T4] | 07.2000-12.2003 |
| VOLVO | S40 1.9 TD | [D4192T] | 07.1995-08.1999 |
| VOLVO | V40 1.9 D Di | [D4192T2] | 03.1999-07.2000 |
| VOLVO | V40 1.9 D Di | [D4192T3] | 07.2000-06.2004 |
| VOLVO | V40 1.9 D Di | [D4192T4] | 07.2000-06.2004 |
| VOLVO | V40 1.9 TD | [D4192T] | 07.1995-08.1999 |
Reference Information
220515 726014 MD329260 570.510.113.000 7700761416 0001110114 9110411 STR00155 STX200020 DRS3202 42017391 8200466763 D7R25 112295 0986013200 3475866 7700861013 7700865213 10684K 111067 0001110089 0001110003 CST15109AS 7700684634 570.510.113.008 0001110095 7700106426 1516790R DRS7391 7700864634 MAV4520 CGB-52045 3087255 35605617 STRL001 SG0335 8111510 STX200066R 7700735712 7702146495 7700866505 6015109.1 S1073R 20479901BN 0001115001 25-2045 726814 86020831 0986017391 570.510.113.500 LRS735 436051 DS8501 STX200778 88212664 7700106209 7700102800 D7R18 433248 7700106763 9000331411 726052 7701351794 7700700188 726852 STX200066 7700853712 CS684 9.43253E+11 8602083 6015109 LRS00735 432684 8200724823 91-20-3541 9.4428E+11 GS432672-A 9031303 7700852853 7701499608 7701499601 6001040105 8EA730200-001 455695 CST15109GS D7R5 7700428035 10684V STX200724 120-10160 7701499477 7700113207 7700863213 PRSL001 7700777478 20479901OE SMD329260 570.510.113.550 7700113209 0001110026 8251642 MRS17391 7701351391 MSR5305 7701351392 455719 7701499229 DRS3654 10684 S12VA0279A2 B001117311 CGB-23202 35258720Video/Publications
