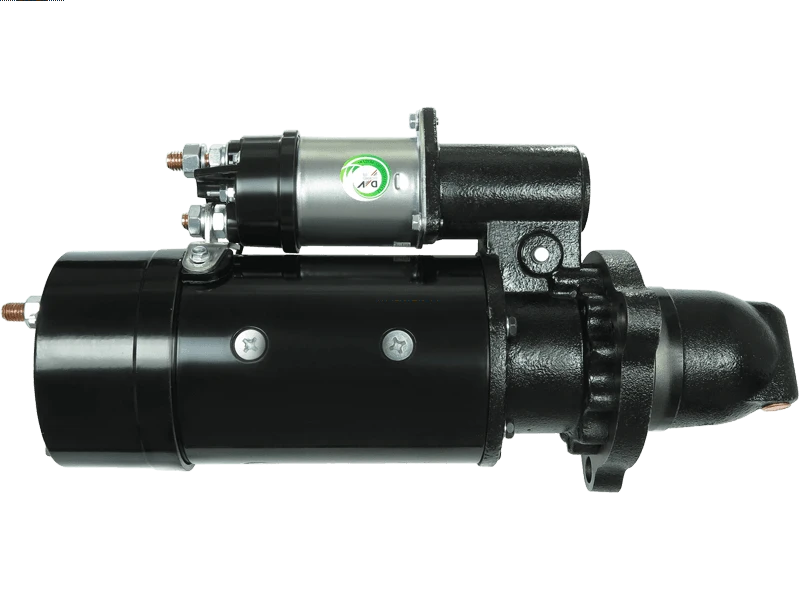

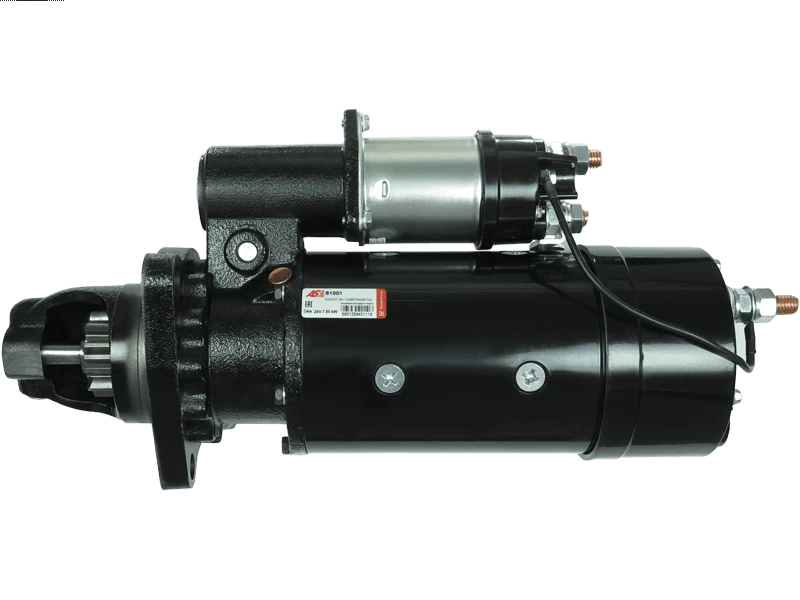

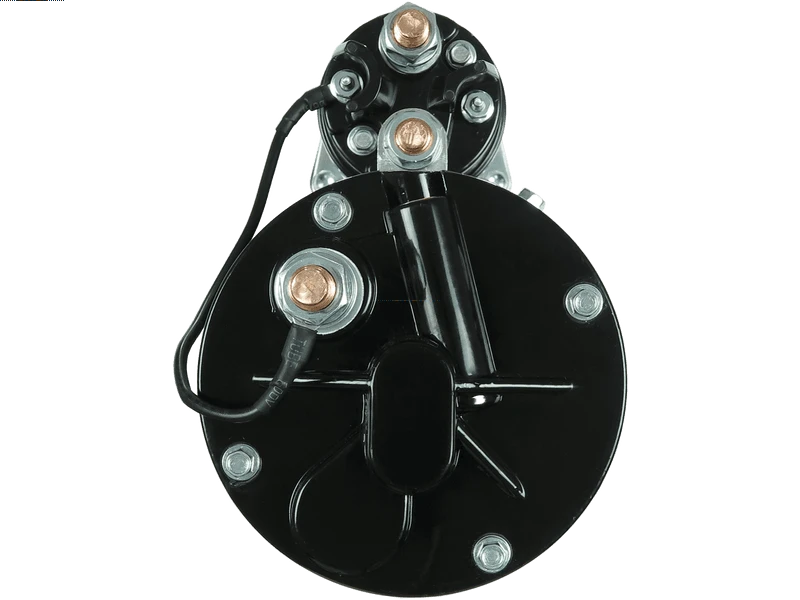

S1001 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 1,030.86 including GST

NZ$ 896.40 excluding GST
each
S1001
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

10461024 10461030 10461043 10461047 10461054 10461068 10478943 10478946 10478980 10478986 10478998 10479111 10479252 1113905 1990344 1990361 1990368 1990378 1990382 1990383 1990384 1990388 1990390 1990409 1990410 1990411 1990412 1990416 1990418 1990422 1990437 1990456 1990460 1990485 1990491 1990493 1990838 1993802 1993805 1993810 1993842 199903 22.3401 254887D 254887P 33386 45-2345 6060604 60811 60811D 60811K 60811M 60864 60864D 60864K 60864M 60864P 60864W 858442 858450 858506 8740 8EA732856-001 AEX1151 CST60604 CST60604AS CST60604ES CST60604GS CST60604OS CST60604RS DRZ5167 EAA-121299 LRS01915 M0017268ME M0017407ME M105R3502SE M105R3503SE M105R3505SE M105R3508SE M125R3001SEP MS1-311A MS1-327A MS1-401A MS1-403A MS1-410A MS1-411A MS1-445 MS1-447 MS1-453 MS1-456 MS1/411AZ S1001 STR80023 UD12390S US864
Kilowatt7.5 kW
Length (L.1)501 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)127 mm
Mount Hole Center - Center (O.3)127 mm
Mount Hole Diameter (C.1)16 mm
Mount Hole Diameter (C.2)16 mm
Mount Hole Diameter (C.3)16 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
OEM ProductNo
Pinion at Rest (B)47 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)92 mm
Unit TypeDELCO
Voltage24 V
Make Model Type Year
CATERPILLAR Various Models Excavators 01.1985-
10478943 1990361 10R0400 M0017407ME 8H1813 1113905 MS1/411AZ 9L6691 10478946 0R5209 5L637 10461030 EAA-121299 1990409 10461024 M0017268ME 7T0800 2871253 M4T95481 7T0801 4N0957 111000 1990368 7T0806 6V5539 2071549 1990485 MS1-410A 1990493 MS1-411A 3103952 1990491 0R2187 1993802 3021036 339014 1993805 60864K 60864D MAV626040 10461043 60864P 1990418 M105R3503SE 1990416 60864M 10479111 1990412 1990378 1990411 0R2190 1990410 60864W M004T95481 0R4259 1990383 1990382 STR2601 MS1-327A 1993810 5L537 US864 7T0794 10461054 AEX1151 10461047 3T2654 1990422 4N8118 1990388 3T2650 1990384 MS1-401A 858442 1990390 5L2637 1990838 STRS028 3T2649 1990437 3T2646 104-7041 10479010 10479252 6N3122 STRL634 858450 10478986 45-2345 121555C91 106-8554 9G5585 9G5584 199903 10461068 CGB-1083 254887P UD12390S MS1-445 S1001 MS1-447 MS1-403A 1993842 8EA732856-001 5L2537 4N1062 207-1548 STR80023 1443674 LRS1915 1L8174 10478980 1990456 9N0435 4N957 1990460 3T3152 3T3153 6N1889 207-1556 DRZ5167 MAV626010 M125R3001SEP CH12807 858506 3603862RX 1990344 3604321RX MS1-311A 254887D 8C3649 207-1564 7L8797 9N0453 60864 M105R3508SE 33386 6N3160 8C3645 3910646 8C3644 LRS01915 MS1-453 22.3401 MS1-456 STX201301 135161
S1001
