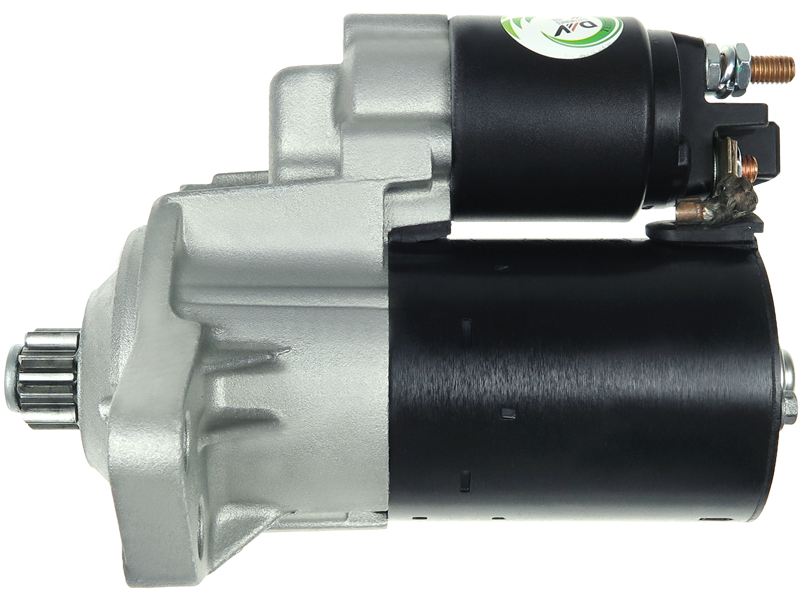

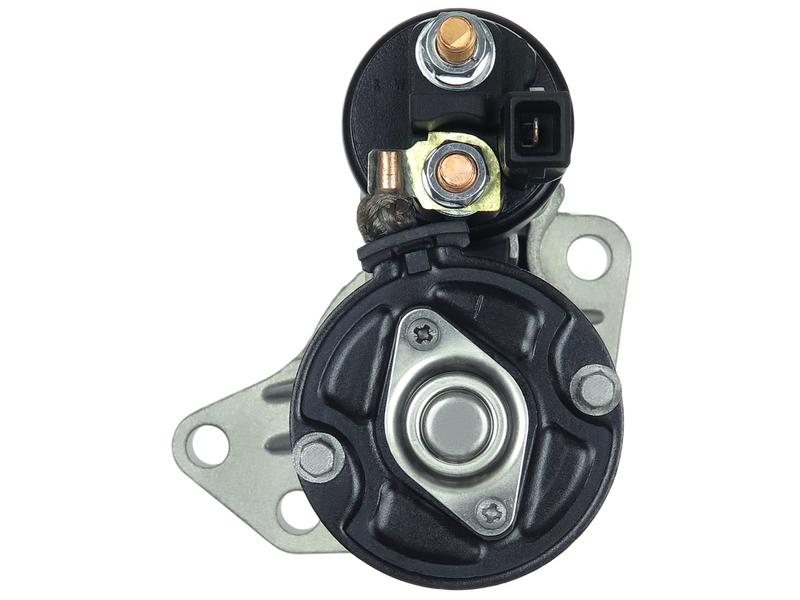

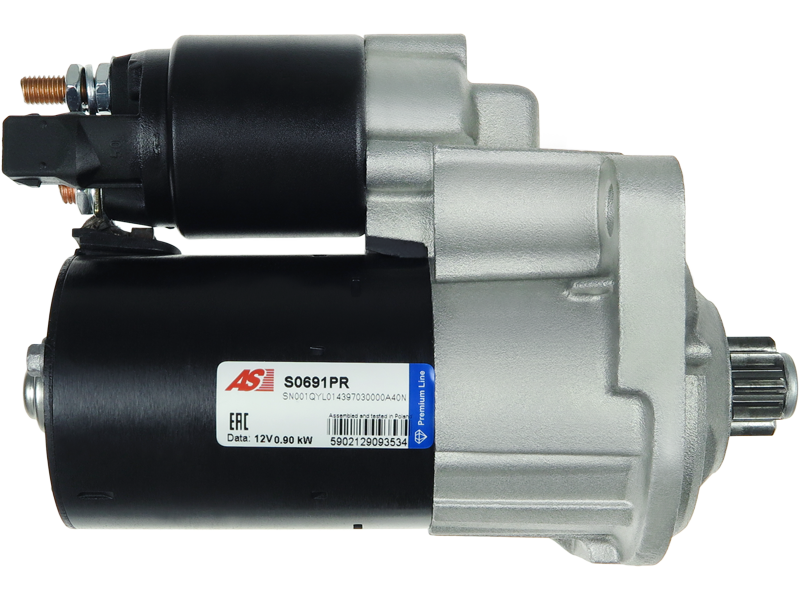

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 201.30 including GST
NZ$ 175.04 excluding GST
or four payments of $50.33
with
Learn More
each
S0691PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001120402 0001120403 020911023H 020911023S 020911023T 020911023TX 0986019890 101343 101343V 111909 115504 12067 17781N 20479922 220427 25-3216 300.560.093 3871 42017830 438138 458160 6.0009.9 6010103 88212952 8EA012526-351 8EA738254-001 944280198900 AES1277 BOS0001121028 CS1343 CST10103 CST10103AS CST10103ES CST10103GS CST10103OS CST10103RS D7ES1 D7ES5 DRS9890 DS1000 LRS01670 MRS19890 S1020B S1021B SG0023 STB1343 STR50025Specifications
| Kilowatt | 0.9 kW |
| Length (L.1) | 194 mm |
| Mount Hole Center - Center (O.1) | 33 mm |
| Mount Hole Center - Center (O.2) | 112 mm |
| Mount Hole Center - Center (O.3) | 123 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| Mount Hole Diameter (C.3) | 12.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Inca 1.9 D | [1Y] | 01.1995-12.2003 |
| SEAT | Toledo 1.4 | [AHW] | 01.1999-12.2002 |
| SEAT | Toledo 1.4 | [AXP] | 01.1999-12.2002 |
| SKODA | Octavia 1.4 | [AXP] | 01.2000-12.2002 |
| SKODA | Octavia 1.4 | [BCA] | 01.2002- |
| SKODA | Octavia 1.6 | [AEE] | 01.2002- |
| SKODA | Octavia 1.6 | [AEH] | 01.2002-12.2004 |
| SKODA | Octavia 1.6 | [ALK] | 01.2002-12.2004 |
| SKODA | Octavia 1.6 | [AVU] | 01.2000-12.2002 |
| SKODA | Octavia 1.6 | [BFQ] | 01.2002- |
| VW | Bora 1.4 | [AHW] | 01.1998-12.2005 |
| VW | Bora 1.4 | [BCA] | 01.1998-12.2005 |
| VW | Bora 1.6 | [AEH] | 01.1998-12.2001 |
| VW | Bora 1.6 | [AKL] | 01.1998-12.2005 |
| VW | Bora 1.6 | [BCB] | 01.2001-12.2005 |
| VW | Bora 1.6 | [BFQ] | 01.2002-12.2003 |
Reference Information
1072156 STR0043 STRS098 8EA738254-001 CST10103AS 42017830 STB1343 020911023SX 101343 STX200230R S1021B CST10103RS MAV6410 220427 20911023T 20479922 20911023S LRS1670 CST10103 944280198900 D7ES1 STX200070 115504 AES1277 D7ES5 STM533 0001120402 STX200230 0001120403 CST10103GS SG0023 458160 BOS0001121028 020911023TX 111909 300.560.093 438138 6010103 S1020B 17781N DRS9890 PRSS098 CST10103OS STX200038 20911023TX 6.0009.9 MAV421100 101343V 88212952 95VW11000BC DS1000 8EA012526-351 95VW11000BB 95VW11000BA STR1964 20911023SX STX200070R 020911023FX 020911023F 020911023H 3871 020911023S 020911023T CS1343 CST10103ES MRS19890 0986019890 25-3216 CS1062 LRS01670 020911024D 12067 STR50025Video/Publications
