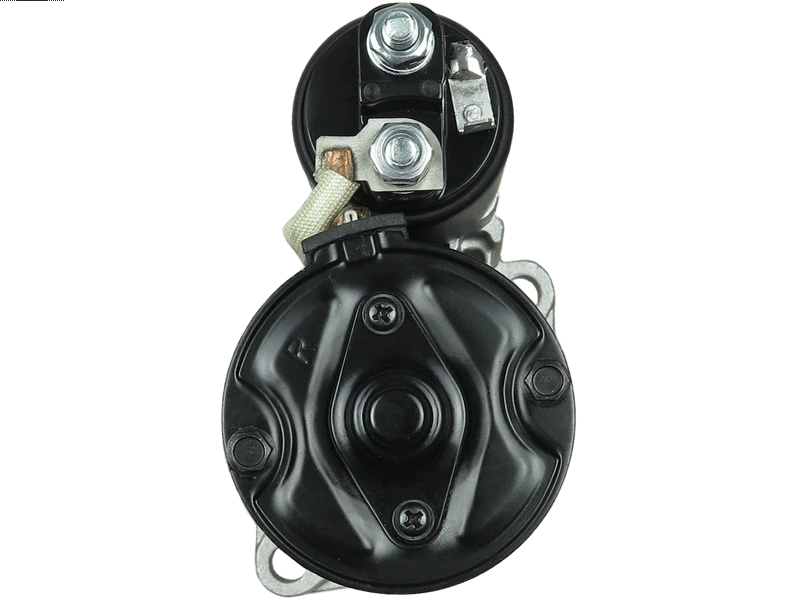

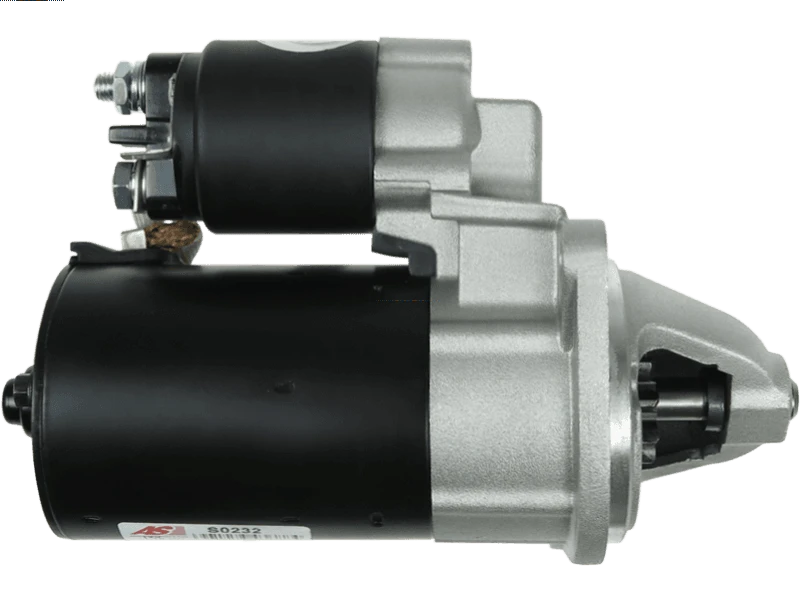

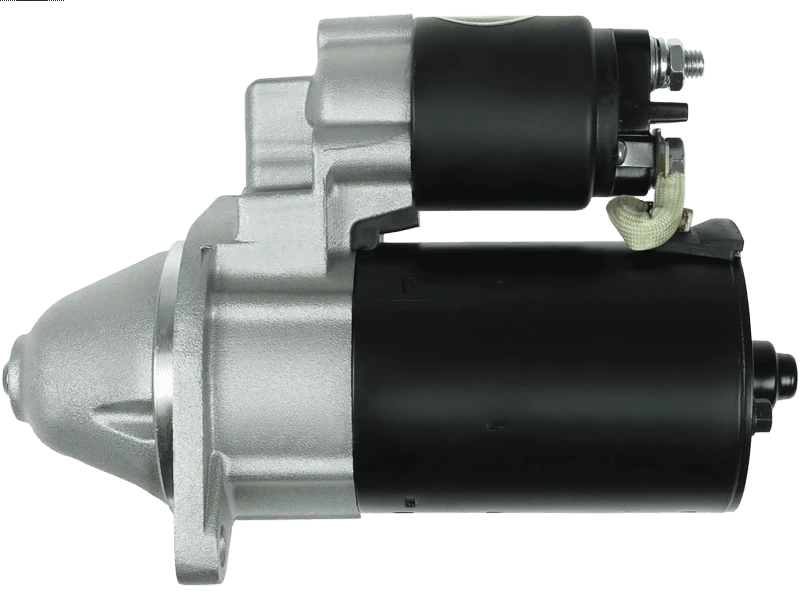

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 229.18 including GST
NZ$ 199.29 excluding GST
or four payments of $57.30
with
Learn More
each
S0232
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001107083 0001107430 20401852BN 20401852OE 25-3474 254169 254169B 254169M 58401990 58402090 6010258 AEY2302 CST10258AS CST10258GS DRT2490 EAA-121073 LRS02302 S0232 SS590 STR33001Specifications
| Kilowatt | 1.1 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 16 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GRECAV-EKE | Berlina 0.5 D | 01.2000- | |
| GRECAV-EKE | Sport 0.5 D | 01.2000- | |
| LIGIER | IXO Progress | [VJRJS36FD] | |
| LIGIER | JS50 Lombardini Progress | [VJRB1FDR] | |
| LIGIER | JS RC Progress | [VH862BL] | |
| LIGIER | Optimax Progress | [VJRJS40FD] | |
| LIGIER | XTOO 1 | [VJRJS28FD] | |
| LIGIER | XTOO 2 | [VJRJS28FD] | |
| LIGIER | XTOO Max | [VJRJS32FD] | |
| LIGIER | XTOO Max MPE | [VJRJS32MP] | |
| LIGIER | XTOO R | [VJRJS34FD] | |
| LIGIER | XTOO R MPE | [VJRJS34MP] | |
| LIGIER | XTOO RS | [VJRJS44FD] | |
| LIGIER | XTOO RS MPE | [VJRJS44MP] | |
| LIGIER | XTOO S | [VJRJS42FD] | |
| MICROCAR | M8 Lombardini | [VH881BL] | |
| MICROCAR | MC1 Lombardini | [VH851XLSA] | |
| MICROCAR | MC2 Highland Lombardini | [VH852PX] | |
| MICROCAR | MC2 Lombardini | [VH852XXSA] | |
| MICROCAR | MGO Essence | [VH865A] | |
| MICROCAR | MGO Lombardini | [VH861BL] | |
| MICROCAR | Virgo 1-2-3 | [VH840BBL0] |
Reference Information
CGB-53474 ANM24710X 690.506.092.280 WG2045307 STR1455 254169B CGB-22490 AEY2302 MSN2018 182-30180 S-50663 8022490 11022490 88213906 CGB-22490R DRT2490 10010258AV 254169 LI9004 12311 S0232 SBO258 CMA-621073 6010258 331729 ST01503 WG2196595 F032114052 311ST21 A22490 690.506.092.311 58402380 AC-CBS5560 STB4052 3124637 3124638 LRS02302 25-3474 AZD2124 33302N S12BH0793 254169M CST10258AS MAHMS59 10439497 CST10258GS 220812 EAA-121073 0001107400 H5010147 10010258OV 63521074300 3124640 S12BH0793A2 3124641 58402090 0001107083 72735687 STX201374 114052 5840209 STRL288 SBO258A 011-001-000611R LRS2302 5010147 PRSL288 6010258.1 0001107430 600229092 690.506.092.010 105586 690.506.092.210 20401852BN 58401990 690.506.092.215 MS59 11.131.901 H5010147G 20401852OE 0986022490 IS1268 9968 STR50663 WG2013376 5840199 BOS0001107430Video/Publications
