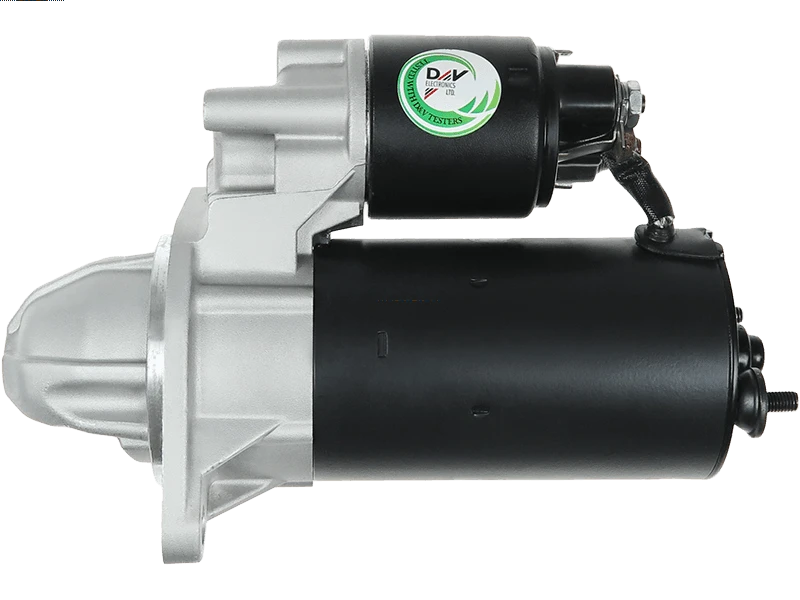

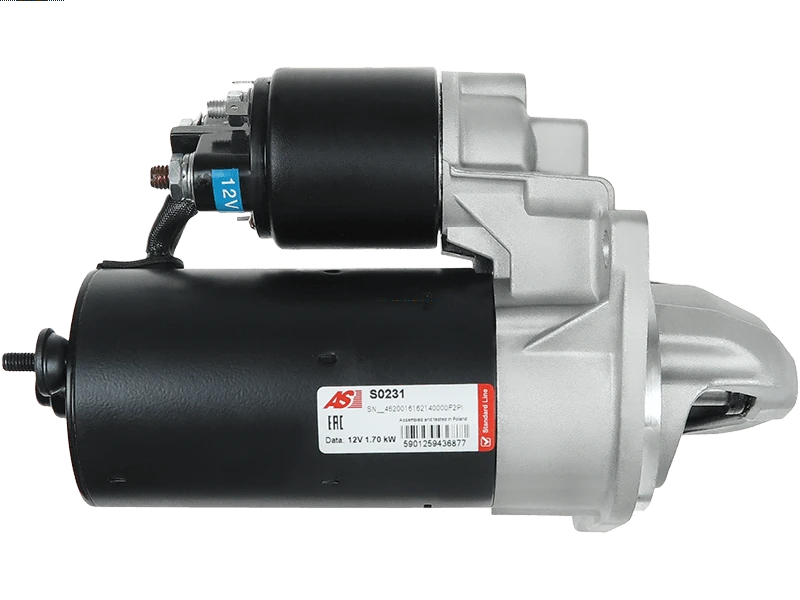

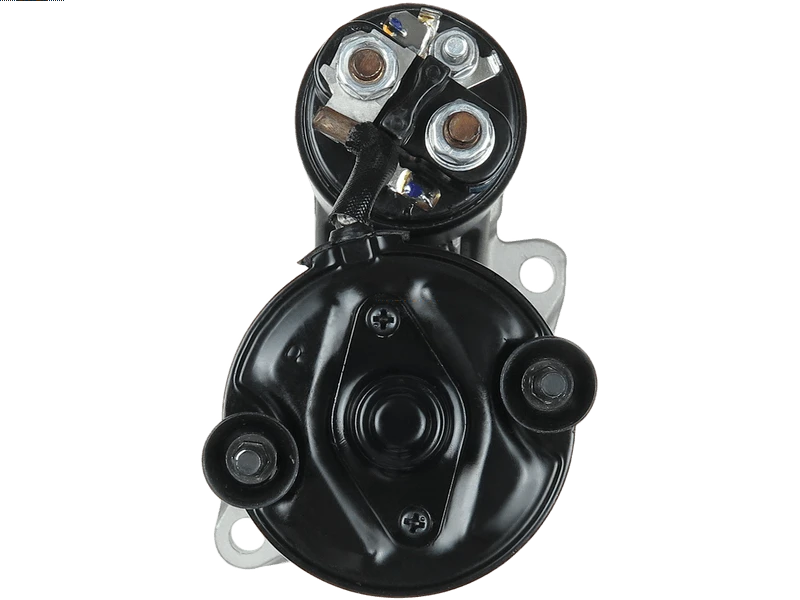

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 303.28 including GST
NZ$ 263.72 excluding GST
or four payments of $75.82
with
Learn More
each
S0231
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001115015 0001115020 0986019970 101247B 12125 130.543.092 20401773OE 22.1247 22.1247M 22.3224 24460703 25-3248 3154 32698N 6010377 6202006 6202021 6202052 8019970 8212272 88212272 8EA737921-001 9200890 93172020 93175887 93175905 9512769 99224108 AEU1247 CS1247 CST10377GS DRS3827 EAA-121404 LRS01698 LRS01703 R1540013 S0231 SS232 STR10020Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 234 mm |
| Mount Hole Center - Center (O.1) | 117 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Signum 3.2 V6 | [Z32SE] | 05.2003- |
| OPEL | Vectra A 2.5 CD 4x4 | [C25XE] | 09.1994-08.1995 |
| OPEL | Vectra B 2.6 i V6 | [Y26SE] | 09.2000-09.2002 |
| OPEL | Vectra C 3.2 i V6 | [Z32SE] | 08.2002- |
| OPEL | Vectra C 3.2 i V6 GTS | [Z32SE] | 08.2002- |
| VAUXHALL | Signum 3.2 V6 | [Z32SE] | 05.2003- |
| VAUXHALL | Vectra 2.6 i V6 | [Y26SE] | 09.2000-08.2001 |
| VAUXHALL | Vectra 3.2 i V6 GTS | [Z32SE] | 08.2002-09.2005 |
| VAUXHALL | Vectra 3.2 V6 | [Z32SE] | 06.2003- |
Reference Information
22.1247M 93172020 20401773OE ANM16047X 24460703 9200890 SS232 0986019970 9224108 DRS3827 6202052 130.543.092 25-3248 93175905 6010377 LRS1703 32698N STRF263 LRS01703 S0231 101247B 93175887 8019970 88212272 9512769 22.3224 6202006 CS1247 3154 8212272 0001115015 STR1747 AEU1247 6202021 9007007 CST10377GS LRS01698 99224108 EAA-121404 R1540013 0001115020 8EA737921-001 S12BH0535A2 12125 22.1247 STR10020 LRS1698Video/Publications
