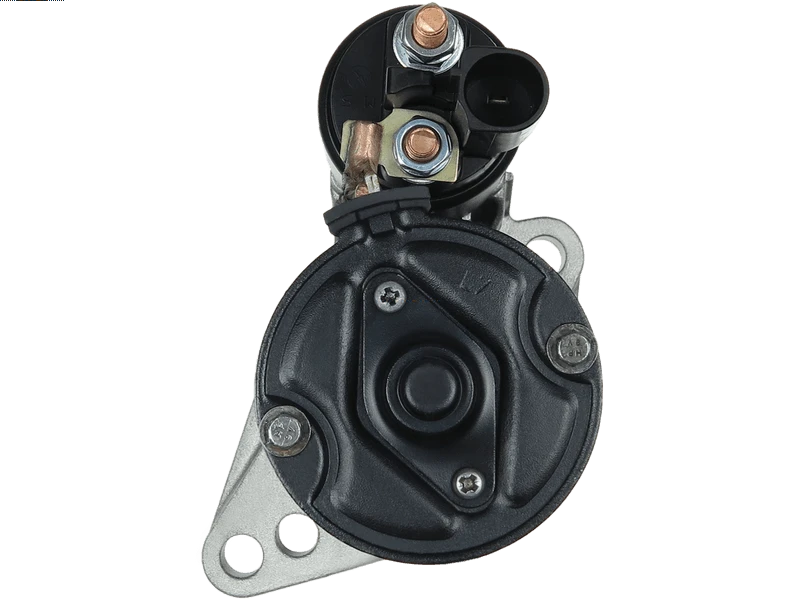

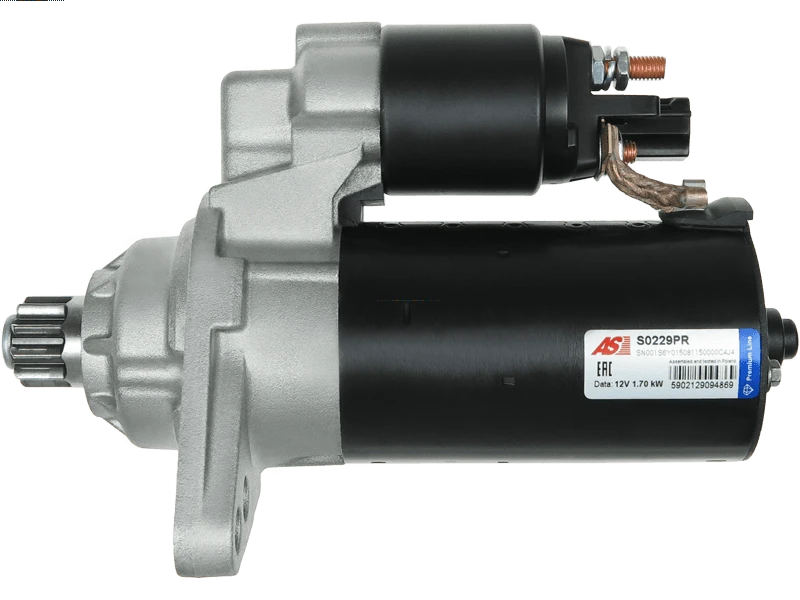

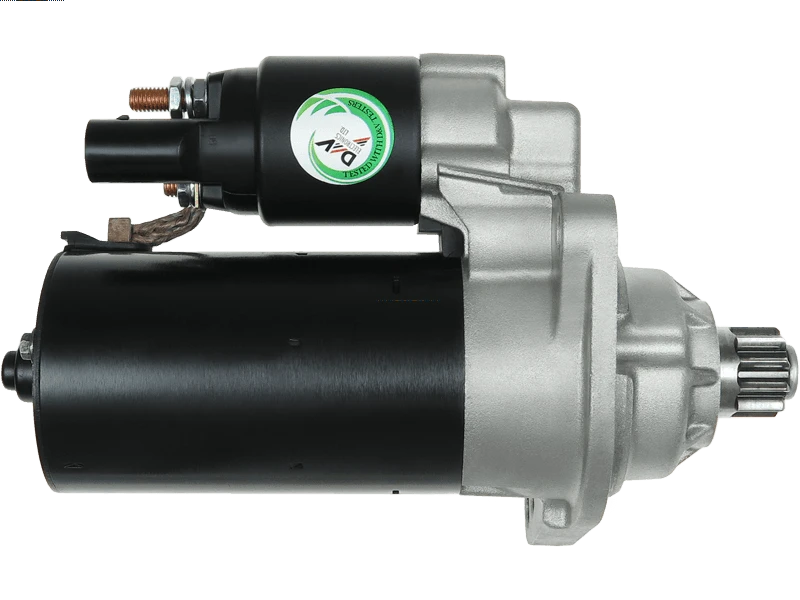

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 293.61 including GST
NZ$ 255.31 excluding GST
or four payments of $73.40
with
Learn More
each
S0229PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001123020 0001123021 0AH911023B 0AH911023BX 101397 101397B 114173 12220 20401544 25-4145 300.587.103 32688N 32688R 6010445 88213300 8EA012528-051 8EA738258-721 944280203200 CS1397 CST10445 CST10445AS CST10445ES CST10445GS CST10445OS CST10445RS DRT0320 DT1430 EAA-121267 MRS20320 RAS41431 SG0691 STB1397 STR50512Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 18 mm |
| Mount Hole Center - Center (O.3) | 112 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| Mount Hole Diameter (C.3) | 12.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 57.5 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Caddy 2.0 SDi | [BDJ] | 03.2004-08.2010 |
| VW | Caddy 2.0 SDi | [BST] | 03.2004-08.2010 |
Reference Information
8EA012528-051 300.587.103.280 20401544OE STM1237 SKSTR-0330233 CST10445GS 105510 10010445OV 101397 101397B RE83659N BST2591 3043 PRO 1986S00800 10439666 DRT0320X WG2378129 SEG0001123020 LRS02473 VW9093 4720350 TT15339 0986020320 458875 331409 0001123020-R CMA-621267 88213300 F032114173 8020320 STRS880 9.4428E+11 221065A S12BH0951 0AH911023BX AI-80055 300.587.103.461 SBO445 2S0234 ST01658 AC-CBS1397 220ST21 11020320 DRT0320 CS1397 A20320 114173 S-50512 STR50512 SG0691 63721397010 QRS1845 9.43214E+11 32688N MRS20320 300.587.103.210 300.587.103.211 300.587.103.010 32688R AZMT-53-010-1040 LRS2473 3116948 WOOSTR50512 3116947 0001123020 311264102 12220 STR1561 5010983 0001123021 6010445.1 5010983G 0AH911023B 1638131880 25-4145 STB1397 EZ0128 STX200188R 193197Video/Publications
S0229PRView your shopping basket or Browse other items in Starter Motors.
