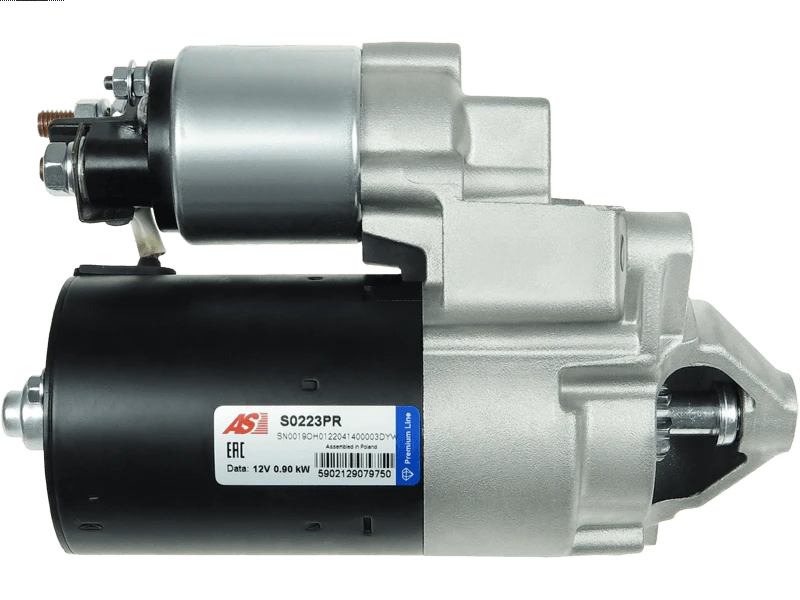

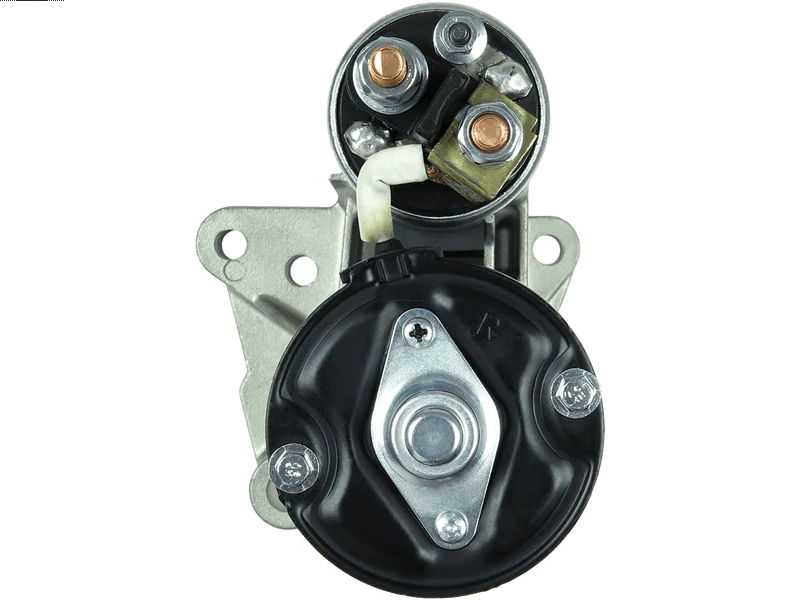

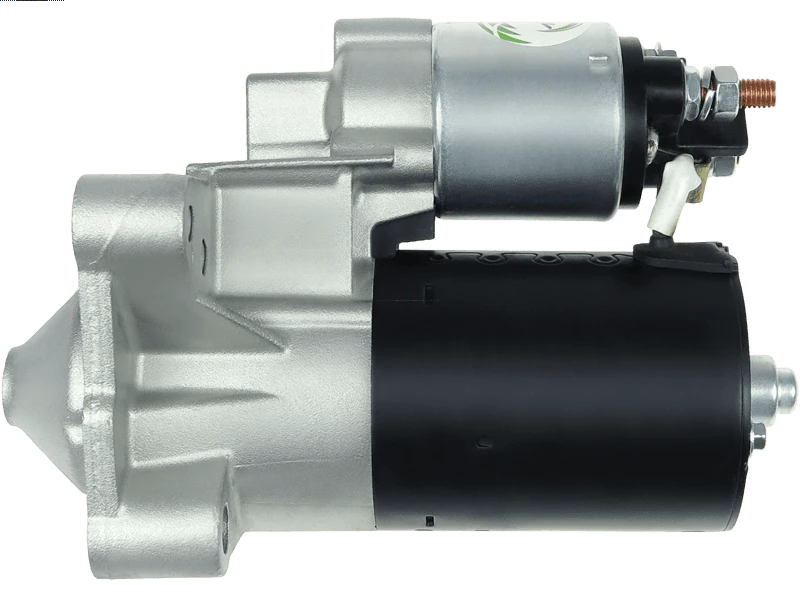

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 260.06 including GST
NZ$ 226.14 excluding GST
or four payments of $65.02
with
Learn More
each
S0223PR
No stock in NZ
No stock in NZ
Associated Numbers
0001106023 0001106024 0986018860 101255 101255B 114814 11915 220462 23300-00Q1D 23300-00QAH 25-3034 3000 32545N 42018860 458196 570.524.094 6010260 7711135101 8200069377 8200186148 8200199737 8200466754 8200724805 8200724810 8200929534 88212803 8EA012527-971 8EA737977-001 93161060 944280188600 AEU1255 CS1255 CST10260 CST10260AS CST10260ES CST10260GS CST10260OS CST10260RS DRS8860 DS9970 EAA-122210 LRS01545 LRS1545 MRS18860 SG0961 STB1255 STB9255 STR50236Specifications
| Kilowatt | 0.9 kW |
| Length (L.1) | 208 mm |
| Mount Hole Center - Center (O.1) | 75 mm |
| Mount Hole Center - Center (O.2) | 105 mm |
| Mount Hole Center - Center (O.3) | 93 mm |
| Mount Hole Center - Center (O.4) | 22 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| Mount Hole Diameter (C.4) | M10x1.5 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 0 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Primastar 2.0 | [F4R720] | 03.2001- |
| NISSAN | Primastar 2.0 | [F4R720] | 07.2002- |
| NISSAN | Primastar 2.0 | [F4R722] | 03.2001- |
| OPEL | Vivaro 1.9 Di | [F9Q762] | 08.2006- |
| OPEL | Vivaro 2.0 16V | [F4R] | 08.2006- |
| OPEL | Vivaro 2.0 16V | [F4R720] | 08.2001- |
| OPEL | Vivaro 2.0 Ecotec | [F4R820] | 08.2006- |
| RENAULT | Avantime 2.0 Turbo 16V | [F4R760] | 11.2001-05.2003 |
| RENAULT | Avantime 2.0 Turbo 16V | [F4R761] | 11.2001-05.2003 |
| RENAULT | Clio 2.0 16V Sport | [F4R830] | 02.2006- |
| RENAULT | Clio 2.0 16V Sport | [F4R830] | 09.2008- |
| RENAULT | Espace 2.0 | [F4R790] | 11.2002- |
| RENAULT | Espace 2.0 | [F4R790] | 11.2002-02.2005 |
| RENAULT | Espace 2.0 | [F4R792] | 11.2002- |
| RENAULT | Espace 2.0 | [F4R796] | 04.2005- |
| RENAULT | Espace 2.0 | [F4R797] | 04.2005- |
| RENAULT | Espace 2.0 | [F4R896] | 04.2005- |
| RENAULT | Espace 2.0 | [F4R897] | 04.2005- |
| RENAULT | Espace 2.0 Turbo | [F4R794] | 11.2002- |
| RENAULT | Espace 2.0 Turbo | [F4R795] | 11.2002- |
| RENAULT | Espace 2.0 Turbo | [F4R796] | 11.2002- |
| RENAULT | Espace 2.0 Turbo | [F4R797] | 11.2002- |
| RENAULT | Espace 2.0 Turbo | [F4R896] | 06.2005- |
| RENAULT | Espace 2.0 Turbo | [F4R897] | 06.2005- |
| RENAULT | Grand Scenic 2.0 | [F4R770] | 04.2004- |
| RENAULT | Grand Scenic 2.0 | [F4R771] | 04.2004- |
| RENAULT | Grand Scenic 2.0 | [F4R776] | 04.2004- |
| RENAULT | Laguna 1.8 16V | [F4P770] | 03.2001-09.2007 |
| RENAULT | Laguna 1.8 16V | [F4P774] | 03.2001- |
| RENAULT | Laguna 1.8 16V | [F4P774] | 03.2001-09.2007 |
| RENAULT | Laguna 1.8 16V | [F4P775] | 03.2001-09.2007 |
| RENAULT | Laguna 2.0 | [F4R800] | 03.2008- |
| RENAULT | Laguna 2.0 16V | [F4R712] | 08.2002- |
| RENAULT | Laguna 2.0 16V | [F4R713] | 08.2002- |
| RENAULT | Laguna 2.0 16V | [F4R714] | 08.2002- |
| RENAULT | Laguna 2.0 16V | [F4R714] | 10.2004-09.2007 |
| RENAULT | Laguna 2.0 16V | [F4R715] | 08.2002- |
| RENAULT | Laguna 2.0 16V | [F4R715] | 10.2004-09.2007 |
| RENAULT | Laguna 2.0 16V | [F4R784] | 01.2005- |
| RENAULT | Laguna 2.0 16V | [F4R786] | 01.2005- |
| RENAULT | Laguna 2.0 16V | [F4R787] | 01.2005- |
| RENAULT | Laguna 2.0 16V | [F4R886] | 01.2005- |
| RENAULT | Laguna 2.0 16V | [F4R887] | 01.2005- |
| RENAULT | Laguna 2.0 16V Turbo | [F4R811] | 09.2008- |
| RENAULT | Laguna 2.0 16V Turbo | [F4R811] | 10.2007- |
| RENAULT | Laguna 2.0 16V Turbo | [F4RT811] | 09.2008- |
| RENAULT | Laguna 2.0 GT | [F4R800] | 03.2008- |
| RENAULT | Laguna 2.0 iDE 16V | [F5R700] | 04.2001- |
| RENAULT | Laguna 2.0 iDE 16V | [F5R701] | 04.2001- |
| RENAULT | Laguna 2.0 Turbo | [F4R886] | 01.2005-09.2007 |
| RENAULT | Laguna 2.0 Turbo | [F4R887] | 01.2005-09.2007 |
| RENAULT | Laguna 2.0 Turbo 16V | [F4R764] | 01.2003- |
| RENAULT | Laguna 2.0 Turbo 16V | [F4R765] | 01.2003- |
| RENAULT | Laguna 2.0 Turbo 16V | [F4R786] | 01.2003- |
| RENAULT | Laguna 2.0 Turbo 16V | [F4R787] | 01.2003- |
| RENAULT | Megane 2.0 | [F4R770] | 08.2003- |
| RENAULT | Megane 2.0 | [F4R770] | 09.2003- |
| RENAULT | Megane 2.0 | [F4R771] | 08.2003- |
| RENAULT | Megane 2.0 | [F4R771] | 09.2003- |
| RENAULT | Megane 2.0 | [F4R774] | 08.2006- |
| RENAULT | Megane 2.0 | 06.2006-12.2010 | |
| RENAULT | Megane 2.0 16V | [F4R746] | 01.2002-08.2003 |
| RENAULT | Megane 2.0 16V | [F4R770] | 01.2002-08.2003 |
| RENAULT | Megane 2.0 16V | [F4R770] | 11.2002- |
| RENAULT | Megane 2.0 Sport | [F4R774] | 05.2004- |
| RENAULT | Megane 2.0 Sport | [F4RT774] | 05.2004- |
| RENAULT | Megane 2.0 Turbo 16V | [F4R776] | 05.2004- |
| RENAULT | Scenic 1.8 4x4 | [F4P722] | 07.2000-04.2001 |
| RENAULT | Scenic 2.0 | [F4R770] | 02.2008-04.2009 |
| RENAULT | Scenic 2.0 | [F4R770] | 06.2003- |
| RENAULT | Scenic 2.0 | [F4R771] | 06.2003- |
| RENAULT | Scenic 2.0 Turbo 16V | [F4R776] | 05.2004- |
| RENAULT | Trafic 2.0 | [F4R720] | 03.2001- |
| RENAULT | Trafic 2.0 | [F4R722] | 03.2001- |
| RENAULT | Trafic 2.0 16V | [F4R820] | 08.2006- |
| RENAULT | Vel Satis 2.0 | [F4R867] | 04.2005- |
| RENAULT | Vel Satis 2.0 Turbo | [F4R867] | 07.2005- |
| RENAULT | Vel Satis 2.0 Turbo 16V | [F4R762] | 06.2002- |
| RENAULT | Vel Satis 2.0 Turbo 16V | [F4R763] | 06.2002- |
| RENAULT | Vel Satis 2.0 Turbo 16V | [F4R766] | 04.2004- |
| RENAULT | Vel Satis 2.0 Turbo 16V | [F4R767] | 04.2004- |
| VAUXHALL | Vivaro 2.0 16V | [F4R720] | 08.2001-12.2006 |
Reference Information
8200466758 8200186144 9512934 570.524.094.462 8200199737 3000 570.524.094.461 570.524.094.460 CS1255 4433974 91169473 7711135101 CST10260RS 458196 32545N 4414533 8200466761 S12BH0280 LRS01545 23300-00Q1D STRL803 570.524.094.215 4418065 S12BH0280A2 93857124 93161437 MAV122600 220462 CST10260GS 570.524.094.010 7711134794 8EA012527-971 570.524.094 8252875 114814 9.4428E+11 4430695 6010260 CST10260OS 25-3034 4430696 88212803 11915 83161060 8200069377 STX200219R MRS18860 93861372 STB1255 93862463 8200466754 CST10260 DS9970 8200186148 93198232 STB9255 4419084 AEU1255 95522555 0986018860 STR50236 42018860 93177609 3130179 8200466784 STR1393 8200724805 4412612 STX200124 LRS1545 93863425 8200050150 101255B 8200929534 0001106024 CST10260AS MT130179 0001106023 CST10260ES R1040045 23300-00QAH 2330000QA1 570.524.094.395 003-130179 EAA-122210 23300-00QA1 8EA737977-001 93161060 101255 91167226 SG0961 STX200219 8200724810 STX200124R DRS8860Video/Publications
