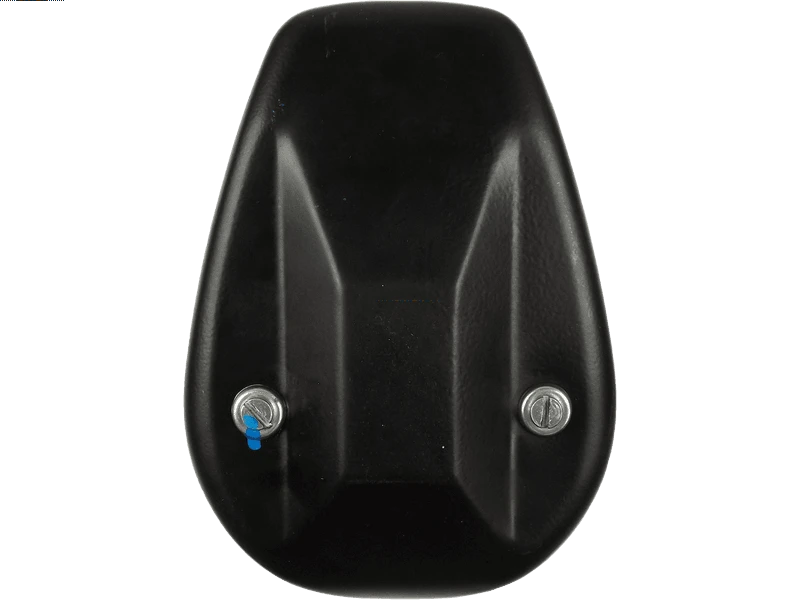

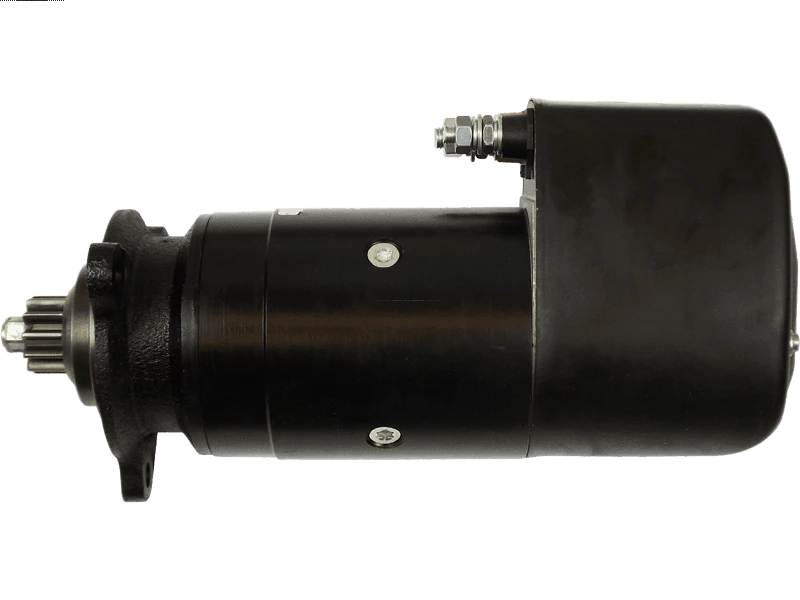

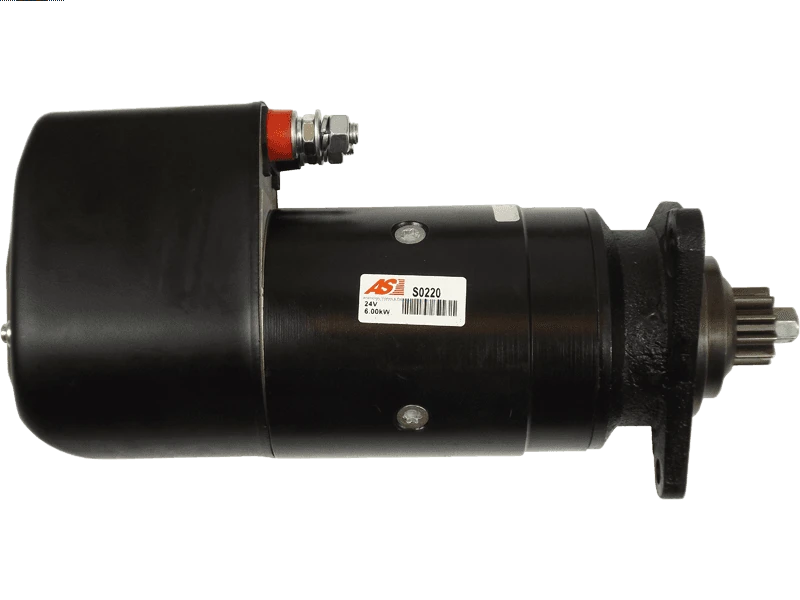

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 799.24 including GST
NZ$ 694.99 excluding GST
or four payments of $199.81
with
Learn More
each
S0220
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001410098 0001410115 0001411005 0001411021 0001417007 0001417045 0986012480 0986018790 10121 110212 20401046BN 20401046EL 20401306BN 20401306EL 20401336BN 20401336EL 22.0121 254320 254566 28.0121 309220 33546 33601 33602 349578 438047 45-0150 45-0313 45-0381 455535 4782801 6010603 6010633 6010640 81467045 860510GB 860514 860514GB 860515GB 860517 860517GB 8690 8812480 8EA725974-001 911.202.113 AES7146 CRO46001AS CS121 CSR60001AS CST10603AS CST10603ES CST10603RS CST10633AS CST10633ES CST10640AS CST10640ES DRS2480 IM361 IM645 LRS00746 SRO46001 SSR60001 STR22056 69bx417045 bxs9020 70-1800Specifications
| Kilowatt | 6.6 kW |
| Length (L.1) | 406 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | 113 E/360 11.0 | [DSC11.13] | 01.1990-05.2000 |
| IVECO | 113 E/360 11.0 | [DSC11.18] | 01.1990-05.2000 |
| IVECO | 113 E/360 11.0 | [DSC11.23] | 01.1990-05.2000 |
| IVECO | 113 H/360 11.0 | [DSC11.13] | 05.1988-05.2000 |
| IVECO | 113 H/360 11.0 | [DSC11.18] | 01.1990-05.2000 |
| IVECO | 113 H/360 11.0 | [DSC11.23] | 01.1990-05.2000 |
| IVECO | 113 M/360 11.0 | [DSC11.13] | 05.1988-05.2000 |
| IVECO | 113 M/360 11.0 | [DSC11.18] | 01.1990-05.2000 |
| IVECO | 113 M/360 11.0 | [DSC11.23] | 01.1990-05.2000 |
| IVECO | 113 M/400 11.0 | [DTC11.01] | 01.1992-05.1997 |
| IVECO | 113 M/400 11.0 | [DTC11.02] | 01.1994-05.1997 |
| IVECO | 114 C/340 11.0 | [DC11.01] | 03.1993-09.2004 |
| IVECO | 114 C/340 11.0 | [DC11.03] | 02.1996-09.2004 |
| IVECO | 114 C/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| IVECO | 114 C/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| IVECO | 114 G/340 10.6 | [DC11.01] | 03.1996-09.2004 |
| IVECO | 114 G/340 10.6 | [DC11.03] | 03.1998-09.2004 |
| IVECO | 114 G/340 11.0 | [DC11.01] | 03.1996-02.2002 |
| IVECO | 114 G/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| IVECO | 114 G/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| IVECO | P/PA 330-30 13.8 | [8210.22X.069] | 10.1987-12.1995 |
| IVECO | P/PA 330-30 13.8 | [8210.22X.235] | 06.1984-12.1992 |
| IVECO | P/PA 330-30 13.8 | [8210.22X.523] | 06.1984-12.1992 |
| IVECO | P/PA 330-30 13.8 | [8210.22X.575] | 10.1987-12.1995 |
| SCANIA | 113 E/360 11.0 | [DSC11.13] | 01.1990-05.2000 |
| SCANIA | 113 E/360 11.0 | [DSC11.18] | 01.1990-05.2000 |
| SCANIA | 113 E/360 11.0 | [DSC11.23] | 01.1990-05.2000 |
| SCANIA | 113 H/360 11.0 | [DSC11.13] | 05.1988-05.2000 |
| SCANIA | 113 H/360 11.0 | [DSC11.18] | 01.1990-05.2000 |
| SCANIA | 113 H/360 11.0 | [DSC11.23] | 01.1990-05.2000 |
| SCANIA | 113 M/360 11.0 | [DSC11.13] | 05.1988-05.2000 |
| SCANIA | 113 M/360 11.0 | [DSC11.18] | 01.1990-05.2000 |
| SCANIA | 113 M/360 11.0 | [DSC11.23] | 01.1990-05.2000 |
| SCANIA | 113 M/400 11.0 | [DTC11.01] | 01.1992-05.1997 |
| SCANIA | 113 M/400 11.0 | [DTC11.02] | 01.1994-05.1997 |
| SCANIA | 114 C/340 11.0 | [DC11.01] | 03.1993-09.2004 |
| SCANIA | 114 C/340 11.0 | [DC11.03] | 02.1996-09.2004 |
| SCANIA | 114 C/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| SCANIA | 114 C/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | 114 G/340 10.6 | [DC11.01] | 03.1996-09.2004 |
| SCANIA | 114 G/340 10.6 | [DC11.03] | 03.1998-09.2004 |
| SCANIA | 114 G/340 11.0 | [DC11.01] | 03.1996-02.2002 |
| SCANIA | 114 G/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| SCANIA | 114 G/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | 114 L/340 10.6 | [DC11.01] | 03.1996-02.2002 |
| SCANIA | 114 L/340 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | 114 L/340 10.6 | [DC11.03] | 05.1996-09.2004 |
| SCANIA | 114 L/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| SCANIA | 114 L/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | 124 C/360 11.7 | [DSC12.02] | 09.1996-02.2002 |
| SCANIA | 124 C/400 11.7 | [DSC12.01] | 09.1996-01.2000 |
| SCANIA | 124 C/420 11.7 | [DSC12.05] | 09.1995-02.2002 |
| SCANIA | 124 G/360 11.7 | [DSC12.02] | 05.1996-02.2002 |
| SCANIA | 124 G/400 11.7 | [DSC12.01] | 05.1996-01.2000 |
| SCANIA | 124 L/360 11.7 | [DSC12.02] | 09.1996-02.2002 |
| SCANIA | 124 L/400 11.7 | [DSC12.01] | 09.1996-01.2000 |
| SCANIA | 124 L/420 11.7 | [DSC12.05] | 09.1997-02.2002 |
| SCANIA | 124 L/440 11.7 | [DT12.08] | 09.2000-09.2004 |
| SCANIA | 124 L/470 11.7 | [DT12.02] | 01.2001-09.2004 |
| SCANIA | 143 E/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 E/450 14.2 | [DSC14.03] | 01.1990-12.1996 |
| SCANIA | 143 E/450 14.2 | [DSC14.10] | 01.1990-12.1996 |
| SCANIA | 143 E/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 E/500 14.2 | [DSC14.16] | 12.1994-12.1996 |
| SCANIA | 143 H/400 14.2 | [DSC14.06] | 05.1988-12.1996 |
| SCANIA | 143 H/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 H/450 14.2 | [DSC14.03] | 05.1988-12.1996 |
| SCANIA | 143 H/450 14.2 | [DSC14.06] | 05.1988-12.1996 |
| SCANIA | 143 H/450 14.2 | [DSC14.10] | 01.1990-12.1996 |
| SCANIA | 143 H/470 14.2 | [DSC14.04] | 03.1988-12.1996 |
| SCANIA | 143 H/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 H/500 14.2 | [DSC14.16] | 12.1994-12.1996 |
| SCANIA | 143 M/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 M/450 14.2 | [DSC14.03] | 05.1988-12.1996 |
| SCANIA | 143 M/450 14.2 | [DSC14.10] | 01.1990-12.1996 |
| SCANIA | 143 M/470 14.2 | [DSC14.04] | 03.1988-12.1996 |
| SCANIA | 143 M/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 M/500 14.2 | [DSC14.16] | 12.1994-12.1996 |
| SCANIA | 144 C/460 14.2 | [DSC14.15] | 04.1996-08.2001 |
| SCANIA | 144 C/530 14.2 | [DSC14.13] | 04.1996-08.2001 |
| SCANIA | 144 G/460 14.2 | [DSC14.15] | 04.1996-08.2001 |
| SCANIA | 144 G/530 14.2 | [DSC14.13] | 04.1996-08.2001 |
| SCANIA | 144 L/460 14.2 | [DSC14.15] | 11.1995-08.2001 |
| SCANIA | 144 L/530 14.2 | [DSC14.13] | 11.1995-08.2001 |
| SCANIA | 230 9.0 | [DC9.01] | 09.2004- |
| SCANIA | 260 9.0 | [DC9.02] | 09.2004- |
| SCANIA | 300 9.0 | [DC9.03] | 09.2004- |
| SCANIA | 93 H/220 8.5 | [DSC9.10] | 12.1991-08.1997 |
| SCANIA | 93 H/250 8.5 | [DS9.05] | 03.1988-01.1991 |
| SCANIA | 93 H/250 8.5 | [DSC9.07] | 12.1991-08.1997 |
| SCANIA | 93 H/280 8.5 | [DSC9.02] | 12.1991-12.1996 |
| SCANIA | 93 H/280 8.5 | [DSC9.08] | 12.1991-08.1997 |
| SCANIA | 93 M/210 8.5 | [DS9.08] | 03.1988-01.1993 |
| SCANIA | 93 M/220 8.5 | [DSC9.10] | 12.1991-08.1997 |
| SCANIA | 93 M/230 8.5 | [DS9.06] | 03.1988-01.1993 |
| SCANIA | 93 M/250 8.5 | [DS9.05] | 03.1988-01.1991 |
| SCANIA | 93 M/250 8.5 | [DSC9.07] | 12.1991-08.1997 |
| SCANIA | 93 M/280 8.5 | [DSC9.02] | 03.1988-12.1996 |
| SCANIA | 93 M/280 8.5 | [DSC9.08] | 01.1990-08.1997 |
| SCANIA | 94 C/260 9.0 | [DSC9.12] | 12.1996-10.2001 |
| SCANIA | 94 C/300 9.0 | [DC9.03] | 02.2000-09.2004 |
| SCANIA | 94 C/310 9.0 | [DSC9.13] | 08.1996-08.2002 |
| SCANIA | 94 C/310 9.0 | [DSC9.15] | 08.1996-08.2002 |
| SCANIA | 94 D/220 9.0 | [DSC9.11] | 08.1996-08.2002 |
| SCANIA | 94 D/230 9.0 | [DC9.01] | 08.1999-09.2004 |
| SCANIA | 94 D/230 9.0 | [DC9.04] | 08.1999-09.2004 |
| SCANIA | 94 /D260 9.0 | [DC9.02] | 02.2000-09.2004 |
| SCANIA | 94 D/260 9.0 | [DC9.02] | 02.2000-09.2004 |
| SCANIA | 94 D/260 9.0 | [DSC9.12] | 08.1996-10.2001 |
| SCANIA | 94 D/300 9.0 | [DC9.03] | 02.2000-09.2004 |
| SCANIA | 94 D/310 9.0 | [DSC9.13] | 12.1996-08.2002 |
| SCANIA | 94 D/310 9.0 | [DSC9.15] | 12.1996-08.2002 |
| SCANIA | 94 G/220 9.0 | [DSC9.11] | 08.1996-08.2002 |
| SCANIA | 94 G/260 9.0 | [DSC9.12] | 08.1996-10.2001 |
| SCANIA | 94 G/310 9.0 | [DSC9.13] | 08.1996-08.2002 |
| SCANIA | 94 G/310 9.0 | [DSC9.15] | 08.1996-08.2002 |
| SCANIA | 94 L/310 9.0 | [DSC9.13] | 08.1996-08.2002 |
| SCANIA | 94 L/310 9.0 | [DSC9.15] | 08.1996-08.2002 |
| SCANIA | R 142 E 14.2 | [DS14.06] | 05.1980-03.1988 |
| SCANIA | R 142 H 14.2 | [DS14.06] | 05.1980-03.1988 |
| SCANIA | R 142 H 14.2 | [DSC14.01] | 05.1980-03.1988 |
| SCANIA | R 142 H 14.2 | [DSC14.02] | 05.1980-03.1988 |
| SCANIA | R 142 M 14.2 | [DS14.06] | 05.1980-03.1988 |
Reference Information
STR1655 DRS2480 860510GB 6010603 349587 22.0121 349581 220234 220235 28.0121 277451 8690 254566 254320 CS121 LRS746 STRS058 CST10640AS 4782801 SRO46001 20401306EL 349578 6244321 IM361 CGB-11645 STR10139 110212 SSR60001 MAV126400 33601 571460 0001417007 309220 0001417045 STRS686 0001410098 0001411021 860517GB 20401306BN CSR60001AS S0220 IM645 MAV1214 455535 12800 33602 860515GB 20401336EL MAV2260 CST10603RS 0986012480 911.202.113 MAV126180 20401046BN 571423 0001410115 0001411005 45-0381 571461 CST10603ES 20401336BN AES7146 0986018790 170743 309470 CST10603AS 8812480 438047 1516692R 6010633 CRO46001AS CST10640ES 220324 45-0150 20401046EL 33546 S24BH0042A2 STR22056 CST10633AS 45-0313 81467045 CST10633ES 860517 10121 860514 LRS00746 8EA725974-001 6010640 860514GBVideo/Publications
