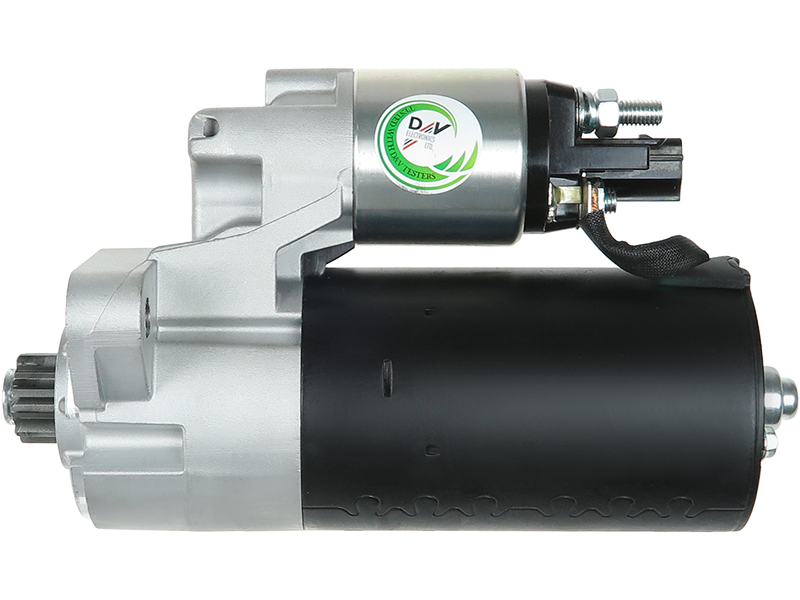

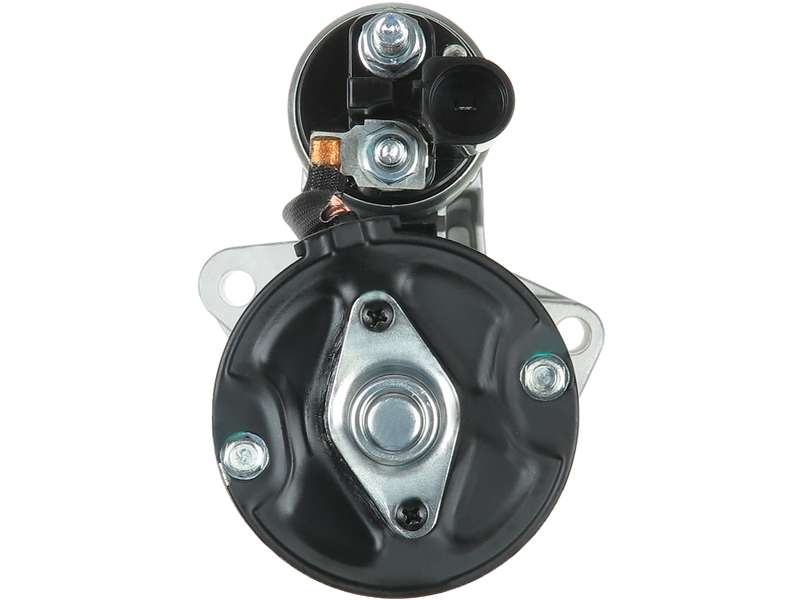

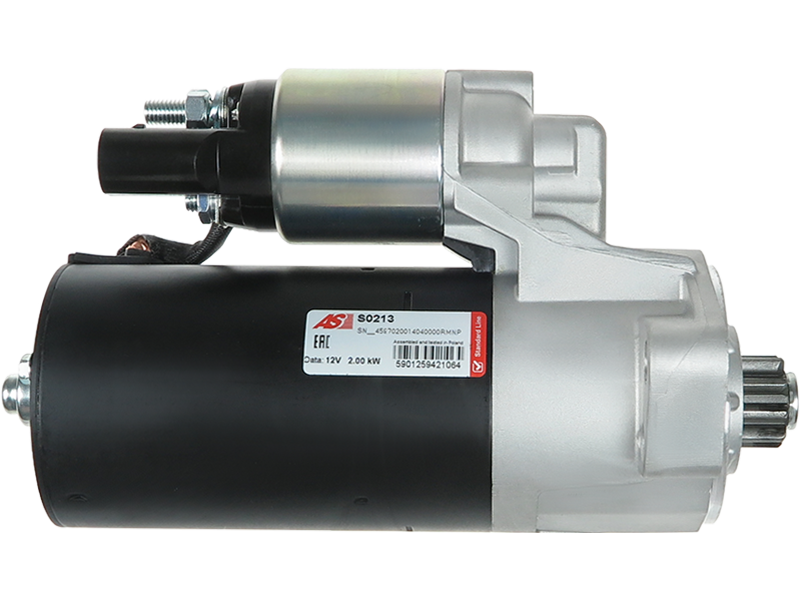

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 251.84 including GST
NZ$ 218.99 excluding GST
or four payments of $62.96
with
Learn More
each
S0270
S0213
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001125519 0001125520 0001125521 059911023S 059911023SX 059911024C 059911024CX 059911024J 059911024JX 0986024050 101187 101187B 114690 200.536.093 20401863BN 20401863OE 22.3082M 220683 25-4002 254305 254305B 254373 254373B 254430 254430B 300.577.093 3066 458538 6010368 943215211010 AEY2330 BOS0001125519 CS1521 CST10368 CST10368AS CST10368ES CST10368GS CST10368OS CST10368RS DRS0566 EAA-121104 LRS02330 S0213 SG0595 STB4519 STB4519BA STR50544 UNIT BOM 120-5035Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 104.5 mm |
| Mount Hole Center - Center (O.2) | 101 mm |
| Mount Hole Center - Center (O.3) | 24 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | Q7 3.0 TDi | [BUG] | 03.2006-05.2008 |
| AUDI | Q7 3.0 TDi | [BUN] | 03.2006-11.2007 |
| VW | Touareg 3.0 TDi | [BUN] | 12.2016- |
| VW | Touareg 3.0 TDi | [CASB] | 12.2016- |
| VW | Touareg 3.0 TDi | [CATA] | 11.2004- |
Reference Information
059911023J 200.536.093 254373 059911023SX CST10368GS STX200189 SG0595 120-5035 0001125520 0001125521 CST10368OS LRS2330 BOM AEY2330 059911024CX UNIT EAA-121104 9.43215E+11 STRS320 CST10368AS CST10368ES CS1521 RNL125519 25-4002 332265 DRS0566 CST10368RS 22.3082M STR1751 254305B S12BH0252A2 3066 BOS0001125519 20401863BN 114690 254305 20401863OE ANM12786X LRS02330 STX200201 S0213 STX200600 059911024J CST10368 220683 5010381 0001125519 STR50544 254430 300.577.093 254373B 059911023S 059911024JX STX200201R 6010368 STX200214 254430BVideo/Publications
