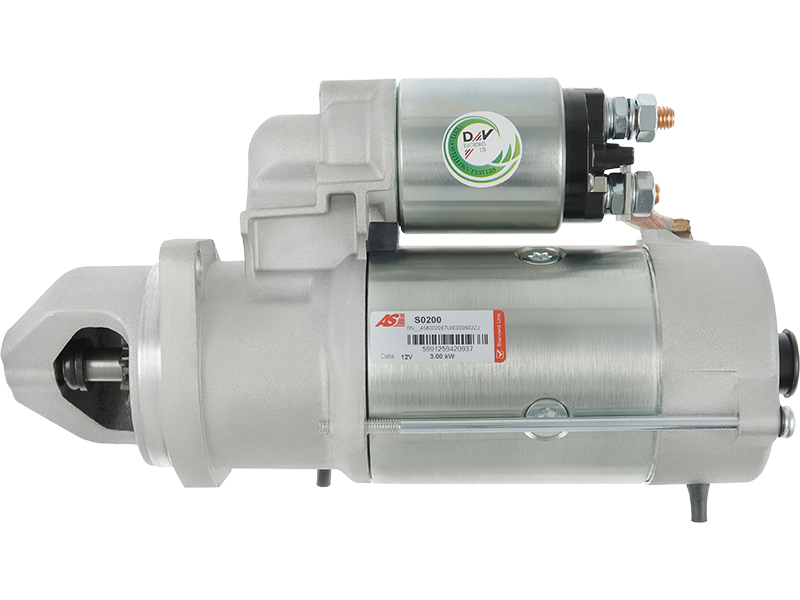

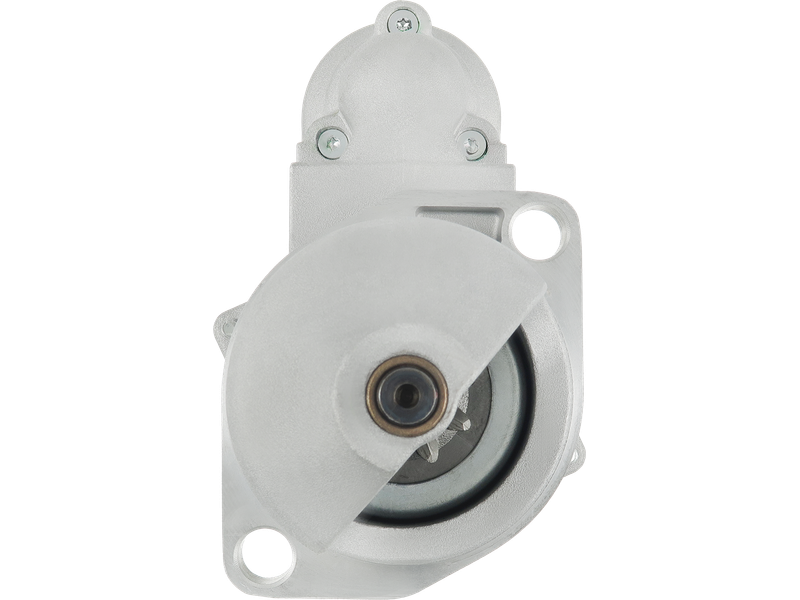

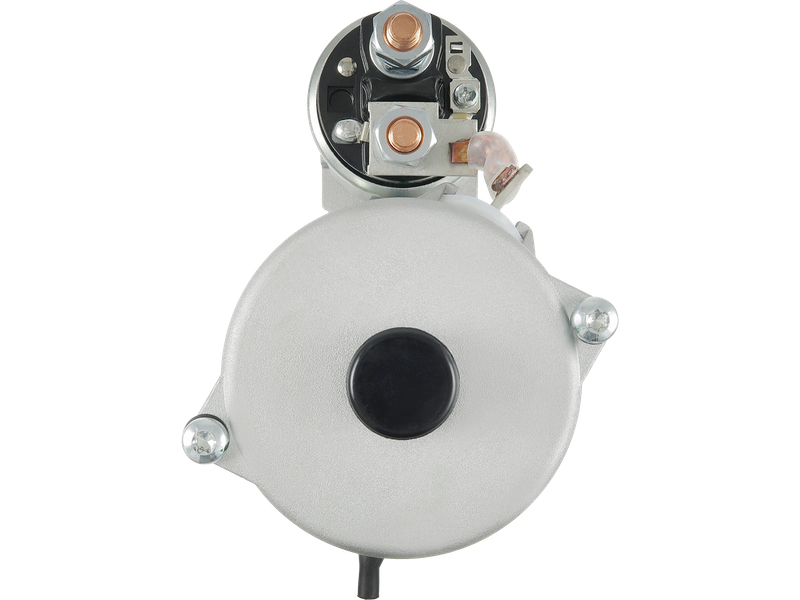

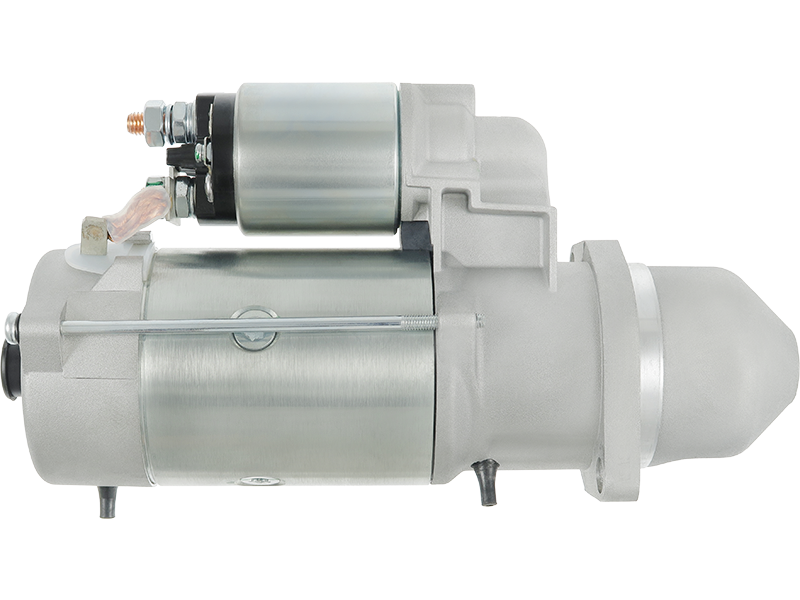

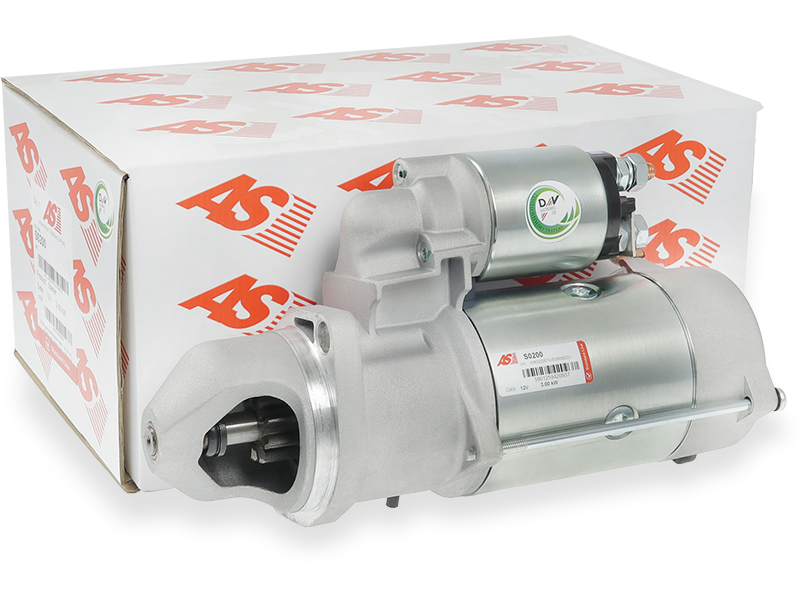

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 489.80 including GST
NZ$ 425.91 excluding GST
or four payments of $122.45
with
Learn More
each
S0200
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001230012 0001262030 0001358005 0001359038 0001359056 0001359083 0001359113 0001362023 0001362036 0001367005 0986024080 10718 10718B 11.130.254 11.130.898 11.131.829 111001 19024250 25-0270 25-0275 25-0287 254072 254072K 255527 29619390 60811 60811D 60811K 60811M 63216816 760.001.092 9144820 943216852 AZF4220 AZJ3320 AZJ3557 CS718 DRS3326 GS367005-A IS0254 IS0548 IS0671 LRS00949 LRS01053 MT68R MT68RA S0200 STR50157Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAMBORGHINI | 105 Diesel Formula | [1004.4] | 03.1989-12.1999 |
| LAMBORGHINI | 1106 5.5 Diesel 2M | [916.6] | 01.1984-12.1999 |
| LAMBORGHINI | 115 6.0 Diesel Formula | [1000.6] | 12.1989-12.1999 |
| LAMBORGHINI | 1306 5.5 TD DT | [916.6] | 01.1984-12.1999 |
| LAMBORGHINI | 1506 6.8 TD | [1106HT] | 01.1984-12.1999 |
| LAMBORGHINI | 1706 6.8 TD | [1106] | 01.1984-12.1999 |
| LAMBORGHINI | 660 3.1 Diesel | [105.3] | 01.1987-12.1999 |
| LAMBORGHINI | 660 F 3.0 Diesel | [1000.3] | 06.1987-12.1999 |
| LAMBORGHINI | 775 F 3.0 Diesel Plus | [1000.3] | 05.1991-12.1999 |
| LAMBORGHINI | 956-2 RM 5.5 Diesel | [916.6] | 01.1984-12.1999 |
| LAMBORGHINI | 956 DT 5.5 Diesel | [916.6] | 01.1984-12.1999 |
| LAMBORGHINI | C 664 3.1 Diesel | 06.1987-12.2000 | |
| SAME | Explorer 70 4.0 Diesel | 07.1986- | |
| SAME | Explorer 80 4.0 Diesel | 07.1986- | |
| SAME | Explorer 90 4.0 Diesel | 06.1986- | |
| SAME | Frutteto 75 3.0 Diesel | 05.1991- | |
| SAME | Laser 110 5.7 Diesel | 01.1988- | |
| SAME | Laser 130 6.2 Diesel | 01.1988- | |
| SAME | Laser 150 6.2 Diesel | 01.1988- | |
| SAME | Solar 60 3.1 Diesel | 06.1986- | |
| STEYR | 8110 5.2 | [WD611..] | 07.1984- |
| STEYR | 8130 5.2 | [WD611..] | 07.1984- |
Reference Information
29619390 MT68RA 61100090002 0001262029 20401165OE 296192300 8693R 10718 30800090001 296192900 10718B STB0718 20401165BN 260-23107 5000589041 299392950 6010561.1 7701019038 0001262030 111001 TS-6197 5010403 29619560010 29619560 760.501.092.010 760.501.092.210 MT68R CST10561GS EAA-111295 296195600 1516803R 296193900 6010561 CST10561AS 30800090017 19269N CGB-23326 S0200 STR50662Video/Publications
