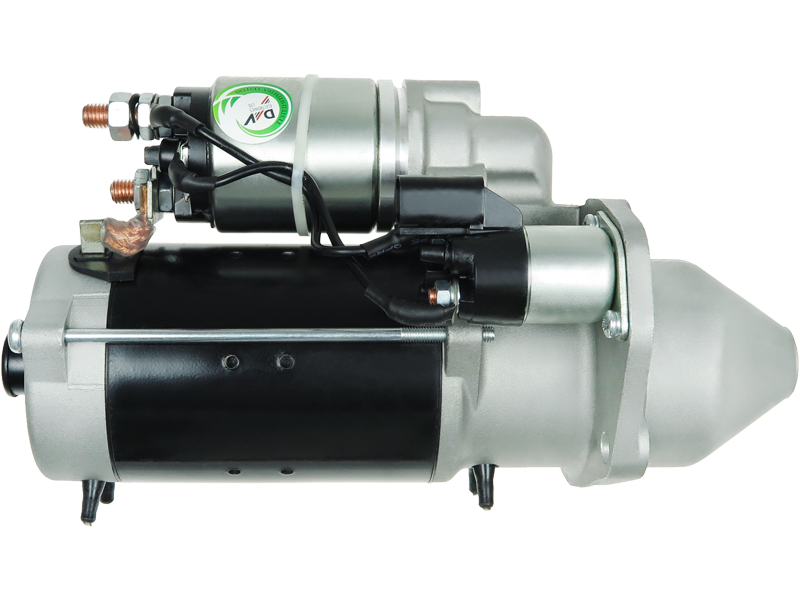

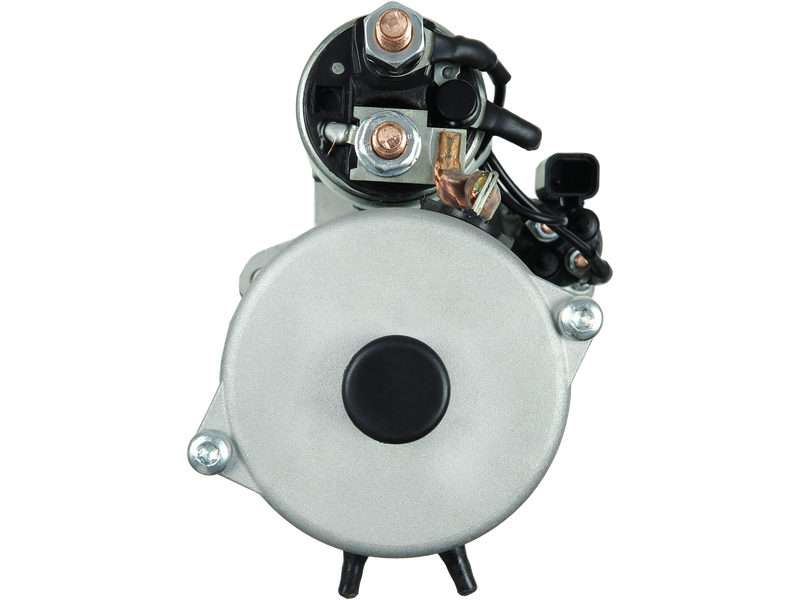

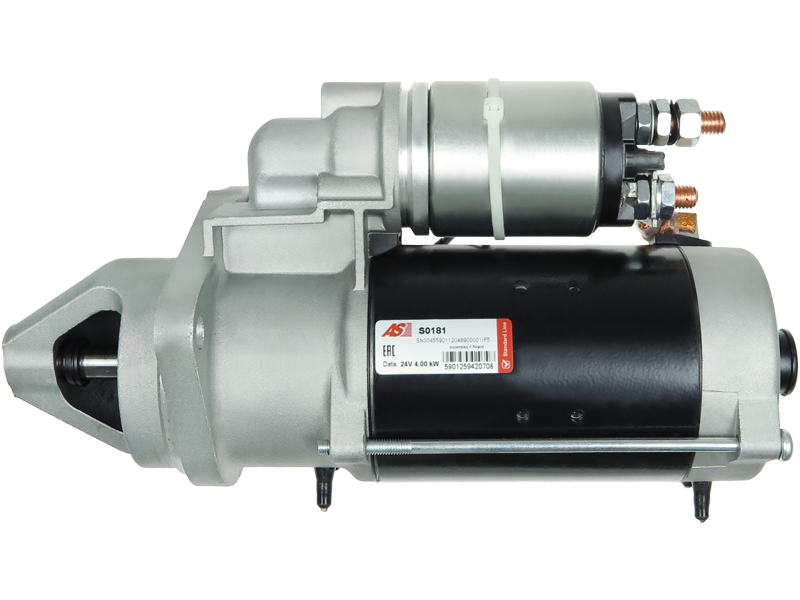

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 530.01 including GST
NZ$ 460.88 excluding GST
or four payments of $132.50
with
Learn More
each
S0181
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001231035 19084008 255024 255024M 255024P 30171N 51.26201-7223 860814 DRS0062 DRS0062N EAA-121607 LRS02621 M85R3002SE STR50282Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 315 mm |
| Mount Hole Center - Center (O.1) | 93 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 81 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAN | 10.180 4.6 | (TGL) | 01.2005- |
| MAN | 10.210 4.6 | (TGL) | 01.2005- |
| MAN | 10.240 6.9 | (TGL) | 01.2005- |
| MAN | 12.180 4.6 | (TGL) | 01.2005- |
| MAN | 12.210 4.6 | (TGL) | 01.2005- |
| MAN | 12.240 6.9 | (TGL) | 01.2005- |
| MAN | 18.240 6.9 | (TGM) | 01.2005- |
| MAN | 18.280 6.9 | (TGM) | 01.2005- |
| MAN | 18.330 6.9 | (TGM) | 01.2005- |
| MAN | 7.150 4.6 | (TGL) | 01.2005- |
| MAN | 7.180 4.6 | (TGL) | 01.2005- |
| MAN | 8.180 4.6 | (TGL) | 01.2005- |
| MAN | 8.210 4.6 | (TGL) | 01.2005- |
| MAN | 8.240 6.9 | (TGL) | 01.2005- |
Reference Information
DRS0062N 30171N 255024M MAV127190 19084008 RNL231035 CST10719GS CST10719AS 20401917RC 6010719.2 114376 6010719.1 M85R3002SE 0001231035 255024P 51.26201-7223 STRL208 CST10719RS 51262019223 LRS2621 45-4294 6010719 S0181 STR1608 5110058 PRSL208 EAA-121607 LRS02621 20401917OE 255024 332140 860814 S24BH0069A2 20401917BN STM1286 STR50282 ANM12282X DRS0062Video/Publications
