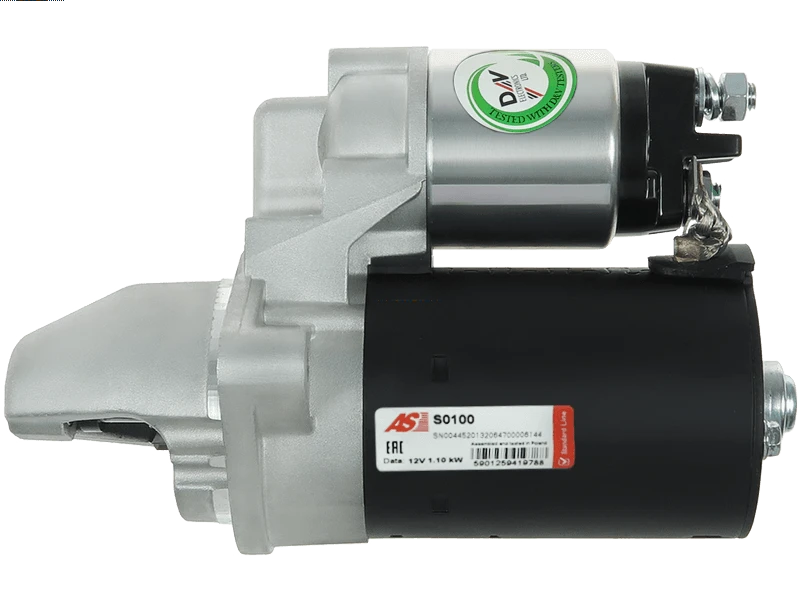

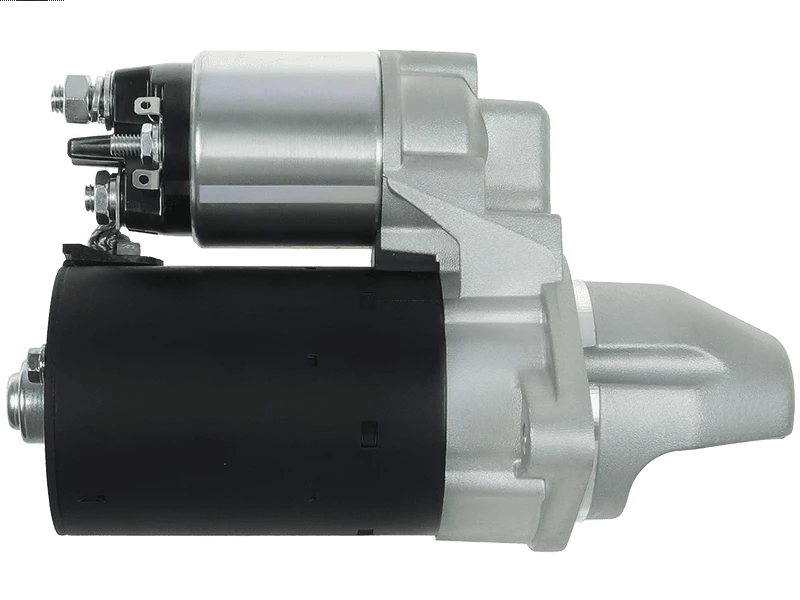

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 219.35 including GST
NZ$ 190.74 excluding GST
or four payments of $54.84
with
Learn More
each
S0100
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107437Associated Numbers
063521074370 063721334010 0986021240 101334 101334B 101334K 101334M 101334V 11131902 113843 11958 130.540.092 20401152 20479821 220211 25-4476 254307V 31100-84EC0 31100-85E00 31100M86J01 3141 33169N 33353237 42107429 438211 438212 438270 458375 458430 55353257 553532570 55561503 55569540 55578093 6.0116.9 6010251 6015128 6202071 6202083 6202099 72735663 88212820 8EA012526-971 8EA738232-001 93178138 93186246 93189232 944280212400 AZD2125 BOS0001107444 CS1334 CST10251 CST10251AS CST10251ES CST10251GS CST10251OS CST10251RS CST15128 CST15128AS CST15128ES CST15128GS CST15128OS CST15128RS D6G33 D6G332 DRT1240 DT2350 EAA-121022 EAA-121040 G201334B-R GS107437-A IS1286 LRS03803 MRS21240 MS35 NEU1334 R1540025 RAS42351 RNL2124 RNLD6G33 S1207V SG0101 SS094 STB1334 STR50387 STR54081 VAL438270 S0100 0001107437Specifications
| Kilowatt | 1.1 kW |
| Length (L.1) | 203.5 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | 8.5 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 24 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Linea 1.3 Multijet | [199A3.000] | 06.2007- |
| FIAT | Panda 1.3 JTD | [188A8.000] | 03.2004- |
| LANCIA | Musa 1.3 Multijet | [199A3.000] | 09.2006- |
| OPEL | Agila 1.3 CDTi | [Z13DT] | 08.2003-12.2007 |
| OPEL | Astra 1.3 CDTi | [Z13DTH] | 02.2007- |
| OPEL | Astra 1.3 CDTi | [Z13DTH] | 08.2005- |
| OPEL | Astra 1.3 CDTi GTC | [Z13DTH] | 01.2006- |
| OPEL | Combo 1.3 CDTi 16V | [Y13DT] | 10.2004- |
| OPEL | Combo 1.3 CDTi 16V | [Z13DT] | 08.2005- |
| OPEL | Combo 1.3 CDTi 16V | [Z13DT] | 10.2004- |
| OPEL | Combo 1.3 CDTi 16V | [Z13DTJ] | 10.2005- |
| OPEL | Corsa 1.2 CDTi | [B13DTC] | 09.2014- |
| OPEL | Corsa 1.3 CDTi | [Z13DT] | 06.2003- |
| OPEL | Corsa 1.3 CDTi | [Z13DTH] | 07.2006- |
| OPEL | Corsa 1.3 CDTi | [Z13DTJ] | 07.2006- |
| OPEL | Corsa 1.3 CDTi 16V | [Z13DT] | 08.2005- |
| OPEL | Meriva 1.3 CDTi | [Z13DT] | 04.2005- |
| OPEL | Tigra 1.3 CDTi | [Z13DT] | 06.2004- |
| SUZUKI | Ignis 1.3 DDiS | [Z13DT] | 09.2003- |
| SUZUKI | Splash 1.3 CDTi | [D13A] | 01.2008- |
| SUZUKI | Splash 1.3 CDTi | [Z13DTJ] | 01.2008- |
| SUZUKI | Swift 1.3 DDiS | [D13A] | 08.2005- |
| SUZUKI | Swift 1.3 DDiS | [Z13DT] | 08.2005- |
| SUZUKI | Wagon R+ 1.25 DDiS | [Z13DT] | 09.2003- |
| VAUXHALL | Astra 1.3 CDTi | [Z13DTH] | 08.2005- |
| VAUXHALL | Astra 1.3 CDTi | [Z13DTH] | 10.2005- |
| VAUXHALL | Combo 1.3 CDTi 16V | [Z13DT] | 09.2004- |
| VAUXHALL | Combo Tour 1.3 CDTi 16V | [Y13DT] | 09.2004-09.2006 |
| VAUXHALL | Combo Tour 1.3 CDTi 16V | [Z13DT] | 09.2004-09.2006 |
| VAUXHALL | Corsa 1.3 CDTi | [Z13DTJ] | 07.2006- |
| VAUXHALL | Corsa 1.3 CDTi 16V | [Z13DT] | 08.2003- |
| VAUXHALL | Corsa 1.3 CDTi 16V | [Z13DTJ] | 09.2005-09.2006 |
| VAUXHALL | Corsavan 1.3 CDTi 16V | [Z13DT] | 04.2004-06.2006 |
| VAUXHALL | Corsavan 1.3 CDTi 16V | [Z13DTH] | 07.2006- |
| VAUXHALL | Corsavan 1.3 CDTi 16V | [Z13DTJ] | 07.2006- |
| VAUXHALL | Meriva 1.3 CDTi | [Y13DT] | 04.2005-06.2010 |
| VAUXHALL | Meriva 1.3 CDTi | [Z13DT] | 04.2005-06.2010 |
| VAUXHALL | Tigra 1.3 CDTi | [Z13DT] | 06.2004-08.2009 |
Reference Information
AC-CBS1334 SBO251 33353237 CST10251GS STRL075NE CS1334 55578093 11439878 130.540.092.000 55353257 42107429 33169N 130.540.092.280 S1207V 458430 AZMT-53-010-1166 5010005 STM1324 55561503 8EA012526-971 113843 STRL075V 6010251.1 101334B 20479821OE SBO251A F032113843 DRT1240 UD16893S STR79291 MS35 6010251.0 101334K STB1334 553532570 CST15128AS SG0101 93189232 063721334010 20479821BN 1986S00675 55217673 438211 LRS2168 STR1479 0001107444 CST10251AS MSN2078 130.540.092.505 943213341010 31100-M86J01 130.540.092.502 331877 220211 3141 CST15128GS STM766 MSRC1334 31100-84EC0 GS107437B-R 25-3342 55353237 458375 STX200047 0001107437 GS107437-A 5015836 6015128.1 130.540.092.215 063521074370 S12BH0033A2 130.540.092.211 6015128.0 130.540.092.210 STRL075 20401152OE 11.131.902 130.540.092.010 0986021240 LRS02168 MRS21240 10439878 328050092 438270 88212820 101334 0001107429 STX200047R STR50387 0986021243 31100-85E00 20401152BN UD20827SVideo/Publications
