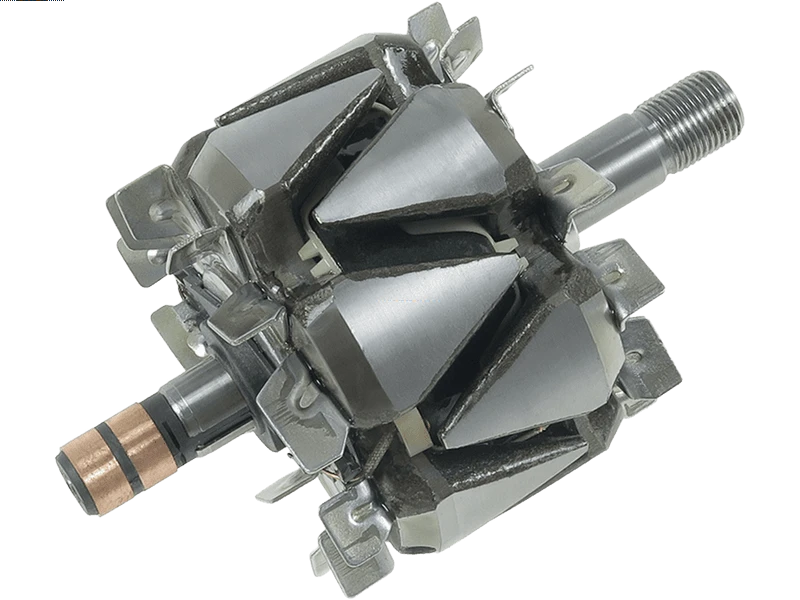

Brand new AS-PL Alternator rotor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 166.06 including GST
NZ$ 144.40 excluding GST
or four payments of $41.52
with
Learn More
each
AR4006
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
1058821 1072455 1073049 5030343 7312901 95VB10300BB 95VB10300BC 054022669010 063321229010 063321231010 063321232010 063321237010 063321241010 063321245010 063321261010 063321310010 063321321010 063321331010 063321333010 063321343010 063321344010 063321345010 063321346010 063321347010 063321349010 063321352010 063321353010 063321391010 063321395010 063321401010 063321405010 063321418010 063321436010 063321462010 063321473010 063321485010 063321497010 063321800010 063321801010 063321803010 063321804010 063341261010 063341321010 063341333010 063341343010 063341344010 063341345010 063341346010 063341347010 063341352010 063341353010 063341354010 24329 54022443 54022453 54022459 54022464 54022487 54022498 54022521 54022543 54022549 54022669 63320289 63320305 63320309 63320315 63320333 63321229 63321231 63321232 63321237 63321241 63321243 63321245 63321246 63321261 63321310 63321315 63321321 63321324 63321331 63321332 63321333 63321343 63321344 63321345 63321346 63321347 63321349 63321352 63321353 63321354 63321355 63321358 63321391 63321395 63321401 63321405 63321412 63321418 63321419 63321421 63321422 63321436 63321453 63321462 63321465 63321473 63321485 63321489 63321497 63321506 63321792 63321800 63321801 63321803 63321804 63321805 63321806 63322469 63340004 63340005 63341240 63341243 63341261 63341321 63341333 63341343 63341344 63341345 63341346 63341347 63341352 63341353 63341354 63341358 2871A167 2871A168 A4033 A4024RSpecifications

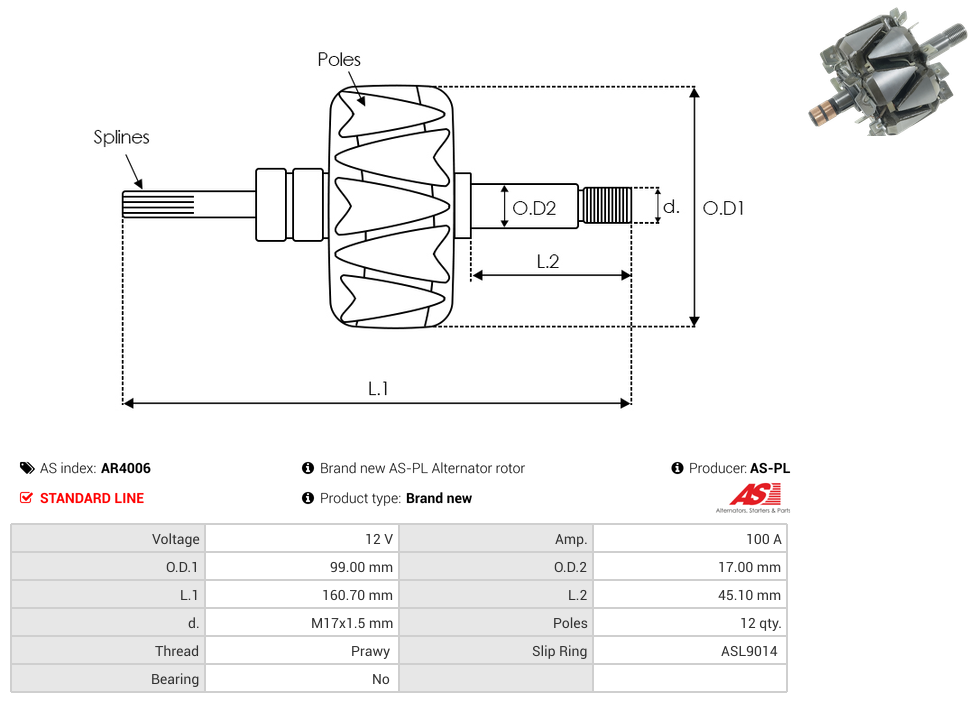

| Amp | 100 A |
| Fitted with Bearing | No |
| Length (L.1) | 160.7 mm |
| Length (L.2) | 45.1 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 99 mm |
| Outside Diameter (O.D.2) | 17 mm |
| Poles | 12 qty |
| Product Line | Standard Line |
| Product Type | Brand new |
| Slip Ring to Suit | ASL9014 |
| Thread Direction | Right |
| Thread size & pitch (d.) | M17x1.5 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
