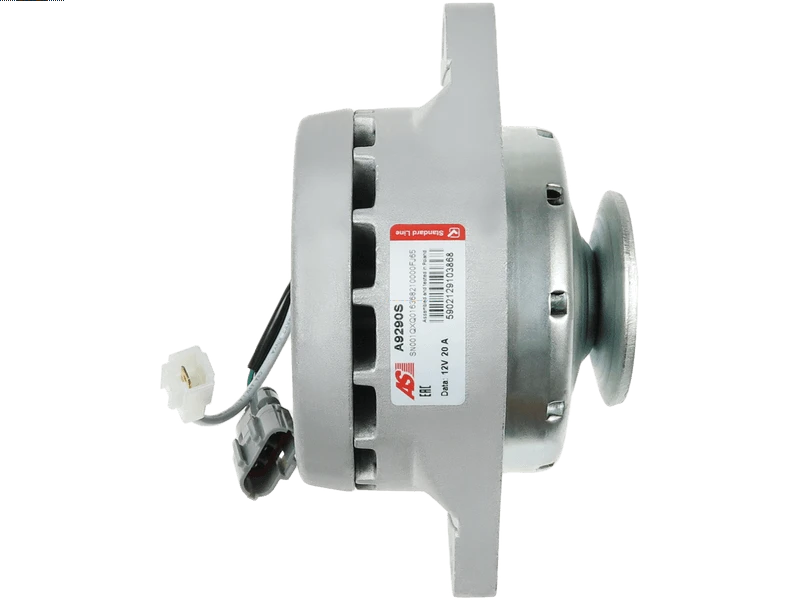

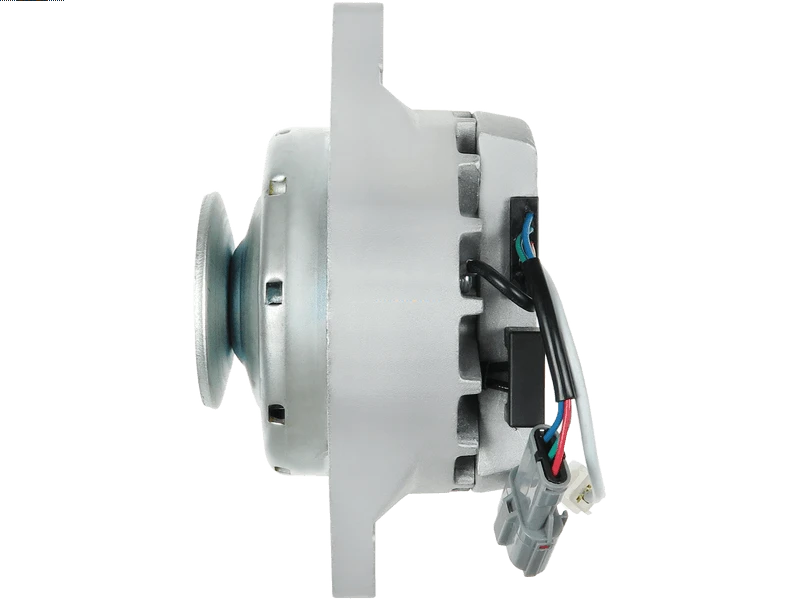

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
UNIVERSAL
Price:
NZ$ 289.78 including GST
NZ$ 251.98 excluding GST
or four payments of $72.45
with
Learn More
each
A9290S
No stock in NZ
No stock in NZ
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
10930N 115691 151-14101 300-10103 695.515.020 8970489700 8970489701 8970489702 90-37-1000 ALT35900 ALZ8564 UD15423ASpecifications
| Amp | 20 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Length (L.1) | 97.5 mm |
| OEM Product | No |
| Plug Code | PL_3408 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 15 mm |
| Pulley Outside Diameter (O.D.1) | 36.5 mm |
| Pulley Outside Diameter (O.D.2) | 65 mm |
| Pulley to Mount Distance (A) | 45.5 mm |
| Pulley Type | SOLID |
| Unit Type | UNIVERSAL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HITACHI | EX40U | [4LE1] | |
| HITACHI | ZAXIS 16 | [3YB1-PA01] | |
| HITACHI | ZAXIS 18 | [3YB1-PA01] | |
| HITACHI | ZAXIS 27U | [AA3LD2-PA03] | 01.2005-12.2009 |
| HITACHI | ZAXIS 35U | [AA3LD2-PA03] | 01.2005-12.2009 |
| HITACHI | ZX16 | [3YB1-PA01] | |
| HITACHI | ZX18 | [3YB1-PA01] | |
| HITACHI | ZX27U | [AA3LD2-PA03] | 01.2005-12.2009 |
| HITACHI | ZX35U | [AA3LD2-PA03] | 01.2005-12.2009 |
| ISUZU | Engine | [3LA1] | |
| ISUZU | Engine | [3LB1] | |
| ISUZU | Engine | [3LD1] | |
| ISUZU | Engine | [3LD2] | |
| ISUZU | Engine | [4LB1] | |
| ISUZU | Engine | [4LC1] | |
| ISUZU | Engine | [4LE2] | |
| ISUZU | Engine | [ELE1] |
Reference Information
300-10103 ALT35900 10930N ALTX040 115691 151-14101 UD15423A 8970489701 8970489700 ALZ8564 8970489702 695.515.020 90-37-1000Video/Publications
A9290SRelated Items
