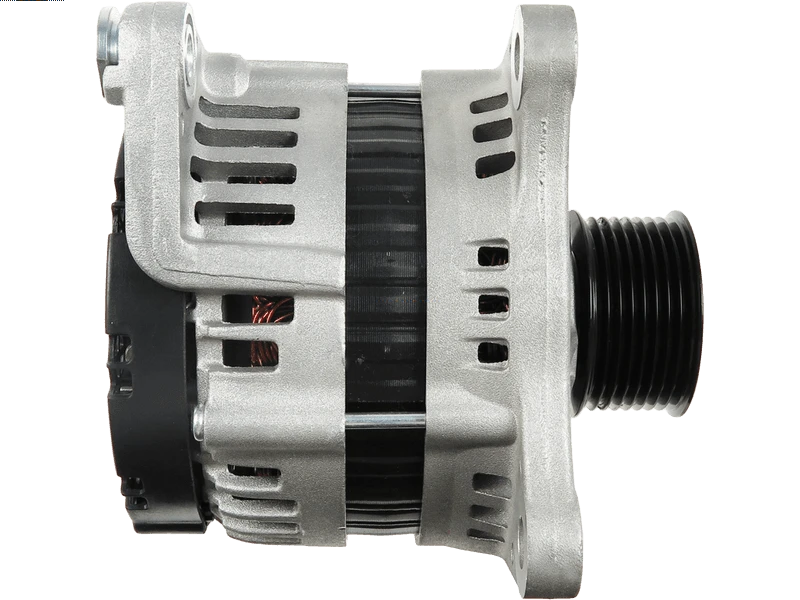

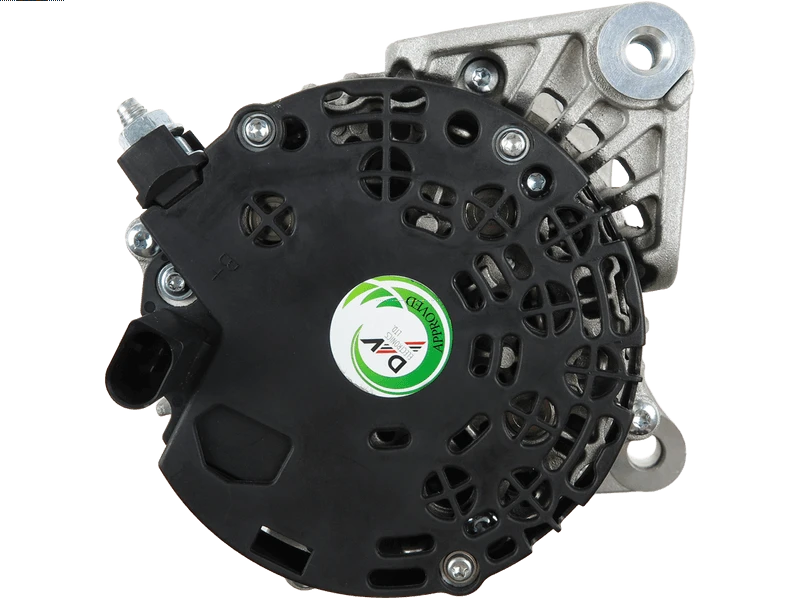

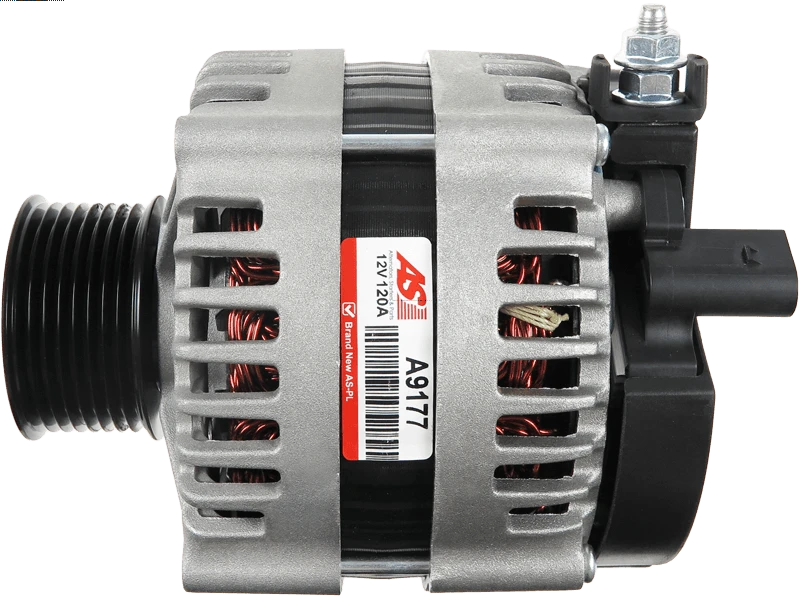

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
CUMMINS
Price:
NZ$ 481.57 including GST
NZ$ 418.76 excluding GST
or four payments of $120.39
with
Learn More
each
A9177
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
5266781Associated Numbers
5266781 UD12532A
53186120
Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 11.5 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 84.5 mm |
| OEM Product | No |
| Plug Code | PL_2307 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 61 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | SOLID |
| Unit Type | CUMMINS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GAZ | Gazela 2.8 |
Reference Information
ALR3781 705.534.120.018 5318120 5266781 UD12532AVideo/Publications
A9177View your shopping basket or Browse other items in Alternators.
