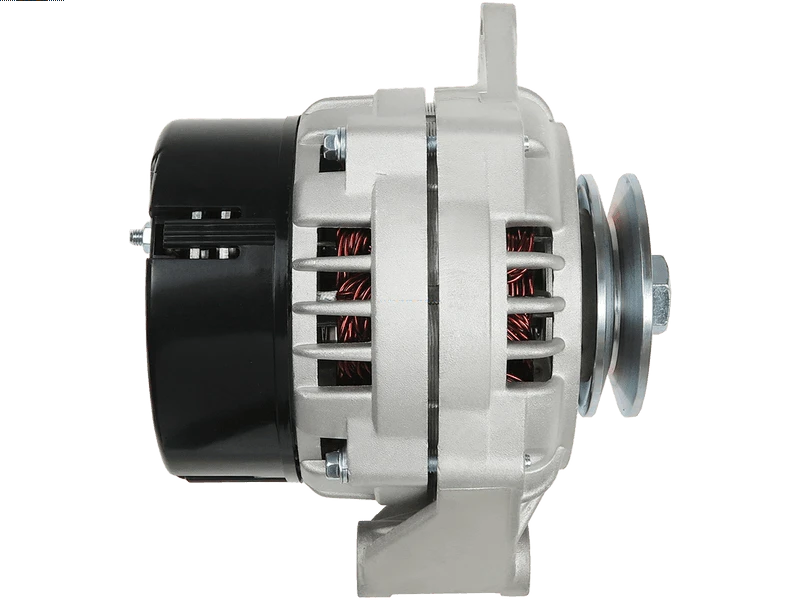

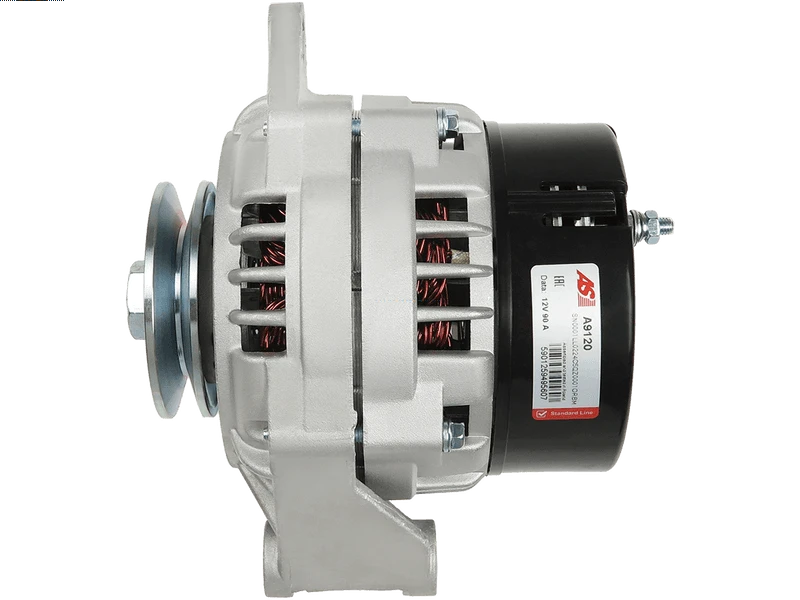

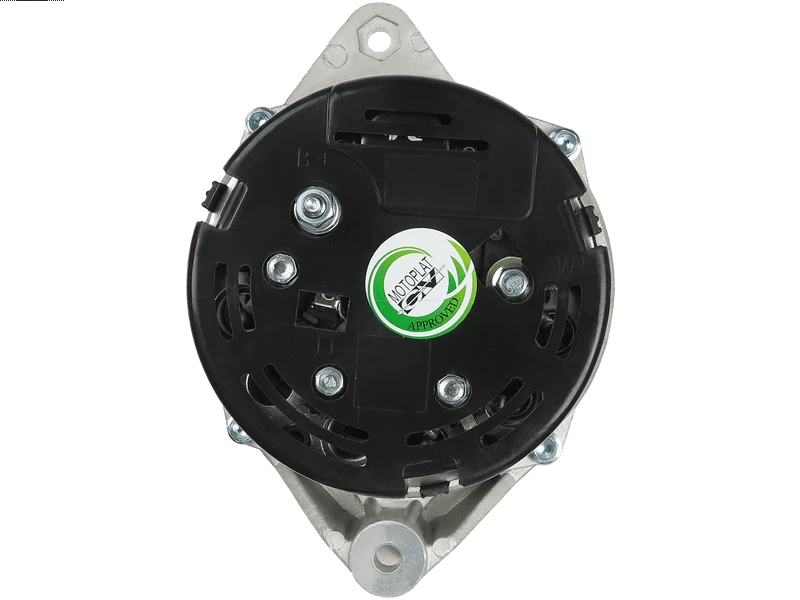

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
LADA
Price:
NZ$ 277.23 including GST
NZ$ 241.07 excluding GST
or four payments of $69.31
with
Learn More
each
A9120
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
94123701000Associated Numbers
94123701000 ALR7017 UD10967ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Length (L.1) | 178 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10.5 mm |
| Pulley Outside Diameter (O.D.1) | 51.5 mm |
| Pulley Outside Diameter (O.D.2) | 80 mm |
| Pulley to Mount Distance (A) | 82 mm |
| Pulley Type | SOLID |
| Unit Type | LADA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VAZ | 2101 | ||
| VAZ | 2102 | ||
| VAZ | 2103 | ||
| VAZ | 2106 |
Reference Information
94123701000 ALR7017 55651039 A9120 UD10967AVideo/Publications
