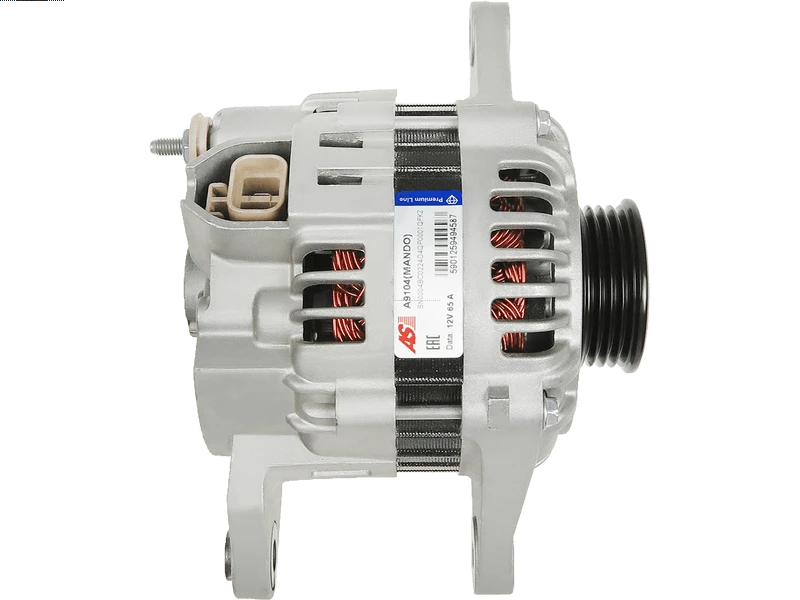

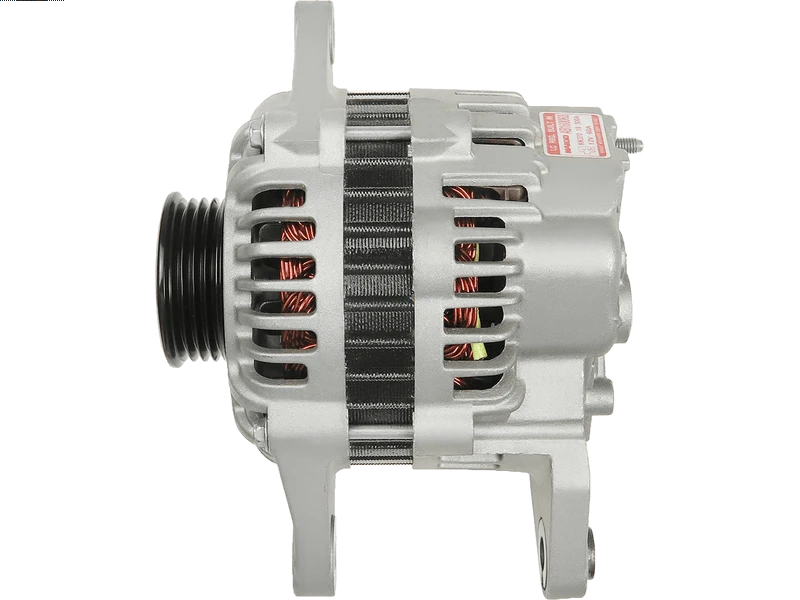

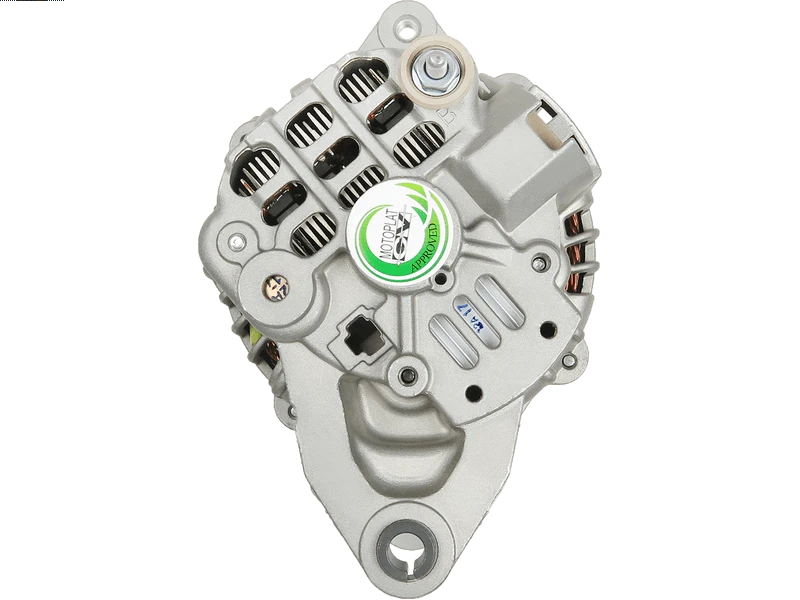

Brand new OEM MANDO Alternator
PREMIUM LINE
Mando
MANDO
Price:
NZ$ 605.66 including GST
NZ$ 526.66 excluding GST
or four payments of $151.42
with
Learn More
each
A9104(MANDO)
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0986037651 0K24018300 11.0694 111308 13574N 13574R 145.513.065 2020135 28-4620 40694RI 56464 8EL730077-001 90-31-7011 9051330 9182 9212800 A-8294 A005T03391 A005T03391A A5T03391 A5T03391A AB160044 AB160063 AB170066 ALM0694 ALT32066 B301-18-300 B3C7-18-300 B3C7-18-300B B3C7-18-300C B3C718300 B3D118300 CAL20135 CAL20135AS CAL20135ES CAL20135GS CAL20135OS CAL20135RS F4BZ-10346-A F4BZ-10346-ARM JA694IR KK370-18300 KK37018300 KK37018300B LR165-709 LR165-709B LRA02166 MB3C7-18-300B OK24018300 UD02594ASpecifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | M10x1.25 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 161 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66.5 mm |
| OEM Product | Yes |
| Plug Code | PL_2004 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 38 mm |
| Pulley Type | SOLID |
| Unit Type | MANDO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KIA | Avella 1.3 | [B3] | 01.1995-12.2001 |
| KIA | Avella 1.5 | 01.1997-12.2001 | |
| KIA | Sephia 1.8i 16V | [OK24N] | 01.1995-12.1997 |
| KIA | Sephia 1.8i 16V | [OK26Y] | 01.1995-12.1997 |
| MAZDA | 121 1.1 | [B1] | 11.1990-10.1993 |
| MAZDA | 121 1.3 16V | [B3] | 11.1990-03.1996 |
Reference Information
A5T03391A KK370-18300 A5T03391 AB170066 F4BZ-10346-ARM 9182 ALT32066 CAL20135 8EL730077-001 40694RI CAL20135GS STX101901 445743 CAL20135OS F4BZ-10346-A KK37018300 B3C7-18-300B B3C7-18-300C 9212800 LR165-709B MB3C7-18-300B 111308 B3C718300 UD02594A AB160044 56464 LR165-709 STX100663 A005T03391A KK37018300B 90-31-7011 CAL20135AS LRA2166 CAL20135ES B301-18-300 9051330 STX101169 A005T03391 2310005P13 ALM0694 STX100663R 13574N 0K24018300 B3D118300 A-8294 ALT5174 0986037651 2020135 11.0694 145.513.065 13574R JA694IR LRA02166 OK24018300 CAL20135RS B3C7-18-300 AB160063 28-4620Video/Publications
A9104(MANDO)Related Items
