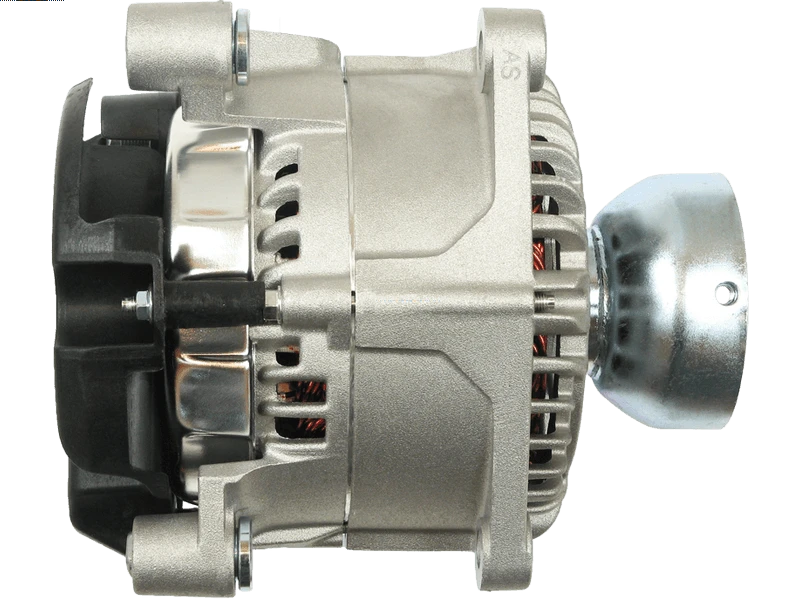

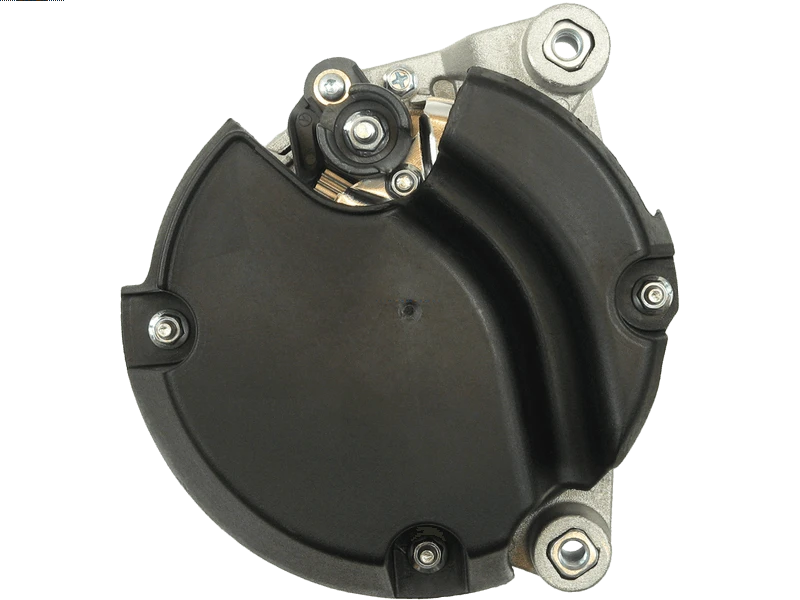

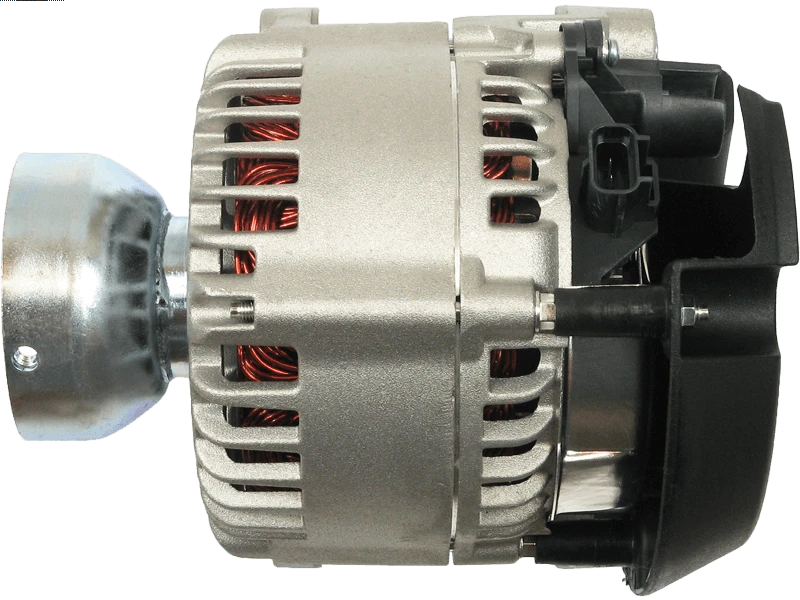

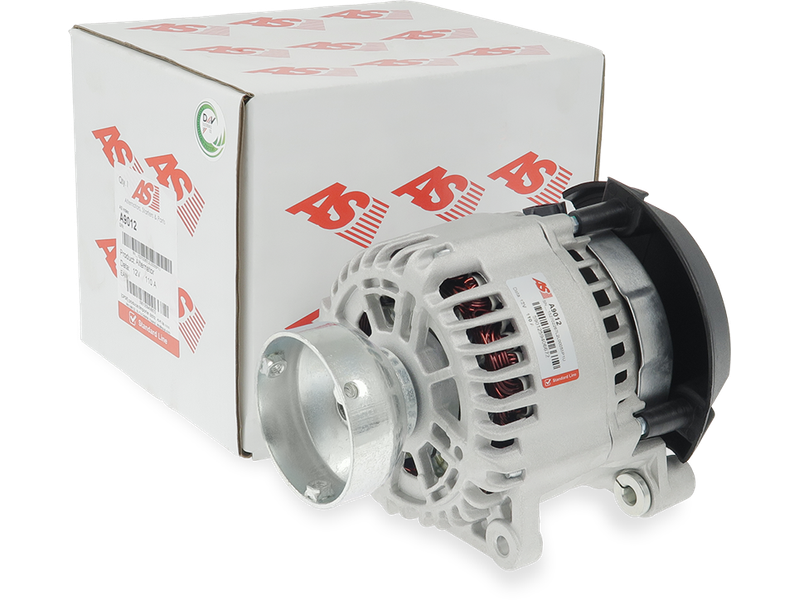

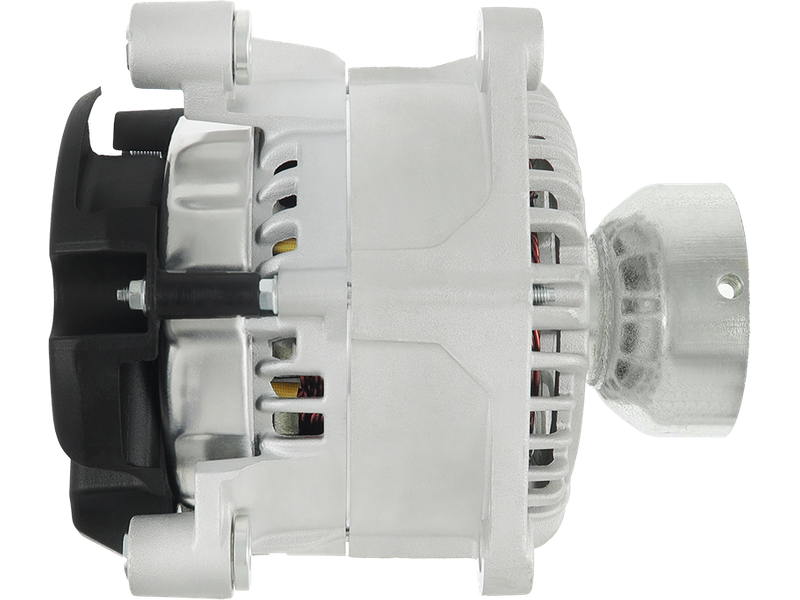

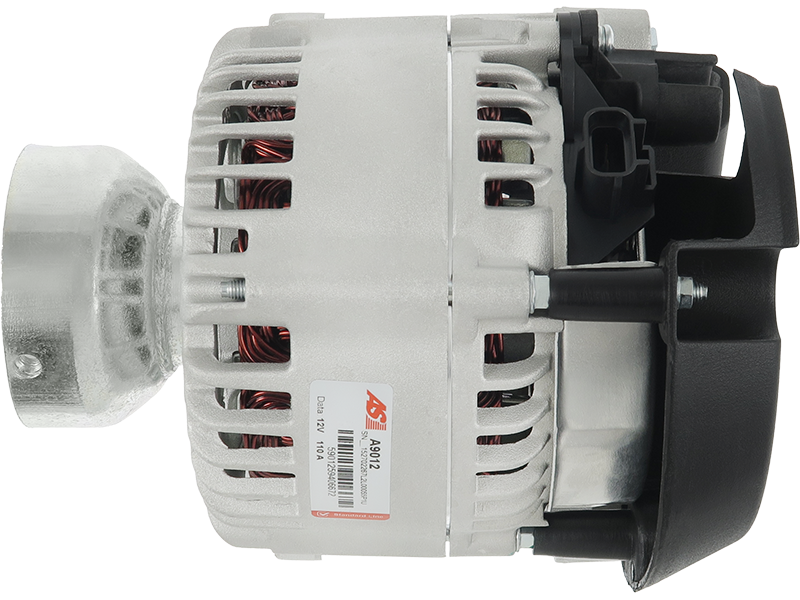

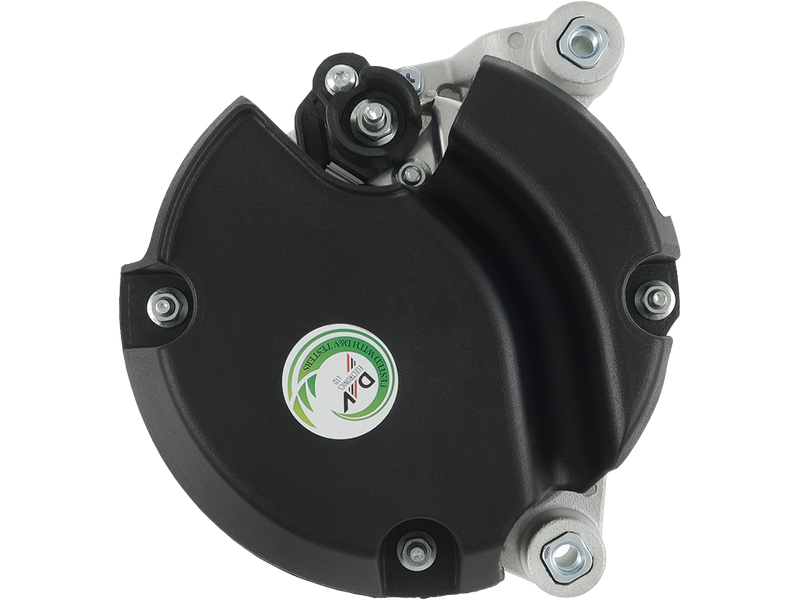

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 356.82 including GST
NZ$ 310.28 excluding GST
or four payments of $89.21
with
Learn More
each
A9012
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
2T1U10300AFAssociated Numbers
0986049181 113710 116124 1229421 1429688 1477971 2014111 210366 27-4830 2T1U-AG 301857RI 301857RIV 32001008 4394204 4531025 4725 57094 595.549.120 89212185 8EL011710-831 8EL738211-381 A9012 AG0491 ALF1857 ALF9857UX ALT21805 CA1857IR CAL14111AS CAL14111GS GA001010-A LRA01171 LRS2853Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 197 mm |
| Mount Inside Length or Pad Mount C-C (C) | 63 mm |
| OEM Product | No |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Outside Diameter (O.D.1) | 78.5 mm |
| Pulley to Mount Distance (A) | 78 mm |
| Pulley Type | SOLID |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Focus 1.8 TDDi | [BHDA] | 08.1999-11.2004 |
| FORD | Focus 1.8 TDDi | [BHDB] | 08.1999-11.2004 |
| FORD | Focus 1.8 TDDi | [C9DA] | 02.1999-11.2004 |
| FORD | Focus 1.8 TDDi | [C9DA] | 10.1998-11.2004 |
| FORD | Focus 1.8 TDDi | [C9DB] | 02.1999-11.2004 |
| FORD | Focus 1.8 TDDi | [C9DB] | 10.1998-11.2004 |
| FORD | Focus 1.8 TDDi | [C9DC] | 02.1999-11.2004 |
| FORD | Focus 1.8 TDDi | [C9DC] | 10.1998-11.2004 |
| FORD | Tourneo 1.8 TDCi Connect | [RWPA] | 08.2006- |
| FORD | Tourneo Connect 1.8 TDCi | [RWPA] | 08.2006- |
| FORD | Tourneo Connect 1.8 TDCi | [RWPC] | 08.2006- |
| FORD | Tourneo Connect 1.8 TDCi | [RWPD] | 08.2006- |
| FORD | Transit 1.8 16V Connect | [EYPA] | 06.2002- |
| FORD | Transit 1.8 16V Connect | [EYPC] | 06.2002- |
| FORD | Transit 1.8 TDCi Connect | [HCPA] | 06.2002- |
| FORD | Transit 1.8 TDCi Connect | [HCPB] | 06.2002- |
| FORD | Transit 1.8 TDCi Connect DPF | 08.2006- | |
| FORD | Transit 1.8 TD Connect | [HCPA] | 06.2002- |
| FORD | Transit 1.8 TD Connect | [HCPB] | 06.2002- |
| FORD | Transit 1.8 TDDi Connect | [BHPA] | 06.2002- |
| FORD | Transit Connect 1.8 16V | [EYPA] | 06.2002- |
| FORD | Transit Connect 1.8 16V | [EYPC] | 06.2002- |
| FORD | Transit Connect 1.8 16V | [EYPD] | 06.2002- |
| FORD | Transit Connect 1.8 16V LPG | [EYPC] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [HCPA] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [HCPB] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [P9PA] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [P9PB] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [P9PC] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [P9PD] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [R3PA] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [RWPE] | 06.2002- |
| FORD | Transit Connect 1.8 TD | [RWPF] | 06.2002- |
| FORD | Transit Connect 1.8 TDCi | [HCPA] | 06.2002- |
| FORD | Transit Connect 1.8 TDCi | [P9PA] | 06.2002- |
| FORD | Transit Connect 1.8 TDCi | [P9PB] | 06.2002- |
| FORD | Transit Connect 1.8 TDCi | [P9PC] | 06.2002- |
| FORD | Transit Connect 1.8 TDCi | [P9PD] | 06.2002- |
| FORD | Transit Connect 1.8 TDCi | [R3PA] | 06.2002- |
| FORD | Transit Connect 1.8 TDCi | [RWPE] | 06.2002- |
| FORD | Transit Connect 1.8 TDCi DPF | [RWPA] | 08.2006- |
| FORD | Transit Connect 1.8 TDCi DPF | [RWPC] | 08.2006- |
| FORD | Transit Connect 1.8 TDCi DPF | [RWPD] | 08.2006- |
| FORD | Transit Connect 1.8 TDDi | [BHPA] | 06.2002- |
| FORD | Transit Connect 1.8 TDDi | [P7PA] | 06.2002- |
| FORD | Transit Connect 1.8 TDDi | [P7PB] | 06.2002- |
| FORD | Transit Connect 1.8 TDDi | [R2PA] | 06.2002- |
Reference Information
F032UA0084K4K 2T1U-AB ALT21805 CAL14111GS LRA1171 2T1U-AF 2T1U-AG 2T1U-AH RM2T1U-10300-AM 27-4830 595.549.120.230 4371001 ALF1857 STX100014 ALTL204 RNL1857CA ALT8980 4725 4371000 F032UA0084 0986049181 116124 RE2T1U-10300-AM ALF9857UX AAL1392 2T1U-CF 5T1U-10300-AA 1376672 2T1U-CA 2T1U-CB 301857RI ANM36458X 1376671 CAL14111AS 1904983 1477971 1477972 2T1U-BC 1429688 1429689 1464784 57094 1464785 4531025 4531026 2T1U-10300-AJ 4374447 2T1U-10300-AK 2T1U-10300-AL 2T1U-10300-AM 1229421 595.549.120.280 4374448 RE2T1U-10300-CG 2T1U-10300-AB ALT8972 2T1U-10300-AC 2T1U-10300-AD 20150111OE 2T1U-10300-AE 2T1U-10300-AF 2T1U-10300-AG PRAL204 2014111.0 2T1U-10300-AH 2014111.1 2T1U-10300-CA ALT341 2T1U-10300-CB 595.549.120.028 1376695 1857697 A9012 DRA4238 8EL011710-831 2T1U-10300-BB 2T1U-10300-BC 4394204 2T1U-10300-BD 2T1U-10300-BE 5T1U-10300-BA AG0491 LRA01171 595.549.120.020 1465173 5128966 2T1U-10300-CC 1450643 2T1U-10300-CD STX100014R 20-150-01010 2T1U-10300-CE 5128967 2T1U-10300-CF 2T1U-10300-CG 23853N 1478187 113710 1762859 8EL738211-381 NPANAL1392 210366 301857RIV 89212185 ALT161110 RNL2T1U10300CC 20150111BN 32001008 553461RI STX101179 ALT161100 437100 STA0258R CA1857IRVideo/Publications
