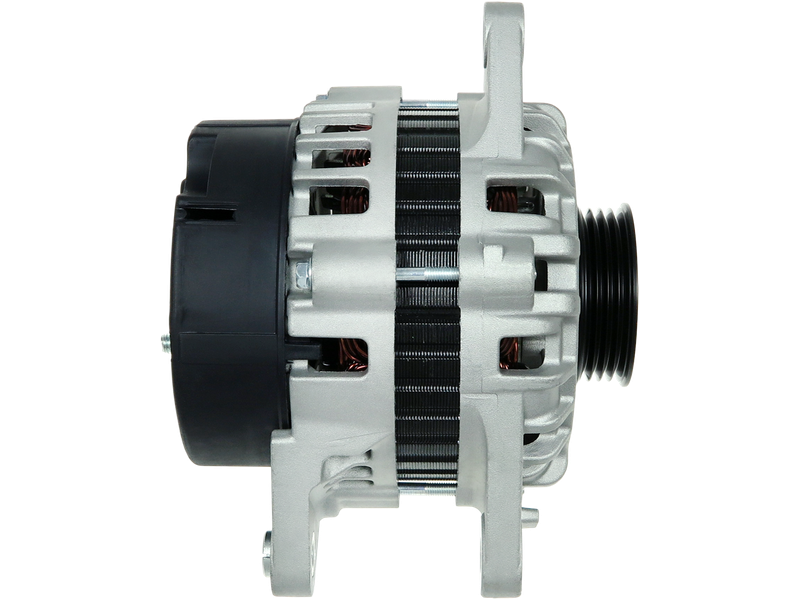

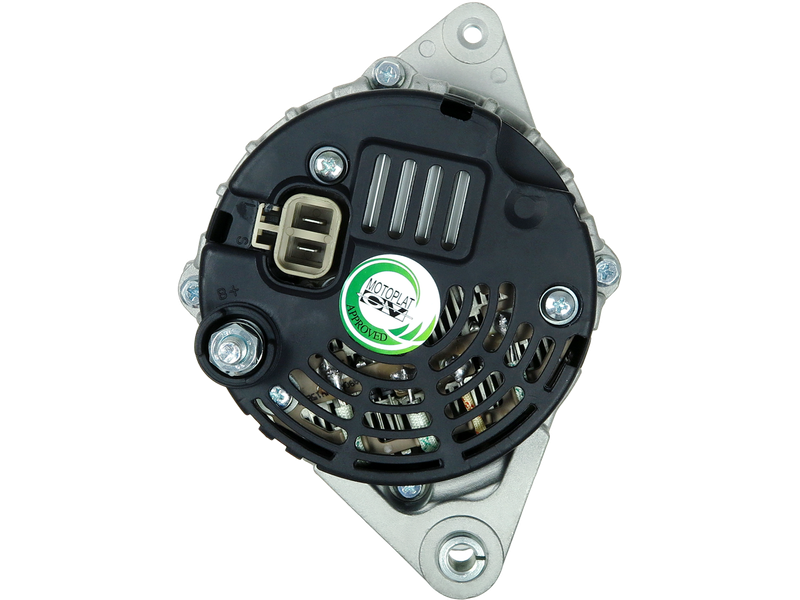

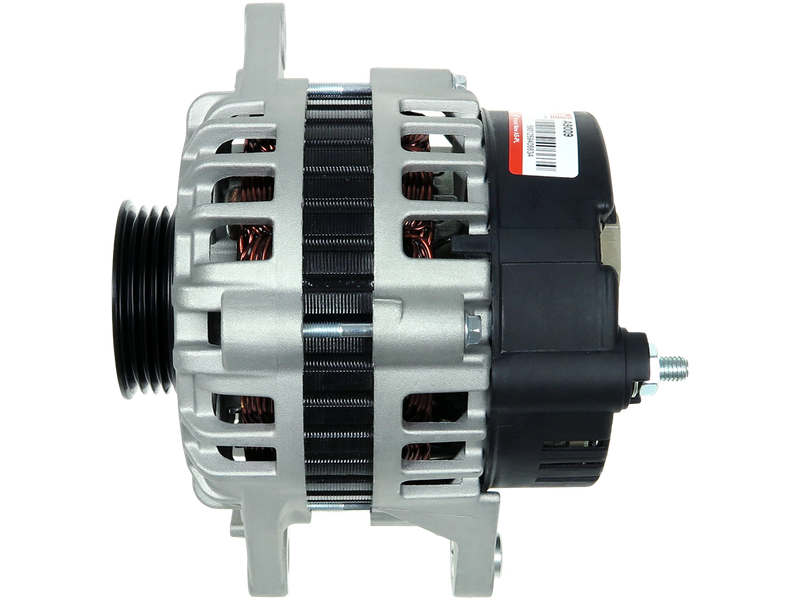

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HYUNDAI / KIA
Price:
NZ$ 378.71 including GST
NZ$ 329.31 excluding GST
or four payments of $94.68
with
Learn More
each
A9009
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
3730022600Associated Numbers
11.1788 11.1788M 111309 13701N 13839N 155.518.080 20110232 20130173 20193201OE 20193201RE 2032102 28-4582 37300-22600 401126RI 401788RI 40879RI 57182 600044 89213777 8EL738207-001 9034 9060510 9213777 A000B0391 AB175019 AB175054 AB175068 AB180128 AEA2230 ALT31028 CAL32102GS CAL32102OS DRA0079 EAA-221378 HAB175200 JA1788IR LRA02136 M37208 SA015 SA848 SB098 TA000A35201 TA000A39101Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 8.5 mm |
| Length (L.1) | 174 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54.5 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 60.5 mm |
| Pulley to Mount Distance (A) | 36 mm |
| Pulley Type | SOLID |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Accent 1.3 | [G4E-A] | 01.2000- |
| HYUNDAI | Accent 1.3 | [G4E-A] | 08.1999-08.2003 |
| HYUNDAI | Accent 1.3 | [G4EH] | 08.2002- |
| HYUNDAI | Accent 1.3 | [G4EH] | 10.1994-01.2000 |
| HYUNDAI | Accent 1.3 i 12V | [G4EH] | 10.1994-01.2000 |
| HYUNDAI | Accent 1.5 | [G4EB] | 01.2000-11.2005 |
| HYUNDAI | Accent 1.5 | [G4EC-G] | 09.2000-11.2005 |
| HYUNDAI | Accent 1.5 | [G4EK] | 01.1998-01.2001 |
| HYUNDAI | Accent 1.5 | [G4EK] | 01.2002-01.2002 |
| HYUNDAI | Accent 1.5 | [G4EK] | 10.1994-07.1999 |
| HYUNDAI | Accent 1.5 | 01.1995-01.1996 | |
| HYUNDAI | Accent 1.5 GL | 01.1995-01.1995 | |
| HYUNDAI | Accent 1.5 GL | 01.1997-01.1997 | |
| HYUNDAI | Accent 1.5 GS | 01.1997-01.1997 | |
| HYUNDAI | Accent 1.5 GT | 01.1996-01.1997 | |
| HYUNDAI | Accent 1.5 i 12V | [G4EK] | 10.1994-01.2000 |
| HYUNDAI | Accent 1.5 L | 01.1995-01.1997 | |
| HYUNDAI | Accent 1.6 | [G4ED-G] | 12.2002- |
| HYUNDAI | Accent 1.6 | 01.2001-01.2001 | |
| HYUNDAI | Accent 1.6 | 01.2002-01.2002 | |
| HYUNDAI | Coupe 1.6 16V | [G4GR] | 05.2000-09.2001 |
| HYUNDAI | Coupe 1.6 i 16V | [4G61] | 05.2000-09.2001 |
| HYUNDAI | Coupe 2.0 | [G4GC-G] | 10.2001- |
| HYUNDAI | Coupe 2.0 16V | [G4GF] | 03.2001-07.2002 |
| HYUNDAI | Coupe 2.0 GLS | 10.2001-07.2002 | |
| HYUNDAI | Elantra 1.6 | [G4ED-G] | 05.2003- |
| HYUNDAI | Elantra 1.6 | [G4ED-G] | 06.2000- |
| HYUNDAI | Elantra 1.8 | [G4BB] | 06.2000- |
| HYUNDAI | Elantra 2.0 | [G4GC] | 06.2000-07.2006 |
| HYUNDAI | Elantra 2.0 | [G4GC] | 10.2003-07.2006 |
| HYUNDAI | Elantra 2.0 | [G4GC-G] | 06.2000- |
| HYUNDAI | Elantra 2.0 | [G4GC-G] | 06.2000-07.2006 |
| HYUNDAI | Elantra 2.0 GLS | [G4CP] | 01.2002-01.2002 |
| HYUNDAI | Elantra 2.0 GT | [G4CP] | 01.2002- |
| HYUNDAI | Excel 1.3 | [G4DG] | 01.1990-01.1995 |
| HYUNDAI | Excel 1.5 | 01.1991-01.1994 | |
| HYUNDAI | Excel 1.5 CX | 01.1993-01.1994 | |
| HYUNDAI | Excel 1.5 CXL | 01.1992-01.1994 | |
| HYUNDAI | Excel 1.5 GL | 01.1990-01.1994 | |
| HYUNDAI | Excel 1.5 GLS | 01.1990-01.1991 | |
| HYUNDAI | Excel 1.5 GS | 01.1992-01.1994 | |
| HYUNDAI | Excel 1.5 L | 01.1991-01.1992 | |
| HYUNDAI | Lantra 1.5 12V | [G4EK] | 04.1997- |
| HYUNDAI | Lantra 1.5 12V | [G4EK] | 12.1996-09.2000 |
| HYUNDAI | Lantra 1.6 | [G4GR] | 02.1996- |
| HYUNDAI | Lantra 1.6 | [G4GR] | 11.1995-09.2000 |
| HYUNDAI | Lantra 1.6 16V | [4G61] | 02.1996- |
| HYUNDAI | Lantra 1.6 16V | [4G61] | 11.1995-09.2000 |
| HYUNDAI | Lantra 1.8 16V | [G4GM] | 02.1996- |
| HYUNDAI | Lantra 1.8 16V | [G4GM] | 11.1995-09.2000 |
| HYUNDAI | Lantra 2.0 16V | [G4GF] | 08.1996-09.2000 |
| HYUNDAI | Lantra 2.0 16V | [G4GF] | 12.1996- |
| HYUNDAI | Matrix 1.6 | [G4ED-G] | 06.2001- |
| HYUNDAI | Matrix 1.8 | [G4GB-G] | 06.2001- |
| HYUNDAI | Scoupe 1.5 | 01.1993-01.1995 | |
| HYUNDAI | Scoupe 1.5 i Turbo | [G4EK-TC] | 04.1991-05.1996 |
| HYUNDAI | Scoupe 1.5 LS | 01.1993-01.1993 | |
| HYUNDAI | Scoupe 1.5 LS | 01.1994-01.1995 | |
| HYUNDAI | Scoupe 1.5 Turbo | 01.1993-01.1995 | |
| PROTON | Persona 315 1.5 GLi / GLSi | [4G15M] | 03.1996- |
| PROTON | Persona 315 1.5 GLSi | [G15B] | 09.1996- |
| PROTON | Persona 316 1.6 | [4G92] | 03.1996- |
| PROTON | Persona 316 1.6 GLXi | [4G92] | 03.1996- |
| PROTON | Persona 415 1.5 | [4G15] | 01.1994- |
| PROTON | Persona 416 1.6 GLXi | [4G92] | 01.1994- |
| PROTON | Persona 416 1.6 i | [4G92] | 12.1995- |
Reference Information
002-C964 ALC964 ALTW277 JA1788IR A2T39991 57182 37300-22023 40879RI 37300-22020 A9009 SB098 13839N 2C964 A12MH1207A2 STX100100R STX100295 9213777 SA848 3730022023 210282 9034 ALT6180 ALTS743 HAB175200 3730022650SJ 111309 37300-22011 ALT31028 LRA2136 20110232 TA000A39101 20193201OE STX100100 3730023600 ALT8791 CAL32102OS AB175054 CGB-13439 37300-22600 LRA02136 ALTF081 A000B0391 JA879IR A12VA1208A2 ALTS771 AB175019 20193201RE 20130173 373002B101 401126RI 9060510 CAL32102GS 600044 445928 AB180128 STX100295R AB175068 37300-2B101 3730022020 AEA2230 M37208 89213777 TA000A35201 37300-23600 SA015 DRA0079 11.1788M 2032102 A2T39991A STX100169 155.518.080 8EL738207-001 STX100200 STX100169R 11.1788 28-4582 3730022011 13701N 445919 3730022010 401788RI ANM32299XVideo/Publications
A9009Related Items
