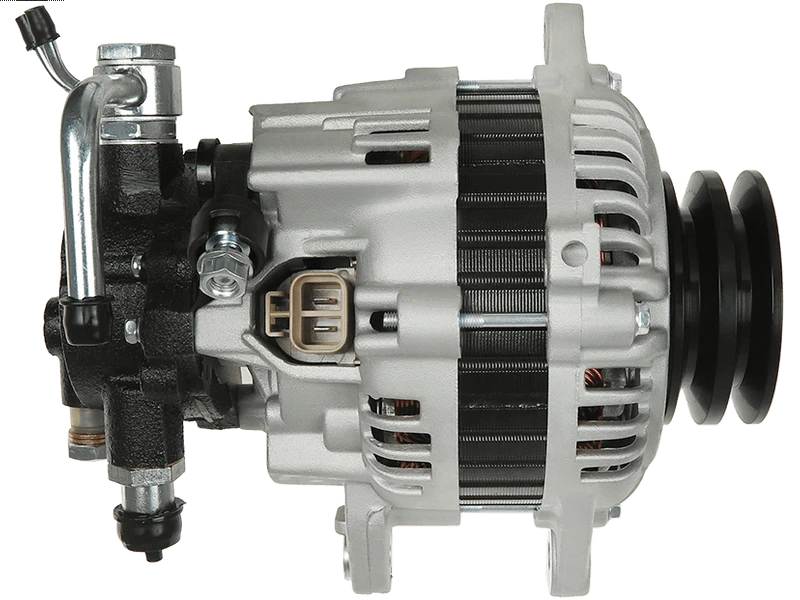

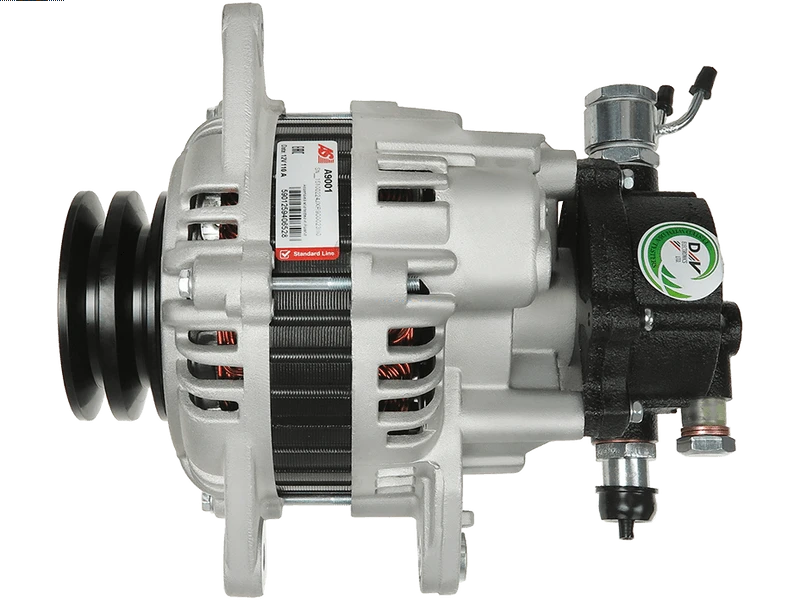

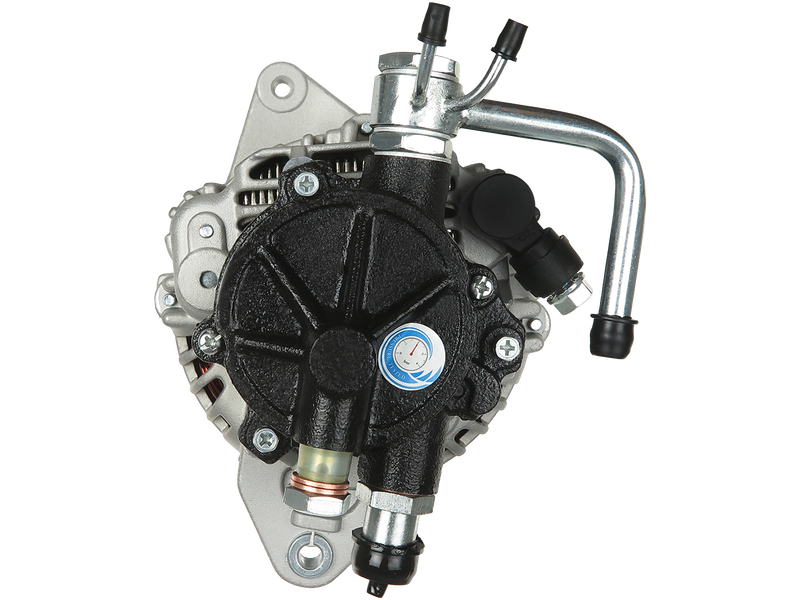

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MANDO
Price:
NZ$ 488.52 including GST
NZ$ 424.80 excluding GST
or four payments of $122.13
with
Learn More
each
A9164
A9001
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
AF111364Associated Numbers
0986080020 11.1518 112333 20193801OE 20193801RE 2032108 22862N 28-3721 37300-42354 37300-42355 37300-42356 37300-42357 37300-42358 37300-42359 37300-42360 401518RI 401518RIM 56991 600012 89213736 8EL737772-001 9060501 9213736 A9001 AF111364 ALT35032 CAL32108GS CAL32108OS DRA4173 DRA4173N EAA-221110 G101518MA-R GA111364-A JA1518IR LRA01862 TA000A57301Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 235 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_2003 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley Outside Diameter (O.D.2) | 84 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | SOLID |
| Unit Type | MANDO |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | H-1 2.5 Diesel Starex | [D4BB] | 10.1997- |
| HYUNDAI | H-1 2.5 TD | [D4BF] | 03.2000-09.2000 |
| HYUNDAI | H-1 2.5 TD | [D4BH] | 03.2000- |
| HYUNDAI | H-1 2.5 TD Starex | [D4BF] | 10.1997- |
| HYUNDAI | H-1 2.5 TD Starex | [D4BH] | 10.1999- |
| HYUNDAI | H-1 2.5 TD Starex 4WD | 03.2001- | |
| HYUNDAI | H-1 2.5 TD Starex 4WD | 11.2001- | |
| HYUNDAI | Satellite 2.5 TD | [4D56TC] | 10.1997- |
| HYUNDAI | Starex 2.5 TD | [D4BF] | 06.1997- |
| HYUNDAI | Starex 2.5 TD 4WD | [D4BF] | 02.1998- |
| KIA | K2500 2.5 TCi | [D4BH] | 09.2001- |
| KIA | Pregio 2.5 Diesel | [D4BH] | 08.1995-09.2004 |
Reference Information
JA1518IR 37300-42358 40383 37300-42359 37300-42356 37300-42357 20193801RE STX100280R AG0589 LRA01862 37300-42354 TA000A57301 37300-42355 2032108.4 37300-42353 ALA1518 3730042359 PRAL010 ANM36393 CAL32108AS A12HY0167A2 3730042350 ALTL010G 37300-32354 F04230D002 3730042353 DRA4173X 0986080020 8EL011711-131 37300-42360 DRA4173N 5532154 155.603.110.008 STX100224 401518RIV A9001 22862N 401518RI STX100224R 155.603.110.000 600012 ALT341080 ALT35032 210371 155.603.110.360 PRAL010G 063532608010 CGB-13437 DRA4173 CAL32108GS 28-3721 56991 ALT8722 943315181010 311826 CAL32108OS ALT341080A ANM36393X 20193801OE AL-0523 GA111364-A CGB-13437OE AF111364 ALTL010 20193801BN 112333 89213736 ALT178 LRA1862 2032108.1 2032108.0 ALTL010NE MARC1518 STX100280Video/Publications
A9001Related Items
