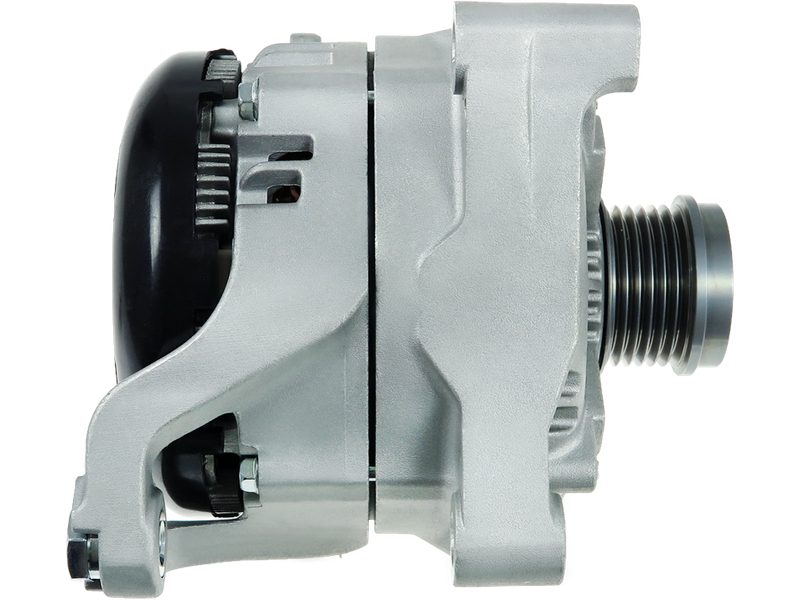

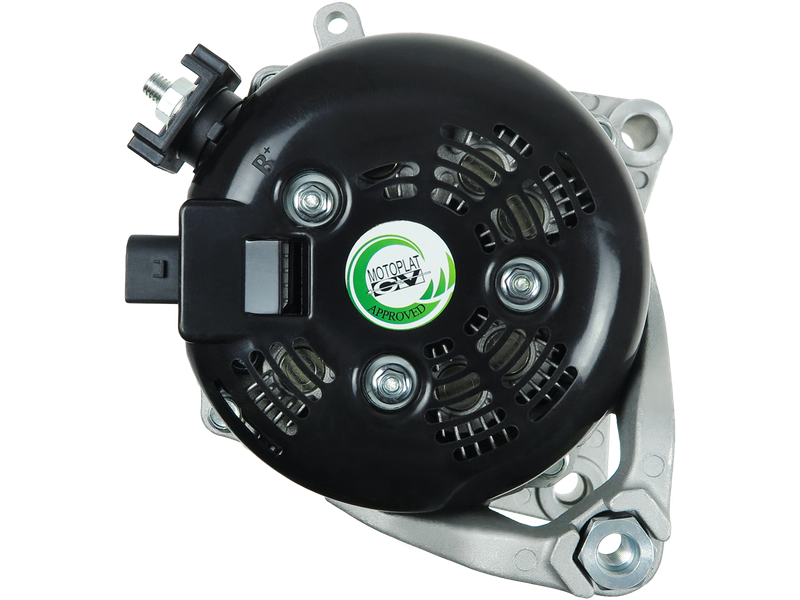

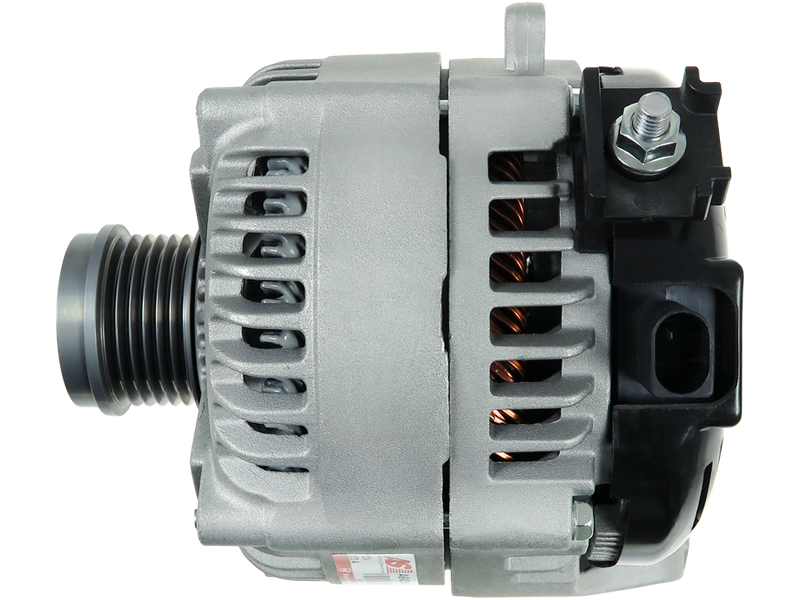

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 773.41 including GST
NZ$ 672.53 excluding GST
or four payments of $193.35
with
Learn More
each
A6424S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
021080-1140 104210-6390 104210-6391 104210-6392 104210-6393 104210-6394 104210-6395 116220 12317605478 12317605480 14203 2040426 210968 215.596.170 28-6820 4445 554456RID 7605478 7605480 90-29-5832 A6424S ALN5478 CAL40426 CAL40426AS CAL40426ES CAL40426GS CAL40426OS CAL40426RS DA2588 DAN1126 DENDAN1126 DRA1478 LRA03709 LRA3709 UD13822ASpecifications
| Amp | 170 A |
| Bottom Mounting Foot Width (B) | 28 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 178.5 mm |
| Mount Inside Length or Pad Mount C-C (C) | 75 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 48 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 125 2.0 i | (F20)[N20B20A] | 03.2013- |
| BMW | 125 2.0 i | (F20)[N20B20A] | 08.2011- |
| BMW | 125 2.0 i | (F21)[N20B20A] | 03.2013- |
| BMW | 125 2.0 i | (F21)[N20B20A] | 12.2011- |
| BMW | 220 2.0 i | (F22)[N20B20B] | 10.2013- |
| BMW | 220 2.0 i | (F87)[N20B20B] | 10.2013- |
| BMW | 320 2.0 i | (F30)[N20B20A] | 04.2011- |
| BMW | 320 2.0 i | (F30)[N20B20D] | 04.2011- |
| BMW | 320 2.0 i | (F31)[N20B20B] | 02.2012-06.2015 |
| BMW | 320 2.0 i | (F80)[N20B20A] | 04.2011- |
| BMW | 320 2.0 i | (F80)[N20B20D] | 04.2011- |
| BMW | 320 2.0 i Gran Turismo | (F34)[N20B20A] | 07.2012-06.2016 |
| BMW | 320 2.0 i Gran Turismo | (F34)[N20B20B] | 07.2012-06.2016 |
| BMW | 320 2.0 i Gran Turismo xDrive | (F34)[N20B20A] | 11.2012-06.2016 |
| BMW | 320 2.0 i Gran Turismo xDrive | (F34)[N20B20B] | 11.2012-06.2016 |
| BMW | 320 2.0 i xDrive | (F30)[N20B20A] | 05.2011-06.2015 |
| BMW | 320 2.0 i xDrive | (F30)[N20B20B] | 05.2011-06.2015 |
| BMW | 320 2.0 i xDrive | (F31)[N20B20B] | 01.2012-06.2015 |
| BMW | 320 2.0 i xDrive | (F80)[N20B20A] | 05.2011-06.2015 |
| BMW | 320 2.0 i xDrive | (F80)[N20B20B] | 05.2011-06.2015 |
| BMW | 328 2.0 i | (F30)[N20B20A] | 04.2011-07.2016 |
| BMW | 328 2.0 i | (F30)[N26B20A] | 04.2011-07.2016 |
| BMW | 328 2.0 i | [(F31)N20B20A] | 01.2012-06.2015 |
| BMW | 328 2.0 i | (F80)[N20B20A] | 04.2011-07.2016 |
| BMW | 328 2.0 i | (F80)[N26B20A] | 04.2011-07.2016 |
| BMW | 328 2.0 i Gran Turismo | (F34)[N20B20A] | 08.2012-02.2015 |
| BMW | 328 2.0 i Gran Turismo | (F34)[N26B20A] | 08.2012-02.2015 |
| BMW | 328 2.0 i Gran Turismo xDrive | (F34)[N20B20A] | 03.2013-07.2016 |
| BMW | 328 2.0 i Gran Turismo xDrive | (F34)[N26B20A] | 03.2013-07.2016 |
| BMW | 328 2.0 i xDrive | (F30)[N20B20A] | 05.2011-07.2016 |
| BMW | 328 2.0 i xDrive | (F31)[N20B20A] | 06.2012-06.2016 |
| BMW | 328 2.0 i xDrive | (F80)[N20B20A] | 05.2011-07.2016 |
| BMW | 420 2.0 i | (F32)[N20B20A] | 11.2013- |
| BMW | 420 2.0 i | (F32)[N20B20B] | 11.2013- |
| BMW | 420 2.0 i | (F82)[N20B20A] | 11.2013- |
| BMW | 420 2.0 i | (F82)[N20B20B] | 11.2013- |
| BMW | 420 2.0 i Gran Coupe | (F36)[N20B20B] | 03.2014- |
| BMW | 420 2.0 i xDrive | (F32)[N20B20A] | 11.2013- |
| BMW | 420 2.0 i xDrive | (F32)[N20B20B] | 11.2013- |
| BMW | 420 2.0 i xDrive | (F82)[N20B20A] | 11.2013- |
| BMW | 420 2.0 i xDrive | (F82)[N20B20B] | 11.2013- |
| BMW | 428 2.0 i | (F32)[N20B20A] | 07.2013- |
| BMW | 428 2.0 i | (F32)[N26B20A] | 07.2013- |
| BMW | 428 2.0 i | (F33)[N20B20A] | 10.2013- |
| BMW | 428 2.0 i | (F33)[N26B20A] | 10.2013- |
| BMW | 428 2.0 i | (F82)[N20B20A] | 07.2013- |
| BMW | 428 2.0 i | (F82)[N26B20A] | 07.2013- |
| BMW | 428 2.0 i | (F83)[N20B20A] | 10.2013- |
| BMW | 428 2.0 i | (F83)[N26B20A] | 10.2013- |
| BMW | 428 2.0 i Gran Coupe | (F36)[N20B20A] | 03.2014- |
| BMW | 428 2.0 i Gran Coupe | (F36)[N26B20A] | 03.2014- |
| BMW | 428 2.0 i Gran Coupe xDrive | (F36)[N20B20A] | 03.2014- |
| BMW | 428 2.0 i Gran Coupe xDrive | (F36)[N26B20A] | 03.2014- |
| BMW | 428 2.0 i xDrive | (F32)[N20B20A] | 07.2013- |
| BMW | 428 2.0 i xDrive | (F32)[N26B20A] | 07.2013- |
| BMW | 428 2.0 i xDrive | (F33)[N20B20A] | 01.2014- |
| BMW | 428 2.0 i xDrive | (F82)[N20B20A] | 07.2013- |
| BMW | 428 2.0 i xDrive | (F82)[N26B20A] | 07.2013- |
| BMW | 428 2.0 i xDrive | (F83)[N20B20A] | 01.2014- |
| BMW | 520 2.0 i | (F10)[N20B20A] | 10.2010-10.2016 |
| BMW | 520 2.0 i | (F10)[N20B20B] | 10.2010-10.2016 |
| BMW | 520 2.0 i | (F11)[N20B20A] | 10.2010- |
| BMW | 520 2.0 i | (F11)[N20B20B] | 10.2010- |
| BMW | 528 2.0 i | (F10)[N20B20A] | 10.2010-10.2016 |
| BMW | 528 2.0 i | (F11)[N20B20A] | 10.2010- |
| BMW | 528 2.0 i xDrive | (F10)[N20B20A] | 10.2010-10.2016 |
| BMW | 528 2.0 i xDrive | (F11)[N20B20A] | 03.2011- |
| BMW | X1 2.0 sDrive 20 i | (E84)[N20B20A] | 09.2011-06.2015 |
| BMW | X1 2.0 xDrive 20 i | (E84)[N20B20A] | 09.2011-06.2015 |
| BMW | X1 2.0 xDrive 28 i | (E84)[N20B20A] | 04.2011-06.2015 |
| BMW | X3 2.0 sDrive 20 i | (F25)[N20B20A] | 02.2014- |
| BMW | X3 2.0 xDrive 20 i | (F25)[N20B20A] | 09.2011- |
| BMW | X3 2.0 xDrive 28 i | (F25)[N20B20A] | 08.2011- |
| BMW | Z4 2.0 sDrive 18 i | (E89)[N20B20A] | 04.2013- |
| BMW | Z4 2.0 sDrive 20 i | (E89)[N20B20A] | 09.2011- |
| BMW | Z4 2.0 sDrive 28 i | (E89)[N20B20A] | 09.2011- |
Reference Information
90-29-5832 554456RID 215.596.170 CAL40426 ALN5478 UD13822A DENDAN1126 A6424S ALT6726 7605480 210968 CAL40426AS 4445 12317605480 LRA3709 55401219 CAL40426RS 12317605478 CAL40426OS DAN1126 7605478 CAL40426GS A12DE1238A2 2040426 CAL40426ES 104210-6395 021080-1140 104210-6393 116220 104210-6394 DA2588 ALTE780 DRA1478 A12DE1238 14203 104210-6391 104210-6392 28-6820 LRA03709 104210-6390Video/Publications
A6424SView your shopping basket or Browse other items in Alternators.
