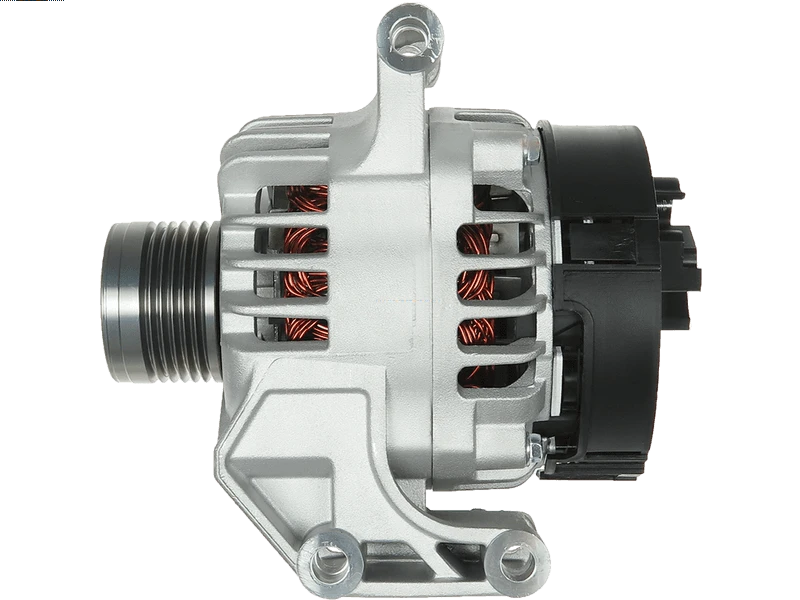

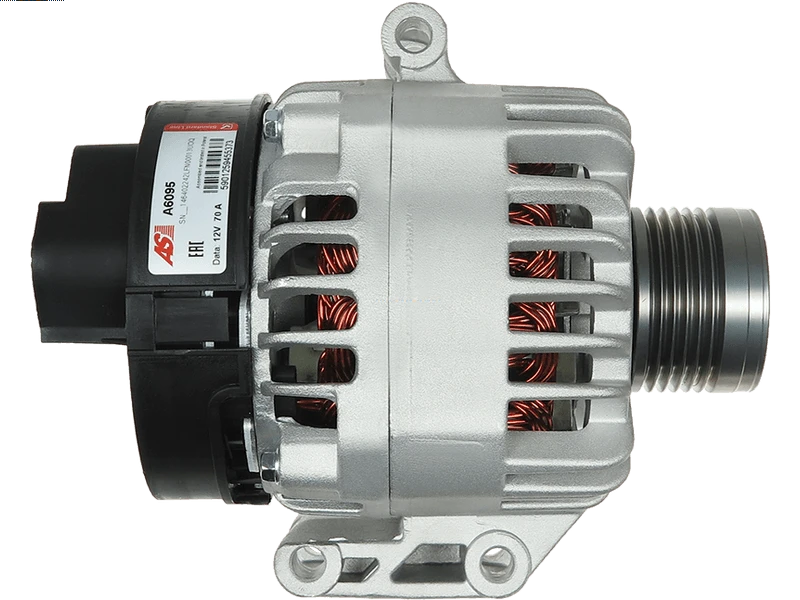

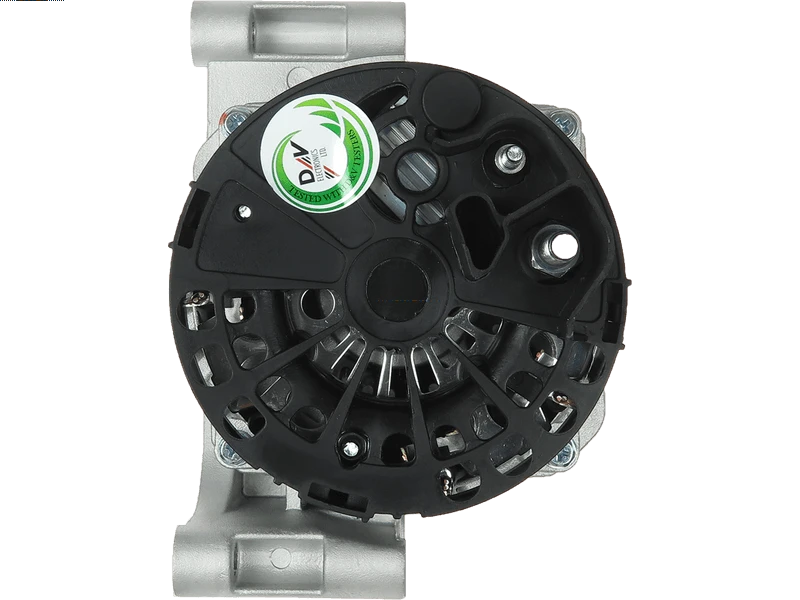

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 463.52 including GST
NZ$ 403.06 excluding GST
or four payments of $115.88
with
Learn More
each
A6095
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
101210-1180Associated Numbers
0986048781 101210-1110 101210-1180 101210-1181 102211-8610 102211-8611 102211-8612 11.1855 11.1855M 113720 116064 13117278 13197577 13256930 13283343 228.151.752 2542841 2542850 2542883 2543480 2543480A 2606333 28-4820 28-4935 301855RI 301855RIV 301862RIV 31400-85E00 32437504 437473 437503 439504 439523 440296 495.505.075 51718499 51787208 51805799 51854909 6204180 6204664 63377493 8EL738211-081 93169026 944390901950 AEK2325 AEK2817 ALT14192 ALT30359 CA1855IR DAN1032 DRA4243 DRA4253 EAA-221954 GA439539-A J5118024 LEA0475 LRA02325 LRA02817 TG8S012 TG8S013 TG8S014 TG8S016 TG8S022Specifications
| Amp | 70 A |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 200 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Pad mount thickness (E.3) | 64 mm |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Grande Punto 1.3 Diesel Multijet | [199A2.000] | 10.2005- |
| FIAT | Grande Punto 1.3 Diesel Multijet | [199A3.000] | 10.2005- |
| FIAT | Punto 1.3 JTD | [188A9.000] | 06.2003- |
| LANCIA | Ypsilon 1.3 Diesel Multijet | [199A2.000] | 09.2006- |
| LANCIA | Ypsilon 1.3 Diesel Multijet | [199A3.000] | 09.2006- |
| OPEL | Agila 1.3 CDTi | [Z13DT] | 08.2003-12.2007 |
| OPEL | Agila 1.3 CDTi | [Z13DTH] | 08.2005- |
| OPEL | Agila 1.3 CDTi | [Z13DTJ] | 09.2007- |
| OPEL | Astra H 1.3 CDTi | [Z13DTH] | 02.2007-10.2010 |
| OPEL | Astra H 1.3 CDTi | [Z13DTH] | 08.2005-10.2010 |
| OPEL | Astra H 1.3 CDTi GTC | [Z13DTH] | 04.2005-10.2010 |
| OPEL | Combo 1.3 CDTi 16V | [Z13DT] | 08.2005- |
| OPEL | Combo 1.3 CDTi 16V | [Z13DTJ] | 10.2005-12.2012 |
| OPEL | Combo 1.3 CDTi 16V Tour | [Y13DT] | 06.2004-01.2011 |
| OPEL | Combo 1.3 CDTi 16V Tour | [Z13DT] | 06.2004-01.2011 |
| OPEL | Combo 1.3 CDTi 16V Tour | [Z13DTJ] | 10.2005-12.2011 |
| OPEL | Corsa C 1.3 CDTi | [F08] | 06.2003- |
| OPEL | Corsa C 1.3 CDTi | [F68] | 06.2003- |
| OPEL | Corsa C 1.3 CDTi | [Y13DT] | 06.2003-12.2009 |
| OPEL | Corsa C 1.3 CDTi | [Z13DT] | 06.2003-12.2009 |
| OPEL | Corsa C 1.3 CDTi 16V | [F08] | 08.2005- |
| OPEL | Corsa C 1.3 CDTi 16V | [W5L] | 08.2005- |
| OPEL | Corsa C 1.3 CDTi 16V | [Z13DT] | 07.2005-06.2006 |
| OPEL | Meriva A 1.3 CDTi | [Y13DT] | 04.2005-05.2010 |
| OPEL | Meriva A 1.3 CDTi | [Z13DT] | 04.2005-05.2010 |
| OPEL | Meriva A 1.3 CDTi | [Z13DTJ] | 09.2003-05.2010 |
| OPEL | Tigra 1.3 CDTi | 06.2004- | |
| OPEL | Tigra 1.3 CDTi TwinTop | [Z13DT] | 06.2004-12.2010 |
| SUZUKI | Ignis 1.3 DDiS | [Z13DT] | 09.2003- |
| SUZUKI | Wagon R+ 1.25 DDiS | [Z13DT] | 09.2003- |
| VAUXHALL | Astra MK V 1.3 CDTi | [Z13DTH] | 08.2005- |
| VAUXHALL | Combo 1.3 CDTi 16V | [Z13DT] | 09.2004- |
| VAUXHALL | Corsa MK III 1.3 CDTi 16V | [Z13DT] | 08.2003- |
| VAUXHALL | Corsa MK III 1.3 CDTi 16V | [Z13DTJ] | 09.2005-09.2006 |
| VAUXHALL | Meriva A 1.3 CDTi | [Z13DTJ] | 09.2003- |
| VAUXHALL | Tigra 1.3 CDTi | [Z13DT] | 06.2004- |
Reference Information
51805803 MQA1855 CAL15260GS 13256930 DA1199 ALT00901 95520872 102211-8612 6204212 ALT00707 210749 31400-85E00 55185075 PRAL693 93185260 LRA2817 6204290 210465 063377493010 51787208 ALT6486 R1530097 210547 63377493 MAN7021 063377021010 51854905 9562206 113720 51854909 DENDAN1032 51805799 6204664 1204432 13283343 20179062OE ALT172600 51784847 6204260 71794202 6204181 6204180 51784844 STX100421 4731 ALT14192 A6095 STX100167R 63377021 LRA02817 ANM36473X 23922R 135.535.075.000 51854914 MRA90195 437503 51718499 51784841 DRA0089 GAAN1032D-R ALTL693U DRA0089X 3140085E00000 210406 46823546 944390901950 28-4935 13197577 DAN1032 STX100421R 063731855010 13117278 STX100071 CA1855IR STX100071R ALTL693 311081 063358062010 ALV1855 93169027 93169026 703009706 0986048781 116064 51984054 STX100167 AEK2817 439523 3140085 MAN7493 52092135 RAA11190 2015260.1 13243462Video/Publications
A6095View your shopping basket or Browse other items in Alternators.
