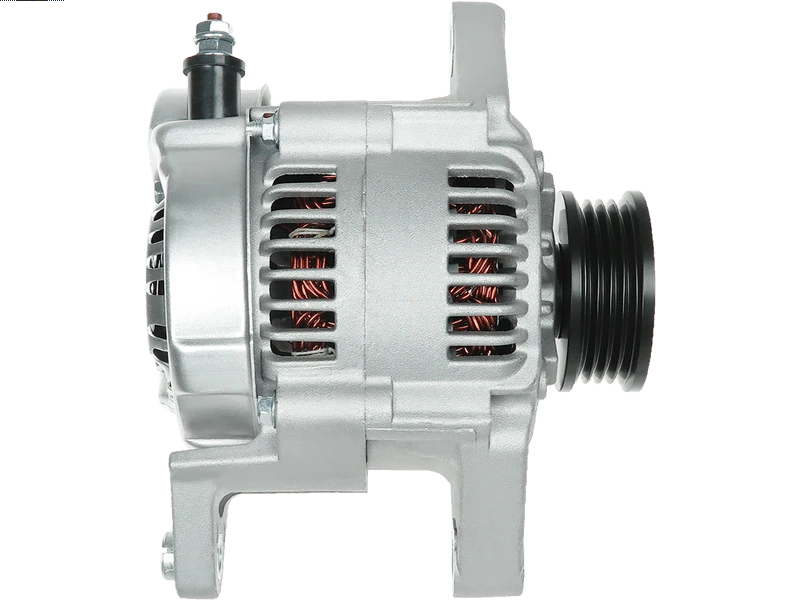

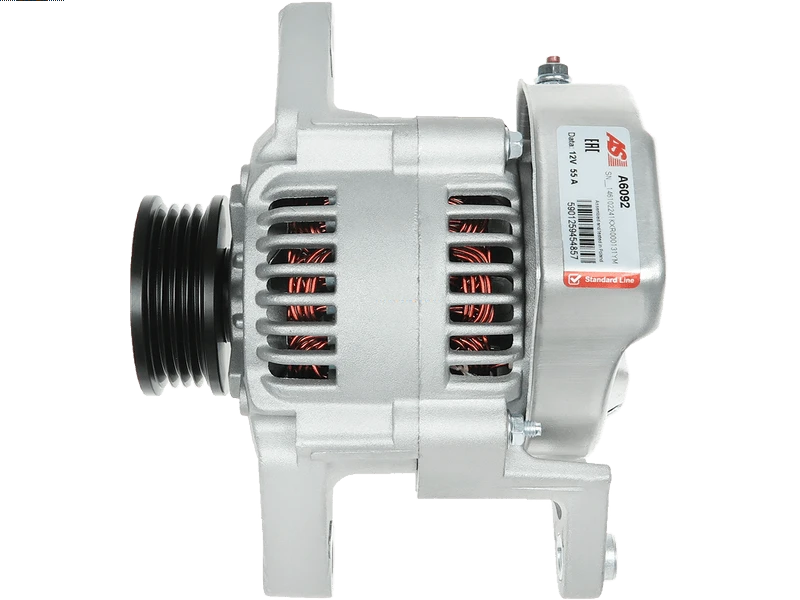

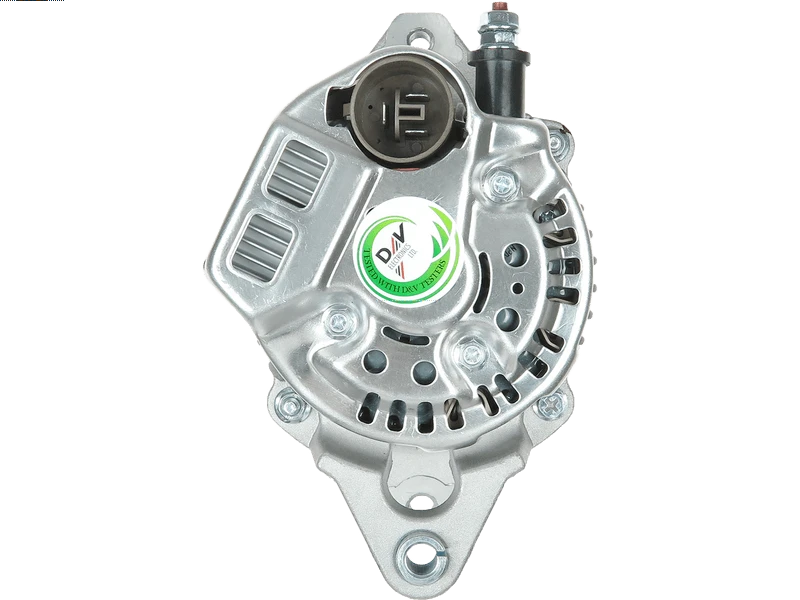

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 327.50 including GST
NZ$ 284.78 excluding GST
or four payments of $81.88
with
Learn More
each
A6092
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
3140060B11Associated Numbers
100211-1570 100211-1571 100211-1573 100211-2120 100211-6600 100211-6710 100211-6720 100211-6721 101211-2120 11.0798 11.0798M 110967 113082 13214N 13316R 185.502.050 20110125 20132601BN 20147001BN 2040106 2047100 28-1855 31400-60B11 31400-70F60 31400-80E00 31400-86510 31400-M70F60 40798RI 56255 56455 90-29-5656 9037561 9212613 9314 A6092 AEA2275 CAL40106AS CAL47100AS EAA-211205 JA798IR LRA02663 SA040Specifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 145.5 mm |
| Mount Inside Length or Pad Mount C-C (C) | 67 mm |
| OEM Product | No |
| Plug Code | PL_3501 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Sprint 1.0 | 01.1989- | |
| CHEVROLET | Sprint 1.0 | 01.1990- | |
| CHEVROLET | Sprint 1.0 | 01.1991- | |
| GEO | Metro 1.0 | 01.1989-01.1994 | |
| GEO | Metro 1.0 | 01.1990- | |
| GEO | Metro 1.0 | 01.1991- | |
| GEO | Metro 1.0 | 01.1992- | |
| GEO | Metro 1.0 | 01.1995- | |
| GEO | Metro 1.0 LSI | 01.1989-01.1995 | |
| GEO | Metro 1.0 XFI | 01.1990-01.1994 | |
| PONTIAC | Firefly 1.0 | 01.1989- | |
| PONTIAC | Firefly 1.0 | 01.1990- | |
| PONTIAC | Firefly 1.0 | 01.1991- | |
| PONTIAC | Firefly 1.0 | 01.1994- | |
| PONTIAC | Firefly 1.0 | 01.1995- | |
| PONTIAC | Firefly 1.0 LE | 01.1991- | |
| PONTIAC | Firefly 1.0 Turbo | 01.1989- | |
| PONTIAC | Firefly 1.0 Turbo | 01.1990- | |
| PONTIAC | Firefly 1.0 Turbo | 01.1991- | |
| SUBARU | Justy 1.3 | 09.2003- | |
| SUBARU | Justy 1.3 4x4 | [G13BB] | 01.1995-12.2003 |
| SUBARU | Justy 1.5 | [M15A] | 09.2003- |
| SUZUKI | Alto 1.0 | [G10B] | 01.1994-12.2002 |
| SUZUKI | Alto 1.0 | [G10B] | 01.2000-06.2002 |
| SUZUKI | Alto 1.0 | [G10B] | 09.1994-06.2002 |
| SUZUKI | Swift 1.0 | [G10A] | 01.1996- |
| SUZUKI | Swift 1.0 | [G10A] | 03.1989-05.2001 |
| SUZUKI | Swift 1.0 | [G10A] | 03.1989-12.2004 |
| SUZUKI | Swift 1.0 GA | 01.1992- | |
| SUZUKI | Swift 1.0 GA | 01.1993- | |
| SUZUKI | Swift 1.0 GA | 01.1994- | |
| SUZUKI | Swift 1.0 i | [G10A] | 03.1989-12.1991 |
| SUZUKI | Swift 1.0 i | [G10A] | 03.1989-12.2004 |
| SUZUKI | Swift 1.0 i | [G10A] | 09.1991-05.2001 |
| SUZUKI | Swift 1.3 | [G13A] | 03.1989- |
| SUZUKI | Swift 1.3 | [G13A] | 03.1989-05.2001 |
| SUZUKI | Swift 1.3 | [G13A] | 03.1989-08.1996 |
| SUZUKI | Swift 1.3 | [G13A] | 03.1989-12.1991 |
| SUZUKI | Swift 1.3 | [G13B] | 01.1991- |
| SUZUKI | Swift 1.3 | [G13B] | 01.1996- |
| SUZUKI | Swift 1.3 | [G13B] | 09.1991-12.1995 |
| SUZUKI | Swift 1.3 | [G13BA] | 09.1991-10.1996 |
| SUZUKI | Swift 1.3 | 01.1989-01.1991 | |
| SUZUKI | Swift 1.3 4WD | [G13A] | 03.1989-05.2001 |
| SUZUKI | Swift 1.3 4WD | [G13A] | 10.1989-12.1991 |
| SUZUKI | Swift 1.3 4x4 | [G13A] | 01.1989-01.2001 |
| SUZUKI | Swift 1.3 GA | 01.1990-01.1994 | |
| SUZUKI | Swift 1.3 GL | 01.1990-01.1990 | |
| SUZUKI | Swift 1.3 GL | 01.1990-01.1991 | |
| SUZUKI | Swift 1.3 GL | 01.1991-01.1991 | |
| SUZUKI | Swift 1.3 GLX | 01.1991-01.1991 | |
| SUZUKI | Swift 1.3 GLX | 01.1991-12.1991 | |
| SUZUKI | Swift 1.3 GS | 01.1992-01.1994 | |
| SUZUKI | Swift 1.3 GT | 01.1989-01.1994 | |
| SUZUKI | Swift 1.3 GTi | [G13B] | 01.1989-01.1995 |
| SUZUKI | Swift 1.3 GTi | [G13B] | 03.1989-05.2001 |
| SUZUKI | Swift 1.3 GTi 16V | [G13B] | 01.1986-12.1989 |
| SUZUKI | Swift 1.3 L | 01.1990-01.1990 | |
| SUZUKI | Swift 1.3 L | 01.1990-01.1994 | |
| SUZUKI | Swift 1.3 L | 01.1991-01.1994 | |
| SUZUKI | Swift 1.3 S | 01.1990-01.1990 | |
| SUZUKI | Swift 1.3 S | 01.1990-12.1990 | |
| SUZUKI | Swift 1.6 GL | 01.1992- | |
| SUZUKI | Swift 1.6 GL | 01.1993- | |
| SUZUKI | Swift 1.6 GLX | 01.1992- | |
| SUZUKI | Swift 1.6 GLX | 01.1993- |
Reference Information
90-29-5656 9037561 ALTS036 CGB-13337 3140060B10 5540839 LRA2663 31400-60B40 100211-1571 100211-1570 STX100952R 101211-2120 5540840 100211-1573 56455 CAL40106AS STX100298 3140060V40 31400-60B11-000 40798RI J5118008 3140060B4 A12DE0709A2 9314 LRA02663 2040106 100211-6710 11.0798M SA040 31400-60B11 185.502.050 28-1855 20132601BN 13214N ALT421060 11.0798 A6092 31400-86510 31400-70F60 9212613 31400-80E00 31400-60B11-AT0 110967 445850 113082 100211-6600 100211-2120 STX100952 3140060B30 100211-6720 13316R ALT6420 31400-71C50 ALT6261 A12DE0708A2 3140060B11000 AEA2275 3140060B01 31400-60B40-000 31400-71C50-000 31400-M70F60 31400-60B30 20110125 JA798IR 3140060B40 STX100298RVideo/Publications
A6092Related Items
