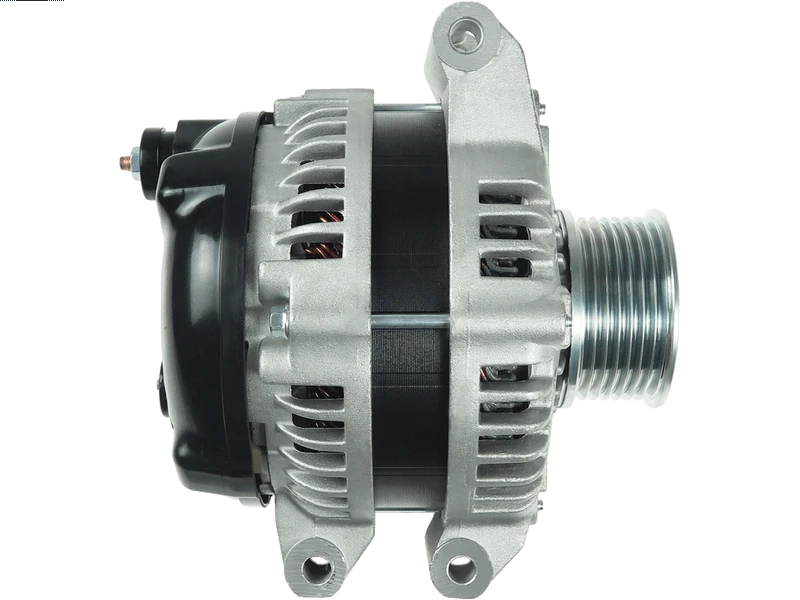

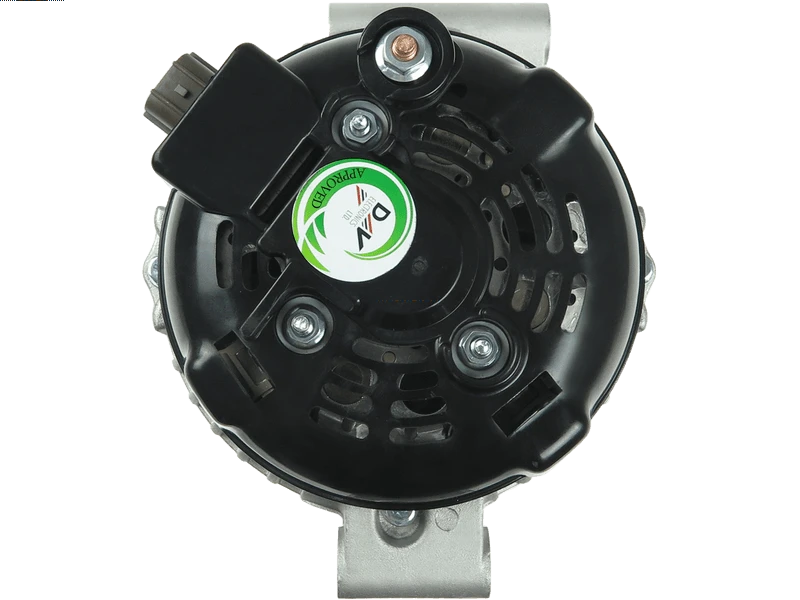

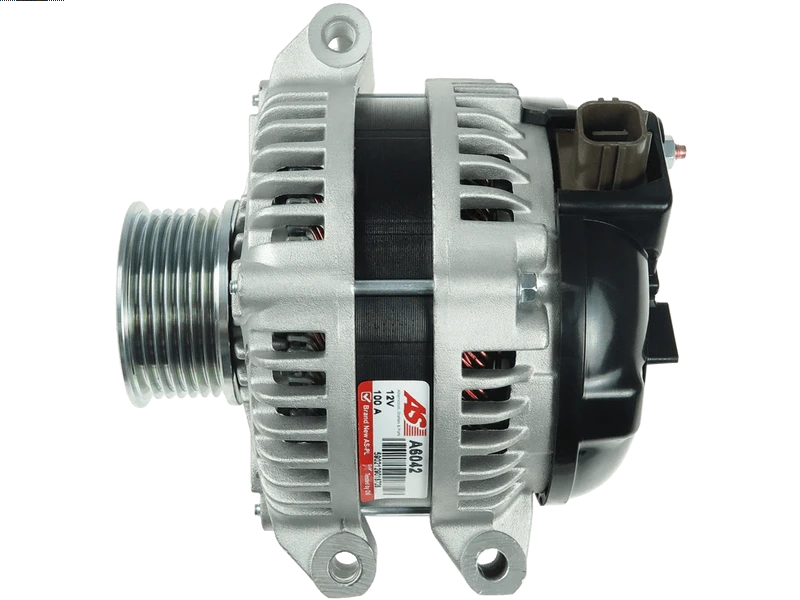

A6042 - Brand new AS-PL Alternator

Associated Numbers

0986082420 104210-3290 104210-3291 104210-3292 104210-3293 104210-4730 104210-4731 104210-4732 104210-4733 11.1726 11019 114272 125.528.100 12504 13980R 20132402BN 20132402OE 2040204 210-0511 210-0609 28-4856 31100-RAA-A01 31100-RAA-A02 31100-RAA-A03 31100-RAA-A03RM 31100-RAA-A04 31100-RAA-A040 31100-RAA-A05 31100-RTA-003 31100-RTA-013 31100-RTA-023 31100-RTA-033 401726RI 401726RID 57122 89212270 8EL738146-001 90-29-5542 90-29-5542N 9090435 9212270 9378 94125 944390904350 A-8955 A1038D AEB1726 ALT30188 CAL40204 CAL40204AS CAL40204ES CAL40204GS CAL40204OS CAL40204RS CFP29 CSC29 CSD73 DAN983 DENDAN983 DRA0155 EAA-221317 JA1726IR LRA02354 SB170 UD12524A 14-220

1042103290 Denso 1042103291 Denso 1042103292 Denso 1042103293 Denso 1042104730 Denso 1042104731 Denso 1042104732 Denso 1042105160
400-52103R, 400-52525R
Bosch AL1298X 14-921 14-711

1042103290 Denso 1042103291 Denso 1042103292 Denso 1042103293 Denso 1042104730 Denso 1042104731 Denso 1042104732 Denso 1042105160
40052103R, 40052525R
Bosch AL1298X
Denso 1042103290, 1042103291, 1042103292, 1042103293, 1042104730, 1042104731, 1042104732, 2100511, 2100609
Honda 31100RAAA01, 31100RAAA03, 31100RAAA04, 31100RAAA05, 31100RTA003, 31100RTA013, 31100RTA023, CSC29
PIC Picture ID 2905096
AEB1726 AUTOELECTRO
114272 CARGO
DRA0155 DELCO
1042103290
1042103291
1042103292
1042103293
1042104730
1042104731
1042104732
DAN1375
DAN983
284856 ELSTOCK
JA1726IR HC PARTS
8EL738146001 HELLA

1042103290 Denso 1042103291 Denso 1042103292 Denso 1042103293 Denso 1042104730 Denso 1042104731 Denso 1042104732 Denso 1042105160
400-52103R, 400-52525R
Bosch AL1298X  14-921  14-711

1042103290 Denso 1042103291 Denso 1042103292 Denso 1042103293 Denso 1042104730 Denso 1042104731 Denso 1042104732 Denso 1042105160
40052103R, 40052525R
Bosch AL1298X
Denso 1042103290, 1042103291, 1042103292, 1042103293, 1042104730, 1042104731, 1042104732, 2100511, 2100609
Honda 31100RAAA01, 31100RAAA03, 31100RAAA04, 31100RAAA05, 31100RTA003, 31100RTA013, 31100RTA023, CSC29
PIC Picture ID 2905096
AEB1726 AUTOELECTRO
114272 CARGO
DRA0155 DELCO
1042103290
1042103291
1042103292
1042103293
1042104730
1042104731
1042104732
DAN1375
DAN983
284856 ELSTOCK
JA1726IR HC PARTS
8EL738146001 HELLA

Denso 104210-3290, 104210-3291, 104210-3292, 104210-3293, 104210-4730, 104210-4731, 104210-4732, 210-0511, 210-0609
Honda 31100RAA-A01, 31100RAA-A03, 31100RAA-A04, 31100RAA-A05, 31100RTA003, 31100RTA013, 31100RTA023, CSC29
PIC Picture ID 290-5096
AEB1726 AUTOELECTRO
114272 CARGO
DRA0155 DELCO
104210-3290
104210-3291
104210-3292
104210-3293
104210-4730
104210-4731
104210-4732
DAN1375
DAN983
28-4856 ELSTOCK
JA1726IR HC PARTS
8EL738146-001 HELLA
31100-RAA-A01 HONDA
31100-RAA-A040 HONDA
31100-RAA-A05 HONDA
31100-RTA-003 HONDA
31100-RTA-023 HONDA
CSC29 HONDA
CSD73 HONDA
LRA02354 LUCAS
1013-042RS RS
ALT30188 WOODAUTO
ANJ223
ARJ235
DXA561
65-8598
658598

Denso 104210-3290, 104210-3291, 104210-3292, 104210-3293, 104210-4730, 104210-4731, 104210-4732, 210-0511, 210-0609
Honda 31100RAA-A01, 31100RAA-A03, 31100RAA-A04, 31100RAA-A05, 31100RTA003, 31100RTA013, 31100RTA023, CSC29
PIC Picture ID 290-5096
AEB1726 AUTOELECTRO
114272 CARGO
DRA0155 DELCO
104210-3290
104210-3291
104210-3292
104210-3293
104210-4730
104210-4731
104210-4732
DAN1375
DAN983
28-4856 ELSTOCK
JA1726IR HC PARTS
8EL738146-001 HELLA
31100-RAA-A01 HONDA
31100-RAA-A040 HONDA
31100-RAA-A05 HONDA
31100-RTA-003 HONDA
31100-RTA-023 HONDA
CSC29 HONDA
CSD73 HONDA
LRA02354 LUCAS
1013-042RS RS
ALT30188 WOODAUTO
ANJ223
ARJ235
DXA561
65-8598
658598

Specifications

Amp	100 A
Diameter (D.1)	9 mm
Diameter (D.2)	8 mm
Diameter (D.3)	9 mm
Length (L.1)	176.5 mm
Mount Inside Length or Pad Mount C-C (C)	47 mm
OEM Product	No
Pad mount thickness (E.1)	70 mm
Pad mount thickness (E.2)	41 mm
Pad mount thickness (E.3)	41 mm
Plug Code	PL_4001
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	7 qty
Pulley Outside Diameter (O.D.1)	60 mm
Pulley to Mount Distance (A)	41 mm
Pulley Type	SOLID
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ACURA	CSX 2.0		01.2006-12.2011
ACURA	TSX 2.4		01.2003-12.2008
HONDA	Accord 2.0	[K20A]	02.2003-
HONDA	Accord 2.0	[K20A6]	02.2003-
HONDA	Accord 2.0	[K20A6]	04.2003-
HONDA	Accord 2.0 4WD	[K20A]	02.2003-
HONDA	Accord 2.0 4WD	[K20A6]	02.2003-
HONDA	Accord 2.0 4x4	[K20A6]	01.2003-12.2008
HONDA	Accord 2.4	[K24A]	02.2003-
HONDA	Accord 2.4	[K24A]	04.2003-
HONDA	Accord 2.4	[K24A8]	09.2006-
HONDA	Accord 2.4 Euro	[K24A3]	06.2003-
HONDA	Accord 2.4i	[K24A]	01.2003-12.2008
HONDA	Accord 2.4 Vtec		04.2006-07.2008
HONDA	Accord 2.4 VTEC	[K24A8]	04.2006-07.2008
HONDA	Accord 2.4 VTEC E	[K24A2]	09.2003-09.2005
HONDA	Accord 2.4 VTEC T	[K24A1]	09.2003-
HONDA	Civic 2.0 Type R	[K20Z4]	09.2006-
HONDA	Civic 2.0 Type-R	[K20Z4]	01.2006-
HONDA	CR-V 2.4i	[K24A1]	01.2002-12.2006
HONDA	CR-V 2.4i Vtec	[K24Z1]	01.2007-
HONDA	CR-V 2.4i Vtec	[K24Z4]	01.2007-
HONDA	CR-V 2.4 iVtec 4x4		10.2006-
HONDA	CR-V 2.4 i-VTEC 4x4	[K24Z1]	10.2006-
HONDA	CR-V 2.4 VTEC 4WD	[K24Z1]	09.2009-
HONDA	Element 2.4		01.2003-12.2011

Reference Information

94125 31100-RTA-013 CFP29 LRA02354 CAL40204AS 31100-RAA-A040 CSC29 A12DE0211A2 9090435 9212270 ALT701 114272 A-8955 20132402OE 20132402BN 13980N 943317261010 2H434 J5114046 401726RID 90-29-5542N 13980R 31100-RTA-023 CGB-10155 SB170 AG1221 021080-0270 125.528.100.261 11.1726 STX100465 89212270 UD12524A 401726RI 90-29-5542 31100-RAA-003 ALT6132 JA1726IR ALH434 31100-RTA-033 021080-2080 ALT30188 57122 31100-RAA-A03 CAL40204GS 31100-RAA-A02 31100-RAA-A01 104210-3291 125.528.100.050 104210-3292 31100-RAA-A05 104210-3293 31100-RAA-A04 A6042 28-4856 31100-RAA-AA0 125.528.100.058 002-H434 ALT422040 ANM32375X 104210-3290 9378 31100-RTA-003 AEB1726 0986082420 2040204.1 CSD73 2040204.0 ALTL530 104210-4730 LRA2354 104210-4732 ALN1726 104210-4731 A1038D DRA0155 8EL738146-001 446775 104210-4733 8EL012429-151 11019 12504 31100-RAA-A03RM 944390904350 063731726010
