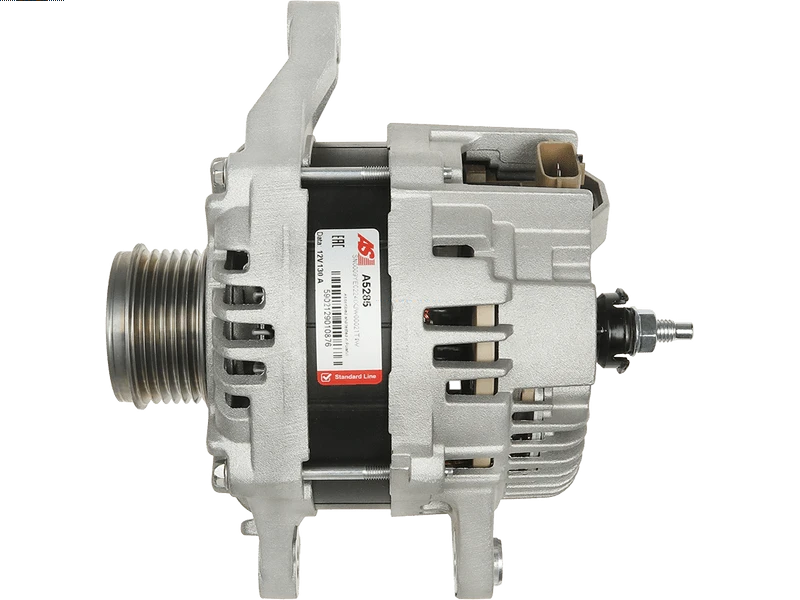

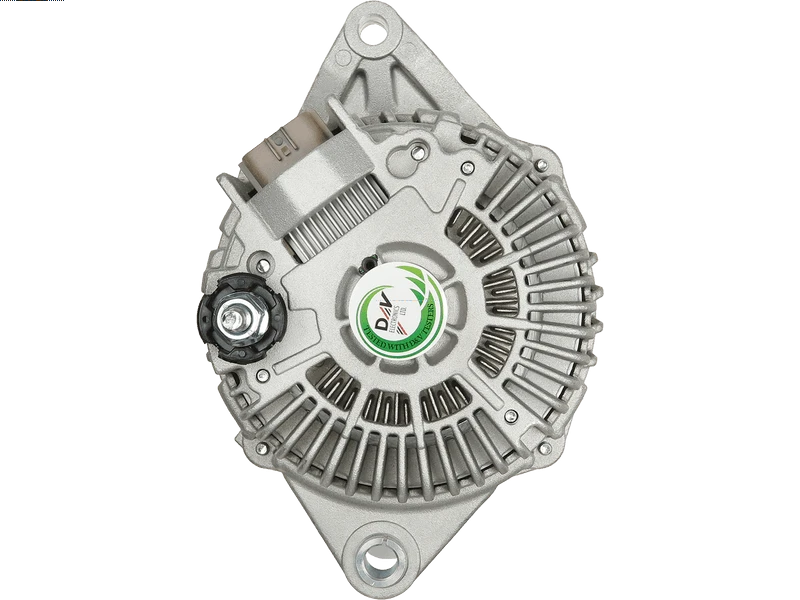

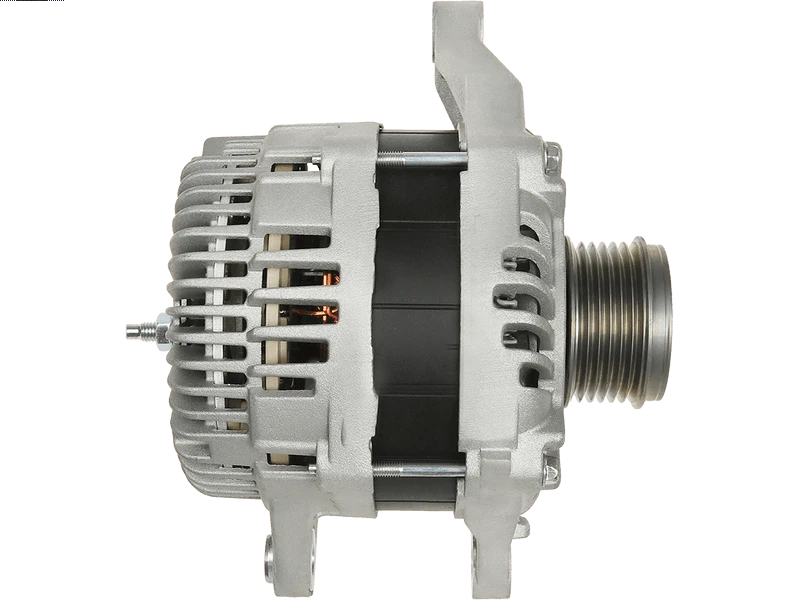

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 581.77 including GST
NZ$ 505.89 excluding GST
or four payments of $145.44
with
Learn More
each
A5323
A5285
1
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- < Critical Notes >
- Related Items
Associated Numbers
11125 1800A121 1800A288 28-6896 4321 A-80611 A002TX0881 A002TX0881A A2TX0881 A2TX0881A A5285 LRA03786 UD11055A
MXA2110
Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_4100 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | CLUTCH |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Lancer Saloon 1.8 | [4B10] | 02.2008- |
| MITSUBISHI | Lancer Saloon 1.8 | [4B10] | 05.2010- |
| MITSUBISHI | Lancer Saloon 1.8 Bifuel | [4B10] | 02.2010- |
| MITSUBISHI | Lancer Saloon 1.8 Flex | [4B10] | 03.2009- |
| MITSUBISHI | Lancer Sportback 1.8 | [4B10] | 03.2009- |
| MITSUBISHI | Lancer Sportback 1.8 | [4B10] | 06.2008- |
| MITSUBISHI | Lancer Sportback 1.8 Bifuel | [4B10] | 02.2010- |
| MITSUBISHI | Lancer Sportback 1.8 Flex | [4B10] | 03.2009- |
| MITSUBISHI | Outlander 2.0 | [4B11] | 11.2006-11.2012 |
| MITSUBISHI | Outlander 2.0 4WD | [4B11] | 11.2006-11.2012 |
| MITSUBISHI | Outlander 2.4 | [4B12] | 09.2007-11.2012 |
| MITSUBISHI | Outlander 2.4 4WD | [4B12] | 09.2007-11.2012 |
Reference Information
2035446.1 A002TX0891 20137644OE LRA03786 1800A121 1800A288 1800A323 28-6896 1800A546 A2TX0891 11125 A2TX0881B A2TX0891A CAL35446GS A2TX0881A 4321 A002TX0881 ALT5408 LRA3786 A002TX0881A UD11055A 155.901.130 A002TX0881B A002TX0891A A5285 A-80611 13226N A2TX0881Video/Publications
A5285< Critical Notes >
Will replace A5242 but A5242 will not replace A5285
