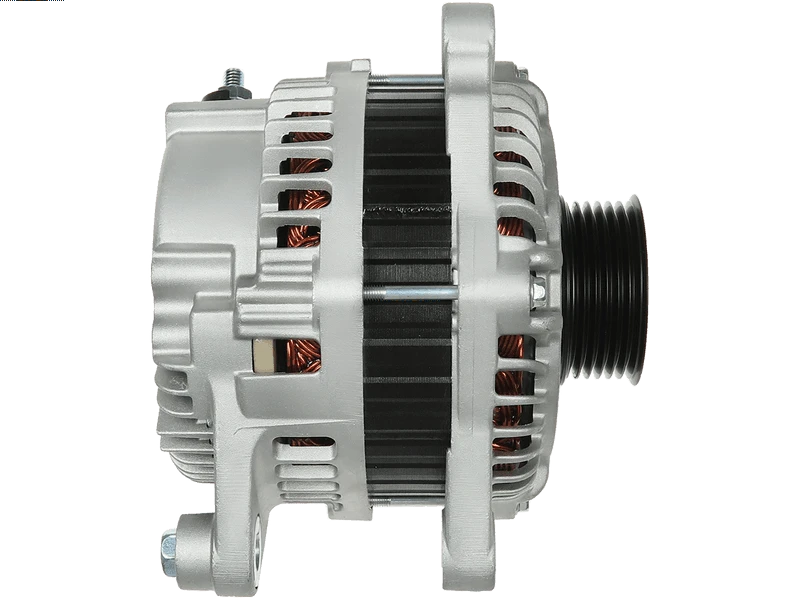

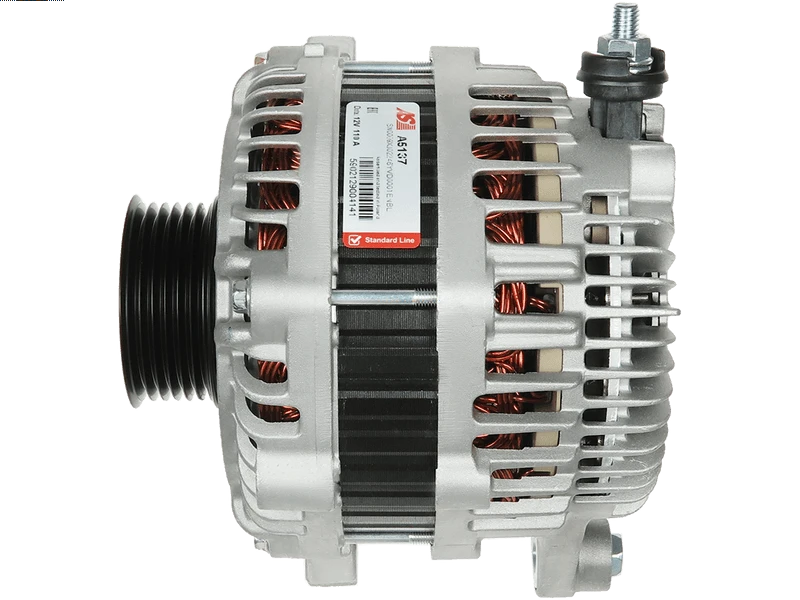

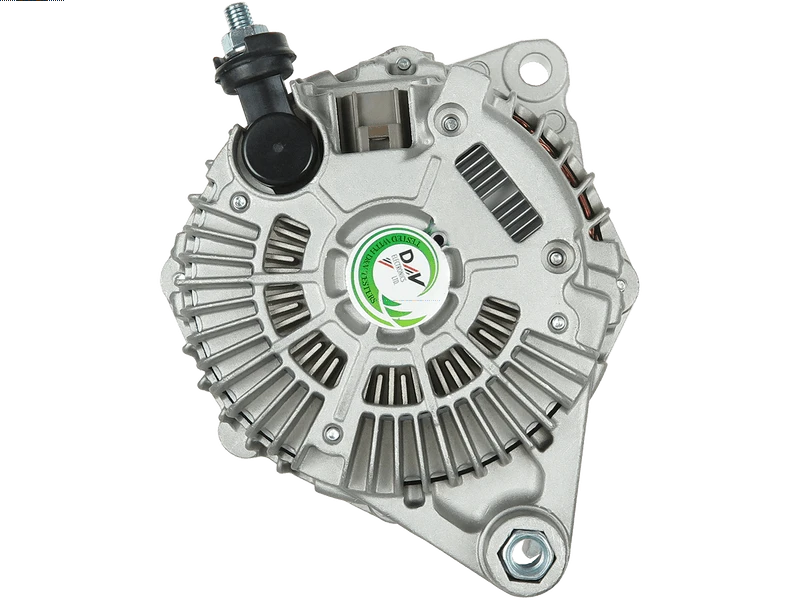

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 547.17 including GST
NZ$ 475.80 excluding GST
or four payments of $136.79
with
Learn More
each
A5137
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
A3TJ2391Associated Numbers
11267N 555060RI 90-27-3373 A-80258 A003TJ2391 A3TJ2391 CY01-18-300A CY01-18-300R0A UD11024A MXA2026 65-6698 11267 Lester 1339401MI 145560110 PSH 90273373 Wilson Mitsubishi show A3TJ2391SEL +line A80258 Plug + div CY0118300 Mazda CY0118300ASpecifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 154 mm |
| Mount Inside Length or Pad Mount C-C (C) | 58 mm |
| OEM Product | No |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | SOLID |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | BX 1.4 E | [150A] | 10.1982-06.1988 |
| CITROEN | BX 1.4 E | [150F] | 09.1985-02.1993 |
| MAZDA | 6 3.7 | 01.2009-12.2013 | |
| MAZDA | CX-9 3.7 | [CAY1] | 01.2007- |
| MAZDA | CX-9 3.7 | [CAY5] | 01.2007- |
| MAZDA | CX-9 3.7 | [CAY6] | 01.2007- |
| MAZDA | CX-9 3.7 | 01.2007-12.2014 | |
| MAZDA | CX-9 3.7 AWD | [CA] | 01.2007- |
| MAZDA | CX-9 3.7 AWD | [CAY1] | 01.2007- |
| MAZDA | CX-9 3.7 AWD | [CAY5] | 01.2007- |
| MAZDA | CX-9 3.7 AWD | [CAY6] | 01.2007- |
Reference Information
A003TJ2391AM STX110178 STX110178R CY01-18-300R0A 145.560.110.370 145.560.110.130 CY01-18-300A 90-27-3373N 555060RI ALTF902 2035384.1 J5113078 CAL35384GS MITA3TJ2391 ALM2390 90-27-3373 A3TJ2391 UD11024A A5137 ALT31366 447218 CY01-18-300 A003TJ2391 ALT5423 89215241 11267R A-80258 20137483OE 11267N A3TJ2391AM DRA1739Video/Publications
