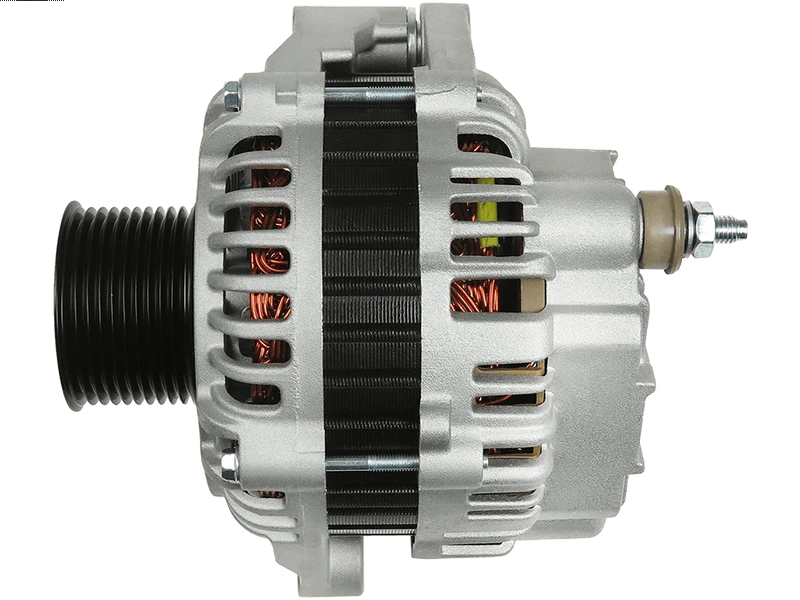

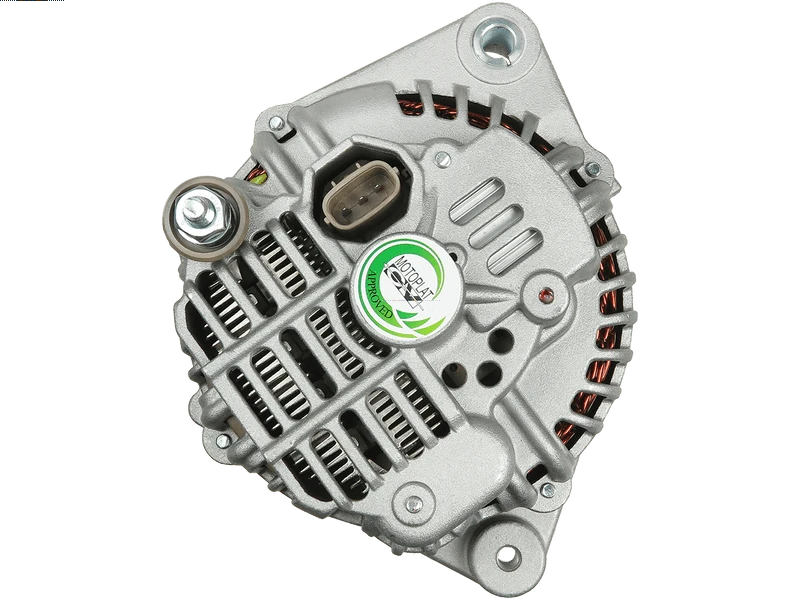

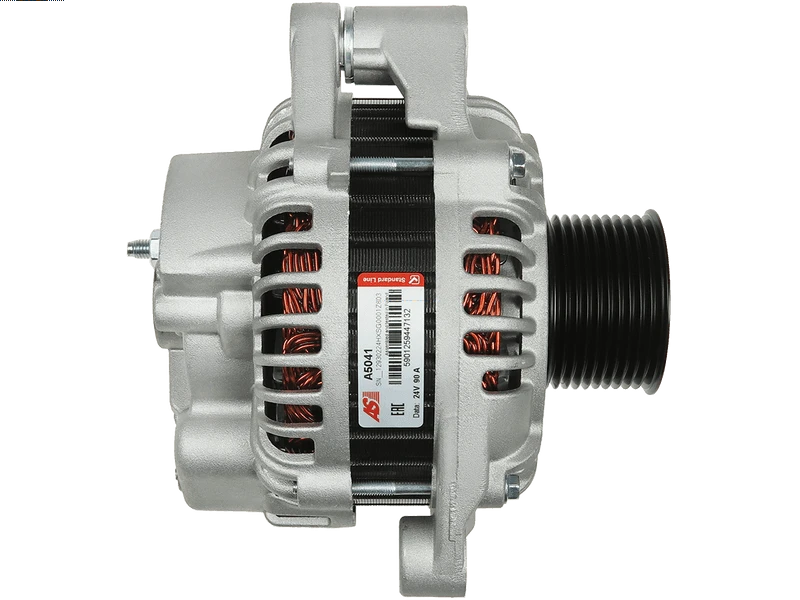

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 510.07 including GST
NZ$ 443.54 excluding GST
or four payments of $127.52
with
Learn More
each
A5041
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
A4TA0591Associated Numbers
0123525500 113923 18.2040 20137006OE 2035600 2097 2995980 301633RI 301633RIM 48-4552 500331736 504065776 504286394 506.502.090 75921 860710GB 860710GBA 861285 861286 89212441 9945170 99477271 A4TA0591 A4TA8292 A4TA8491 CA2040IR CAL10604AS CAL35600GS EAA-221635 LRA02516Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 58 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Length (L.1) | 196 mm |
| OEM Product | No |
| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 10 qty |
| Pulley Outside Diameter (O.D.1) | 62.5 mm |
| Pulley to Mount Distance (A) | 90.5 mm |
| Pulley Type | SOLID |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | 180 E 24 7.8 | [F2BE0681D] | 09.1999-11.2004 |
| IVECO | 180 T 27 7.8 | [F2BE0681F] | 06.2005- |
| IVECO | 190 E 24 7.8 | [F2BE0681D] | 09.1998- |
| IVECO | 190 E 27 7.8 | [F2BE0681C] | 09.1998- |
| IVECO | 190 E 27 7.8 | [F2BE0681F] | 09.1998- |
| IVECO | 190 E 31 7.8 | [F2BE0681B] | 09.1998- |
| IVECO | 190 E 31 7.8 | [F2BE0681B] | 09.1999-11.2004 |
| IVECO | 190 E 35 7.8 | [F2BE0681A] | 09.1998- |
| IVECO | 190 E 35 7.8 | [F2BE0681A] | 09.1999-11.2004 |
| IVECO | 190 S 27 7.8 | [F2BE0681C] | 05.2005- |
| IVECO | 190 S 27 7.8 | [F2BE0681F] | 04.2004- |
| IVECO | 190 S 30 7.8 | [F2BE0681E] | 04.2004- |
| IVECO | 190 S 31 7.8 | [F2BE0681B] | 06.2003- |
| IVECO | 190 S 31 7.8 | [F2BE0681C] | 06.2003- |
| IVECO | 190 S 31 7.8 | [F2BE0681E] | 06.2003- |
| IVECO | 190 S 31 7.8 | [F2BE3681C] | 04.2004- |
| IVECO | 190 S 33 7.8 | [F2BE3681B] | 05.2007- |
| IVECO | 190 S 33 7.8 | [F2BE3681B] | 12.2006- |
| IVECO | 190 S 35 7.8 | [F2BE0681A] | 04.2004- |
| IVECO | 190 S 35 7.8 | [F2BE0681A] | 06.2003- |
| IVECO | 190 S 36 7.8 | [F2BE3681A] | 05.2007- |
| IVECO | 190 T 27 7.8 | [F2BE0681F] | 06.2005- |
| IVECO | 190 T 31 7.8 | [F2BE0681B] | 06.2005- |
| IVECO | 190 T 31 7.8 | [F2BE0681B] | 10.2004- |
| IVECO | 190 T 33 7.8 | [F2BE3681B] | 03.2006- |
| IVECO | 190 T 35 7.8 | [F2BE0681A] | 06.2005- |
| IVECO | 190 T 35 7.8 | [F2BE0681A] | 10.2004- |
| IVECO | 260 E 24 7.8 | [F2BE0681D] | 11.1999- |
| IVECO | 260 E 27 7.8 | [F2BE0681B] | 11.1999-11.2004 |
| IVECO | 260 E 27 7.8 | [F2BE0681C] | 11.1999- |
| IVECO | 260 E 27 7.8 | [F2BE0681F] | 11.1999- |
| IVECO | 260 E 31 7.8 | [F2BE0681B] | 01.2001-11.2004 |
| IVECO | 260 E 31 7.8 | [F2BE0681B] | 11.1999- |
| IVECO | 260 E 31 7.8 | [F2BE0681B] | 11.1999-11.2004 |
| IVECO | 260 E 35 7.8 | [F2BE0681A] | 01.2000-11.2004 |
| IVECO | 260 E 35 7.8 | [F2BE0681A] | 09.1999-11.2004 |
| IVECO | 260 E 35 7.8 | [F2BE0681A] | 11.1999- |
| IVECO | 260 S 27 7.8 | [F2BE0681F] | 04.2004- |
| IVECO | 260 S 30 7.8 | [F2BE0681E] | 04.2004- |
| IVECO | 260 S 30 7.8 | [F2BE0681E] | 10.2005- |
| IVECO | 260 S 31 7.8 | [F2BE0681B] | 06.2003- |
| IVECO | 260 S 31 7.8 | [F2BE3681C] | 04.2004- |
| IVECO | 260 S 33 7.8 | [F2BE3681B] | 06.2007- |
| IVECO | 260 S 33 7.8 | [F2BE3681B] | 12.2006- |
| IVECO | 260 S 35 7.8 | [F2BE0681A] | 04.2004- |
| IVECO | 260 S 35 7.8 | [F2BE0681A] | 06.2003- |
| IVECO | 260 S 36 7.8 | [F2BE3681A] | 07.2007- |
| IVECO | 260 T 31 7.8 | [F2BE0681B] | 06.2005- |
| IVECO | 260 T 31 7.8 | [F2BE0681B] | 10.2004- |
| IVECO | 260 T 33 7.8 | [F2BE3681B] | 03.2006- |
| IVECO | 260 T 33 7.8 | [F2BE3681B] | 07.2007- |
| IVECO | 260 T 35 7.8 | [F2BE0681A] | 06.2005- |
| IVECO | 260 T 35 7.8 | [F2BE0681A] | 10.2004- |
| IVECO | 260 T 36 7.8 | [F2BE3681A] | 07.2007- |
| IVECO | 260 T 36 7.8 | [F2BE3681A] | 10.2004- |
| IVECO | 340 E 35 7.8 | [F2BE0681A] | 01.2001-11.2004 |
| IVECO | 340 E 35 7.8 | [F2BE0681A] | 09.1999-11.2004 |
| IVECO | 340 T 35 7.8 | [F2BE0681A] | 06.2005- |
| IVECO | 340 T 36 7.8 | [F2BE3681A] | 03.2006- |
| IVECO | 340 T 36 7.8 | [F2BE3681A] | 06.2006- |
| IVECO | 340 T 36 7.8 | [F2BE3681A] | 07.2007- |
| IVECO | 380 E 35 7.8 | [F2BE0681A] | 01.2000-11.2004 |
| IVECO | 380 T 33 7.8 | [F2BE3681B] | 03.2006- |
| IVECO | 380 T 36 7.8 | [F2BE3681A] | 04.2006- |
| IVECO | 380 T 36 7.8 | [F2BE3681A] | 10.2004- |
| IVECO | 400 E 31 7.8 | [F2BE0681B] | 09.1998- |
| IVECO | 400 E 35 7.8 | [F2BE0681A] | 01.2000-11.2004 |
| IVECO | 400 E 35 7.8 | [F2BE0681A] | 09.1998- |
| IVECO | 400 T 35 7.8 | [F2BE0681A] | 06.2005- |
| IVECO | 400 T 36 7.8 | [F2BE3681A] | 10.2004- |
| IVECO | 410 E 35 7.8 | [F2BE0681A] | 01.2000-11.2004 |
| IVECO | 410 T 36 7.8 | [F2BE3681A] | 03.2006- |
| IVECO | 440 E 31 7.8 | [F2BE0681B] | 09.1998- |
| IVECO | 440 E 35 7.8 | [F2BE0681A] | 09.1998- |
| IVECO | 440 S 33 7.8 | [F2BE3681B] | 12.2006- |
| IVECO | 440 S 35 7.8 | [F2BE0681A] | 06.2003- |
Reference Information
LRA02518 CAL10604GS 20923N CAL35601GS PRAF436 MG883 72477204 5802122270 115879 506.502.090.130 506.502.090.010 ALT1359 506.502.090.370 ALT5359 0123520500 ALM8633 89212441 230-40105 504349348 2010604.0 A004TA8491A A4TA8491 AEC2040 ALT5094 A004TA0591 A4TA8291 8EL012584-391 MITA4TA8491 A4TA8491A ALT31300 IA9484 11.209.636 113923 A24MH0155A2 19094003 5802122270HH CA2040IR ALB8633 DA2467 DRB5170N CAL10604RS A5041 DRB5170 504114396 ALT2055 PTC-3046 0123525500 ALM1633 504286394 DRB5170X 48-4563 CAL10604AS 506.502.090.900 A004TA8491AM CAL35601AS 2097 20137106BN 20137106OE 19092035 AAN5447 ALT79842 ALB9633 LRA2518 99477271 2010604.2 2010604.1 504065776 500331736 8600399 506.502.090.215 A004TA8491 STX110042 506.502.090.415 A4TA8491AM 5801315646 2035601.0 2035601.1 A004TA8291 A4TA0591 8EL012584-521 500337394 1516506R DB6280 DRA1357 ALB6633 210772 5006008914 ALM7633 ALTF436Video/Publications
A5041Related Items
