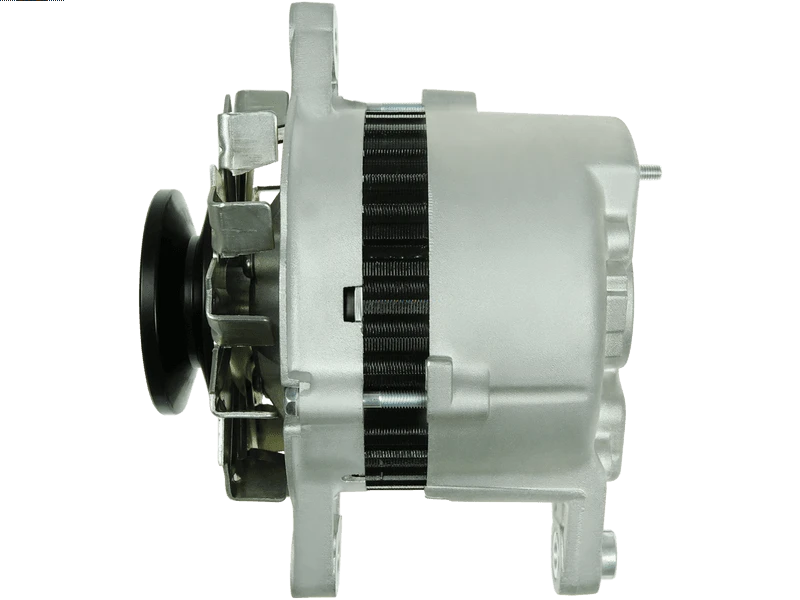

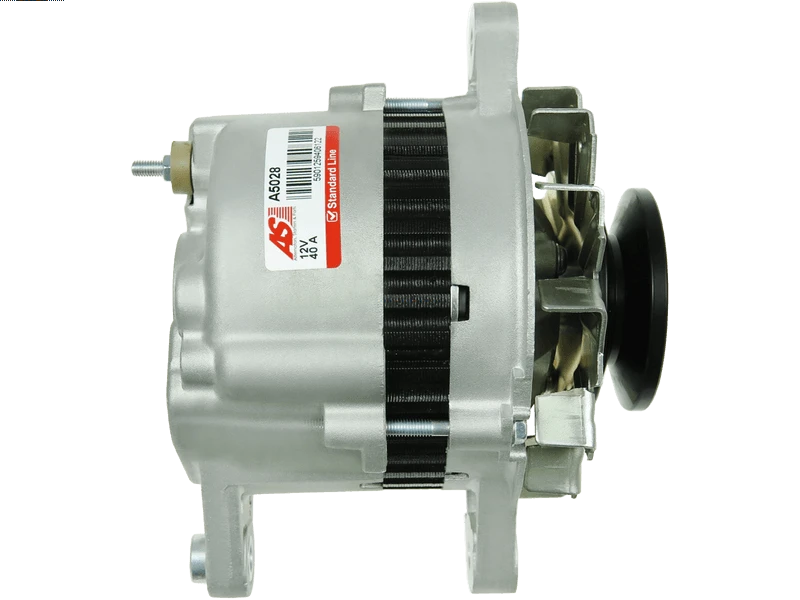

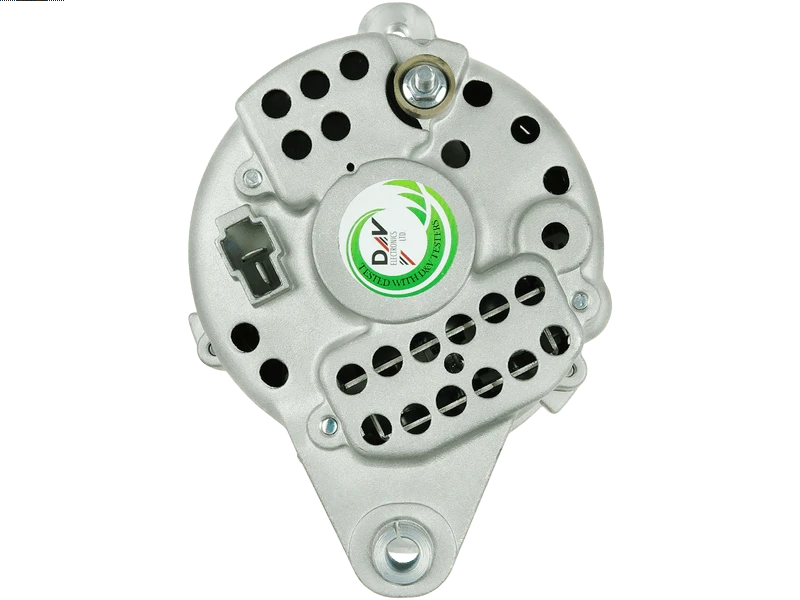

A5028 - Brand new AS-PL Alternator

Associated Numbers

0986036501 11.0171 110385 20145011BN 2020110 28-1529 28-1675 31400-80010 31400-80011 40171RI 42990-5600 42990-6300 437162 56057 8EL726316-001 9051805 9213296 A001T33771 A1T33771 A5028 AEA5136 AEA9150 ALT31041 CAL20110AS DRA3217 EAA-221746 JA171IR LR140-128 LR140-136 LRA00536 LRA00950 SA769 VA237

Specifications

Amp	40 A
Bottom Mounting Foot Width (B)	13.5 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	8.5 mm
Length (L.1)	157 mm
Mount Inside Length or Pad Mount C-C (C)	66.5 mm
OEM Product	No
Plug Code	PL_2500
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	11 mm
Pulley Outside Diameter (O.D.1)	40 mm
Pulley to Mount Distance (A)	42 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BEDFORD	Rascal 1.0	[FA10A]	07.1986-06.1990
SUBARU	Alto 0.8	[F8B]	01.1986-11.1993
SUBARU	CaRy 1.0	[F10A]	10.1985-03.1999
SUBARU	Rex 0.5	[EK23]	06.1981-06.1987
SUBARU	Rex 0.7	[EK42]	08.1982-06.1989
SUBARU	SJ 410 1.0	[F10A]	09.1981-12.1988

Reference Information

LRA00536 110385 9051805 LRA00950 28-1529 A5028 VA237 56057 42990-5600 A1T33771 LR140-136 JA171IR SA769 210107 8EL726316-001 A12MH0707A2 3C2Z11002AA 11.0171 ALT31041 LR140-128 445220 9213296 LRA950 STX100938 0986036501 ALTS164 E9SFBA A001T33771 LRA536 437162 28-1675 42990-6300 AEA9150 3C2411000AA A9306S DRA3217 ALT5200 AEA5136 ALT6450 31400-80010 40171RI 1516881R 31400-80011

Video/Publications

A5028
