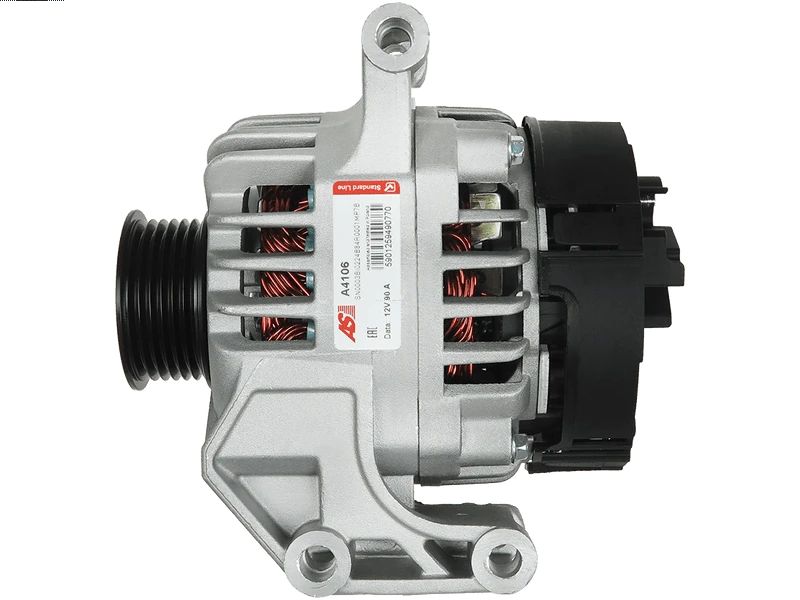

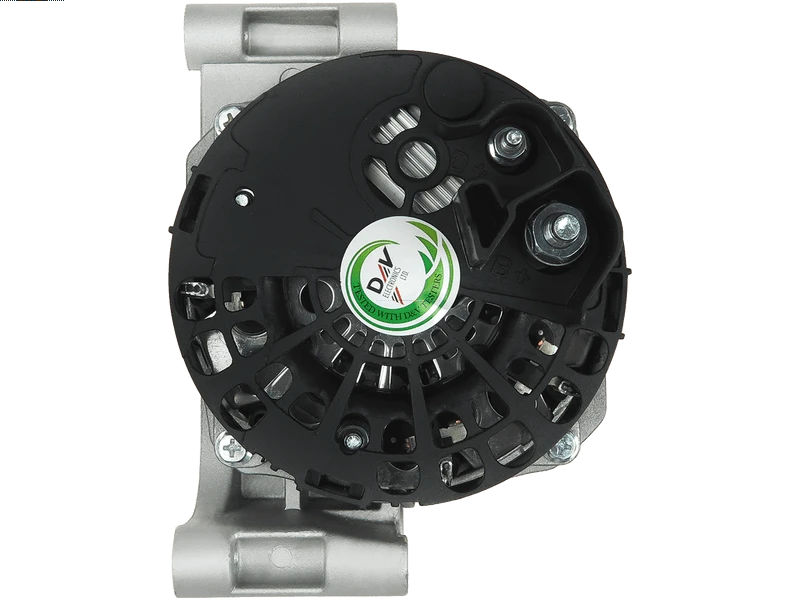

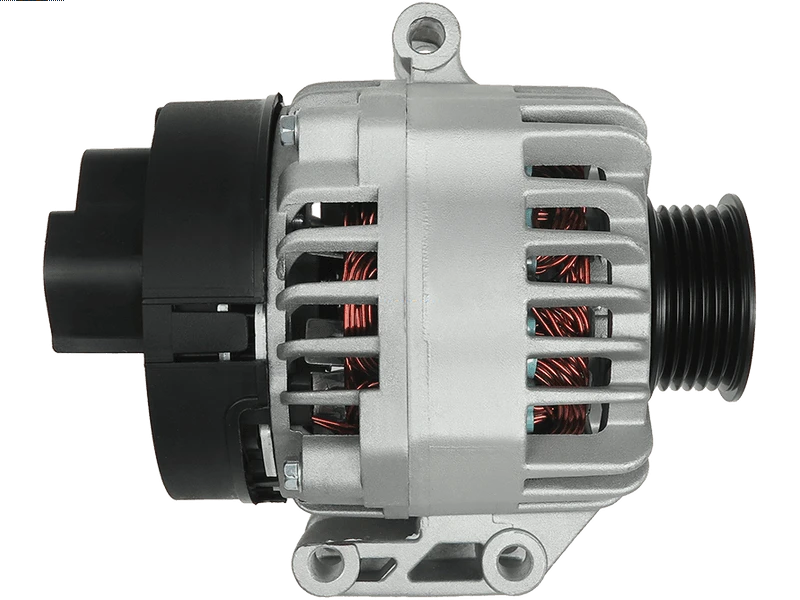

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 395.86 including GST
NZ$ 344.23 excluding GST
or four payments of $98.97
with
Learn More
each
A4106
No stock in NZ
No stock in NZ
Associated Numbers
101210-1270 2015563 20179365OE 28-5841 301862RIV 439654 440239 505.542.090 51784848 553638RIV 555179RIV 9215294 AEK2804 CAL15563 CAL15563AS CAL15563ES CAL15563GS CAL15563OS CAL15563RS DRA0377 LRA03229 TG9S014 TG9S037 UD02261ASpecifications
| Amp | 90 A |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 8.5 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 1.3 D Multijet | [169A1.000] | 01.2007- |
| FIAT | Doblo 1.3 JTD | [188A9.000] | 01.2004-2005 |
| FIAT | Fiorino 1.3 D Multijet | [199A2.000] | 01.2008- |
| FIAT | Idea 1.3 JTD Multijet | [188A9.000] | 01.2004- |
| FIAT | Linea 1.3 JTD Mulitjet | [199A3.000] | 01.2007- |
| FIAT | Panda 1.3 JTD Multijet | [169A1.000] | 01.2006- |
| FIAT | Panda 1.3 JTD Multijet | [188A9.000] | 01.2003- |
| FIAT | Punto 1.3 JTD Multijet 16V | [188A9.000] | 01.2003-2005 |
| LANCIA | Musa 1.3 D Mulitjet | [188A9.000] | 01.2004- |
| LANCIA | Musa 1.3 D Mulitjet | [199A3.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 D Multijet | [192A3.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 D Multijet | [199A2.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 JTD | [188A9.000] | 01.2003- |
Reference Information
ALTS730 101210-1270 209240 STX102152 LRA03229 440239 51805804 ALT00906 9215294 555179RIV LRA3229 ALT00602 210521 CAL15563RS 51792276 AEK2804 51718494 28-5841 439654 553638RIV STX102163 505.542.090 51854906 115622 DRA0377 UD02261A CAL15563AS 51784848 51944877 51984051 301862RIV CAL15563GS CAL15563ES 210839 442428 20179365OE TG9S037 52092131 2015563 TG9S014 CAL15563OS CAL15563 52092134Video/Publications
