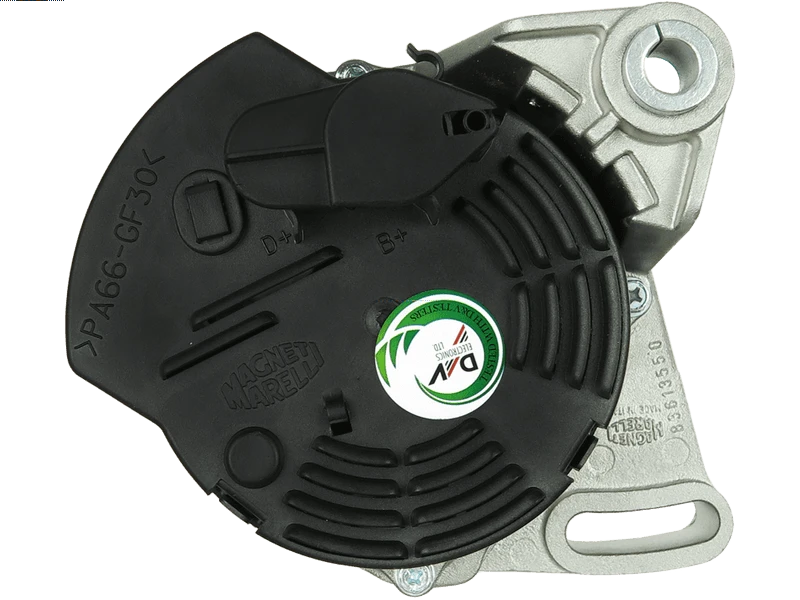

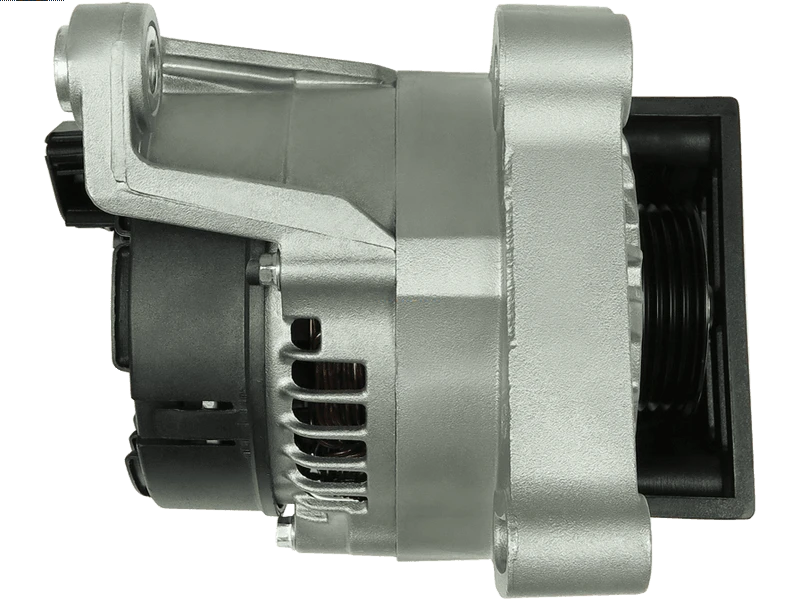

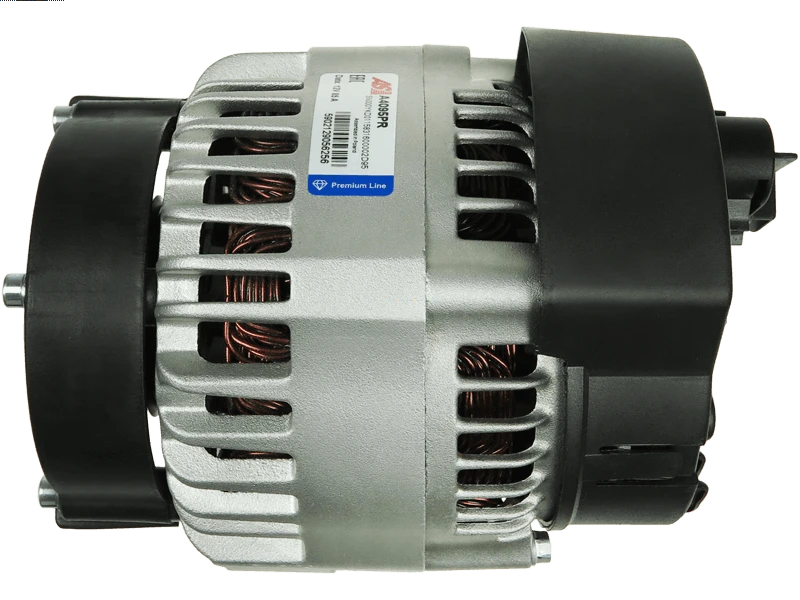

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 318.77 including GST
NZ$ 277.19 excluding GST
or four payments of $79.69
with
Learn More
each
A4095PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
063321629010 063321715010 0986080550 115476 166-15107 2030151 210086 22885R 28-3748 301350RI 301350RIM 32080550 440490 46758245 505.512.090 56969 63321629 63321715 63321782 89213881 944390902180 AEC1350 AG1301 ALE1350 ALT12062 CA1350IR CAL30151 CAL30151AS CAL30151ES CAL30151GS CAL30151OS CAL30151RS DA4754 DAN629 DRA3644 LRA01885 MRA90218 SA275Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 32 mm |
| Diameter (D.1) | 12.5 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 12.5 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83.5 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Brava 1.2 16V | [182B2.000] | 12.1998-10.2000 |
| FIAT | Bravo 1.2 16V | [182B2.000] | 12.1998-10.2000 |
| FIAT | Doblo 1.2 8V | [223A5.000] | 01.2001- |
| FIAT | Marea 1.2 16V | [182B2.000] | 10.1998- |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997-06.2000 |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997-09.1999 |
| LANCIA | Y 1.2 16V | [176B9.000] | 04.1997-09.2003 |
Reference Information
ALTL284 0986080550 505.512.090.460 505.512.090.260 CAL30151GS 505.512.090.265 46516740 28-3748 63321715 AEC1350 210086 2310047N70 DAN629 LRA1885 ALT2450A ALTL284NE 46437413 63321629 440490 115476 MRA90218 ALT2450 505.512.090.605 063321715010 40091 ALE1350 89213881 63321782 46231696 A5T05473 PRAL284M 91600760 LRA01885 063321629010 22885R STX101837 301350RIR CAL30151AS DRA3644 PRAL284U ALT9016 301350RI CGB-83748 ALTL284M 944390902180 46769375 ALT12062 ALTL284U DA4754 CA1350IR STX101459 2030151.1 2030151.0 MAN1039 20104151OE PRAL284 46758245 71721108 20104151BN 8EL012240-801 56969Video/Publications
