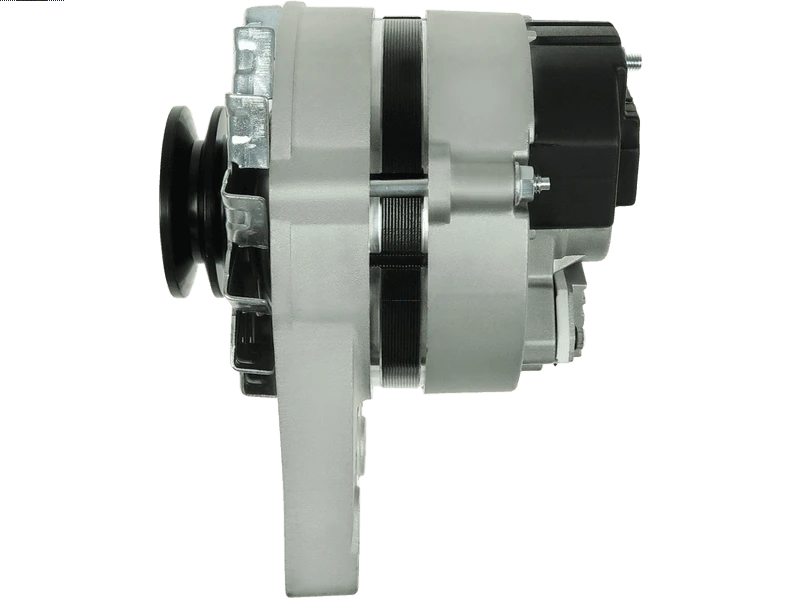

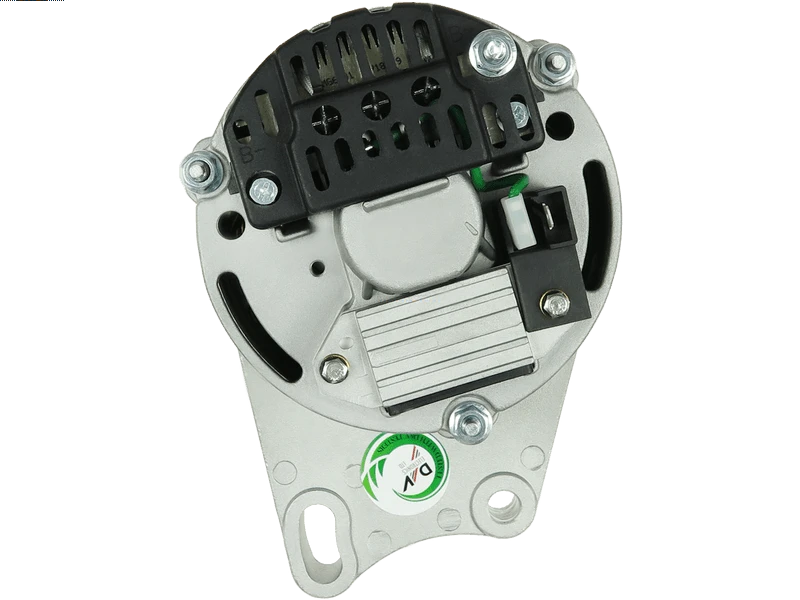

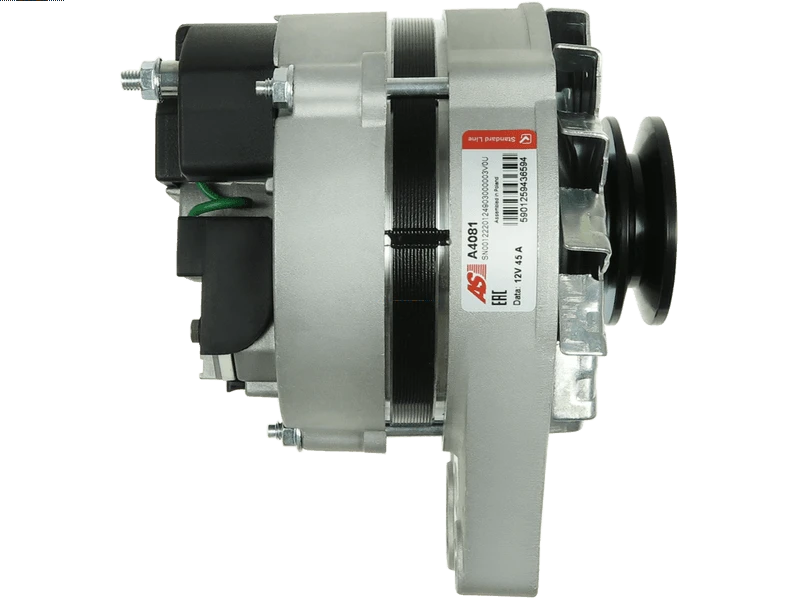

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 311.66 including GST
NZ$ 271.01 excluding GST
or four payments of $77.92
with
Learn More
each
A4081
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63303701Associated Numbers
0986032340 0986032341 11.0307 11.201.093 111078 20100190 20104211BN 20104211OE 20119811OE 2021118 2030112 21188N 24041 28-0877 30307RI 30355RI 30355RIL 30355RIM 32680330 4141 436113 4451759 4456152 4458618 46231655 505.012.045 516032 554098RI 55607 5947366 5947376 5973034 5973035 63303502 63303701 63303703 63306701 63307106 63307108 63308701 63320002 63321001 7546342 7546343 77110410 77110411 8EL725709-001 9032341 9120144228 9120144229 9120144240 9120144241 AAK1128 AEA8132 ALP12N-20 ALP12N-24 ALT12032 CA307IR CAL21118GS CAL30112AS CAL30112GS DAN608 DAN645 DRA2341 DRA2341N EAA-221556 LRA00832 SA409 VA203Specifications
| Amp | 45 A |
| Bottom Mounting Foot Width (B) | 23.5 mm |
| Diameter (D.1) | 11.5 mm |
| Diameter (D.2) | 10.5 mm |
| Length (L.1) | 160 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 42.5 mm |
| Pulley Outside Diameter (O.D.2) | 65 mm |
| Pulley to Mount Distance (A) | 54 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUTOBIANCHI | A 112 0.9 Junior | [A112A5.000] | 07.1975-12.1985 |
| AUTOBIANCHI | A 112 0.9 Junior | [A112B2.000] | 07.1975-12.1985 |
| AUTOBIANCHI | A 112 1.0 Abarth | [A112A2.000] | 01.1974-12.1984 |
| AUTOBIANCHI | A 112 1.0 E Elite,LX | [A112B1.000] | 11.1977-12.1984 |
| FIAT | 238-Series 1.4 | [131AZ000] | 01.1978-06.1982 |
| FIAT | 238-Series 1.4 | [131BZ0C0] | 06.1980-06.1982 |
| FIAT | 238-Series 1.4 | [131FZ] | 06.1980-06.1982 |
| FIAT | Fiorino 0.9 | [100GL.000] | 10.1977-03.1981 |
| FIAT | Panda 0.8 | [141B.000] | 01.1986-01.1995 |
| FIAT | Panda 0.8 | [M020BS..] | 02.1981-12.1985 |
| FIAT | Panda 0.9 | [100GL3.000] | 09.1982-12.1985 |
| FIAT | Panda 0.9 | [1170A1.046] | 04.1992-10.1996 |
| FIAT | Panda 0.9 | [146A.000] | 09.1982-12.1985 |
| FIAT | Panda 1.0 | [A112B1.054] | 09.1982-08.1983 |
| FIAT | Panda 1.0 4x4 | [A112B1.054] | 09.1983-12.1985 |
| FIAT | Uno 0.9 ES | [146A.000] | 03.1983-09.1992 |
| FIAT | Uno 0.9 ES | [146A.1000] | 03.1983-09.1992 |
| LANCIA | A 112 1.0 Abarth | [A112A.2000] | 03.1978-02.1984 |
| SEAT | Fura 0.9 | [09NCA] | 03.1984-12.1986 |
| SEAT | Fura 0.9 | [100GL7000] | 03.1984-12.1986 |
| SEAT | Fura 0.9 | [HB90] | 01.1982-06.1986 |
| SEAT | Ibiza 0.9 | [09NCA] | 08.1990-05.1993 |
| SEAT | Ibiza 0.9 | [146A000] | 06.1984-05.1993 |
| SEAT | Marbella 0.8 | [08NCA] | 08.1986-12.1993 |
| SEAT | Marbella 0.9 | [09NCA] | 01.1987-12.1993 |
| SEAT | Marbella 0.9 | [09NCB] | 01.1987-02.1997 |
| SEAT | Panda 0.9 | [100GL7000] | 10.1980-12.1986 |
| SEAT | TeRa 0.9 | [09NCA] | 01.1987-12.1996 |
| SEAT | TeRa 0.9 | [09NCB] | 01.1990-12.1995 |
| ZASTAVA | Yugo 0.9 | [9A] | 01.1985-06.1992 |
Reference Information
63321001 20104211BN 111078 0003934961 516032 076903023G 20264N 5958394 11.0307 28-0877 63307106 505.012.045.462 77110411 CAL30112AS 5958395 505.012.045.461 5973034 55607 63307108 77110410 5973035 63303701 CA252IR 46231684 46231687 0986032340 21188N 5962646 ALP12N-24 0986032341 4551758 ALP12N-20 5947376 A002T32171 46621396 63308701 20119811OE ALT4150 4384014 8EL725709-001 ALT12032 4474812 13460 4456152 5947366 20100190 2021118 4274762 4274759 77320410 4242498 46207934 30307RI 4458618 63303703 7541823 CAL21118GS 9032341 DAN608 63303001010 LRA832 SE141903020A 554098RI ANM34561X 77367411 STX101379 2702061013 63306701 2702061130 SA409 77161410 AAK1128 11.201.093 111035 440454 5967596 5967595 77175410 STX100977 4395131 20104211OE CA307IR 4450594 9120144229 9120144228 7533853 STX100296 LT13535A 63303502 210225 5952011 4141 7565558 ALT1090 32680330 ALT321120 4274813 4274812 STX100859 DRA2341N 5958060 7580207 DRA2341 992235 436113 XO39349610 LRA00832 505.012.045.050 7546342 4434084 STX100904 46231655 7546343 CAL30112GS 2030112 AEA8132 77110910 STX100630 9120144240 2702061100 063303001 9120144241 63320002 DAN645 4417595 A2T32171 4383593 VA203 24041 77176410 STX101379R 7765558 4451758 4451759 505.012.045 ALTL735Video/Publications
