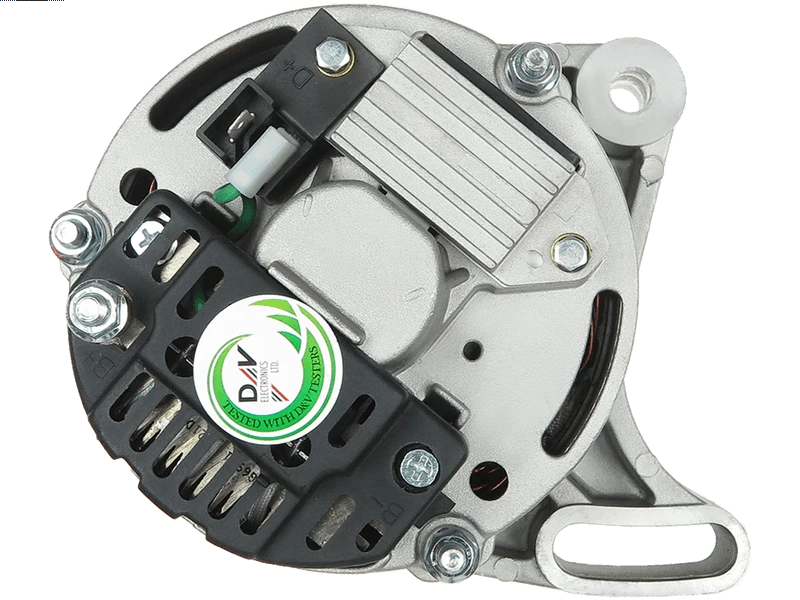

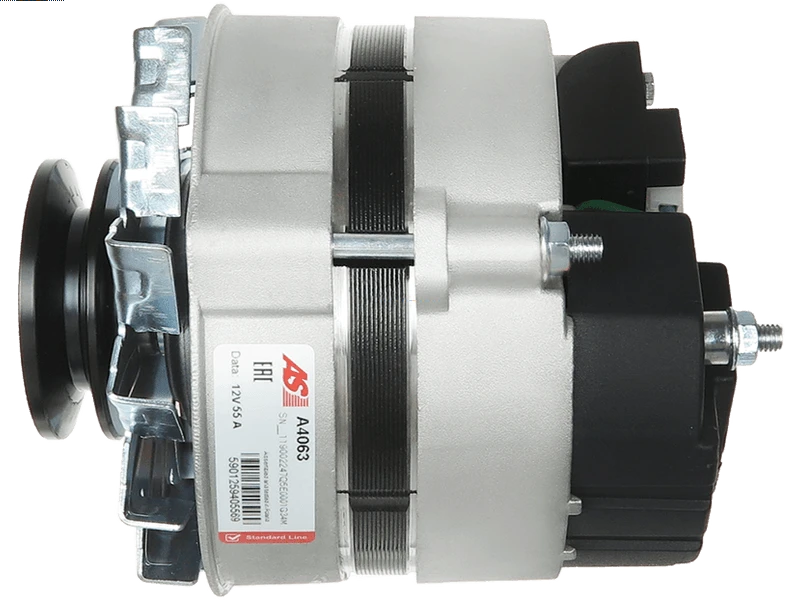

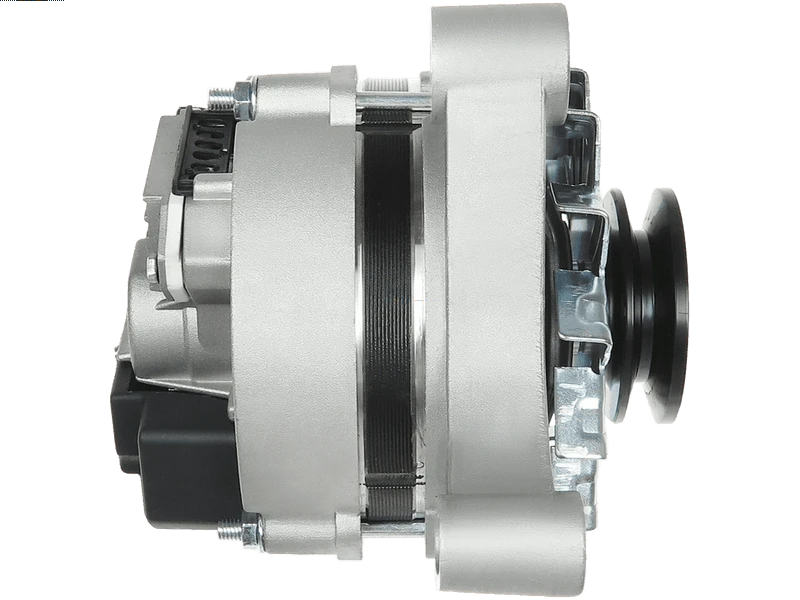

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 313.00 including GST
NZ$ 272.17 excluding GST
or four payments of $78.25
with
Learn More
each
A9227
A4063
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63320034Associated Numbers
063321000010 063321067010 0986035641 11.0350 11.0572 11.0572M 11.201.358 111036 111621 20100695 20104921BN 20104921OE 20104931BN 20104931OE 2030129 2030139 20696R 2512 2518028 2541399 274020.0 28-0733 28-0996 30350RI 30350RIM 30572RI 32320001 4266 436118 436230 46231657 46231659 46231660 505.017.045 55604 55698 5999868 5999869 63320001 63320034 63321000 63321067 63321198 7565832 77305410 77347411 89212633 8EL012427-371 8EL725754-001 8EL725861-001 9035641 9212633 A125-45C A125-55G A13E50 AAK4177 AEA5158 AEA6195 ALT12035 CA350IR CA572IR CAL30129AS CAL30129GS CAL30139AS CAL30139GS DAN574 DAN605 DRA3409 DRA3409N DRA5641 DRA5641N EAA-221160 GA321000-A IA0258 LRA00558 LRA00695 SA633 SA721 VA144 ARROWHEAD IA0358 BOSCH FIAT 46231675 LUCAS ELECTRIC LRA558 LRA695 MAHLE MG205 MARELLI 943321000 943321067 MAN342 OTHER OEMS PARIS RHONE A13E1 VALEO 433085 NA335 Magneti Marelli Bosch ruil Cargo 11201358 Mahle show 12035640 EuroTec 12038620 218112552 DRI Valeo 280733 Elstock 286627 436401 Fiat 46419911 505017055 PSH 5152SP Spidan EAI 63320034010 63320102 63321067010 63321198010 72735204 746869 7683167 7713141 7L65832AA VW 9035641F Friesen 9038621F 9120690411 935641 EDR 944390356410 A13E01 ALT1081sa Electrolog ALT9009sa HC Denso DAN612 HCA572IR L38620 ATL Lucas LRA558R MAN300 DELCO REMY HELLA 8EL 725 754-001 861-001 CA 350 IR 572 LANCIA LESTER 20695 20696 MAGNETI 633 200 01 34 210 00 67 9433 ES WAI Old MG432 Alltech IA 0735 American Power Systems APS20695 Armature G Roy Atelier Dynamo A282-110 Bepco 80-20695 EGI A-20695 Lester Letrika (Iskra) 11.201.735 Sales Tech. AAK4580 Lombardini 11572690 MG 432 Minnpar 47-4658 Mondial 62-811-00 Part # PASCO A-920110 PIC 282-435 Powerite Automotive Quality Rebuilders 120695 Real 20101933 20104108 Stratoline Techno CVC IND-1140102 TSA 20695N UCP Remanufactured Zorko New 20696N 1-3088-01MM ACE Zorkos CA20695N 314-20695 A202-128B Autoelectro Service Europe 0 986 035 641 603 564 Bowers BAO3031 Casco CAL21159GS CAL30129RS A/S Denmark 218112452 588101452 ERA 210213 210269 Expom ER-435 Parts CA350 CA572 0358 Electrical LRA03517 205 MAN 063321189010 63321189 62-021-80 62-021-80N Our Number A-120128B Select Raw 20104109 20104200 40104109 Road Warrior Rotex Sovereign Wood Auto Supplies AIA0026 IA0735 J&N ELECTRICAL PRODUCTS 400-29023 20692 LETRIKA/ISKRA LOMBARDINI 63321176 063320001 063320034 063321000 063321067 063321198 0986035640 100420 Efel 111081 11201735 1157360 Prestolite 20222615 2518 CEVAM 2541135 2541284 280996 Herth Buss 3339 3339SP 4287013F1 Agco 443192 46207933 46261659 505017045 5152 63320001010 63320102010 63321000010 63321189010 71721140 72735431 746069 8EL725754001 Hella 8EL725861001 9124476327 A13E17 A13E30 Remy FRA797 QH HCA350IR L35640 L35645 SP5152 W23020 Van Heck W26182 WSD23019 StabecoSpecifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 32 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 12 mm |
| Length (L.1) | 160 mm |
| OEM Product | No |
| Plug Code | PL_1200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 43 mm |
| Pulley Outside Diameter (O.D.2) | 65 mm |
| Pulley to Mount Distance (A) | 58 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUTOBIANCHI | Y10 1.0 | [156A2.000] | 03.1985- |
| AUTOBIANCHI | Y10 1.0 | [156A2.246] | 01.1989-09.1992 |
| AUTOBIANCHI | Y10 1.0 4WD | [156A3.000] | 09.1986-12.1988 |
| AUTOBIANCHI | Y10 1.0 Turbo | [156A1.000] | 03.1985-12.1988 |
| AUTOBIANCHI | Y10 1.1 | [156C.000] | 06.1989-09.1992 |
| AUTOBIANCHI | Y10 1.1 4WD | [156C.000] | 06.1989-09.1992 |
| AUTOBIANCHI | Y10 1.1 i.e. | [156C.046] | 09.1990-01.1995 |
| FIAT | Panda 0.8 | [156A4.000] | 01.1986-12.1992 |
| FIAT | Panda 0.8 | [156A4.000] | 01.1995-12.1997 |
| FIAT | Panda 0.8 | [156A4.048] | 01.1995-12.1997 |
| FIAT | Panda 1.0 | [156A2.048] | 01.1986-07.1989 |
| FIAT | Panda 1.0 | [156A2.048] | 07.1989-04.1992 |
| FIAT | Panda 1.0 | [156A2.100] | 03.1989-06.1990 |
| FIAT | Panda 1.0 | [156A.3000] | 07.1990-12.1992 |
| FIAT | Panda 1.0 | [156A3.100] | 01.1986-02.1992 |
| FIAT | Panda 1.0 4x4 | [156A2.100] | 03.1989-06.1990 |
| FIAT | Panda 1.0 4x4 | [156A3.000] | 01.1986-06.1990 |
| FIAT | Panda 1.0 4x4 | [156A3.000] | 07.1990-12.1992 |
| FIAT | Panda 1.0 4x4 | [156A3.100] | 03.1989-06.1990 |
| FIAT | Panda 1.0 i.e. | [141C2.000] | 01.1995-09.2003 |
| FIAT | Panda 1.0 i.e. | [156A2.246] | 07.1990-02.2004 |
| FIAT | Panda 1.0 i.e. 4x4 | [156A2.246] | 05.1986-06.1990 |
| FIAT | Panda 1.0 i.e. 4x4 | [156A2.246] | 07.1990-04.1992 |
| FIAT | Panda 1.0 i.e. 4x4 | [176B2.000] | 02.1995-09.2003 |
| FIAT | Panda 1.1 4x4 trekking | [156C.046] | 10.1991-07.2004 |
| FIAT | Panda 1.1 Selecta | [156C.046] | 03.1992-03.1997 |
| FIAT | Panda 1.1 Selecta | [176B2.000] | 02.1995-09.2003 |
| FIAT | Panda 1.1 Selecta | [187A1.000] | 02.1995-09.2003 |
| FIAT | Tipo 1.1 Digit | [160A3.000] | 07.1987-03.1993 |
| FIAT | Uno 1.0 | [156A2.048] | 06.1986-05.1991 |
| FIAT | Uno 1.0 | [156A2.100] | 06.1986-03.1994 |
| FIAT | Uno 1.0 | [156A2.100] | 06.1986-10.2002 |
| FIAT | Uno 1.0 i.e. | [156A2.246] | 08.1985-09.1992 |
| FIAT | Uno 1.1 | [146A4.044] | 01.1986-12.1989 |
| FIAT | Uno 1.1 | [156C.046] | 01.1990-12.1993 |
| FIAT | Uno 1.1 | [160A3.000] | 04.1989-12.1992 |
| FIAT | Uno 1.1 i.e. | [146C3.000] | 09.1989-03.1994 |
| LANCIA | Y10 1.0 Fire | [156A2.000] | 03.1985-06.1989 |
| LANCIA | Y10 1.0 Fire | [156A2.100] | 03.1989-06.1991 |
| LANCIA | Y10 1.0 Fire | [156A2.246] | 10.1987-02.1992 |
| LANCIA | Y10 1.0 Fire 4WD | [156A2.000] | 09.1986-02.1989 |
| LANCIA | Y10 1.0 Fire 4WD | [156A2.100] | 03.1989-06.1991 |
| LANCIA | Y10 1.0 Fire 4WD | [156A2.246] | 12.1987-02.1992 |
| LANCIA | Y10 1.1 Avenue | [176B2.000] | 09.1992-12.1995 |
| LANCIA | Y10 1.1 Avenue 4WD | [176B2.000] | 09.1992-12.1995 |
| LANCIA | Y10 1.1 i.e. | [156C.000] | 01.1989-09.1992 |
| LANCIA | Y10 1.1 i.e. 4WD | [156C.000] | 01.1989-09.1992 |
Reference Information
DAN574 8EL725861-001 30572RI ANM35629 DAN612 604ST55 2030139.2 20696N 440497 DRA5641 STX100346R AC-CBA0572 55604 CAL30139AS 111621 20104931BN WG2196956 NA335 011-003-000278R 505.017.055.311 CAL30139RS LEA672 2030139.1 2030139.0 G106416 063321067 63321198010 3119054 AG0167 MAHMG205 0986035641 3119052 ALE0350 AAK4177 30572RIM A4063 505.017.055.090 20104931RC 063321198 G104821 L35645 WG2043478 218112552 AG0167RB ALT20723 CA572IR 20030139AV LETIA0358 0000046231660 063321067010 210213 WG2011674 063320034 WOOALT20723 505.017.055.461 436118 MG205 505.017.055.462 63320034010 AI-90282 LEA0672 ALT7857 CAR-821160 QRA1544 HCA572IR 8550505029 DRA3409N STX100502 7L65832AA 433085 20104931OE IA0358 72735204 ALT321390 9120690411 AMM139A H5530107 A12ML0265A2 443192 IR7610 11.201.358 9035645 2541399 ALT321390A 0000007565832 28-0733 DRA5641X 5530107 CAL30139GS G101912 8EL012427-371 DRA3409 WG2280575 DRA5641N MAN300 46231660 AL00498 10441942 FI8019 BREF0320986035641Video/Publications
