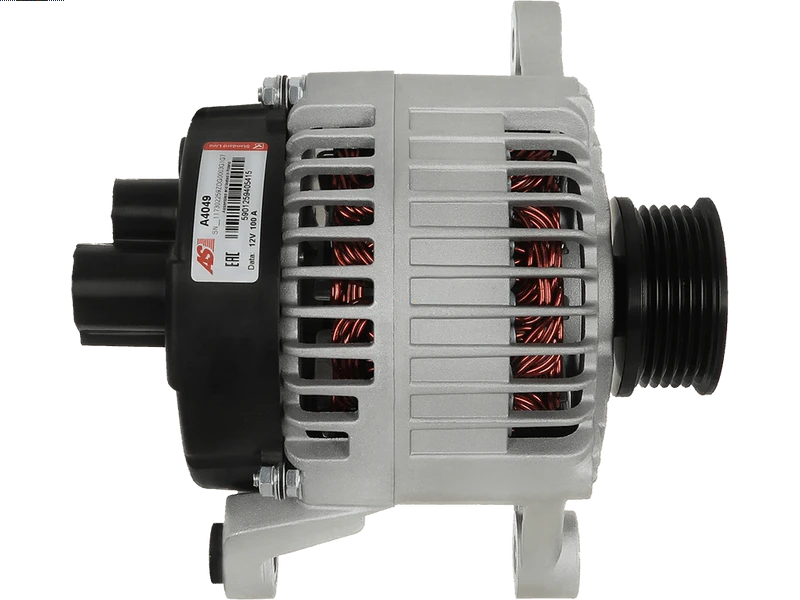

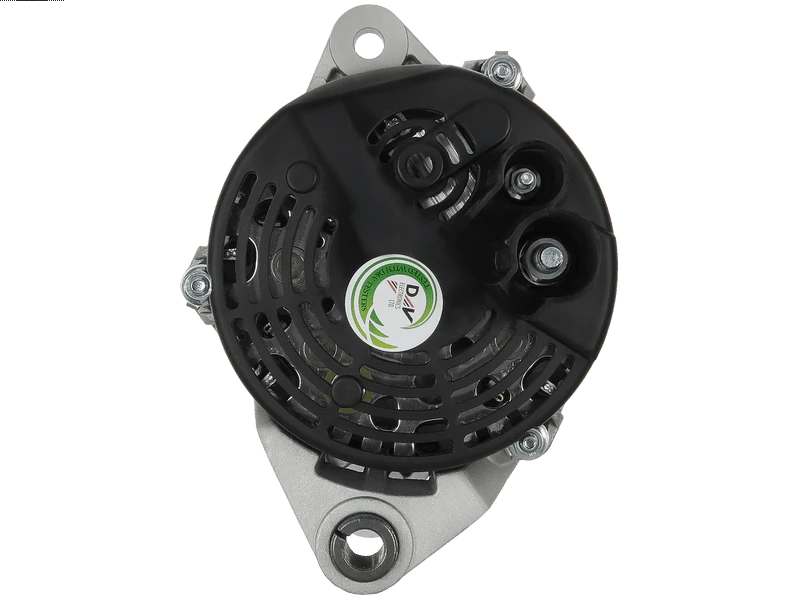

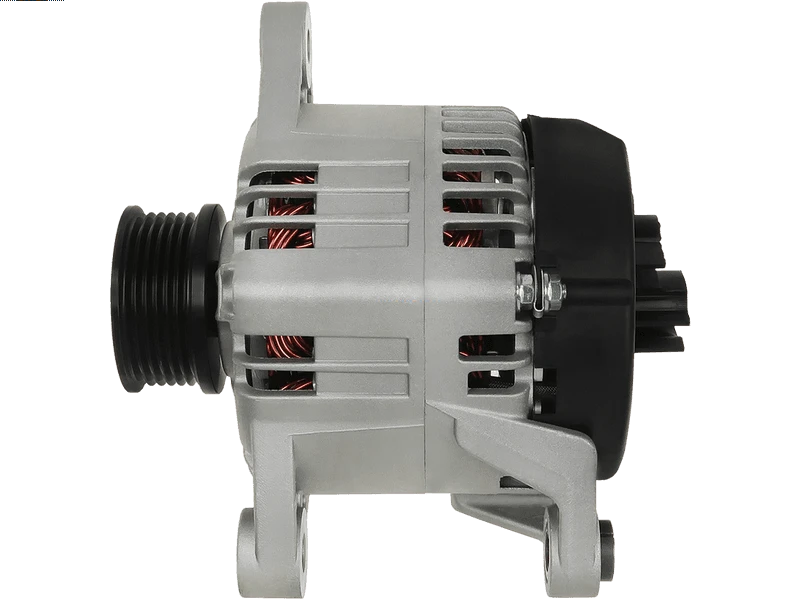

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 348.48 including GST
NZ$ 303.03 excluding GST
or four payments of $87.12
with
Learn More
each
A4049
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321332Associated Numbers
0986046480 11.1199 111568 20104101BN 20104101OE 20104281OE 20104291BN 20104291OE 20110418 2030101 2030182 2030192 28-3580 28-4613 28-4929 301199RI 301199RIM 301348RI 301348RIM 437780 437815 4616 46420966 46425518 46442777 46521851 46532168 46774413 56537 5705GW 5705S0 63321227 63321237 63321331 63321332 63321453 63321485 63321489 63321792 7769840 89213340 8EL737219-001 9090328 9213340 A4049 AEA2216 ALT12052 CA1199IR CAL30101AS CAL30101GS CAL30101OS CAL30182GS CAL30192AS CAL30192GS DAN621 DAN624 DRA3766 EAA-221256 GA321332-A LRA01779 LRA02811Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 21.5 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 203 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumpy 1.6 | [1580SPI] | 10.1995- |
| CITROEN | Jumpy 1.6 | [220A2.000] | 10.1995- |
| CITROEN | Jumpy 1.6 i | [1580SPI] | 10.1995- |
| CITROEN | Jumpy 1.6 i | [220A2.000] | 10.1995- |
| FIAT | Fiorino 1.7 TD | [146D7.000] | 01.1997-12.1998 |
| FIAT | Palio 1.0 | [178A1.000] | 04.1996- |
| FIAT | Palio 1.7 TD | [176A3.000] | 04.1996- |
| FIAT | Palio 1.7 TD | [176A3.000] | 04.1996-03.2001 |
| FIAT | Punto 1.7 TD | [176A3.000] | 01.1994- |
| FIAT | Punto 1.7 TD | [176A5.000] | 01.1994-08.1999 |
| FIAT | Punto 1.7 TD | [176A5.000] | 08.1997-08.1999 |
| FIAT | Punto 1.7 TD | [176B7.000] | 09.1996- |
| FIAT | Scudo 1.6 | [220A2.000] | 02.1996- |
| FIAT | Strada 1.7 TD | [176A3.000] | 06.1999- |
Reference Information
11.1199 63321485 20104291OE ALT12052 20110418 CA1199IR 46430112 LRA2811 CAL30192AS STX100654 28-3580 ALT2240 46442777 56537 1304491080 20104281OE STA0155R LRA01779 ALT9095 46425518 8EL737219-001 DAN621 46425517 DAN624 63321792 28-4929 5705S0 CAL30101OS ANM35986X STX100539 2030101 CAL30101GS 46521851 2030182 210355 63321227 4616 46774413 LRA02811 ALT9061 46532168 20104101OE ALT90001 2030192 9213340 CAL30192GS 20104101BN ALTF045 28-4613 46434931 7769840 DRA3766 5705GW A12MA1137A2 111568 63321332 63321453 1312390080 301199RI 46420966 CAL30182GS 57057T STX101458 9090328 A4049 ALT321820 301348RI LRA1779 0986046480 20104291BN CAL30101AS GA321332-A STX100320 301348RIM ALTL215 63321489 89213340 301199RIM 210215Video/Publications
