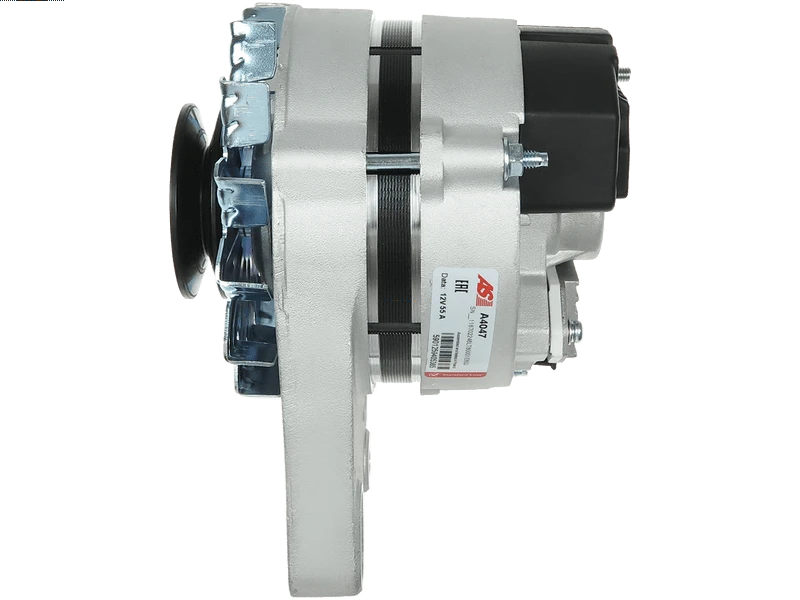

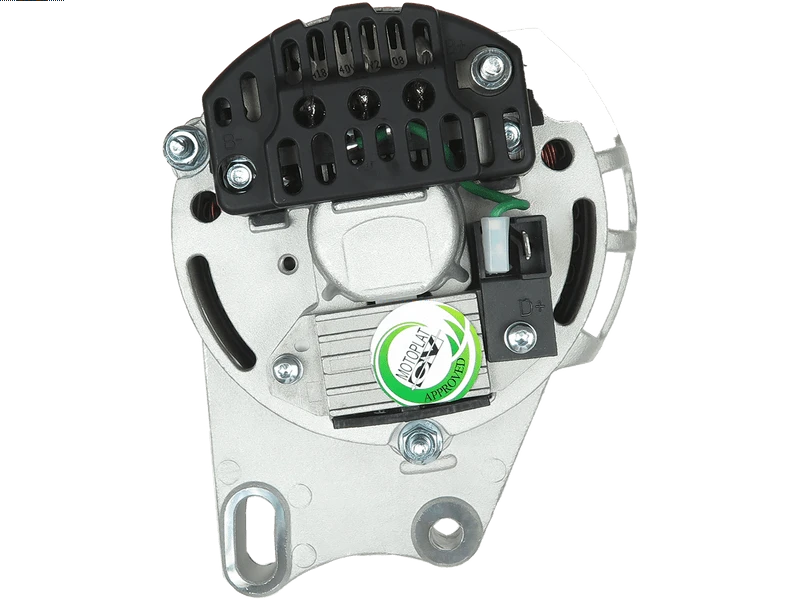

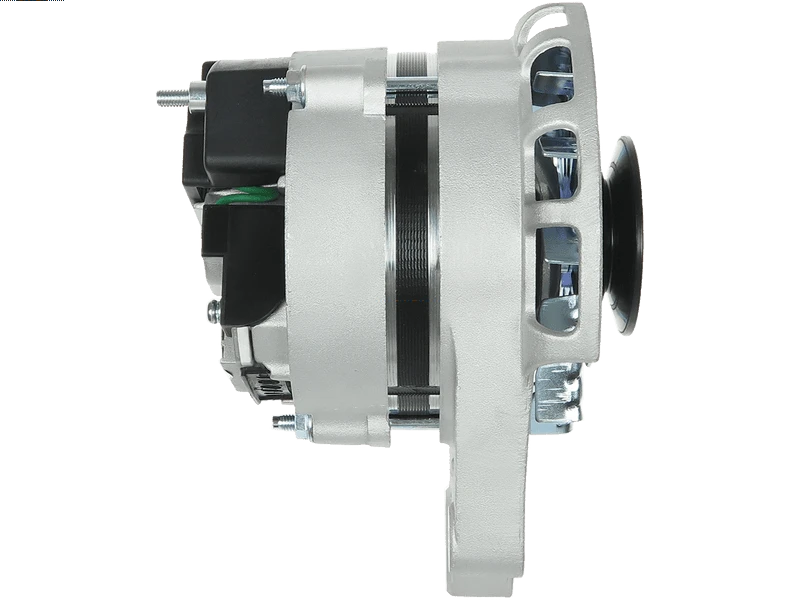

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 298.61 including GST
NZ$ 259.66 excluding GST
or four payments of $74.65
with
Learn More
each
A4047
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321165Associated Numbers
063321165010 063730893010 0986039501 11.201.355 111687 20104011BN 20104011OE 20110188 2021119 2030110 210023 21188N 272.020.0 28-1832 293.020.0 295.020.0 30307RI 30893RI 437370 4541 46231650 505.012.055 56323 63320094 63321165 63321454 63341454 71721180 72735607 746064 7704356 7711092 77110920 89212601 8EL012427-471 8EL731727-001 943321165 943321165010 943321171010 944390395010 A4047 AAK4174 AEA1288 AG0183 ALE0893 ALT12050 CAL21119 CAL21119AS CAL21119ES CAL21119GS CAL21119OS CAL21119RS CAL30110AS CAL30110GS DA0611 DAN618 DRA9501 EAA-221464 IA0355 LRB00188 MAR329 MAR382 MG608 MRA39501 SA219 SA540Specifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 23.5 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 11 mm |
| Length (L.1) | 159 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 38.5 mm |
| Pulley Outside Diameter (O.D.2) | 68 mm |
| Pulley to Mount Distance (A) | 54.5 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 600 0.9 | [1170A1.046] | 11.1997-12.2008 |
| FIAT | Cinquecento 0.9 | [170A1.000] | 07.1991-12.1993 |
| FIAT | Cinquecento 0.9 i.e. | [170A1.046] | 07.1991-09.1994 |
| FIAT | Cinquecento 0.9 i.e. S | [1170A1.000] | 07.1991-07.1999 |
| FIAT | Cinquecento 0.9 i.e. S | [1170A1.046] | 07.1991-07.1999 |
| FIAT | Panda 750 Cat | 01.1995-10.2003 | |
| FIAT | Panda 900 | [1170A1.046] | 04.1992-12.1996 |
| FIAT | Seicento 0.9 | [1170A1.046] | 11.1997-12.2008 |
Reference Information
943321165 0986039501 CA893IR A12ML0013A2 46528045 746064 ALT12050 LRB00188 63321165 AG0183 DAN618 063321165010 ANM31721X 437370 8EL731727-001 20110188 8EL012427-471 ALE0893 CAL30110AS 293.020.0 DA0611 ALTL289 MG 210023 CAL21119RS 210225 AEA1288 CAL21119OS 46472225 7693374 77110890 46467694 ALT1090 MAR329 STX100081R ALT321120 4541 21188N LRB188 CAL21119GS A12MA1190A2 7711089 2030110.0 944390395010 RNL3950 ALT7823 63341454 77110920 STA0018R 30893RI MG608 2030110.1 7704356 608 72735607 46231650 IA0355 10588735 2021119.1 11.201.355 63320094 SA540 7711091 7711092 943321171010 CAL30110GS DRA9501 943321165010 MRA39501 AAK4174 30307RI STX100081 505.012.055 63321454 111687 SA219 71780110 89212601 ALTL692 20104011OE CAL21119 71721180 CAL21119ES 20104011BN A4047 CAL21119AS MAR382 28-1832 295.020.0 5530036 063730893010 56323 272.020.0Video/Publications
A4047View your shopping basket or Browse other items in Alternators.
