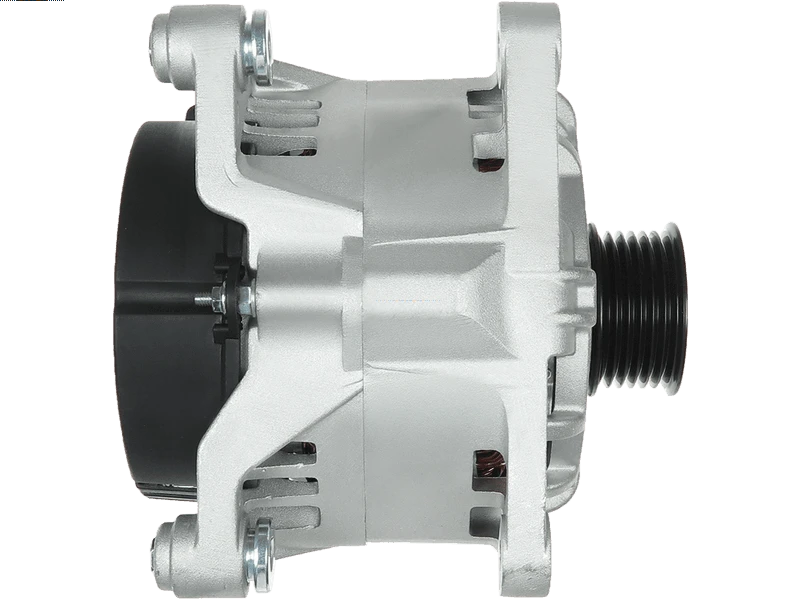

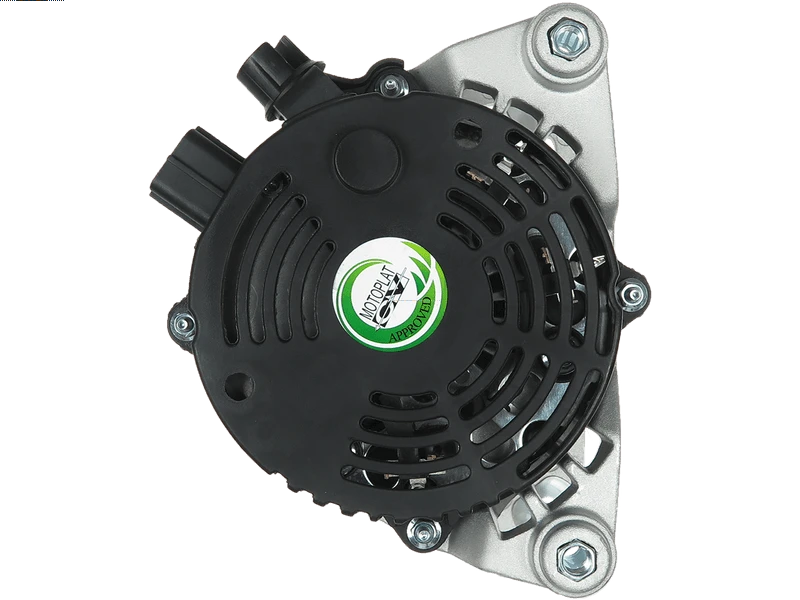

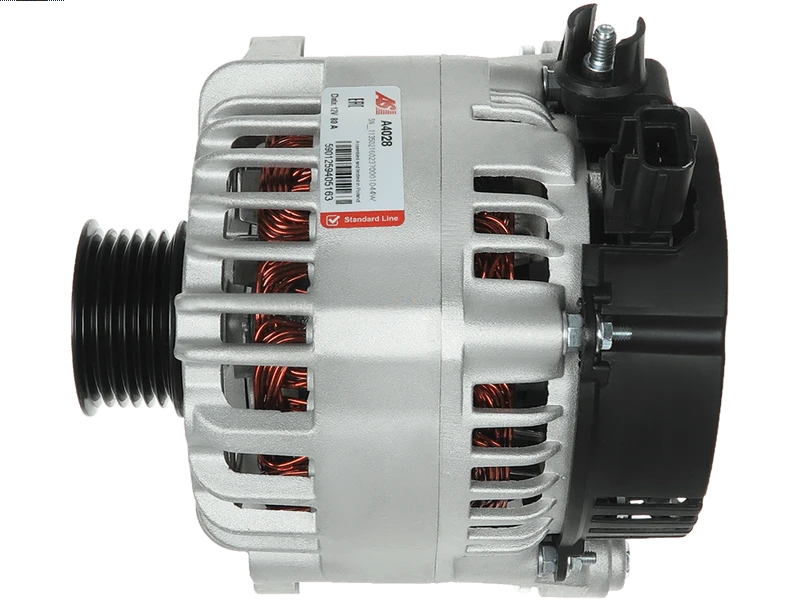

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 376.82 including GST
NZ$ 327.67 excluding GST
or four payments of $94.21
with
Learn More
each
A4028
3
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321678Associated Numbers
063377409010 0986044671 1031496 1070804 1073089 1097304 112143 1126052 1127000 1215770 1301496 20104161BN 20104161OE 20110358 2030161 210196 21358N 27-3789 301475RI 301475RID 301483RI 32044671 4010 437620 56730 595.527.080 63321678 63341676 63341678 89212915 8EL012428-621 8EL737711-001 944390900760 98AB-10300-DA 98AB-10300-DB 98AB-10300-DC 98AB-10300-DD 98AB-10300-DE 98AB-10300-DF 98AB-10300-DG 98AB-10300-DH 98AB-10300-DJ A4028 AEA3258 AG0193 ALE1483 ALT10008 ALT12119 CA1483IR CAL30161 CAL30161AS CAL30161ES CAL30161GS CAL30161OS CAL30161RS DA4759 DAN507 DAN562 DRA3649 EAA-221320 F042307013 LRB00358 MRA90076 R98AB-10300-DB RAA14750 SA128 063377401 Magneti Marelli 063377414010 Bosch ruil 1022118030 Denso 1022118031 Ford 1064384 11209428 Mahle Cargo 12044670 EuroTec show 1406099 Prestolite Sando 219149802 DRI 273789 Elstock Herth Buss CEVAM Valeo 5262182 EAI 5796SP Spidan 595527080 PSH 63321678010 63341678010 63377409 63377409010 72740665 849140 8EL737711001 Hella 9090076F Friesen 9124476603 933649 EDR 98AB10300DA 98AB10300DB 98AB10300DC 98AB10300DD 98AB10300DE 98AB10300DF 98AB10300DG 98AB10300DH 98AB10300DJ 98ABDC 98ABDG AAK5596 Auto Electro Ghibaudi AL162 SAS ALT9052sa Electrolog BAO3189 Bowers HC DMS1711 DriveTec Remy F042A07013 HCA1483IR IA9026 L44670 ATL Lucas LRB358 LRB358R MAN7409 MG729 NAL1639 Napa (UK) OAN11226 Optimum R98AB10300DB RAA14764 RNL63321678 RNL Sovereign VLN901483 ADI WSD23231 Stabeco 65-8582 65-8582g ANM014GQ Engineering 98AB-DA 98AB-DB 98AB-DC 98AB-DD 98AB-DE 98AB-DF 98AB-DG 98AB-DH IAT A21358 Lester 21358 PIC 202-269 Unipoint ALT-4219 axa975 AXA975 CARGO Industry Voltux V2-21358 WAI 1-2728-01MMSpecifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 16.5 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 63 mm |
| OEM Product | No |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 48 mm |
| Pulley to Mount Distance (A) | 33.5 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Focus 1.8 i 16V | [EYDB] | 10.1998- |
| FORD | Focus 1.8 i 16V | [EYDC] | 10.1998- |
| FORD | Focus 1.8 i 16V | [EYDD] | 10.1998- |
| FORD | Focus 1.8 i 16V | [EYDE] | 10.1998- |
| FORD | Focus 1.8 i 16V | [EYDF] | 10.1998- |
| FORD | Focus 1.8 i 16V | [EYDG] | 10.1998- |
| FORD | Focus 1.8 i 16V | [EYDI] | 10.1998- |
| FORD | Focus 1.8 i 16V | [EYDJ] | 10.1998- |
| FORD | Focus 1.8 i 16V | [EYDL] | 10.1998- |
| FORD | Focus 2.0 | [ALDA] | 03.2002- |
| FORD | Focus 2.0 16V | [EDDB] | 08.1998-05.2005 |
| FORD | Focus 2.0 16V | [EDDC] | 10.1998-05.2005 |
| FORD | Focus 2.0 16V | [EDDD] | 08.1998-05.2005 |
| FORD | Focus 2.0 16V | [EDDF] | 11.1998-05.2005 |
| FORD | Focus 2.0 RS | [HMDA] | 10.2002- |
Reference Information
AEA3258 4010 1215770 A12MA0426A2 210196 SA128 27-3789 1201206 89212915 1073089 20104161OE 1070804 ALT2320 944390900760 RAA14750 56730 20104161BN ANM35869X 063377409010 2030161.0 RNL63321678 1301496 CA1483IR 63321678 1127000 F042307013 ALT90038 301483RI DAN507 1031496 21358N CAL30161ES A4028 98AB-10300-DE R98AB-10300-DB 98AB-10300-DD ALTF331 98AB-10300-DC 595.527.080.461 98AB-10300-DB 98AB-10300-DA STX100102 CAL30161AS CAL30161 1064384 98AB-10300-DJ 98AB-10300-DH 98AB-10300-DG 98AB-10300-DF 1136328 STA0110R MRA90076 CAL30161RS 20110358 ALT12119 LRB358 8EL737711-001 1406099 32044671 ALE1483 DA4759 0986044671 210444 STX100102R 8EL012428-621 DRA3649 1126052 CAL30161OS DAN562 CGB-13649 CAL30161GS LRB00358 1144181 ALT135 AG0193 1097304 R98AB10300DE1 STX100004 ALT10008 437620 STX100004R 112143 595.527.080 63341676 63341678Video/Publications
