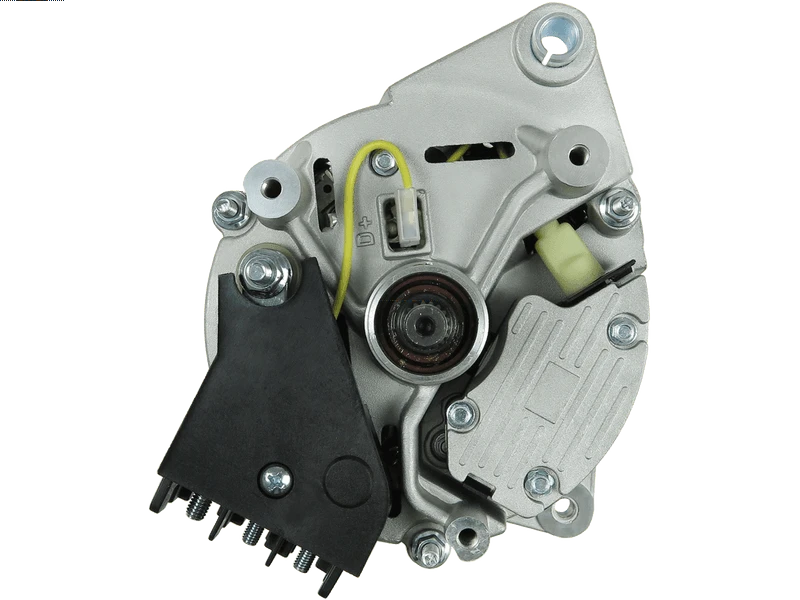

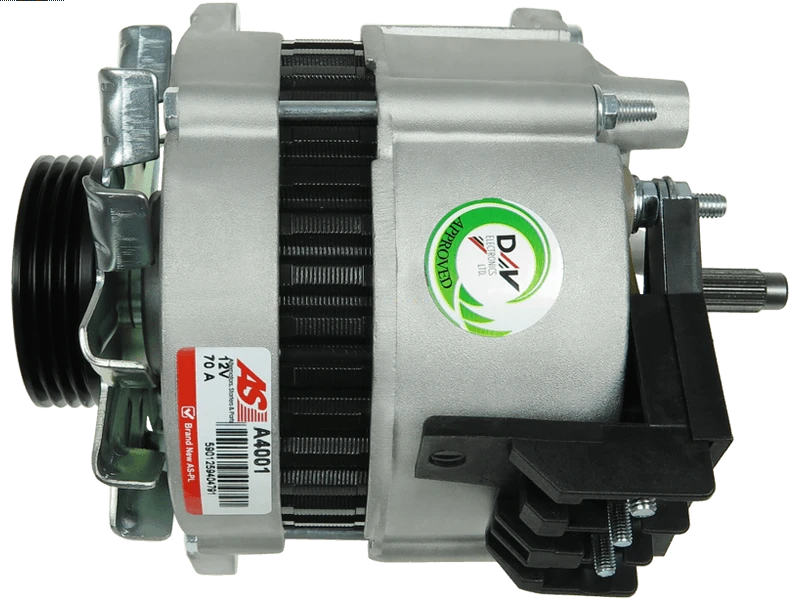

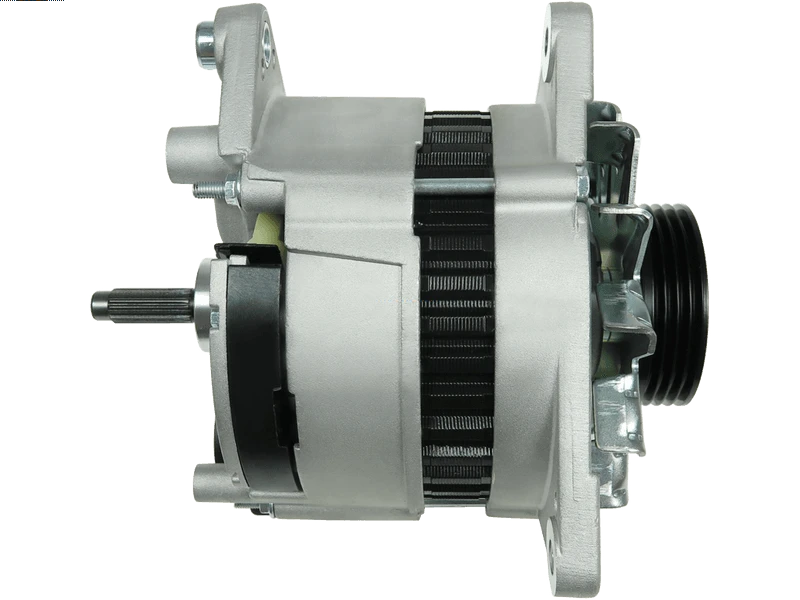

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 283.00 including GST
NZ$ 246.09 excluding GST
or four payments of $70.75
with
Learn More
each
A4001
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
111623 115890 20105201 20110161 20110161WP 2025102 23681N 24374 28-3503 301031RI 301031RIL 30719RI 30719RIL 437390 54022394 54022394A 54022394B 54022394D 54022394E 54022495 54022495A 54022495B 54022495D 54022495E 54022575 54022689 54022689A 56294 595.802.070 89213416 8EL730017-001 924F-10K359-AB 954F-10300-AA 954F-10K359-AB A4001 AEA1261 ALL0719 ALT16016 CA719IR CAL25102 CAL25102AS CAL25102ES CAL25102GS CAL25102OS CAL25102RS DA4479 DRA3369 LRA02738 RAA14470 SA339 SA439 SA453Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 12.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 201 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83 mm |
| OEM Product | No |
| Plug Code | PL_9101 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 67 mm |
| Pulley to Mount Distance (A) | 34.5 mm |
| Pulley Type | SOLID |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Scorpio 2.5 TD | [VM] | 09.1996-08.1998 |
| FORD | Transit 2.5 Di | [4BC] | 05.1991-06.1994 |
| FORD | Transit 2.5 Di | [4BC] | 08.1991-07.1994 |
| FORD | Transit 2.5 Di | [4BC] | 09.1991-08.1994 |
| FORD | Transit 2.5 Di | [4CC] | 05.1991-06.1994 |
| FORD | Transit 2.5 Di | [4CC] | 08.1991-07.1994 |
| FORD | Transit 2.5 Di | [4CC] | 09.1991-08.1994 |
| FORD | Transit 2.5 Di | [4DA] | 05.1991-06.1994 |
| FORD | Transit 2.5 Di | [4DA] | 09.1991-07.1994 |
| FORD | Transit 2.5 Di | [4DA] | 09.1991-08.1994 |
| FORD | Transit 2.5 Di | [4FA] | 06.1994-03.2000 |
| FORD | Transit 2.5 Di | [4FA] | 08.1991-07.1994 |
| FORD | Transit 2.5 Di | [4FA] | 08.1994-03.2000 |
| FORD | Transit 2.5 Di | [4FA] | 09.1991-08.1994 |
| FORD | Transit 2.5 Di | [4FB] | 06.1994-03.2000 |
| FORD | Transit 2.5 Di | [4FB] | 08.1994-03.2000 |
| FORD | Transit 2.5 Di | [4FC] | 06.1994-03.2000 |
| FORD | Transit 2.5 Di | [4FC] | 08.1994-03.2000 |
| FORD | Transit 2.5 Di | [4FD] | 06.1994-03.2000 |
| FORD | Transit 2.5 Di | [4FD] | 08.1994-03.2000 |
| FORD | Transit 2.5 Di | [4GA] | 10.1992-06.1994 |
| FORD | Transit 2.5 Di | [4GA] | 11.1992-08.1994 |
| FORD | Transit 2.5 Di | [4GB] | 10.1992-06.1994 |
| FORD | Transit 2.5 Di | [4GB] | 11.1992-08.1994 |
| FORD | Transit 2.5 Di | [4GC] | 11.1992-08.1994 |
| FORD | Transit 2.5 Di | [4HB] | 06.1994-03.2000 |
| FORD | Transit 2.5 Di | [4HB] | 07.1994-03.2000 |
| FORD | Transit 2.5 Di | [4HB] | 08.1994-03.2000 |
| FORD | Transit 2.5 Di | [4HC] | 06.1994-03.2000 |
| FORD | Transit 2.5 Di | [4HC] | 08.1994-03.2000 |
| FORD | Transit 2.5 DTi | [4HC] | 07.1994-03.2000 |
| FORD | Transit 2.5 TD | [4EA] | 05.1991-06.1994 |
| FORD | Transit 2.5 TD | [4EA] | 09.1991-07.1994 |
| FORD | Transit 2.5 TD | [4EA] | 09.1991-08.1994 |
| FORD | Transit 2.5 TD | [4EB] | 05.1991-06.1994 |
| FORD | Transit 2.5 TD | [4EB] | 07.1994-03.2000 |
| FORD | Transit 2.5 TD | [4EB] | 08.1994-03.2000 |
| FORD | Transit 2.5 TD | [4EB] | 09.1991-07.1994 |
| FORD | Transit 2.5 TD | [4EB] | 09.1991-08.1994 |
| FORD | Transit 2.5 TD | [4EC] | 07.1994-03.2000 |
| FORD | Transit 2.5 TD | [4EC] | 08.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GA] | 01.1995-03.2000 |
| FORD | Transit 2.5 TD | [4GA] | 06.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GA] | 08.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GA] | 10.1992-07.1994 |
| FORD | Transit 2.5 TD | [4GB] | 01.1995-03.2000 |
| FORD | Transit 2.5 TD | [4GB] | 06.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GB] | 08.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GB] | 10.1992-07.1994 |
| FORD | Transit 2.5 TD | [4GC] | 01.1995-03.2000 |
| FORD | Transit 2.5 TD | [4GC] | 08.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GC] | 10.1992-07.1994 |
| FORD | Transit 2.5 TD | [4GD] | 01.1995-03.2000 |
| FORD | Transit 2.5 TD | [4GD] | 06.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GD] | 08.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GE] | 01.1995-03.2000 |
| FORD | Transit 2.5 TD | [4GE] | 08.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GF] | 01.1995-03.2000 |
| FORD | Transit 2.5 TD | [4GF] | 06.1994-03.2000 |
| FORD | Transit 2.5 TD | [4GF] | 08.1994-03.2000 |
| FORD | Transit 2.5 TDi | [4EC] | 06.1994-03.2000 |
Reference Information
CAL25102RS ANM35589X 94GB10K359AO 1668894 924FX10300AA 924FX10300AB R894X10300AA 94GB10K359AB CAL25102 94GB10K359AC RAA14470 28-3503 STX100136 24374 RV94GB10300BB ALL0719 54022495 CA719IR 111623 4362258 954F10K359 SA439 924FX10K359AA R924F10300AA 954F10K359AA ALT3620 CAL25102AS 5030668 20105201 30719RIL 6553467 30719RI R924X10300AA ALT4152 R924X10300AB 92AF10300AB R954F10K359AA V94GB10300BB V94GB10K359AC V94GB10K359AB 924X-10300-AB R954F10300AA V94GB10K359AD 7197314 STX100328R 954F-10300-AA D924F10K359AB 437390 54022394E 924F10K359AA 954F10K300AA 54022394D 54022394A 5027810 STX100178R 54022394B 954F10K300AB 924FX10K359 54022394 1406068 V94GB10300AA 54022689A SA339 1406105 AEA1261 6593477 EGL1260R 1406060 SA453 STX100328 115890 R924X-10300-AB STX100447 914F10300AA 864F10K359FE 23681N 864F10K359FD 210210 6983802 94GB10300BB 894X10300AA 54022689 7302659 56294 924X10300AB STA0180R 864FX10K359FE ALT16016 A4001 924F-10K359-AB LRA2738 STX100178 914F-10300-AA 894X10300AE 954F-10K359-AB D954F10K359AA DV94GB10K359AC RV946B10300BB CAL25102ES 924X10K359AA A127-70 20110161WP LRA02738 924F-10300-AB 924F-10300-AA 924F10300AB 924F10300AA 20110161 DRA3369 54022495E 54022495D 54022495A 54022495B ALTL228 54022575 LRB161 CAL25102OS 89213416 DA4479 2025102 R894X-10300-AA CAL25102GS A12LU1189A2 5027848 8EL730017-001 1516401R 5029904 STX100762 5029902 UD19438A 924FX-10300-AA 924FX-10300-AB DV94GB110K359AD DV94GB110K359ACVideo/Publications
