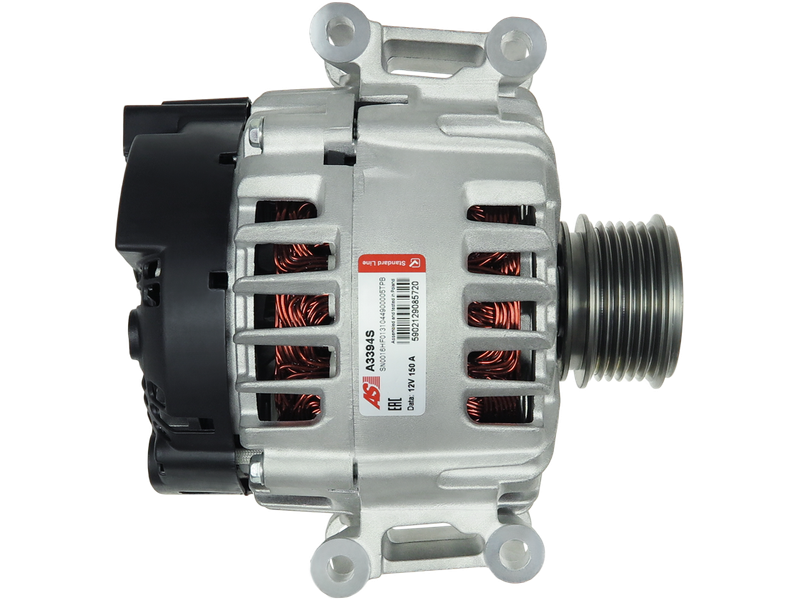

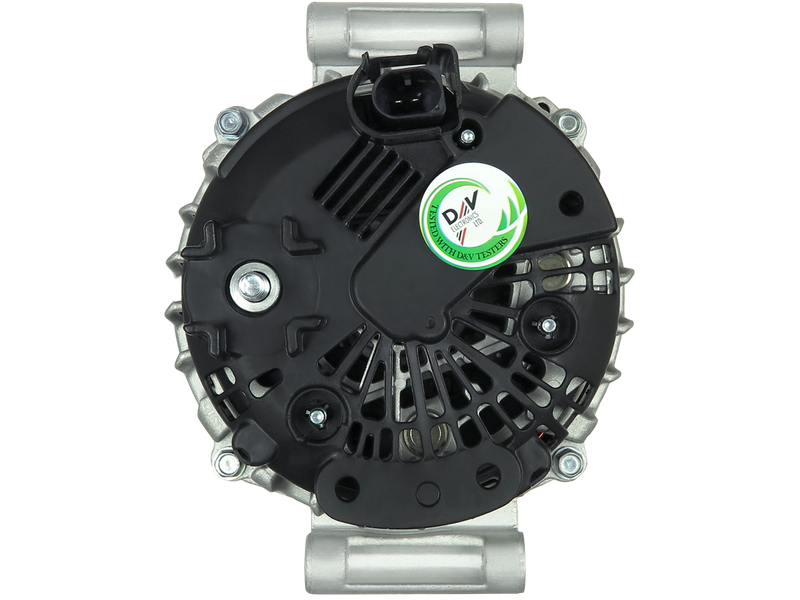

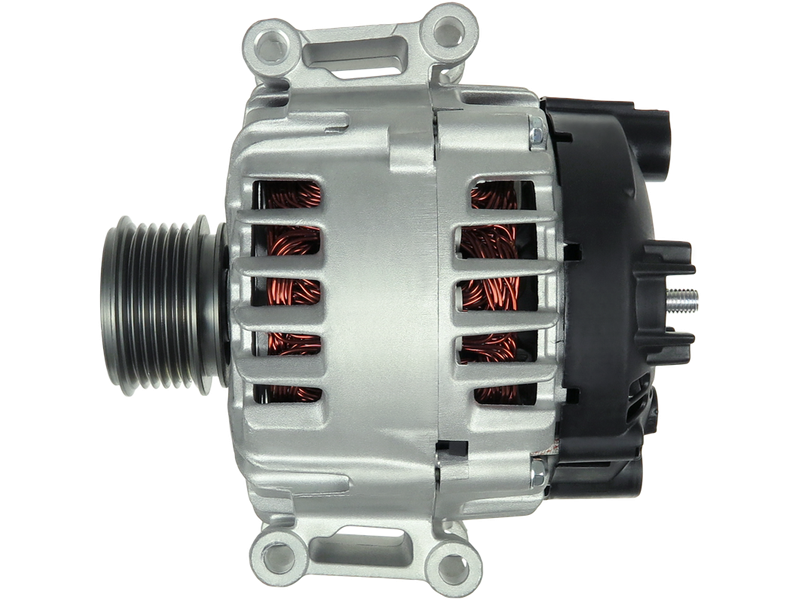

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 687.60 including GST
NZ$ 597.91 excluding GST
or four payments of $171.90
with
Learn More
each
A3394S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
06B903016AC 06B903016Q 06B903016QX 06D903016 06D903016X 0986044910 11070N 11070R 116172 2015481 205.527.150 210546 28-4734 301769RI 301769RIV 437468 4644 90-22-5549 90-22-5549N ALT14162 CAL15481 CAL15481AS CAL15481ES CAL15481GS CAL15481OS CAL15481RS LRA02256 TG15C065 UD14868ASpecifications
| Amp | 150 A |
| Diameter (D.1) | 9.5 mm |
| Diameter (D.2) | 9.5 mm |
| Diameter (D.3) | 9.5 mm |
| Diameter (D.4) | 9.5 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 30.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 1.6 | [ADP] | 11.1994-09.2001 |
| AUDI | A4 1.6 | [ADP] | 11.1994-10.2000 |
| AUDI | A4 1.6 | [AHL] | 11.1994-09.2001 |
| AUDI | A4 1.6 | [AHL] | 11.1994-10.2000 |
| AUDI | A4 1.6 | [ALZ] | 07.2000-09.2001 |
| AUDI | A4 1.6 | [ALZ] | 07.2000-11.2000 |
| AUDI | A4 1.6 | [ALZ] | 09.2001-12.2004 |
| AUDI | A4 1.6 | [ALZ] | 11.2000-12.2004 |
| AUDI | A4 1.6 | [ALZ] | 11.2004-06.2008 |
| AUDI | A4 1.6 | [ANA] | 11.1994-09.2001 |
| AUDI | A4 1.6 | [ANA] | 11.1994-10.2000 |
| AUDI | A4 1.6 | [ARM] | 11.1994-09.2001 |
| AUDI | A4 1.6 | [ARM] | 11.1994-10.2000 |
| AUDI | A4 1.8 | [ADR] | 02.1996-09.2001 |
| AUDI | A4 1.8 | [ADR] | 11.1994-11.2000 |
| AUDI | A4 1.8 | [APT] | 02.1996-09.2001 |
| AUDI | A4 1.8 | [APT] | 11.1994-11.2000 |
| AUDI | A4 1.8 | [ARG] | 02.1996-09.2001 |
| AUDI | A4 1.8 | [ARG] | 11.1994-11.2000 |
| AUDI | A4 1.8 | [AVV] | 02.1996-09.2001 |
| AUDI | A4 1.8 | [AVV] | 11.1994-11.2000 |
| AUDI | A4 1.8 Quattro | [ADR] | 01.1995-11.2000 |
| AUDI | A4 1.8 Quattro | [ADR] | 01.1996-09.2001 |
| AUDI | A4 1.8 Quattro | [APT] | 01.1995-11.2000 |
| AUDI | A4 1.8 Quattro | [APT] | 01.1996-09.2001 |
| AUDI | A4 1.8 Quattro | [ARG] | 01.1995-11.2000 |
| AUDI | A4 1.8 Quattro | [ARG] | 01.1996-09.2001 |
| AUDI | A4 1.8 T | [AVJ] | 09.2001-07.2002 |
| AUDI | A4 1.8 T | [AVJ] | 11.2000-07.2002 |
| AUDI | A4 1.8 T | [BEX] | 11.2002-12.2004 |
| AUDI | A4 1.8 T | [BFB] | 07.2002-03.2009 |
| AUDI | A4 1.8 T | [BFB] | 07.2002-12.2004 |
| AUDI | A4 1.8 T | [BFB] | 11.2004-06.2008 |
| AUDI | A4 1.8 T Quattro | [AVJ] | 09.2001-07.2002 |
| AUDI | A4 1.8 T Quattro | [AVJ] | 11.2000-07.2002 |
| AUDI | A4 1.8 T Quattro | [BEX] | 11.2002-12.2004 |
| AUDI | A4 1.8 T Quattro | [BFB] | 05.2003-03.2009 |
| AUDI | A4 1.8 T Quattro | [BFB] | 07.2002-12.2004 |
| AUDI | A4 1.8 T Quattro | [BFB] | 11.2004-06.2008 |
| AUDI | A4 1.9 TDi | [BKE] | 11.2004-06.2008 |
| AUDI | A4 1.9 TDi | [BRB] | 11.2004-06.2008 |
| AUDI | A4 2.0 | [ALT] | 09.2001-12.2004 |
| AUDI | A4 2.0 | [ALT] | 09.2004-12.2005 |
| AUDI | A4 2.0 | [ALT] | 11.2000-12.2004 |
| AUDI | A4 2.0 | [ALT] | 11.2004-06.2008 |
| AUDI | A4 2.0 | [BPJ] | 11.2004-06.2008 |
| AUDI | A4 2.0 | [BYK] | 11.2004-06.2008 |
| AUDI | A4 2.0 FSi | [AWA] | 07.2002-12.2004 |
| AUDI | A4 2.0 TDi | [BNA] | 11.2004-06.2008 |
| AUDI | A4 2.0 TDi | [BRF] | 11.2004-06.2008 |
| AUDI | A4 2.0 TDi | [BVF] | 11.2005-11.2006 |
| AUDI | A4 2.0 TDi 16V | [BLB] | 11.2004-06.2008 |
| AUDI | A4 2.0 TDi 16V | [BRE] | 11.2004-06.2008 |
| AUDI | A4 2.0 TFSi | [BGB] | 11.2004-06.2008 |
| AUDI | A4 2.0 TFSi | [BPJ] | 10.2006-06.2008 |
| AUDI | A4 2.0 TFSi | [BUL] | 06.2005-06.2008 |
| AUDI | A4 2.0 TFSi | [BWE] | 11.2004-06.2008 |
| AUDI | A4 2.0 TFSi | [BYK] | 10.2006-06.2008 |
| AUDI | A4 2.0 TFSi 16V | [BWE] | 01.2006-03.2009 |
| AUDI | A4 2.0 TFSi Quattro | [BGB] | 11.2004-06.2008 |
| AUDI | A4 2.0 TFSi Quattro | [BUL] | 06.2005-06.2008 |
| AUDI | A4 2.0 TFSi Quattro | [BWE] | 11.2004-06.2008 |
| AUDI | A4 2.0 TFSi Quattro | [BWT] | 11.2004-06.2008 |
| AUDI | A4 2.7 TDi | [BPP] | 01.2006-06.2008 |
| AUDI | A4 2.7 TDi | [BSG] | 11.2005-03.2008 |
| AUDI | A4 2.7 TDi | [BSG] | 11.2005-06.2008 |
| AUDI | A4 3.0 TDi Quattro | [ASB] | 01.2006-06.2008 |
| AUDI | A6 2.0 | [ALT] | 08.2001-01.2005 |
Reference Information
ALTS313 20179184OE 6D903016 2015481.1 CGB-84734 8EL012428-761 STX100808 20179184BN 2543313 CA1769IR 205.527.150.010 8EL738164-001 ALT174810 SB255 2542687A 2543313D DRB4910 4644 210546 116172 2015481 301769RIV 06B903016AC PRAS313V 32046180 ALT192CP 9212685 57152 06B903016QX 06D903016 CAL15481GS LRA2256 6B903016AC 301769RI 11.1769 205.527.150.500 06B903019G EAA-221484 6B903016QX 9044910 AL0825X 6D903016X L06D903016 6B903016Q RAA25021 0986044917 TG15C065 2542687 LRA02256 ALTS313V 06B903016Q 9.4439E+11 28-4734 ALT0087 ALT174810A SB039 439498 0986044910 06B903019GX 89212685 441916 11070N CAL15481AS ALT14162 6.3180.9 STX100808R A12BH0741A2 0124615009 TG15C017 AEC1769 205.527.150.004 06D903016X UD14868A 06B603016Q 437468 AL0825N PRAS313Video/Publications
